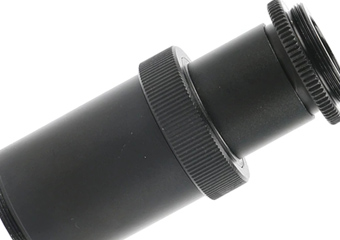

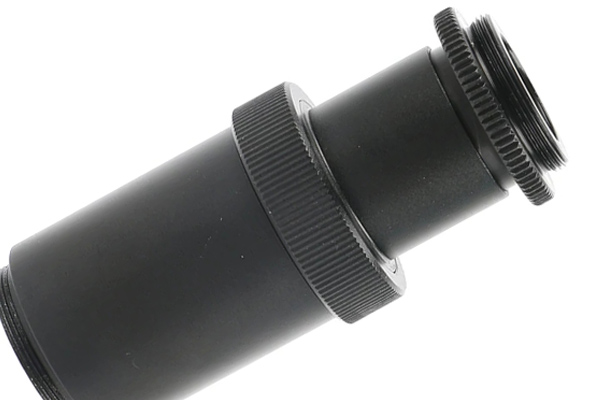

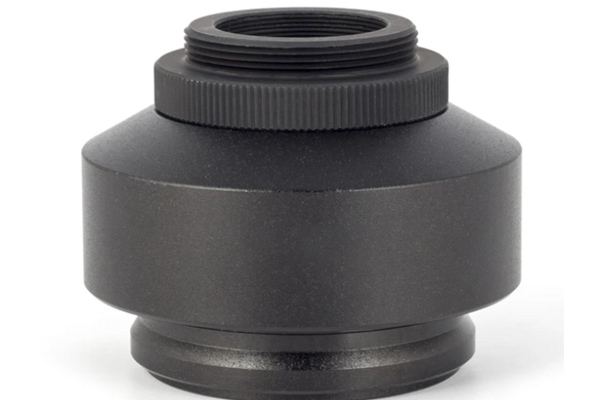

Custom CNC Aluminum CCD Camera and Digital Eyepiece Microscope Adapter

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

1. What is CNC machining, and how is it used for CCD camera and digital eyepiece microscope adapters?

CNC (Computer Numerical Control) machining is a precision manufacturing process where automated machines cut and shape materials, such as aluminum, based on a digital design. For CCD camera and digital eyepiece microscope adapters, CNC machining ensures high accuracy, precise alignment, and tight tolerances to ensure a secure and stable fit between the camera, eyepiece, and microscope.

2. Why is aluminum commonly used for CCD camera and digital eyepiece microscope adapters?

Aluminum is ideal for adapters due to its:

Lightweight: Reduces strain on delicate optical systems and makes it easier to handle.

Durability: Strong enough to hold components securely.

Corrosion resistance: Essential for long-term use in various laboratory and industrial environments.

Thermal conductivity: Helps dissipate heat generated by electronic components, maintaining stability during use.

Machinability: Allows for creating intricate designs and precise fits required for optical alignment.

3. Can custom designs be applied to CNC-machined aluminum microscope adapters?

Yes, CNC machining allows for full customization. You can specify adapter dimensions, mounting mechanisms, thread sizes, and other features such as lens compatibility, optical path optimization, and even cable management. This ensures the adapter meets the unique requirements of different CCD cameras and microscopes.

4. What surface finishes are available for CNC-machined aluminum microscope adapters?

Aluminum adapters can be finished in various ways to enhance appearance and functionality, including:

Anodizing: Increases corrosion resistance and can add color coding for different adapters.

Polishing: Provides a smooth, shiny surface, reducing friction during assembly.

Powder coating: Adds a durable, colored finish for extra protection against wear and scratches.

Bead blasting: Creates a matte, non-reflective surface to minimize light reflection and glare, which is important in optical applications.

5. What tolerances can be achieved for CNC-machined aluminum CCD camera and microscope adapters?

CNC machining can achieve very tight tolerances, typically within ±0.01 mm or better. This level of precision ensures perfect alignment between the camera, eyepiece, and microscope, which is crucial for maintaining image quality and optical performance.

6. How durable are CNC-machined aluminum adapters for CCD cameras and microscopes?

CNC-machined aluminum adapters are highly durable, especially when surface-treated with anodizing or powder coating. These finishes improve resistance to wear, corrosion, and environmental factors, ensuring long-lasting use in both indoor and outdoor settings.

7. Can prototypes be made before full production of custom adapters?

Yes, CNC machining services often offer prototyping. This allows you to test the fit, alignment, and overall performance of the adapter with the camera and microscope before committing to full production, ensuring it meets your specific needs.

8. What information should be provided to get a quote for custom CNC aluminum microscope adapters?

To get an accurate quote, you should provide:

CAD drawings or detailed design specifications.

Material requirements, specifying the type of aluminum.

Desired surface finish (anodizing, polishing, powder coating, etc.).

Quantity required.

Any specific features like thread sizes, locking mechanisms, or mounting points for different microscopes and cameras.

9. What are the advantages of using CNC machining for CCD camera and digital eyepiece microscope adapters?

Precision: CNC machining ensures tight tolerances, allowing for perfect alignment between the camera and optical components.

Customization: CNC allows for creating unique designs tailored to specific microscope and camera combinations.

Durability: Aluminum adapters are strong, resistant to wear, and maintain their function over time.

Thermal management: Aluminum’s ability to dissipate heat helps protect sensitive optical and electronic components during extended use.

10. What is the typical lead time for custom CNC aluminum microscope adapters?

Lead times depend on the complexity of the design, order volume, and finishing processes. Typically, lead times range from 2 to 6 weeks after the design is approved, with prototypes often taking 1 to 2 weeks.
