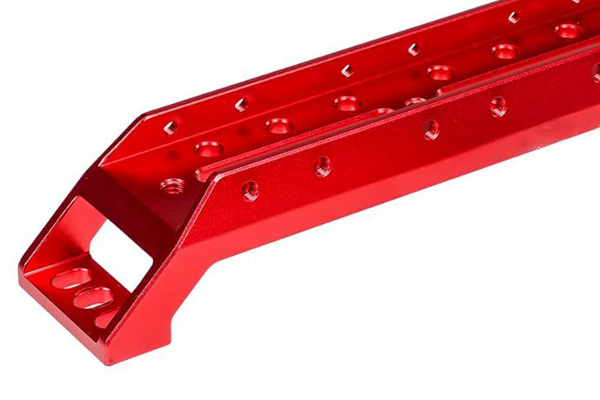

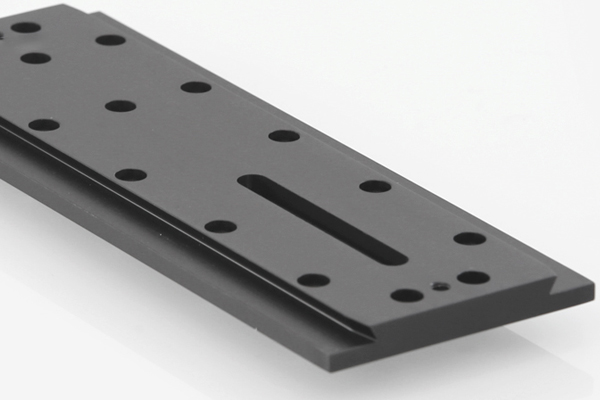

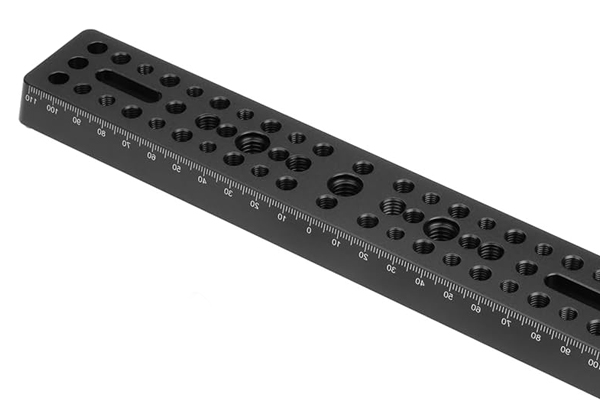

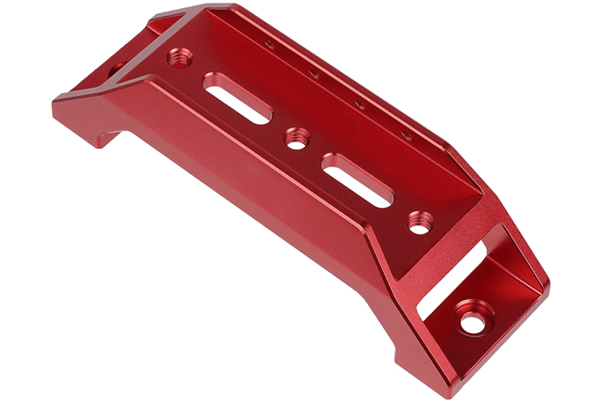

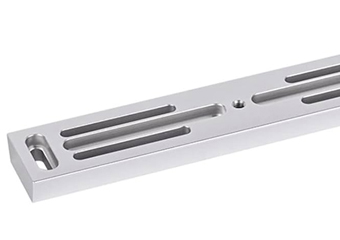

Custom CNC Aluminum Dovetail Plate Handle Bar

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

1. What is CNC machining, and how is it applied to aluminum dovetail plate handle bars?

CNC (Computer Numerical Control) machining is a precise manufacturing process that uses computer-controlled machines to shape and cut materials like aluminum. For dovetail plate handle bars, CNC machining ensures accurate dimensions, tight tolerances, and smooth finishes, which are essential for proper assembly and secure fitting.

2. Why is aluminum commonly used for dovetail plate handle bars?

Aluminum is widely used for dovetail plate handle bars due to its:

1. Lightweight: Easy to handle and mount.
2. Durability: Strong enough to support structural components while maintaining low weight.
3. Corrosion resistance: Ensures long-term performance in various environments.
4. Machinability: Easily allows for complex designs such as dovetail joints that require precision.
5. Cost-effectiveness: Offers a balance of performance and affordability.

3. What are dovetail plate handle bars, and what are their typical applications?

Dovetail plate handle bars are precision components that feature dovetail grooves for quick and secure mounting of other components. They are typically used in industries such as photography, optics, and machining, where tools and equipment need to be mounted and adjusted easily. They are also commonly used in rigs, mounts, or accessories for cameras, telescopes, and CNC machines.

4. Can custom designs be applied to CNC-machined aluminum dovetail plate handle bars?

Yes, CNC machining allows for full customization of the handle bars. Customization can include the dimensions of the dovetail grooves, the length and width of the plate, and ergonomic handle designs. Features such as mounting holes, slots, and threading can be added based on specific needs.

5. What surface finishes are available for CNC-machined aluminum dovetail plates and handle bars?

Aluminum dovetail plate handle bars can be finished with a variety of treatments, including:

1. Anodizing: Increases corrosion resistance and allows for color options like black, red, or blue.
2. Polishing: Provides a smooth, shiny surface, enhancing the appearance of the part.
3. Bead blasting: Creates a matte, textured finish that is ideal for applications where glare needs to be minimized.
4. Powder coating: Adds durability and color for additional protection against wear and corrosion.

6. What tolerances can CNC machining achieve for aluminum dovetail plate handle bars?

CNC machining can achieve tight tolerances, typically within ±0.01 mm. This level of precision ensures that the dovetail joints fit securely and that the handle bars work smoothly with other components like plates, mounts, or rails.

7. How durable are CNC-machined aluminum dovetail plate handle bars?

CNC-machined aluminum handle bars are highly durable, particularly when treated with protective finishes like anodizing or powder coating. They can withstand frequent assembly and disassembly, and they are resistant to environmental factors such as corrosion, wear, and impact, ensuring long-term use in demanding applications.

8. Can prototypes be created before full production of custom dovetail plate handle bars?

Yes, CNC machining services often offer prototyping. This allows you to test the fit, functionality, and strength of the handle bar and dovetail plate before committing to mass production. Prototyping ensures that the final design meets your specifications and performance requirements.

9. What information should be provided to get a quote for custom CNC aluminum dovetail plate handle bars?

To receive an accurate quote, you should provide:

1. CAD drawings or detailed design files with dimensions, tolerances, and features.
2. Material specifications, such as the aluminum alloy (e.g., 6061 or 7075).
3. Surface finish preferences (anodizing, polishing, powder coating, etc.).
4. Quantity required.
5. Any special design requirements, such as custom dovetail dimensions, mounting holes, or ergonomic handle designs.

10. What is the typical lead time for custom CNC aluminum dovetail plate handle bars?

Lead times vary depending on design complexity, quantity, and the required finishing processes. Typically, lead times range from 2 to 6 weeks after the design is approved. Prototypes may be produced faster, usually within 1 to 2 weeks.
