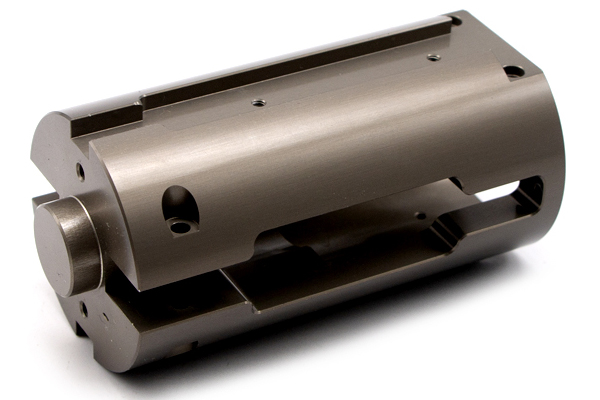

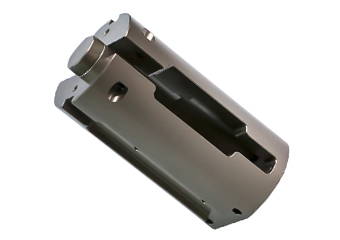

Custom Aluminum Hard Anodizing CNC Machining Parts

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

1. What is CNC machining, and how is it used for aluminum parts with hard anodizing?

CNC (Computer Numerical Control) machining is a manufacturing process where automated machines cut and shape materials, such as aluminum, based on a precise digital design. After machining, aluminum parts can undergo hard anodizing, a surface treatment that increases corrosion resistance, wear resistance, and surface hardness. This process is often used to enhance the durability and lifespan of aluminum components.

2. What is hard anodizing, and why is it applied to aluminum CNC parts?

Hard anodizing (also known as Type III anodizing) is an electrochemical process that creates a thick, hard oxide layer on the surface of aluminum parts. It is typically used for components that require:

1. High wear resistance: The hard anodized layer is much harder than regular anodizing, making the part more resistant to abrasion.
2. Corrosion resistance: The thick oxide layer provides enhanced protection against environmental factors.
3. Heat resistance: Hard anodizing increases the part’s ability to withstand high temperatures.
4. Electrical insulation: The anodized surface provides electrical insulation properties.

3. Can custom designs be created for CNC-machined aluminum parts with hard anodizing?

Yes, CNC machining allows for highly customized designs. You can create parts with complex geometries, specific tolerances, mounting holes, threading, and other intricate features. After the machining process, the parts can undergo hard anodizing to enhance their durability and appearance.

4. What surface finishes are available after hard anodizing CNC-machined aluminum parts?

Hard anodizing typically results in a matte, durable surface. While hard anodizing provides a thick, protective layer, the finish is not as decorative as regular anodizing (Type II), but it can still be dyed in dark colors, such as black or gray. The surface can also be polished or bead blasted before anodizing to achieve a desired texture or appearance.

5. What tolerances can CNC machining achieve for hard anodized aluminum parts?

CNC machining can achieve very tight tolerances, typically within ±0.01 mm or better, depending on the complexity of the design. However, hard anodizing adds a layer of thickness (typically 25 to 50 microns or more), which should be considered when calculating final tolerances. The growth and penetration of the anodized layer must be accounted for in the design process.

6. How durable are CNC-machined aluminum parts after hard anodizing?

Hard anodized aluminum parts are extremely durable. The anodized layer significantly increases surface hardness, making the parts resistant to scratches, wear, and corrosion. This makes them suitable for high-performance applications, such as aerospace, automotive, and industrial machinery.

7. Can prototypes be made before full production of hard anodized CNC aluminum parts?

Yes, CNC machining services typically offer the option to produce prototypes before full-scale production. Prototyping allows you to evaluate the design, fit, and functionality of the part before committing to hard anodizing and mass production.

8. What information should be provided to get a quote for custom CNC aluminum hard anodized parts?

To receive an accurate quote, you should provide:

1. CAD drawings or detailed design files specifying dimensions and features.
2. Material preferences, such as the type of aluminum alloy (e.g., 6061, 7075).
3. Surface finish preferences, including the hard anodizing process and any pre-anodizing treatments (e.g., bead blasting or polishing).
4. Quantity required for production.
5. Final application requirements, such as corrosion resistance, wear resistance, or electrical insulation.

9. What are the benefits of hard anodizing CNC-machined aluminum parts?

1. Increased wear resistance: Hard anodizing provides a thick, hard surface that can withstand high levels of abrasion and wear.
2. Enhanced corrosion resistance: The anodized layer protects the part from environmental damage, especially in harsh conditions.
3. Improved surface hardness: Hard anodizing significantly increases surface hardness, often compared to steel.
4. Heat resistance: Hard anodized parts can better withstand high temperatures without degrading.
5. Electrical insulation: The anodized layer acts as a natural insulator, useful in electronic or high-voltage applications.

10. What is the typical lead time for custom CNC aluminum hard anodized parts?

Lead times depend on the complexity of the design, the number of parts, and the specific hard anodizing process. Typically, production lead times range from 2 to 6 weeks after design approval. Prototyping and initial machining may take less time, often within 1 to 2 weeks.
