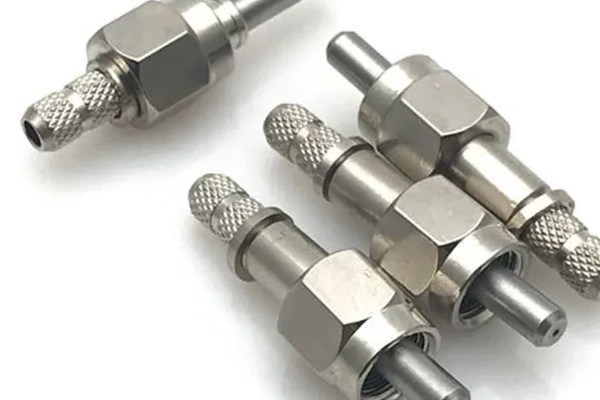

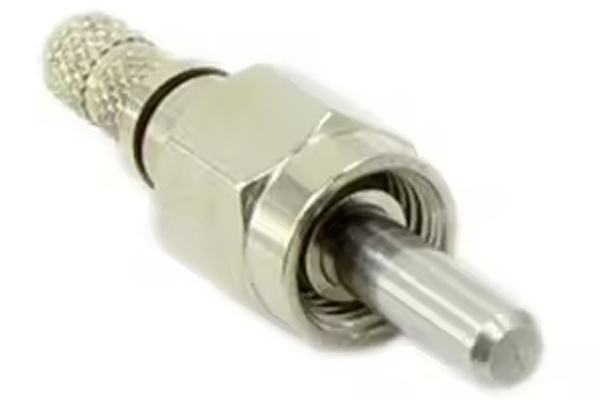

Custom CNC Aluminum Spectrometer Fiber Jumper Connector

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

1. What is CNC machining, and how is it applied to fiber jumper connectors?

CNC (Computer Numerical Control) machining is a precise manufacturing method where computer-controlled machines shape and cut materials such as aluminum. For fiber jumper connectors used in spectrometers, CNC machining ensures highly accurate dimensions and tight tolerances, which are essential for aligning optical fibers correctly.

2. Why is aluminum commonly used for spectrometer fiber jumper connectors?

Aluminum is ideal for fiber jumper connectors due to its:

Lightweight: Reduces the overall weight of the connectors, making them suitable for portable spectrometer systems.

Corrosion resistance: Ensures longevity in various environments, including laboratories and industrial settings.

Machinability: Allows for precise and complex designs required for optical alignment.

Thermal conductivity: Helps dissipate heat, ensuring stable operation in high-performance spectrometers.

3. Can custom designs be applied to CNC-machined aluminum fiber jumper connectors?

Yes, CNC machining allows for full customization. You can specify unique designs to fit different fiber diameters, connection types, or specific optical alignment requirements. Custom features like cable management, thread patterns, or ergonomic grips can also be integrated.

4. What surface finishes are available for CNC aluminum fiber jumper connectors?

Aluminum fiber jumper connectors can be finished in various ways, such as:

Anodizing: Provides enhanced corrosion resistance and can be color-coded for easier identification.

Polishing: Offers a smooth, shiny finish that reduces friction and improves aesthetics.

Powder coating: Adds a durable and protective colored finish.

Bead blasting: Creates a matte, textured surface for better grip or reduced glare.

5. What tolerances can be achieved for CNC-machined aluminum fiber jumper connectors?

CNC machining can achieve extremely tight tolerances, often within ±0.005 mm. This level of precision is crucial for fiber optic connectors, where alignment and fit need to be exact to avoid signal loss or performance issues in spectrometer applications.

6. How durable are CNC-machined aluminum fiber jumper connectors?

CNC-machined aluminum connectors are highly durable. When treated with anodizing or other surface finishes, they resist corrosion, wear, and environmental damage, making them suitable for long-term use in harsh conditions, including outdoor and laboratory environments.

7. Can prototypes be produced before full production of custom connectors?

Yes, CNC machining services typically offer prototyping. Prototyping allows you to test the functionality, fit, and alignment of the fiber jumper connector before committing to large-scale production, ensuring that it meets the necessary optical performance standards.

8. What information should be provided to get a quote for custom CNC aluminum fiber jumper connectors?

To get an accurate quote, you should provide:

CAD drawings or detailed design files with dimensions and specific features.

Material preferences, such as the grade of aluminum.

Desired surface finish (anodized, polished, etc.).

Quantity required for production.

Any special features, such as custom threading, alignment marks, or mounting options.

9. What are the advantages of using CNC machining for aluminum fiber jumper connectors?

Precision: Ensures perfect alignment and tight tolerances, which are crucial for optical applications.

Durability: Aluminum offers excellent resistance to wear and corrosion, especially with protective finishes.

Customization: CNC allows for tailored designs to fit specific connector standards or unique spectrometer setups.

Thermal management: Aluminum’s heat dissipation properties help maintain the stability of the optical signal.

10. What is the typical lead time for custom CNC aluminum fiber jumper connectors?

Lead times vary depending on design complexity, order volume, and finishing requirements. Generally, the lead time for custom CNC aluminum fiber jumper connectors ranges from 2 to 6 weeks after the design is finalized and approved. Prototypes can often be produced faster, typically within 1 to 2 weeks.
