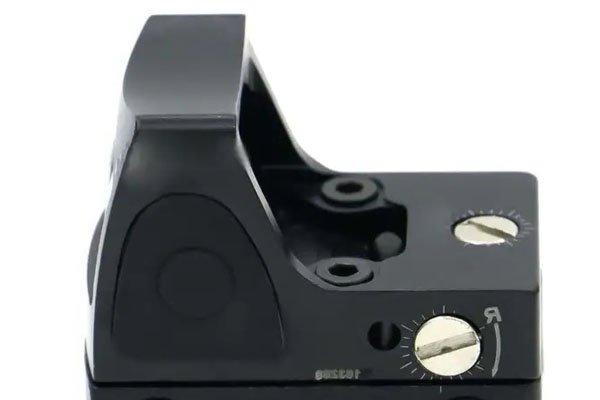

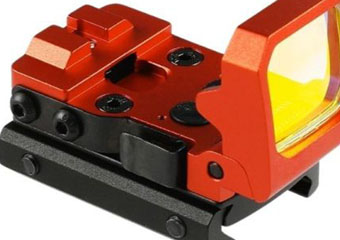

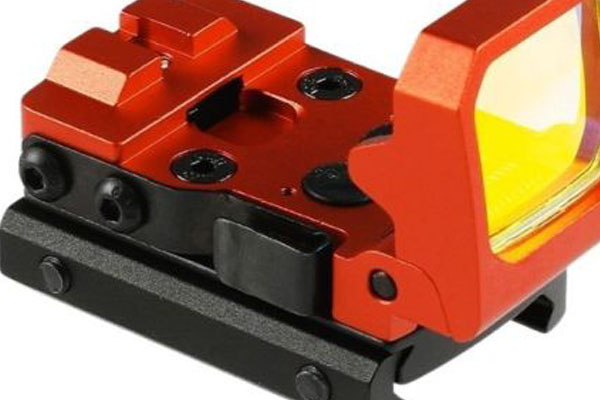

Custom Aluminum CNC Optical Red Green Dot Sight Footprint

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

1. What is a red/green dot sight footprint, and why is CNC machining used for it?

A red/green dot sight footprint refers to the mounting base or interface used to attach optical sights to firearms or other platforms. CNC (Computer Numerical Control) machining is used to produce these footprints because it ensures precision, durability, and consistency. CNC machining can achieve tight tolerances, which are critical for proper alignment and stability of the optic.

2. Why is aluminum used for red/green dot sight footprints?

Aluminum is widely used for sight footprints because:

Lightweight: It minimizes added weight to the firearm or device.

Durability: Strong enough to withstand recoil and rough handling.

Corrosion Resistance: Ideal for outdoor use and harsh environments.

Heat Dissipation: Helps manage heat from the optics or firearm components.

3. Can I fully customize the footprint design for my optic?

Yes, CNC machining allows for full customization of the footprint design. You can specify mounting hole patterns, shapes, thicknesses, and additional features like countersinks or slots. This ensures the footprint matches the specific optic and firearm or device it will be mounted on.

4. What types of aluminum are used for CNC red/green dot sight footprints?

The most commonly used aluminum alloys for footprints include:

6061 Aluminum: Known for its strength, corrosion resistance, and good machinability.

7075 Aluminum: A stronger, more durable alloy used in high-performance applications, though more expensive and slightly more difficult to machine. Both materials are suitable for long-lasting, high-performance sight footprints.

5. What surface finishes are available for custom aluminum sight footprints?

Several surface finishes can be applied to improve appearance and durability:

Anodizing: Provides a protective, hard, and often colored surface to improve corrosion resistance.

Powder Coating: Offers a thick, protective layer available in various colors.

Hardcoat Anodizing: A tougher, thicker anodized layer that provides extra protection for heavy-duty use.

Bead Blasting: A matte finish that reduces glare and enhances grip.

6. How precise are CNC-machined footprints for optics?

CNC machining allows for very high precision, typically within ±0.01 mm. This is crucial for ensuring the proper fit and alignment of the red/green dot sight, especially for firearms where accuracy is critical.

7. What is the typical lead time for custom CNC red/green dot sight footprint machining?

Lead times depend on the complexity of the design, the order volume, and any surface treatments requested. Generally, production takes 1 to 3 weeks, with additional time for custom finishes such as anodizing or powder coating.

8. Can I add custom logos or text to the footprint?

Yes, CNC machining allows for engraving of custom logos, brand names, or serial numbers on the footprint. This adds a personalized touch and can also serve practical purposes like labeling or identification.

9. How do I ensure the footprint will fit my specific optic and firearm?

You’ll need to provide detailed CAD drawings or specifications of both the optic and the mounting platform (firearm or other device). Most manufacturers offer design consultations to ensure the footprint is tailored to the exact dimensions and mounting requirements of your optic system.

10. What factors influence the cost of custom aluminum CNC red/green dot sight footprints?

Several factors affect the cost:

Material Choice: Higher-grade aluminum alloys, like 7075, are more expensive.

Design Complexity: Complex designs or additional features such as threaded holes or counterbores add to the machining time and cost.

Surface Finishing: Options like anodizing, powder coating, or engraving add to the overall cost.

Order Quantity: Larger orders tend to reduce the per-unit cost due to economies of scale, while small orders may incur higher costs due to setup and tooling.
