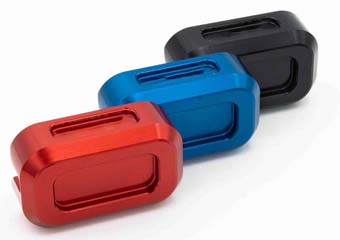

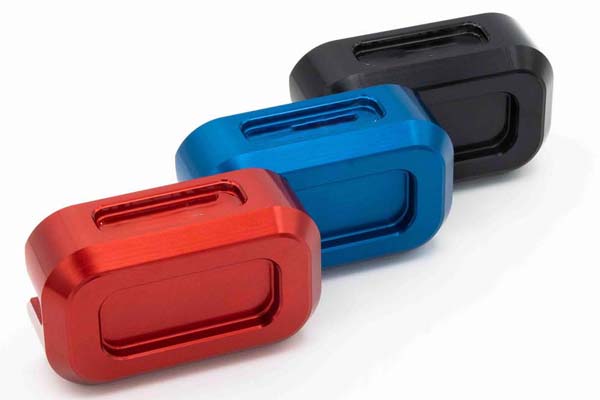

Custom CNC Aluminum Grooved Magnetic Jack Pad Puck Pinch Weld Frame Rail Adapter

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

What is a grooved magnetic jack pad puck used for?

A grooved magnetic jack pad puck is designed to securely grip the pinch weld or frame rail of a vehicle during lifting, preventing damage to the undercarriage while ensuring a stable and safe lift.

What materials are used in manufacturing the jack pad pucks?

Our jack pad pucks are made from high-quality aluminum alloys, specifically 6061-T6, known for its excellent strength-to-weight ratio, corrosion resistance, and long-lasting durability.

How does the magnetic feature work?

The integrated magnet ensures that the jack pad puck stays securely in place on the vehicle’s frame rail or pinch weld, offering extra stability during lifting. The magnet can be easily removed after use without leaving any residue or damage.

What are the benefits of the grooved design?

The grooved design helps to prevent slippage by providing better traction between the jack pad puck and the vehicle’s frame. It also helps to distribute the lifting force evenly across the frame rail, reducing the risk of deformation or damage.

Are these jack pad pucks compatible with all vehicles?

Yes, our custom CNC aluminum jack pad pucks are designed to be universal and compatible with most vehicles that feature pinch welds or frame rails. However, customization can be done to accommodate specific vehicle models or lifting requirements.

How is the jack pad puck attached to the vehicle?

The jack pad puck is magnetically attached to the pinch weld or frame rail of the vehicle. The strong magnet ensures a secure and stable grip, preventing the pad from sliding off during the lifting process. This makes it easy to position the pad quickly and efficiently.

Can these jack pad pucks be used with any type of jack?

Yes, these jack pad pucks are compatible with a wide range of jacks, including hydraulic, scissor, and floor jacks. The puck's design ensures it fits securely under the jack’s lifting platform, providing stability regardless of the jack type.

How do I clean and maintain the aluminum jack pad puck?

Cleaning is easy; simply wipe the jack pad puck with a damp cloth to remove any debris or grease. For better performance and longevity, you can use a mild cleaner. Avoid abrasive materials that could scratch the surface. Regularly check for signs of wear or damage and replace if necessary.

What is the weight capacity of the aluminum jack pad puck?

The jack pad puck is designed to withstand a significant weight range, typically up to 3-4 tons depending on the model. It is suitable for most passenger vehicles, SUVs, and light trucks. For higher capacities, we offer custom solutions tailored to specific lifting requirements.

Is customization available for these jack pad pucks?

Yes, we offer custom CNC machining services for jack pad pucks, including options for size, magnet strength, and grooved patterns. If you have specific needs based on vehicle type or usage, we can design a tailored solution to ensure optimal performance and fit.
