Published by VMT at Aug 01 2025 | Reading Time:About 10 minutes

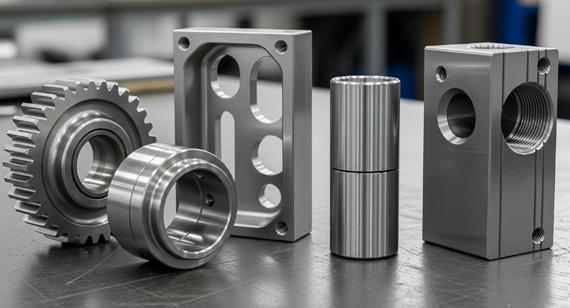

Selecting the right type of stainless steel for CNC machining projects can be confusing and overwhelming—especially when faced with complex terms like “austenitic” and “ferritic.” The wrong material choice can lead to poor corrosion resistance, machining difficulties, or even product failure. Fortunately, understanding the differences between austenitic and ferritic stainless steels is the key to unlocking optimal performance, durability, and cost-efficiency. In this article, we break down everything you need to know to confidently choose the right stainless steel for your application, ensuring you get the best results from your CNC machining services.
Austenitic stainless steel is non-magnetic, high in nickel, and highly corrosion-resistant, while ferritic stainless steel is magnetic, contains little to no nickel, and offers moderate corrosion resistance with better thermal conductivity. The key difference lies in their crystal structure, which affects weldability, formability, cost, and suitability for specific CNC machined parts.
Choosing between austenitic and ferritic stainless steel isn’t a one-size-fits-all decision. It depends on the demands of your application—such as corrosion resistance, cost, strength, and machinability. To guide your selection, we’ll explore the essential characteristics, differences, advantages, and CNC machining considerations for both stainless steel types.
Before diving into the technical details, it’s worth exploring how different stainless steels—like martensitic, duplex, or precipitation-hardened grades—fit into the broader landscape of stainless steel alloys. If you’re looking to learn more about these variations, be sure to check out our comparison articles on 304 vs. 316 stainless steel, 17-4 PH vs. 304, or 18/10 vs. 304 stainless steel to further refine your material choices.
Key Points
Austenitic stainless steel is the most widely used class of stainless steel, known for its exceptional corrosion resistance, high ductility, and excellent formability. It has a face-centered cubic (FCC) crystal structure, which remains stable at all temperatures, giving it non-magnetic properties in the annealed condition. This unique structure also allows austenitic stainless steel to maintain toughness even at extremely low or high temperatures, making it a preferred material for industries like food processing, medical equipment, marine, and chemical processing.
Chemically, austenitic stainless steels contain 16–26% chromium and 6–22% nickel, with some grades incorporating molybdenum, nitrogen, or manganese to enhance specific properties. The high nickel content is a key factor that provides superior corrosion resistance and prevents the steel from becoming magnetic. Popular grades include 304 stainless steel, 316 stainless steel, and 310 stainless steel, each tailored for different environments. For example, 316 stainless steel contains molybdenum for increased resistance to chlorides, making it ideal for marine applications.

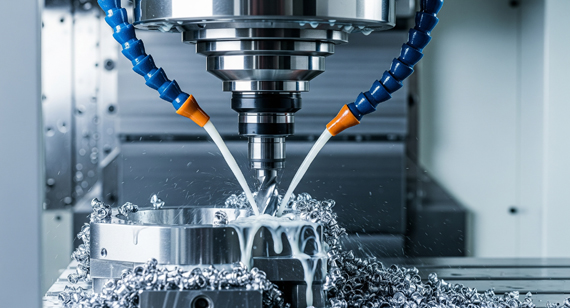

From a CNC machining perspective, austenitic stainless steel CNC machined parts require careful cutting strategies because the material work-hardens quickly under high-speed tooling. While it offers excellent corrosion resistance and durability, its higher nickel content also makes it more expensive than ferritic stainless steel. Applications often include medical implants, marine fasteners, kitchen equipment, heat exchangers, and chemical processing components, where both hygiene and long-term performance are critical.
Ferritic stainless steel is a type of stainless steel characterized by its body-centered cubic (BCC) crystal structure, which gives it magnetic properties and moderate corrosion resistance. Unlike austenitic stainless steels, ferritic grades contain high chromium content (typically 10.5–30%) but very low to no nickel, making them more affordable. This low nickel content also limits their ability to resist certain aggressive environments, but it provides excellent resistance to stress corrosion cracking and superior thermal conductivity.
Ferritic stainless steels generally exhibit good oxidation resistance, moderate corrosion resistance, and excellent resistance to chloride stress cracking, which makes them ideal for automotive exhaust systems, heat exchangers, industrial equipment, and architectural applications. Common grades include 409, 430, and 446 stainless steel, each with different balances of chromium and minor elements to suit specific environments. For example, 409 stainless steel is widely used in the automotive industry for mufflers and exhaust tubing due to its balance of cost-effectiveness and durability, while 430 stainless steel is common in kitchen appliances and decorative trim.
In CNC machining, ferritic stainless steel CNC machined parts are easier to process than austenitic parts because they work-harden less and are generally more stable during cutting. However, ferritic stainless steel is less ductile and can be more challenging to form or weld, often requiring specialized welding techniques to prevent brittleness. Its combination of lower cost, magnetic properties, and thermal stability makes ferritic stainless steel a popular choice for components in automotive, industrial, and architectural applications, where extreme corrosion resistance is not the primary requirement.

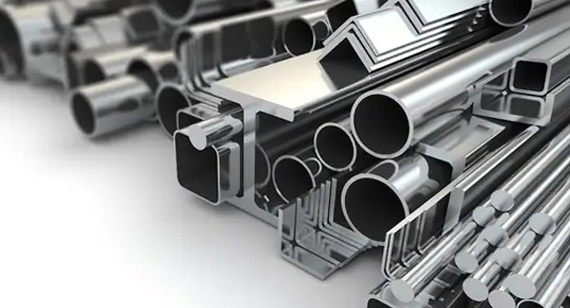

Stainless steel is a versatile and widely used material in industries ranging from automotive and aerospace to medical and food processing. Its popularity comes from its corrosion resistance, durability, and adaptability to various environments. However, stainless steel is not a single material—it is divided into multiple families based on crystal structure, chemical composition, and mechanical properties. The three primary categories are austenitic, ferritic, and martensitic stainless steels, each with distinct advantages and limitations. Understanding these differences is crucial for selecting the right material for CNC machining services, manufacturing, or product design.
Austenitic Stainless Steel
Austenitic stainless steels are the most common and widely used stainless steels, making up nearly 70% of all stainless steel production. They have a face-centered cubic (FCC) crystal structure, which remains stable at all temperatures, giving them non-magnetic properties and excellent toughness. Austenitic steels typically contain 16–26% chromium and 6–22% nickel, with optional additions of molybdenum, nitrogen, or manganese to enhance corrosion resistance and strength.
These steels offer excellent corrosion resistance, especially against atmospheric conditions and a wide range of chemicals. Popular grades include 304, 316, and 310 stainless steel, with 316 being especially resistant to chlorides for marine environments. Austenitic stainless steel CNC machined parts are widely used in medical devices, food equipment, marine fasteners, and chemical processing components. However, they tend to work-harden quickly during machining, requiring careful cutting speeds and tooling strategies.
Ferritic Stainless Steel
Ferritic stainless steels are magnetic, have a body-centered cubic (BCC) crystal structure, and contain 10.5–30% chromium with very low or no nickel. This makes them more cost-effective than austenitic steels, although they have moderate corrosion resistance. Their low nickel content improves thermal conductivity and resistance to stress corrosion cracking, making them suitable for high-temperature and industrial applications.
Common ferritic grades include 409, 430, and 446 stainless steel, with applications in automotive exhaust systems, kitchen appliances, and heat exchangers. Ferritic stainless steel CNC machined parts are easier to machine due to reduced work hardening, but they are less ductile and less weldable than austenitic steels.
Martensitic Stainless Steel
Martensitic stainless steels are known for high strength and hardness, achieved through heat treatment. They have a body-centered tetragonal (BCT) crystal structure after quenching and typically contain 11–18% chromium and 0.1–1.2% carbon, with little or no nickel. This composition gives them excellent wear resistance and moderate corrosion resistance, but they are more brittle and less corrosion-resistant than austenitic or ferritic steels.
Popular martensitic grades include 410, 420, and 440C stainless steel, commonly used in cutlery, surgical instruments, pump shafts, and industrial tools. For CNC machining, martensitic stainless steel CNC machined parts can achieve high precision and durability, but careful heat treatment is essential to optimize strength and reduce brittleness.
Here’s a clear, professional table comparing austenitic, ferritic, and martensitic stainless steels based on their key characteristics, suitable for your VMT CNC machining:
Type |
Crystal Structure |
Magnetism |
Chromium (Cr) |
Nickel (Ni) |
Carbon (C) |
Corrosion Resistance |
Strength & Hardness |
Weldability |
Machinability |
Typical Applications |
Austenitic |
Face-Centered Cubic (FCC) | Non-magnetic | 16–26% | 6–22% | ≤0.08% | Excellent | Moderate | Excellent | Fair (work-hardens quickly) | Food processing, marine, chemical, medical devices |
Ferritic |
Body-Centered Cubic (BCC) | Magnetic | 10.5–30% | 0–1% | ≤0.08% | Moderate | Moderate | Limited | Good (less work-hardening) | Automotive exhausts, heat exchangers, appliances |
Martensitic |
Body-Centered Tetragonal (BCT) | Magnetic | 11–18% | 0–2% | 0.1–1.2% | Moderate to low | High (hardenable) | Limited | Moderate (requires heat treatment) | Knives, surgical tools, pump shafts, industrial tools |
Austenitic stainless steels are the largest and most widely used family of stainless steels, recognized for their non-magnetic properties, high corrosion resistance, and excellent formability. These steels contain 16–26% chromium and 6–22% nickel, with optional additions of molybdenum, nitrogen, or manganese to enhance specific properties like chloride resistance or mechanical strength.
Austenitic stainless steels are divided into two main subgroups:
300 Series Austenitic Stainless Steels
This is the most common group of austenitic stainless steels and is highly versatile.
Typical Grades:
200 Series Austenitic Stainless Steels
A cost-effective alternative to the 300 series, where manganese replaces part of the nickel to reduce costs.
Typical Grades:
These austenitic grades are highly suitable for CNC machining services but require careful tooling and speed control due to their tendency to work-harden quickly. Applications for austenitic stainless steel CNC machined parts include:
Here is a clear and professional table listing the common types of austenitic stainless steels along with their chemical highlights, properties, and typical CNC machining applications.
Grade |
Series |
Key Alloying Elements |
Main Characteristics |
Typical Applications |
201 / 202 |
200 | 16–18% Cr, 3.5–7.5% Mn, low Ni | Cost-effective, moderate corrosion resistance | Cookware, appliances, decorative trim |
304 / 304L |
300 | 18–20% Cr, 8–12% Ni | Excellent corrosion resistance, general-purpose | Food equipment, sinks, medical devices, CNC machined parts |
310 / 310S |
300 | 24–26% Cr, 19–22% Ni | High-temperature resistance, oxidation resistance | Furnace parts, heat exchangers, high-temp CNC parts |
316 / 316L |
300 | 16–18% Cr, 10–14% Ni, 2–3% Mo | Superior chloride and pitting resistance | Marine components, chemical processing, CNC machined parts |
321 / 347 |
300 | 17–19% Cr, 9–13% Ni + Ti/Nb | Stabilized against carbide precipitation | Aerospace, exhaust systems, high-temp CNC components |
This table highlights:
Ferritic stainless steels are a family of stainless steels with a body-centered cubic (BCC) crystal structure, giving them magnetic properties, good thermal conductivity, and moderate corrosion resistance. Unlike austenitic stainless steels, ferritic steels contain 10.5–30% chromium and very little to no nickel, which makes them more cost-effective but generally less corrosion-resistant in highly aggressive environments.
Ferritic stainless steels are commonly divided into 400-series grades, which are widely used in automotive, industrial, and appliance applications due to their combination of affordability, oxidation resistance, and ease of machining.
Common Ferritic Stainless Steel Grades
Low Chromium Grades (10.5–14% Cr)
Standard Chromium Grades (16–18% Cr)
High Chromium Grades (18–30% Cr)
Ferritic stainless steels are easier to machine than austenitic steels because they work-harden less, making them suitable for ferritic stainless steel CNC machined parts in automotive, architectural, and industrial sectors. However, they have lower ductility and limited weldability, which must be considered during design and manufacturing.
Here’s a clear and professional table listing the common types of ferritic stainless steels, their key compositions, properties, and typical applications for CNC machining.
Grade |
Chromium (Cr) % |
Nickel (Ni) % |
Key Characteristics |
Typical Applications |
409 |
10.5–11.75 | ≤0.5 | Cost-effective, heat resistant, moderate corrosion | Automotive exhausts, mufflers, heat shields |
410L |
11.5–13.5 | ≤0.5 | Improved weldability, low carbon, moderate corrosion | Industrial structures, automotive tubing |
430 |
16–18 | ≤0.5 | Magnetic, good corrosion resistance, affordable | Kitchen appliances, decorative panels, CNC machined parts |
434 |
16–18 | ≤0.5 | Better pitting resistance (with Mo) | Sinks, food equipment, automotive trim |
442 |
18–23 | ≤0.5 | Higher oxidation resistance, improved durability | Heat exchangers, furnace components |
444 |
17.5–19.5 | ≤0.5 | High chloride resistance, stabilized with Ti/Nb | Hot-water tanks, solar heaters, marine equipment |
446 |
23–30 | ≤0.5 | Excellent high-temp and oxidation resistance | Furnace parts, combustion chambers, high-temp CNC machined parts |
This table helps readers quickly identify ferritic stainless steel grades, their composition ranges, properties, and CNC machining applications.
Choosing between austenitic and ferritic stainless steel depends largely on the specific requirements of your project, as each type excels in different areas. Neither is universally “better” than the other; instead, their strengths and weaknesses make them suitable for different applications, environments, and machining processes.
Austenitic stainless steel is generally preferred when high corrosion resistance, excellent toughness, and superior formability are critical. Its non-magnetic nature and ability to withstand extreme temperatures without losing strength make it ideal for demanding applications like chemical processing, marine environments, medical devices, and food industry equipment. However, this superior corrosion resistance and ductility come at a cost—both literally and in terms of machining complexity. Austenitic steels tend to work-harden quickly, making CNC machining more challenging and often more expensive due to slower cutting speeds and specialized tooling.
On the other hand, ferritic stainless steel offers better thermal conductivity, good resistance to stress corrosion cracking, and magnetic properties that are advantageous in certain industrial and automotive applications. It is more cost-effective because of its lower nickel content and generally easier to machine, as it doesn’t work-harden as quickly as austenitic steel. Ferritic stainless steel is well-suited for automotive exhaust systems, architectural panels, and heat exchangers, where moderate corrosion resistance is acceptable. However, ferritic steels tend to be less ductile and have poorer weldability compared to austenitic types, which can limit their use in applications requiring complex forming or extensive welding.
From a CNC machining perspective, austenitic stainless steel CNC machined parts often require more precise machining parameters and higher-quality tooling, which can increase costs. In contrast, ferritic stainless steel CNC machined parts benefit from easier machinability and lower material costs, making them attractive for high-volume manufacturing where extreme corrosion resistance is not critical.
In summary:
Understanding these trade-offs ensures you select the most suitable stainless steel type for your CNC machining project, balancing performance, cost, and manufacturability effectively.
Here’s a comprehensive comparison table of austenitic vs. ferritic stainless steel, showing their key differences in composition, properties, machinability, and applications.
Property |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Crystal Structure |
Face-Centered Cubic (FCC) – non-magnetic | Body-Centered Cubic (BCC) – magnetic |
Chromium (Cr) % |
16–26% | 10.5–30% |
Nickel (Ni) % |
6–22% | 0–1% |
Carbon (C) % |
≤0.08% | ≤0.08% |
Corrosion Resistance |
Excellent – ideal for marine and chemical environments | Moderate – suitable for indoor, automotive, and mild exposure |
Oxidation Resistance |
High, even at elevated temperatures | Good, but lower than austenitic |
Ductility / Formability |
Excellent – highly formable and weldable | Moderate – limited formability, careful welding required |
Magnetic Properties |
Non-magnetic in annealed condition | Magnetic |
Machinability |
Fair – work-hardens quickly, requires slower speeds | Good – easier to machine, less work-hardening |
Heat Resistance |
Excellent – retains strength at high temperatures | Good – but limited creep strength at high temperatures |
Weldability |
Excellent – tolerant to various welding methods | Limited – risk of brittleness, requires specialized technique |
Cost |
Higher – due to high nickel and alloying elements | Lower – cost-effective due to low nickel content |
Typical CNC Machined Parts |
Medical devices, marine fasteners, food processing components | Automotive exhausts, heat exchangers, architectural panels |
Ideal Applications |
Chemical processing, marine, medical, high-temp equipment | Automotive, industrial, architectural, moderate heat exposure |
When selecting stainless steel for CNC machined parts, understanding the key differences between austenitic and ferritic stainless steel is essential. Each type offers unique advantages in terms of composition, corrosion resistance, machinability, and cost, which directly affect performance and suitability for specific industries. While austenitic steels are known for their superior corrosion resistance and formability, ferritic steels provide better thermal conductivity, magnetic properties, and cost-effectiveness. This section highlights the critical differences to help manufacturers, engineers, and designers make the right material choice for their projects and CNC machining services.
1. Composition
2. Hardness
3. Corrosion Resistance
4. Wear Resistance
5. Oxidation Resistance
6. Welding
7. Heat Resistance
8. Machinability
9. Cost
10. Applications
Here’s a comprehensive table summarizing the key differences between austenitic and ferritic stainless steels.
Property |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Crystal Structure |
Face-Centered Cubic (FCC), non-magnetic | Body-Centered Cubic (BCC), magnetic |
Composition |
16–26% Cr, 6–22% Ni, low C, may contain Mo/N | 10.5–30% Cr, very low Ni, low C |
Hardness |
Moderate, tough, work-hardens quickly | Slightly higher in annealed state, lower toughness |
Corrosion Resistance |
Excellent, ideal for marine and chemical environments | Moderate, suitable for automotive and mild environments |
Wear Resistance |
Good, improves with work hardening | Moderate, less resistant to surface abrasion |
Oxidation Resistance |
Excellent, even at high temperatures | Good, high-chromium grades perform well |
Welding |
Excellent, low risk of cracking | Limited, prone to grain growth and brittleness |
Heat Resistance |
Excellent at high and low temperatures | Good at moderate high temps, less ductile at low temps |
Machinability |
Fair – work hardens, requires slower speeds and sharp tooling | Good – easier to machine, less work hardening |
Cost |
Higher – due to high nickel and machining requirements | Lower – low nickel, more cost-effective |
CNC Machined Parts |
Marine fasteners, medical devices, food equipment, heat exchangers | Automotive exhausts, heat shields, architectural panels |
Ideal Applications |
Chemical, marine, medical, high-temperature equipment | Automotive, industrial, architectural, moderate heat exposure |
When selecting stainless steel for CNC machined parts, engineers must consider not only general characteristics like corrosion resistance and cost but also the detailed chemical, physical, and mechanical properties. These properties directly influence machinability, weldability, and long-term performance in different environments. In this section, we will focus first on the chemical composition of austenitic and ferritic stainless steels, as their alloying elements define their structure, behavior, and ideal applications in CNC machining services.
Austenitic Stainless Steel vs. Ferritic Stainless Steel: Chemical Composition
The chemical composition of stainless steel determines its crystal structure, corrosion resistance, mechanical strength, and machining behavior. Austenitic and ferritic stainless steels differ significantly in chromium, nickel, and other alloying elements, which gives them distinct advantages. Austenitic stainless steels rely on nickel to stabilize the face-centered cubic (FCC) structure, while ferritic stainless steels achieve their body-centered cubic (BCC) structure mainly through chromium, with little or no nickel.
Below is a comparison of their typical composition ranges:
Element |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Function / Effect |
Chromium (Cr) |
16–26% | 10.5–30% | Provides corrosion and oxidation resistance |
Nickel (Ni) |
6–22% | 0–1% | Stabilizes FCC structure, improves corrosion |
Carbon (C) |
≤0.08% | ≤0.08% | Increases hardness; low content improves weldability |
Manganese (Mn) |
1–2% (up to 5% in 200-series) | ≤1% | Improves hot workability and strength |
Silicon (Si) |
≤1% | ≤1% | Enhances oxidation resistance |
Phosphorus (P) |
≤0.045% | ≤0.04% | Must be minimized; can cause brittleness |
Sulfur (S) |
≤0.03% | ≤0.03% | Improves machinability but reduces corrosion |
Nitrogen (N) |
0.05–0.20% (in high-strength grades) | ≤0.02% | Strengthens austenite, enhances pitting resistance |
Iron (Fe) |
Balance | Balance | Base metal |
Molybdenum (Mo) |
0–3% (higher in 316/317 for pitting resistance) | 0–1% | Enhances pitting and crevice corrosion resistance |
Non-N % |
99% – N content | 99% – N content | Base metal + alloying elements without nitrogen |
This chemical difference is why austenitic stainless steel CNC machined parts excel in highly corrosive or marine environments, while ferritic stainless steel CNC machined parts are favored in cost-sensitive, high-temperature, and automotive applications.
The microstructure of stainless steel is the foundation of its mechanical properties, corrosion resistance, and machinability. Austenitic and ferritic stainless steels have fundamentally different crystal structures, which dictate how they behave in industrial applications and during CNC machining services.
Austenitic Stainless Steel Microstructure
Crystal Structure: Face-Centered Cubic (FCC)
Characteristics:
Effect on CNC Machining:
Ferritic Stainless Steel Microstructure
Crystal Structure: Body-Centered Cubic (BCC)
Characteristics:
Effect on CNC Machining:
Key Microstructural Difference Summary
Feature |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Crystal Structure |
FCC (Face-Centered Cubic) | BCC (Body-Centered Cubic) |
Magnetism |
Non-magnetic (annealed) | Magnetic |
Ductility & Toughness |
Very high | Moderate |
Work Hardening |
High – affects CNC machining | Low – easier to machine |
Grain Growth Risk |
Low | High if overheated |
Weldability |
Excellent | Limited – prone to embrittlement |
The microstructural differences explain why austenitic stainless steel is chosen for critical corrosion-resistant and high-toughness applications, while ferritic stainless steel is preferred for cost-effective, magnetic, and high-temperature uses.
The physical properties of stainless steel determine its behavior under heat, load, and environmental conditions, which directly affects performance in CNC machining services and final applications. Properties like density, thermal conductivity, electrical resistivity, and thermal expansion also influence part design, heat treatment, and long-term reliability. Below is a comparison of the key physical properties of austenitic and ferritic stainless steels, helping manufacturers select the right material for CNC machined parts based on functional requirements.
1. Density
2. Melting Point (°C)
3. Thermal Conductivity (W/m·K)
4. Electrical Resistivity (Ω·m)
5. Thermal Expansion (10⁻⁶/K)
6. Corrosion Resistance
7. Magnetic Properties
8. Formability
9. Machinability (Annealed)
10. Environmental Adaptability
Summary Table of Physical Properties
Property |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Density (g/cm³) |
7.9–8.0 | 7.7–7.8 |
Melting Point (°C) |
1,400–1,450 | 1,420–1,500 |
Thermal Conductivity (W/m·K) |
14–16 | 22–27 |
Electrical Resistivity (Ω·m) |
0.73–0.94 × 10⁻⁶ | 0.55–0.60 × 10⁻⁶ |
Thermal Expansion (10⁻⁶/K) |
15–17 | 10–12 |
Corrosion Resistance |
Excellent | Moderate |
Magnetic Properties |
Non-magnetic (annealed) | Magnetic |
Formability |
Excellent | Moderate |
Machinability (Annealed) |
Fair – work-hardens | Good – easier to machine |
Environmental Adaptability |
Extreme conditions (marine, chemical) | Moderate conditions (industrial) |
The physical property differences explain why austenitic stainless steel CNC machined parts dominate in marine, medical, and chemical industries, while ferritic stainless steel CNC machined parts are preferred for cost-efficient, heat-resistant, and magnetic applications.
The mechanical properties of stainless steels determine their load-bearing capacity, durability, and performance in CNC machined parts. Understanding hardness, tensile strength, ductility, and fatigue resistance is essential for selecting the right material for structural, automotive, medical, and industrial applications.
Austenitic stainless steels are known for high toughness and ductility, making them ideal for components exposed to dynamic loads, cryogenic conditions, and corrosion. Ferritic stainless steels, while generally lower in toughness and ductility, offer good thermal stability, higher yield strength, and easier machinability, making them suitable for automotive exhausts, industrial panels, and high-temperature applications.
1. Hardness (HRC, HV, HRB)
Austenitic Stainless Steel
Ferritic Stainless Steel
2. Tensile Properties
Ultimate Tensile Strength (UTS, MPa)
Yield Tensile Strength (Rp0.2, MPa)
Elongation at Break (%)
Analysis: Austenitic steels have higher ductility and energy absorption, while ferritic steels exhibit better yield strength but lower elongation.
3. Ductility and Reduction of Area (Z/%)
Austenitic:
Ferritic:
Analysis: High ductility of austenitic steels makes them excellent for deep drawing and complex CNC machined parts, while ferritic steels are better for simpler formed components.
4. Fatigue and Shear Properties
Fatigue Strength (MPa):
Shear Strength (MPa):
Shear Modulus (GPa):
5. Elastic Properties
Elastic (Young’s) Modulus (GPa):
Poisson’s Ratio:
Analysis: Both steels have similar stiffness, but ferritic stainless steel can feel slightly more rigid due to higher yield strength.
6. Heating Temperature and Stability
Mechanical Property Comparison Table
Property |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Hardness (HRC) |
15–25 | 20–30 |
Hardness (HV) |
140–190 | 150–210 |
Hardness (HRB) |
70–90 | 80–95 |
Ultimate Tensile Strength (MPa) |
500–750 | 400–650 |
Yield Tensile Strength (MPa) |
200–300 | 250–350 |
Elongation at Break (%) |
40–60 | 20–30 |
Reduction of Area (Z/%) |
60–70 | 30–50 |
Fatigue Strength (MPa) |
200–300 | 150–250 |
Shear Strength (MPa) |
300–450 | 250–400 |
Shear Modulus (GPa) |
75–80 | 75–80 |
Elastic (Young’s) Modulus (GPa) |
190–200 | 200–210 |
Poisson’s Ratio |
~0.30 | 0.28–0.30 |
Heating Temperature Range (°C) |
Cryogenic to ~925°C | Moderate high temp ~815°C |
The mechanical property differences explain why austenitic stainless steel CNC machined parts are used for high-strength, corrosion-resistant applications, while ferritic stainless steel CNC machined parts are chosen for cost-effective, moderately loaded, and heat-resistant components.
When selecting stainless steel for CNC machined parts or industrial applications, understanding the advantages and disadvantages of each type is crucial. Austenitic stainless steel excels in environments demanding corrosion resistance, formability, and durability, whereas ferritic stainless steel offers better thermal conductivity, magnetic properties, and cost efficiency. Evaluating these pros and cons helps manufacturers and engineers choose the right material for performance, cost, and machinability.
Austenitic Stainless Steel: Advantages and Disadvantages
Austenitic stainless steels are the most widely used stainless steels due to their excellent corrosion resistance, high toughness, and versatility. They are commonly used in marine, medical, chemical, and food industries, as well as for complex CNC machined parts.
Advantages of Austenitic Stainless Steel
Disadvantages of Austenitic Stainless Steel
Ferritic Stainless Steel: Advantages and Disadvantages
Ferritic stainless steels are cost-effective alternatives for applications where moderate corrosion resistance and good thermal performance are sufficient. Their magnetic properties and better machinability make them popular in automotive, industrial, and architectural applications.
Advantages of Ferritic Stainless Steel
Disadvantages of Ferritic Stainless Steel
The advantages and disadvantages clearly show that austenitic stainless steel CNC machined parts are ideal for critical, high-corrosion applications, while ferritic stainless steel CNC machined parts are best for cost-efficient, heat-resistant, and magnetic applications.
Here’s a comprehensive table comparing the advantages and disadvantages of austenitic vs. ferritic stainless steels for easy reference.
Austenitic vs. Ferritic Stainless Steel: Advantages and Disadvantages
Category |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Advantages | - Excellent corrosion resistance in marine and chemical environments | - Lower cost due to minimal nickel content |
- High toughness and ductility, even at cryogenic temperatures | - Good thermal conductivity, ideal for exhausts and heat exchangers | |
- Non-magnetic in annealed state | - Magnetic properties useful in industrial applications | |
- Outstanding weldability and formability for complex CNC machined parts | - Better machinability with less work hardening | |
- Excellent environmental adaptability across a wide temperature range | - Good resistance to stress corrosion cracking | |
Disadvantages | - Higher cost due to high nickel and alloying content | - Moderate corrosion resistance, unsuitable for aggressive marine or chemical exposure |
- Work-hardens during machining, requiring careful CNC cutting speeds | - Lower ductility and toughness, especially at low temperatures | |
- Lower yield strength compared to ferritic grades | - Limited weldability; risk of grain growth and embrittlement | |
- Higher thermal expansion can affect dimensional stability in high-temperature environments | - Performs best in moderate heat; loses toughness in extreme cold |
This advantages and disadvantages table makes it clear when to select austenitic stainless steel CNC machined parts versus ferritic stainless steel CNC machined parts, helping engineers and buyers make informed decisions for CNC machining services and industrial applications.
Unlike martensitic stainless steels, which can be hardened through heat treatment, austenitic and ferritic stainless steels cannot achieve significant hardening via conventional heat treatment processes like quenching and tempering. This limitation is due to their crystal structures, alloy compositions, and metallurgical behavior.
1. Austenitic Stainless Steel
Crystal Structure: Face-Centered Cubic (FCC)
Reason It Can’t Be Hardened by Heat Treatment:
Typical Hardening Method: Cold working or strain hardening, such as rolling or forging, to increase hardness and tensile strength.
2. Ferritic Stainless Steel
Crystal Structure: Body-Centered Cubic (BCC)
Reason It Can’t Be Hardened by Heat Treatment:
Typical Hardening Method:
Summary of Heat Treatment Limitation
Stainless Steel Type |
Crystal Structure |
Can It Be Heat-Treated for Hardness? |
Reason |
Austenitic (e.g., 304, 316) |
FCC | No | Stable austenite cannot transform to martensite |
Ferritic (e.g., 409, 430) |
BCC | No | Lacks austenite phase; cooling does not produce martensite |
Martensitic (e.g., 410, 420) |
BCT (from austenite) | Yes | Can transform to martensite during quenching, then tempered for hardness |
Conclusion:
Understanding the applications and uses of austenitic and ferritic stainless steels is key to selecting the right material for specific CNC machined parts and industrial needs. Each type brings unique properties that make it suitable for different environments, industries, and product requirements. This section highlights typical uses of both stainless steel families to help manufacturers and engineers optimize performance and cost.
Applications of Austenitic Stainless Steel
Austenitic stainless steels, such as grades 304 and 316, are widely used because of their exceptional corrosion resistance, excellent formability, and toughness. Their non-magnetic nature and ability to withstand harsh environments make them ideal for:
Applications of Ferritic Stainless Steel
Ferritic stainless steels, such as grades 409 and 430, are favored for their cost-effectiveness, good thermal conductivity, and magnetic properties. These qualities make them suitable for:
Summary Table of Applications
Application Area |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Food & Beverage Industry |
Tanks, piping, valves | Limited, mainly in lower-corrosion areas |
Chemical & Petrochemical |
Process vessels, heat exchangers | Moderate chemical exposure parts |
Marine Industry |
Ship fittings, pumps, hardware | Rare, limited corrosion resistance |
Medical Devices |
Surgical tools, implants | Not commonly used |
Automotive |
Exhaust parts, structural components | Exhaust systems, mufflers |
Architecture & Construction |
Cladding, handrails, decorative panels | Roofing, gutters, panels |
Industrial Equipment |
High-temp, corrosive environment parts | Furnace parts, heat exchangers |
Magnetic Applications |
Not magnetic | Sensors, motors, magnetic assemblies |
CNC Machined Parts |
Precision fittings, valves, medical device parts | Cost-effective brackets, housings, simpler parts |
Both austenitic and ferritic stainless steels play vital roles in modern manufacturing. Their distinct properties allow engineers to balance cost, performance, and manufacturability for specialized CNC machined parts and industrial components.
When selecting stainless steel for CNC machined parts and industrial applications, understanding the cost implications is as important as evaluating performance. The initial purchase price, processing costs, and long-term value vary significantly between austenitic and ferritic stainless steels. This section compares these aspects to help manufacturers, engineers, and buyers make cost-effective material decisions without compromising quality.
1. Initial Cost Comparison
Austenitic Stainless Steel:
Ferritic Stainless Steel:
2. Long-Term Cost-Effectiveness
Austenitic Stainless Steel:
Ferritic Stainless Steel:
3. Processing Cost
Austenitic Stainless Steel:
Ferritic Stainless Steel:
4. Market Price Trends
Cost Comparison Summary Table
Cost Aspect |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Initial Material Cost |
High – due to nickel and alloy content | Low – minimal nickel content |
Long-Term Cost-Effectiveness |
High – longer lifespan, less maintenance | Moderate – possible higher replacement frequency |
Processing Cost (Machining) |
Higher – work-hardening, specialized tooling needed | Lower – easier machining, faster production |
Market Price Stability |
Stable, strong industrial demand | Generally lower, sensitive to base metal prices |
Choosing between austenitic and ferritic stainless steels depends on balancing material costs, machining complexity, and long-term durability. For demanding environments requiring corrosion resistance and toughness, austenitic grades justify their cost. For budget-conscious projects with moderate demands, ferritic stainless steels offer a practical solution.
Understanding the national standards and equivalent grades for austenitic and ferritic stainless steels is essential for ensuring material compatibility, quality control, and global sourcing. Different countries and organizations have developed standards that classify stainless steels based on their chemical composition, mechanical properties, and intended applications. This section outlines key standards and common equivalent grades to help manufacturers and engineers identify the appropriate stainless steel types for CNC machining services and other industrial uses.
National Standards Overview
Standard Organization |
Description |
ASTM (American Society for Testing and Materials) |
Widely used in the United States; provides material specifications for stainless steels. |
EN (European Norms) |
European standards specifying stainless steel grades and requirements. |
JIS (Japanese Industrial Standards) |
Standards used in Japan for classification and testing of stainless steels. |
GB (Guobiao Standards - China) |
Chinese national standards covering stainless steel specifications. |
DIN (Deutsches Institut für Normung) |
German standards for stainless steel grades and testing. |
Common Austenitic Stainless Steel Grades and Equivalents
Common Grade |
ASTM |
EN |
JIS |
GB |
DIN |
Typical Use |
304 |
A240-304 | 1.4301 | SUS304 | 0Cr18Ni9 | X5CrNi18-10 | General-purpose corrosion-resistant steel |
316 |
A240-316 | 1.4401 | SUS316 | 0Cr17Ni12Mo2 | X5CrNiMo17-12-2 | Marine, chemical, and medical applications |
310 |
A240-310 | 1.4841 | SUS310 | 0Cr25Ni20 | X15CrNi25-20 | High-temperature applications |
Common Ferritic Stainless Steel Grades and Equivalents
Common Grade |
ASTM |
EN |
JIS |
GB |
DIN |
Typical Use |
409 |
A240-409 | 1.4512 | SUS409 | 0Cr11Ti | X6CrTi11 | Automotive exhaust systems |
430 |
A240-430 | 1.4016 | SUS430 | 0Cr17 | X6Cr17 | Kitchen utensils, appliances |
439 |
A240-439 | 1.4510 | SUS439 | 0Cr18Mn | X2CrMn17 | Automotive trim, decorative parts |
Summary Table of Equivalent Grades
Steel Type |
Common Grade |
ASTM |
EN |
JIS |
GB |
DIN |
Applications |
Austenitic Stainless Steel | 304 | A240-304 | 1.4301 | SUS304 | 0Cr18Ni9 | X5CrNi18-10 | General corrosion resistance |
316 | A240-316 | 1.4401 | SUS316 | 0Cr17Ni12Mo2 | X5CrNiMo17-12-2 | Marine, chemical industries | |
Ferritic Stainless Steel | 409 | A240-409 | 1.4512 | SUS409 | 0Cr11Ti | X6CrTi11 | Automotive exhaust systems |
430 | A240-430 | 1.4016 | SUS430 | 0Cr17 | X6Cr17 | Kitchenware, appliances |
Conclusion
Selecting the right stainless steel grade requires awareness of national standards and equivalents, especially for international procurement and CNC machining factories. Austenitic and ferritic stainless steels are well standardized globally, with clear equivalents facilitating material selection and certification.
Both austenitic and ferritic stainless steels are available in a wide variety of stock shapes, which allows manufacturers and CNC machining factories to select the most suitable raw material form for their specific application and production process. The choice of stock shape impacts manufacturing efficiency, material utilization, and final part quality. This section explores the common stock shapes available for each stainless steel type and their typical applications.
Common Stock Shapes for Austenitic Stainless Steel
Austenitic stainless steels, prized for their corrosion resistance and toughness, are widely used in diverse industries. Their stock shapes support complex machining, forming, and welding.
Sheets and Plates
Coils
Bars and Rods
Tubing and Pipes
Wire
Common Stock Shapes for Ferritic Stainless Steel
Ferritic stainless steels are commonly used where cost-efficiency, heat resistance, and magnetic properties are priorities. Their stock shapes reflect applications in automotive, construction, and industrial equipment.
Sheets and Strips
Coils
Bars and Rods
Pipes and Tubes
Comparison Table of Stock Shapes
Stock Shape |
Austenitic Stainless Steel |
Ferritic Stainless Steel |
Sheets & Plates | Wide thickness range, for tanks, cladding, industrial use | Thinner gauges, used in exhausts, roofing |
Coils | Hot-rolled and cold-rolled, automotive, appliance parts | Coils for stamping, pressing, and forming |
Bars & Rods | Solid round, square, hex bars for precision machining | Bars/rods for fasteners, brackets, magnetic parts |
Pipes & Tubes | Seamless and welded tubes for medical, chemical, fluid use | Mainly welded tubes for exhausts and heat exchangers |
Wire | Thin wire for springs, medical, and fasteners | Less common, used for specialty springs and fasteners |
Conclusion
Both austenitic and ferritic stainless steels are supplied in versatile stock shapes tailored to their distinct performance characteristics and end-use requirements. Understanding the available stock forms enables engineers and CNC machining factories to optimize material selection, reduce waste, and improve production efficiency.
Choosing the right type of stainless steel is critical for achieving optimal performance, durability, and cost-effectiveness in any project, especially when it involves CNC machined parts. Austenitic and ferritic stainless steels each have distinct properties suited for different environments and applications. This guide helps engineers, manufacturers, and buyers decide which stainless steel type best fits their project requirements by highlighting the ideal use cases for each.
When Should I Use Austenitic Stainless Steel?
Austenitic stainless steel is the preferred choice when corrosion resistance, toughness, and formability are top priorities. It is especially suited for:
When Should I Use Ferritic Stainless Steel?
Ferritic stainless steel is an excellent choice when cost, thermal conductivity, and magnetic properties are key considerations. It is best suited for:
Summary Table: Choosing Between Austenitic and Ferritic Stainless Steel
Criteria |
Use Austenitic Stainless Steel |
Use Ferritic Stainless Steel |
Corrosion Resistance | Required for harsh, marine, chemical environments | Suitable for mild to moderate corrosion |
Mechanical Properties | High toughness and ductility | Good strength, moderate toughness |
Machinability | Challenging, requires special tooling | Easier, cost-effective machining |
Magnetic Properties | Non-magnetic | Magnetic |
Temperature Resistance | Excellent at both cryogenic and high temperatures | Good at moderate to high temperatures |
Cost | Higher initial cost | Lower material and processing cost |
Application Examples | Medical devices, food processing, chemical plants | Automotive exhausts, kitchen appliances, construction |
In summary, if your project demands superior corrosion resistance, complex fabrication, or exposure to extreme environments, austenitic stainless steel is typically the best choice. For cost-sensitive projects with moderate corrosion requirements or magnetic applications, ferritic stainless steel offers a practical and economical solution.
Choosing between austenitic stainless steel and ferritic stainless steel depends heavily on your project’s specific performance requirements, environmental conditions, and budget constraints. Both types offer unique advantages that can significantly impact the success and cost-efficiency of your application, especially when it comes to CNC machined stainless steel parts.
Consider Austenitic Stainless Steel If:
Consider Ferritic Stainless Steel If:
Additional Factors to Evaluate:
Conclusion
Both austenitic and ferritic stainless steels have distinct roles in manufacturing and industrial applications. By carefully assessing your project’s environmental conditions, mechanical requirements, and budget, you can determine which stainless steel type aligns best with your goals. For precision CNC machining services, selecting the appropriate stainless steel grade ensures optimal part performance, cost efficiency, and longevity.
Here’s a clear, concise table to help determine if austenitic stainless steel or ferritic stainless steel is right for your project:
Consideration |
Choose Austenitic Stainless Steel |
Choose Ferritic Stainless Steel |
Corrosion Resistance |
Required for harsh, marine, chemical, or food environments | Suitable for mild to moderate corrosion environments |
Magnetic Properties |
Non-magnetic | Magnetic |
Temperature Resistance |
Excellent at extreme low and high temperatures | Good for moderate heat exposure |
Machinability |
More difficult; requires specialized tooling and slower speeds | Easier to machine; faster production and lower cost |
Formability & Weldability |
Superior; ideal for complex, intricate parts | Moderate; less suited for complex fabrication |
Cost Considerations |
Higher material and machining costs | Lower initial material and processing costs |
Application Examples |
Medical devices, chemical plants, marine equipment | Automotive exhausts, kitchen appliances, sensors |
Service Life & Maintenance |
Longer lifespan, less maintenance needed | May require more frequent replacement in harsh conditions |
This table provides a quick overview to help guide your material choice based on project needs and priorities.
Welding stainless steels requires an understanding of their unique metallurgical properties to ensure strong, corrosion-resistant joints. Austenitic and ferritic stainless steels differ in their microstructure and thermal behavior, influencing their weldability and choice of welding technique. This section introduces common welding methods suitable for both types, highlighting considerations specific to each to achieve optimal results in CNC machined stainless steel parts and industrial fabrication.
Metal Arc Welding (MMA, SMAW)
Plasma Arc Welding (PAW)
High Frequency Welding (HF)
Gas Metal Arc Welding (MIG, MAG, GMAW)
Gas Tungsten Arc Welding (GTAW, TIG)
Resistance Welding
Conclusion
Both austenitic and ferritic stainless steels can be successfully welded using various advanced techniques. Choosing the right welding method and optimizing parameters—especially heat input and cooling rates—are crucial to avoid common issues like cracking, distortion, and loss of corrosion resistance. Understanding these nuances ensures the production of high-quality, durable CNC machined stainless steel parts that meet industry standards.
At VMT, we specialize in delivering high-quality CNC machined stainless steel parts tailored to meet the precise needs of various industries. Whether your project requires austenitic stainless steel CNC machined parts or ferritic stainless steel CNC machined parts, our expertise, advanced technology, and strict quality control ensure excellent results from prototype to mass production.
1. Comprehensive Material Selection
We help you choose the right stainless steel grade based on your application requirements—balancing corrosion resistance, mechanical properties, machinability, and cost. Our material options include popular grades such as 304, 316 (austenitic) and 409, 430 (ferritic) stainless steels, ensuring you get the best fit for your parts.
2. Advanced CNC Machining Capabilities
Our state-of-the-art CNC machining centers are equipped to handle complex geometries, tight tolerances, and diverse stainless steel materials. Whether you need turning, milling, drilling, or multi-axis machining, VMT provides precise, repeatable manufacturing that meets rigorous industry standards.
3. Skilled Engineering and Technical Support
Our team of engineers works closely with you from design review to production, offering expert guidance on material selection, machining processes, surface finishes, and tolerance optimization. This collaboration ensures that your stainless steel parts are manufactured efficiently and meet all functional requirements.
4. Quality Assurance and Testing
VMT implements strict quality control protocols, including dimensional inspections, surface finish assessments, and material certifications. We also offer non-destructive testing and metallurgical analysis when required, guaranteeing your stainless steel CNC machined parts are reliable and defect-free.
5. Flexible Production and Delivery
We accommodate both low-volume prototyping and high-volume mass production, maintaining consistent quality throughout. Our logistics team ensures timely delivery, keeping your supply chain efficient and responsive.
Why Choose VMT?
By partnering with VMT, you gain access to professional CNC machining services backed by years of experience in producing high-performance stainless steel parts that excel in demanding environments.
Choosing between austenitic stainless steel and ferritic stainless steel is a critical decision that impacts the performance, durability, and cost of your CNC machined parts. Austenitic stainless steel stands out for its exceptional corrosion resistance, toughness, and versatility in harsh environments, making it ideal for complex and high-demand applications. In contrast, ferritic stainless steel offers a cost-effective solution with good heat resistance, magnetic properties, and easier machinability, suitable for moderate conditions and budget-conscious projects.
Understanding the key differences in composition, mechanical properties, applications, and welding techniques enables manufacturers and engineers to select the optimal stainless steel type tailored to their specific needs. With the right choice, you can ensure superior part quality, longer service life, and better overall value.
At VMT, we combine expert material knowledge with advanced CNC machining technology to provide precise, reliable, and high-quality stainless steel parts—whether austenitic or ferritic. Our commitment to excellence ensures that your projects achieve the best results from prototype to production.
If you are ready to move forward or need further guidance on stainless steel CNC machining services, VMT is here to support you every step of the way.
Q1: Is 304 stainless steel ferritic or austenitic?
A1: 304 stainless steel is an austenitic stainless steel, known for its excellent corrosion resistance and formability.
Q2: Is 316 stainless steel ferritic or austenitic?
A2: 316 stainless steel is also austenitic, with added molybdenum for enhanced corrosion resistance, especially against chlorides.
Q3: How to test 304 and 316 stainless steel?
A3: Testing methods include chemical analysis, magnetic testing (both are non-magnetic or weakly magnetic), and corrosion resistance tests. Spectrometry and hardness tests are also common.
Q4: Is Inconel alloy ferritic or austenitic?
A4: Inconel alloys are generally austenitic, designed for high-temperature and corrosion-resistant applications.
Q5: What is the difference between ferritic and martensitic stainless steel?
A5: Ferritic stainless steels are magnetic, have good corrosion resistance, but lower hardness. Martensitic stainless steels are heat-treatable, magnetic, and have higher hardness and strength but lower corrosion resistance.
Q6: What is the difference between SS409 and SS439?
A6: SS409 is a ferritic stainless steel primarily used in automotive exhausts with moderate corrosion resistance; SS439 offers improved corrosion resistance and higher chromium content for similar applications.
Q7: Is 17/4 austenitic or martensitic?
A7: 17-4 stainless steel is martensitic, known for high strength and hardness with moderate corrosion resistance.
Q8: Is 410 stainless steel ferritic or martensitic?
A8: 410 stainless steel is a martensitic stainless steel with good hardness and moderate corrosion resistance.
Q9: Is 17-4 PH better than SS316?
A9: 17-4 PH offers higher strength and hardness due to precipitation hardening, while SS316 provides superior corrosion resistance. The choice depends on application needs.
Q10: What is the difference between 17-4 PH and SS304?
A10: 17-4 PH is martensitic, heat-treatable, and stronger, while SS304 is austenitic with excellent corrosion resistance and better ductility.
Q11: How do I know if steel is austenitic?
A11: Austenitic stainless steels are generally non-magnetic, have high nickel content, and resist corrosion well. Laboratory testing or magnetic tests help confirm.
Q12: Is 2205 austenitic stainless steel?
A12: 2205 is a duplex stainless steel, combining austenitic and ferritic phases for improved strength and corrosion resistance.
Q13: Is SS304 austenitic stainless steel?
A13: Yes, SS304 is the most common austenitic stainless steel.
Q14: Which is better, 304 or 316 stainless steel?
A14: 316 stainless steel is better for corrosive environments, especially with chlorides; 304 is suitable for general-purpose applications.
Q15: Is 1.4404 the same as 316L?
A15: Yes, 1.4404 is the European designation equivalent to 316L stainless steel, a low-carbon variant of 316.
Q16: What is the difference between 2205 and 316L stainless steel?
A16: 2205 is a duplex stainless steel with higher strength and better stress corrosion cracking resistance; 316L is fully austenitic with superior corrosion resistance in aggressive environments.
Q17: Which is better, martensitic or austenitic stainless steel?
A17: It depends on application: martensitic offers higher hardness and strength but lower corrosion resistance; austenitic offers better corrosion resistance and ductility but lower strength.
