Heat Sink Design: Basic Guide



Are you struggling with overheating issues in your electronic devices, leading to performance drops or even permanent damage? Frustrated by the complexity of thermal management and unsure how to effectively dissipate heat? You're not alone. Many engineers and designers face challenges in creating efficient cooling solutions for their products. But what if there was a comprehensive guide that demystified radiator design, helping you understand the fundamentals and make informed decisions? This basic guide to radiator design is exactly what you need to enhance the reliability and longevity of your devices.



Heat sink design involves creating components that effectively dissipate heat from electronic devices by maximizing surface area, selecting appropriate materials like aluminum or copper, and optimizing fin geometry to enhance thermal performance, ensuring device reliability and efficiency.



Understanding the importance of radiator design is crucial for anyone involved in electronics and thermal management. Let's delve deeper into what radiators are, why they are essential, and how to design them effectively to meet your specific needs.









Preface





In the ever-evolving world of electronics, managing heat generation is a critical aspect that can make or break the performance of a device. As components become smaller and more powerful, the challenge of dissipating heat efficiently becomes more complex. Radiator design plays a pivotal role in thermal management, ensuring that devices operate within safe temperature ranges. This comprehensive guide aims to provide an in-depth understanding of radiator design, covering everything from the basics of what a radiator is to the intricacies of material selection, fin geometry, and thermal calculations. Whether you're a seasoned engineer or new to the field, this guide will equip you with the knowledge needed to design effective radiators using methods like radiator CNC machining, CNC turning parts, and CNC milling parts in a CNC machining factory.









What Is a Heat Sink?





A radiator, in the context of thermal management, is a component designed to transfer heat from a hotter medium to a cooler one, thereby dissipating excess thermal energy into the surrounding environment. In electronic devices, radiators—often referred to as heat sinks—absorb heat generated by components like CPUs, power amplifiers, and optoelectronics, preventing overheating and maintaining optimal operating temperatures. The efficiency of a radiator is determined by its ability to maximize surface area, use conductive materials, and facilitate heat transfer through conduction, convection, and radiation.



Radiators are essential in various applications, from personal computers to industrial machinery. They come in different shapes, sizes, and materials, tailored to specific thermal requirements. The design involves careful consideration of factors such as thermal resistance, material conductivity, fin geometry, and mounting methods. With advancements in custom CNC machining and CNC prototype machining, designing and manufacturing radiators has become more precise and efficient, allowing for optimized thermal solutions in today's high-performance devices.















Types of Heat Sink





Radiators, or heat sinks, are categorized based on their method of heat dissipation and the mechanisms they employ to transfer heat away from electronic components. Understanding the different types of radiators is crucial for selecting the most appropriate design for a specific application.













Passive Heat Sinks



A passive radiator relies solely on natural convection and radiation to dissipate heat. It has no moving parts, making it a reliable and maintenance-free solution. The design typically includes fins or other structures to increase surface area, enhancing the heat transfer to the surrounding air. Passive radiators are ideal for applications where noise reduction is essential, as they operate silently. They are commonly used in devices with low to moderate heat generation, where forced cooling is unnecessary.









Characteristics of Passive Radiators:



• Simplicity: No mechanical components, leading to higher reliability.
• Silence: Operates without fans or pumps, eliminating noise.
• Cost-Effective: Lower manufacturing and operational costs due to the absence of moving parts.
• Design Considerations: Requires careful optimization of fin geometry and material selection to maximize natural convection.





Active Heat Sinks

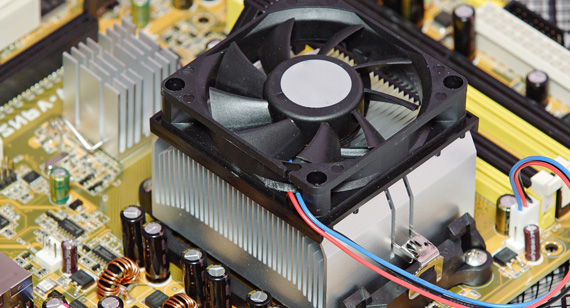

An active heat sink incorporates additional components, such as fans or pumps, to enhance heat dissipation through forced convection. The integration of these elements increases the airflow over the radiator's surface, significantly improving its thermal performance. Active heat sinks are essential in high-power applications where passive cooling is insufficient to maintain safe operating temperatures.









Characteristics of Active Heat Sinks:



• Enhanced Cooling: Provides superior heat dissipation compared to passive radiators.
• Complexity: Incorporates mechanical components that may require additional power and control systems.
• Noise: The operation of fans or pumps can introduce noise, which may be a consideration in noise-sensitive environments.
• Maintenance: Moving parts may require periodic maintenance or replacement over time.









Why Is the Radiator So Important?





In electronic systems, managing heat effectively is paramount to ensuring performance, reliability, and longevity. The radiator, or heat sink, serves as a critical component in thermal management by dissipating excess heat generated by electronic components.





Improving Electronic Reliability





Excessive heat can lead to a range of issues in electronic devices, including decreased performance, component degradation, and even catastrophic failure. By efficiently removing heat, radiators help maintain components within their optimal temperature ranges. This not only enhances performance but also extends the lifespan of the device.



Benefits of Improved Reliability:



• Reduced Failure Rates: Lower operating temperatures decrease the likelihood of thermal-induced failures.
• Consistent Performance: Devices operate more predictably and efficiently when thermal conditions are stable.
• Cost Savings: Prolonging the life of components reduces the need for replacements and repairs.







Maintaining Thermal Energy





Radiators play a vital role in maintaining thermal equilibrium within electronic systems. By transferring heat away from critical components, they prevent hotspots and thermal gradients that can adversely affect performance. This is particularly important in high-density electronics, where components are closely packed, and heat buildup can be significant.



Key Considerations:



• Thermal Balance: Ensures that all parts of the device operate within safe temperature limits.
• Efficiency: Effective heat dissipation allows components to function at their designed capacity without thermal throttling.
• System Integration: Radiator design must be integrated seamlessly with the overall system architecture to maximize thermal management.







Heat Generation





All electronic components generate heat as a byproduct of their operation. The amount of heat produced depends on factors such as power consumption, operating frequency, and efficiency. Without adequate cooling solutions like radiators, this heat can accumulate, leading to overheating.



Implications of Heat Generation:



• Performance Degradation: High temperatures can cause components to slow down or malfunction.
• Material Stress: Thermal expansion and contraction can lead to mechanical stresses, affecting structural integrity.
• Safety Risks: In extreme cases, overheating can pose safety hazards due to the potential for fires or explosions.



By understanding the importance of radiators in managing heat, designers can create more reliable and efficient electronic systems. Utilizing advanced manufacturing techniques like CNC machining services, radiators can be precisely crafted to meet specific thermal requirements.









Selecting Heat Sink Materials





The material selection for a heat sink is a critical factor that significantly influences its thermal performance, cost, weight, and manufacturability. The most commonly used materials in radiator design are aluminum, copper, and heat pipes or vapor chambers. Each material offers unique properties that make it suitable for specific applications.





Aluminum



Aluminum is widely used in radiator design due to its excellent balance of thermal conductivity, weight, and cost. It offers good thermal performance while being lightweight, making it ideal for applications where weight reduction is important, such as in aerospace or portable electronics.





Advantages of Aluminum:



• Thermal Conductivity: With a thermal conductivity of approximately 205 W/m·K, aluminum efficiently transfers heat.
• Lightweight: Its low density reduces the overall weight of the device.
• Cost-Effective: Aluminum is less expensive than copper, reducing material costs.
• Manufacturability: It is easy to machine, extrude, and form, enabling complex designs through CNC milling parts and CNC turning parts.
• Corrosion Resistance: Naturally forms a protective oxide layer, enhancing durability.







Copper



Copper boasts superior thermal conductivity, approximately 385 W/m·K, almost twice that of aluminum. This makes it highly effective in applications where maximum heat dissipation is required. However, copper is heavier and more expensive than aluminum, which may limit its use in some applications.



Advantages of Copper:



• Exceptional Thermal Conductivity: Ideal for high-performance heat sinks where thermal efficiency is paramount.
• Durability: Copper's mechanical properties lend themselves to robust designs.
• Applications: Commonly used in high-power devices and situations where space is limited, and maximum heat transfer is necessary.



Considerations:



• Weight: Copper's higher density adds to the overall weight of the device.
• Cost: More expensive than aluminum, impacting material budgets.
• Manufacturing Challenges: More difficult to machine, requiring specialized custom CNC machining techniques.







Heat Pipes/Vapor Plates



Heat pipes and vapor chambers are advanced thermal solutions that use phase-change mechanisms to transfer heat efficiently over longer distances or across flat surfaces. They are often integrated with aluminum or copper heat sinks to enhance thermal performance.





Advantages of Heat Pipes/Vapor Plates:



• High Thermal Conductivity: Effective in spreading heat quickly from the source to the heat sink.
• Compact Design: Allows for efficient heat transfer in confined spaces.
• Versatility: Can be shaped and configured to suit various design requirements.



Applications:



• High-Density Electronics: Useful in devices where traditional heat sinks cannot adequately dissipate heat.
• Thermal Management in Laptops and Mobile Devices: Helps in maintaining low profiles while managing heat effectively.



Selecting the right material involves balancing thermal performance with other factors like weight, cost, and manufacturing considerations. Leveraging CNC machining services enables precise fabrication of radiators from these materials, optimizing their thermal properties for specific applications.







Heat Sink Fin Geometry





The fin geometry of a heat sink significantly impacts its ability to dissipate heat. By optimizing fin shapes, spacing, and height, designers can enhance airflow and increase the surface area in contact with the cooling medium, whether air or liquid.



Fin Shapes



Fin shape determines how air flows over the heat sink and how effectively heat is transferred from the fins to the air. Common fin shapes include straight fins, louvered fins, and pin fins.



• Straight Fins: Simple design, easy to manufacture, and suitable for natural convection.
• Louvered Fins: Increase turbulence in airflow, enhancing heat transfer in forced convection applications.

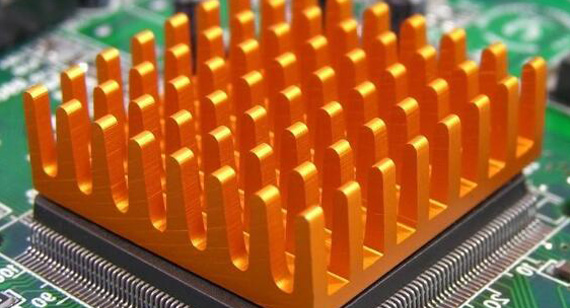

• Pin Fins: Provide omnidirectional airflow paths, beneficial in applications with multidirectional airflows.



Design Considerations:

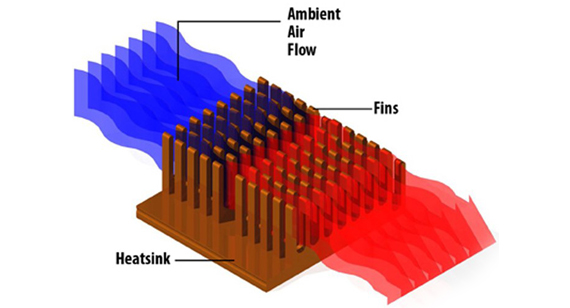

• Airflow Patterns: Fin shapes should complement the expected airflow direction and velocity.
• Manufacturing Methods: Complex fin shapes may require advanced manufacturing techniques like CNC machining or extrusion.







Fin Spacing



Fin spacing affects the airflow resistance and the heat sink's ability to dissipate heat through convection. Proper fin spacing ensures optimal airflow while maximizing the surface area.



Key Factors:



• Natural Convection: Requires wider fin spacing to allow air to flow freely without external assistance.
• Forced Convection: Allows for closer fin spacing as fans or blowers push air through the fins.



Optimization:



• Thermal Performance vs. Airflow Resistance: Balancing fin spacing to maximize heat transfer without overly restricting airflow.
• Environmental Conditions: Consideration of operating conditions, such as dust accumulation, which may affect fin spacing decisions.







Fin Height



Fin height contributes to the total surface area available for heat dissipation. However, increasing fin height also increases the resistance to airflow.



Considerations:



• Thermal Resistance Reduction: Taller fins can improve heat dissipation up to a point before airflow resistance negates the benefits.
• Mechanical Stability: Very tall fins may be prone to bending or vibration, requiring careful design and material selection.
• Manufacturing Constraints: Certain fin heights may be challenging to produce with standard methods and may necessitate custom CNC machining.



By carefully designing fin geometry, engineers can significantly enhance the performance of a heat sink. Advanced CNC machining services enable the precise fabrication of complex fin designs, allowing for optimization of thermal performance in various applications.









Factors and Considerations in Heat Sink Design





Designing an effective heat sink involves multiple factors that collectively influence its thermal performance and suitability for a specific application. These factors include thermal resistance, material types, fin geometry, thermal interface materials, and mounting methods.

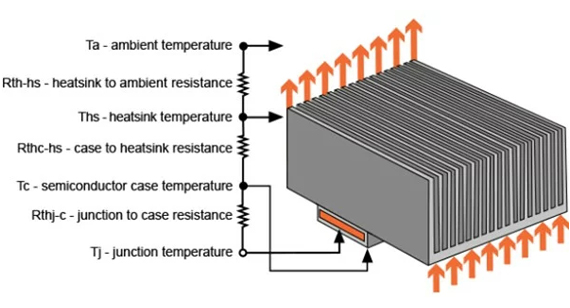

1. Thermal Resistance



Thermal resistance is a measure of a material's ability to resist the flow of heat. In heat sink design, minimizing thermal resistance is crucial to enhance heat transfer from the electronic component to the ambient environment.









Key Aspects:



• Component-to-Sink Resistance: Heat transfer between the component and the heat sink.
• Sink-to-Ambient Resistance: Heat dissipation from the heat sink to the surrounding air.
• Calculations: Accurate thermal resistance calculations guide the design process, ensuring the heat sink meets thermal performance requirements.





2. Material Types



The choice of material affects the heat sink's thermal conductivity, weight, cost, and manufacturability. As previously discussed, materials like aluminum, copper, and heat pipes offer different advantages and should be selected based on the application's specific needs.



Considerations:



• Thermal Conductivity: Higher conductivity materials transfer heat more efficiently.
• Weight Constraints: Lighter materials may be necessary for portable or aerospace applications.
• Cost Factors: Balancing performance with material and manufacturing costs.





3. Heat Sinks





The physical design of the heat sink, including fin arrangement, shape, size, and position, plays a significant role in its effectiveness.





3.1 Fin Arrangement, Shape, Size, and Position



Fin design must optimize airflow and surface area while considering manufacturing capabilities and cost.



• Arrangement: Aligning fins with the direction of airflow enhances convection.
• Shape and Size: Tailoring fin dimensions to balance surface area with airflow resistance.
• Position: Placing fins strategically to maximize exposure to cooling air or fluid.



3.2 Fin Efficiency



Fin efficiency measures how effectively a fin transfers heat from its base to its tip. Factors affecting fin efficiency include material thermal conductivity, fin thickness, and length.



Improving Fin Efficiency:



• Material Selection: Using materials with high thermal conductivity.
• Optimal Fin Dimensions: Designing fins with appropriate thickness and length to maximize heat transfer.
• Manufacturing Precision: Utilizing CNC machining services to produce fins with precise dimensions and minimal defects.





4. Thermal Interface Materials



Thermal interface materials (TIMs) fill the microscopic air gaps between the heat sink and the component, reducing thermal resistance at the interface.



Types of TIMs:



• Thermal Grease/Paste: Provides excellent conformity to surfaces, enhancing heat transfer.
• Thermal Pads: Easy to apply, suitable for mass production.
• Phase Change Materials: Change state to improve thermal conductivity under heat.



Selection Criteria:



• Thermal Conductivity: Higher conductivity materials improve heat transfer.
• Application Method: Consider ease of application and manufacturing processes.
• Operating Conditions: Must withstand the device's temperature range and environmental conditions.





5. Heat Sink Mounting Methods





Proper mounting ensures good thermal contact between the heat sink and the component while maintaining mechanical stability.



Common Mounting Methods:



• Mechanical Fasteners: Screws, clips, or brackets provide secure attachment.
• Adhesives: Thermal epoxy or adhesive tapes bond the heat sink to the component.
• Spring-Loaded Mechanisms: Maintain consistent pressure, accommodating thermal expansion and contraction.



Considerations:



• Thermal Contact Pressure: Adequate pressure improves thermal conductivity at the interface.
• Mechanical Stress: Avoiding excessive stress on components that could cause damage.
• Ease of Assembly: Simplifying the manufacturing process and reducing assembly time.





By carefully considering these factors, designers can create heat sinks that effectively manage thermal loads, enhance device performance, and ensure reliability. Advanced manufacturing techniques like CNC prototype machining allow for the rapid production of heat sink designs for testing and optimization.

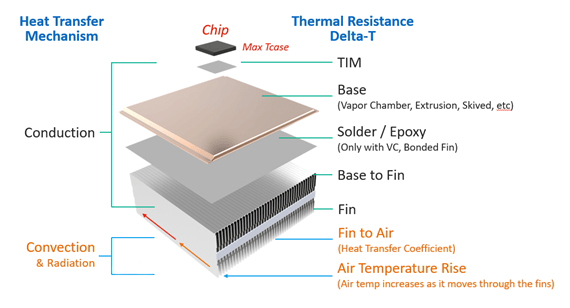

Heat Sink Design: Thermal Resistance Calculations







Designing an efficient heat sink requires precise thermal resistance calculations to ensure that the heat generated by the electronic component is effectively dissipated into the environment. Thermal resistance is the measure of a material's opposition to heat flow, and calculating it involves understanding several key terms and concepts.











Some Terms for Thermal Resistance Calculations:



• Thermal Conductivity (k): The ability of a material to conduct heat, measured in W/m·K.
• Convection Coefficient (h): Represents the convective heat transfer between the heat sink surface and the surrounding fluid, measured in W/m²·K.
• Surface Area (A): The total area of the heat sink that is exposed to the cooling medium, measured in m².
• Temperature Difference (ΔT): The difference in temperature between the heat source and the ambient environment.
• Thermal Resistance (Rth): Calculated using the formula Rth = ΔT / Q, where Q is the heat flow rate in Watts.





Calculating Thermal Resistance:





Determine Heat Dissipation Requirements:



• Identify the maximum allowable junction temperature of the electronic component.
• Calculate the total power dissipation (Q) of the component.



Calculate Required Thermal Resistance:



• Use the formula Rth_total = (T_junction_max - T_ambient) / Q.
• Rth_total is the total thermal resistance from the junction to the ambient environment.



Break Down Thermal Resistance Components:



• Rth_total = Rth_junction-case + Rth_case-sink + Rth_sink-ambient.
• Rth_junction-case and Rth_case-sink are typically provided by the component manufacturer.
• Rth_sink-ambient is the thermal resistance of the heat sink, which needs to be calculated or selected.





Calculate Heat Sink Thermal Resistance:



• Use empirical formulas or simulation tools to calculate Rth_sink-ambient based on fin geometry, material properties, and airflow conditions.





Validate with Thermal Simulations:



• Employ computational fluid dynamics (CFD) simulations to model heat transfer and validate calculations.
• Adjust design parameters as necessary to meet thermal performance requirements.





Understanding these calculations allows designers to create heat sinks that effectively dissipate heat while maintaining components within safe operating temperatures. Precise manufacturing methods like CNC machining ensure that the heat sink dimensions align with the calculated specifications, optimizing thermal performance.









Heat Sink Design: Sizing Calculations





Sizing a heat sink involves determining the dimensions and fin configurations necessary to dissipate the required amount of heat while considering factors such as material properties, airflow conditions, and manufacturing constraints.





Finding Convective Heat



Convective heat transfer from the heat sink to the surrounding air is calculated using Newton's Law of Cooling:



Q_conv = h * A * ΔT



• Q_conv: Convective heat transfer (W)
• h: Convective heat transfer coefficient (W/m²·K)
• A: Surface area of the heat sink (m²)
• ΔT: Temperature difference between the heat sink surface and ambient air (K)



To find the required surface area (A):



• A = Q_conv / (h * ΔT)



By knowing the amount of heat that needs to be dissipated (Q_conv), the convective heat transfer coefficient (h), and the allowable temperature difference (ΔT), you can calculate the necessary surface area for the heat sink.









Additional Surfaces for Heat Dissipation





In many designs, there are additional surfaces, such as the base of the heat sink, that contribute to heat dissipation. It's important to include these areas in the total surface area calculation.



Total Surface Area (A_total) = A_fins + A_base



• A_fins: Surface area of the fins
• A_base: Surface area of the base or other contributing surfaces



Finding the Heat Emitted by Radiation



Radiative heat transfer can also contribute to the overall heat dissipation, especially at higher temperatures. It is calculated using the Stefan-Boltzmann Law:



Q_rad = ε * σ * A * (T_surface⁴ - T_ambient⁴)



• Q_rad: Radiative heat transfer (W)
• ε: Emissivity of the heat sink material
• σ: Stefan-Boltzmann constant (5.67 x 10⁻⁸ W/m²·K⁴)
• A: Surface area (m²)
• T_surface: Surface temperature (K)
• T_ambient: Ambient temperature (K)



While radiative heat transfer is generally less significant than convective heat transfer in most electronic cooling applications, it can still contribute to the total heat dissipation and should be considered in the calculations.









Calculating the Number and Dimensions of Fins





To optimize the heat sink design, calculate the number of fins and their dimensions based on the required surface area:



Number of Fins (N) = (W - t_base) / (t_fin + s_fin)



• W: Total width of the heat sink
• t_base: Thickness of the base
• t_fin: Thickness of each fin
• s_fin: Spacing between fins



Width of Each Fin (w_fin) = t_fin



Fin Height (H_fin): Determined based on the desired surface area and airflow conditions.



By adjusting the number of fins, fin thickness, spacing, and height, you can achieve the necessary surface area while considering manufacturing capabilities and airflow constraints.









Example Calculation



Suppose you need to dissipate 50W of heat with a maximum allowable temperature difference of 40K and a convective heat transfer coefficient of 25 W/m²·K:





Calculate Required Surface Area:



• A = Q_conv / (h * ΔT)
• A = 50W / (25 W/m²·K * 40K)
• A = 0.05 m²



Determine Fin Dimensions:



• Decide on fin thickness (t_fin) and spacing (s_fin) based on manufacturing capabilities.
• Calculate the number of fins (N) and fin height (H_fin) to achieve the required surface area.



By performing these calculations, designers can size the heat sink appropriately to meet thermal requirements. Utilizing CNC machining services allows for precise fabrication of heat sinks with the calculated dimensions, ensuring optimal thermal performance.









Power Dissipation in ICs





Integrated circuits (ICs) generate heat due to power dissipation during operation. Managing this heat is crucial to prevent overheating, which can lead to performance degradation or failure.





Thermal Resistance



Thermal resistance in ICs is the measure of how effectively heat is conducted away from the junction (the active region of the IC) to the ambient environment. It is composed of several components:



• Rth_junction-case: Thermal resistance from the junction to the case of the IC.
• Rth_case-sink: Thermal resistance from the IC case to the heat sink.
• Rth_sink-ambient: Thermal resistance from the heat sink to the ambient air.





Calculating the Required Thermal Resistance to Accommodate Power Dissipation





To ensure that the IC operates within safe temperature limits, calculate the maximum allowable thermal resistance:



Identify Maximum Junction Temperature (T_junction_max): Provided in the IC's datasheet.



Determine Ambient Temperature (T_ambient): The expected maximum temperature of the environment in which the IC will operate.



Calculate Total Thermal Resistance (Rth_total):

• Rth_total = (T_junction_max - T_ambient) / Power Dissipation (Q)



Subtract Known Thermal Resistances:

• Rth_sink-ambient = Rth_total - Rth_junction-case - Rth_case-sink



This calculation provides the maximum allowable thermal resistance for the heat sink (Rth_sink-ambient) to keep the IC within safe operating temperatures.





Selecting Heat Sinks and Heat Sink Compounds





With the required thermal resistance known, select a heat sink that meets or exceeds this specification:



Heat Sink Selection:



• Choose a heat sink with an Rth_sink-ambient lower than the calculated maximum.
• Consider factors like size, airflow conditions, and mounting methods.





Thermal Interface Materials (TIMs):



• Use high-quality TIMs to minimize Rth_case-sink.
• Ensure proper application to avoid air gaps and maximize thermal conductivity.



By accurately calculating thermal resistance and selecting appropriate heat sinks and TIMs, designers can effectively manage power dissipation in ICs. CNC prototype machining enables rapid production and testing of heat sink designs, allowing for optimization before full-scale manufacturing.









Other Factors That Affect Heat Sink Performance





Beyond material selection and fin geometry, several other factors influence the performance of a heat sink. Understanding these factors helps in designing heat sinks that perform optimally under various operating conditions.





Key Definitions to Remember When Designing a Heat Sink:



• Thermal Conductivity (k): Measure of a material's ability to conduct heat.
• Convection Coefficient (h): Represents the heat transfer between the heat sink and the fluid (air or liquid).
• Emissivity (ε): Ability of a surface to emit thermal radiation.
• Surface Area (A): Total area available for heat transfer.
• Ambient Conditions: Temperature and airflow in the environment surrounding the heat sink.





Heat Sink Compound Conditions





The effectiveness of thermal interface materials (TIMs) is influenced by their condition and application:



• Proper Application: Ensuring even coverage without air bubbles enhances thermal conductivity.
• Degradation Over Time: TIMs can dry out or degrade, reducing effectiveness.
• Compatibility: TIMs must be compatible with both the heat sink material and the component to prevent chemical reactions or corrosion.



Regular inspection and maintenance may be necessary to maintain optimal performance.







Natural Convection and Forced Convection



The mode of convection significantly impacts heat sink design:



Natural Convection:



• Relies on buoyancy-driven airflow due to temperature differences.
• Requires larger fin spacing and may necessitate larger heat sinks to compensate for lower convection coefficients.
• Suitable for low-power applications or environments where fans are undesirable.



Forced Convection:



• Utilizes fans or blowers to increase airflow over the heat sink.
• Allows for smaller heat sinks with closer fin spacing due to higher convection coefficients.
• Ideal for high-power applications where natural convection is insufficient.



Designers must consider the operating environment and whether natural or forced convection is appropriate for the application.



By accounting for these additional factors, heat sink designs can be optimized for performance and reliability. Advanced manufacturing techniques like CNC machining services allow for precise control over design features that influence these factors, such as surface finish and fin geometry.









Heat Sink Design Material Considerations





Selecting the right material for a heat sink is crucial for achieving desired thermal performance while balancing cost, weight, and manufacturing considerations. Thermal resistance and thermal conductivity are interrelated concepts that play a significant role in material selection.





Thermal Resistance



Thermal resistance (Rth) quantifies how well a heat sink resists heat flow. It depends on the material's thermal conductivity, geometry, and the convection conditions at the surface.



Formula: Rth = (t) / (k * A)



• t: Thickness of the material
• k: Thermal conductivity
• A: Cross-sectional area



A lower thermal resistance indicates better heat dissipation capabilities.





Thermal Conductivity



Thermal conductivity (k) is a material property that measures its ability to conduct heat. Materials with higher thermal conductivity are more efficient at transferring heat.



• High k Values: Materials like copper (k ≈ 385 W/m·K) and aluminum (k ≈ 205 W/m·K).
• Low k Values: Materials like stainless steel (k ≈ 16 W/m·K) and plastics.





Relationship Between Thermal Resistance and Thermal Conductivity



Thermal resistance and thermal conductivity are inversely related. A material with high thermal conductivity will have lower thermal resistance for a given geometry, improving the heat sink's performance.



• Impact on Design: Selecting materials with higher thermal conductivity allows for smaller or more efficient heat sinks.
• Trade-offs: High thermal conductivity materials like copper are heavier and more expensive than materials like aluminum.





Summary



Balancing thermal conductivity and thermal resistance involves considering material properties, cost, weight, and manufacturing capabilities. Utilizing custom CNC machining, designers can create heat sinks that optimize these factors for specific applications.







Thermal Conductivity of Common Materials in Heat Sinks:











These values guide material selection based on the required thermal performance and application constraints.









Aluminum Heat Sink







Aluminum is the most commonly used material for heat sinks due to its excellent balance of thermal properties, weight, cost, and manufacturability.



Thermal Conductivity



• Value: Approximately 205 W/m·K.
• Impact: Provides efficient heat transfer from the component to the fins, facilitating effective cooling.



Lightweight



• Density: Approximately 2,700 kg/m³.
• Benefit: Reduces the overall weight of the device, crucial in applications like aerospace, automotive, and portable electronics.



Cost-Effective



• Availability: Abundant and widely available.
• Manufacturing Cost: Lower material and processing costs compared to copper.



Easy to Manufacture



• Machinability: Easily machined, extruded, and cast.
• Complex Designs: Allows for intricate fin structures and shapes using CNC milling parts and CNC turning parts.



Corrosion Resistance



• Natural Oxide Layer: Forms a protective layer that resists corrosion.
• Durability: Enhances the lifespan of the heat sink in various environments.



Anodizing Capability



• Anodizing: Enhances surface finish, corrosion resistance, and emissivity.
• Aesthetics: Allows for color customization and branding opportunities.



Aluminum's properties make it an ideal choice for a wide range of heat sink applications, from consumer electronics to industrial equipment. Utilizing CNC machining services, aluminum heat sinks can be precisely manufactured to meet specific design requirements.







Copper Heat Sink



Copper is renowned for its exceptional thermal conductivity, making it a preferred material for high-performance heat sinks where maximum heat dissipation is required.



Thermal Conductivity



• Value: Approximately 385 W/m·K.
• Impact: Nearly twice that of aluminum, allowing for superior heat transfer capabilities.



Cost and Weight



• Cost: More expensive than aluminum, which can impact the overall project budget.
• Weight: Density of approximately 8,960 kg/m³, significantly heavier than aluminum.



Considerations:



• Applications: Best suited for situations where thermal performance is critical, and weight is less of a concern.
• Cost-Benefit Analysis: Higher material costs must be justified by the performance benefits.



Machinability



• Manufacturing Challenges: More difficult to machine than aluminum due to its softness and tendency to work-harden.
• Advanced Techniques: May require specialized custom CNC machining processes to achieve desired shapes and tolerances.



Corrosion Resistance



• Oxidation: Copper can tarnish and form patina over time.
• Protective Coatings: Often requires additional surface treatments to prevent corrosion.



Anodizing Capability



• Limitations: Copper cannot be anodized like aluminum.
• Alternatives: Surface finishes like plating (nickel, tin) or applying protective coatings.



Copper heat sinks are ideal for high-power applications such as servers, high-performance computing, and specialized industrial equipment. The superior thermal performance can outweigh the drawbacks of increased cost and weight in these contexts.







Heat Pipe Heat Sink





Heat pipes and vapor chambers are advanced thermal management components integrated into heat sink designs to enhance heat transfer capabilities.



Functionality



• Phase Change Mechanism: Utilizes the evaporation and condensation of a working fluid to transfer heat efficiently.
• Heat Spreading: Distributes heat from hot spots to cooler areas of the heat sink.



Advantages



• High Thermal Conductivity: Effective thermal conductivities can reach up to 10,000 W/m·K.
• Compact Design: Allows for efficient heat transfer in confined spaces where traditional heat sinks may be inadequate.
• Orientation Independence: Some designs function effectively regardless of orientation, providing flexibility in device design.



Applications



• High-Density Electronics: Ideal for laptops, tablets, and smartphones where space is limited.
• High-Power Components: Used in servers, gaming consoles, and graphic cards to manage significant heat loads.
• Specialized Equipment: Employed in aerospace and medical devices requiring precise thermal control.



Integration with Heat Sinks



• Combined Systems: Heat pipes are often embedded in aluminum or copper heat sinks to enhance performance.
• Customization: Can be shaped and sized to fit specific design requirements using CNC machining services.



Heat pipe heat sinks offer a solution when traditional conduction methods are insufficient, providing superior thermal management in challenging applications.











Heat Sink Design Fin Geometry





Fin geometry is a critical aspect of heat sink design, affecting the surface area, airflow patterns, and overall thermal performance. Optimizing fin shape, thickness, spacing, and height enhances heat dissipation efficiency.



Fin Shape



The shape of the fins influences how air flows over the heat sink and how effectively heat is transferred to the surrounding environment.







Subcategories of Plate Fins and Pin Fins Include:





Plate Fins:



Straight Fins

• Design: Parallel, flat fins extending from the base.
• Advantages: Simple to manufacture, suitable for natural convection.
• Applications: General-purpose heat sinks in various electronics.



Louvered Fins

• Design: Fins with louvered sections to increase turbulence.
• Advantages: Enhanced heat transfer through increased airflow disruption.
• Applications: Automotive radiators, air conditioning systems.



Wavy Fins

• Design: Fins with a wavy pattern to increase surface area.
• Advantages: Improves heat transfer without significantly increasing size.
• Applications: Compact heat sinks in constrained spaces.



Staggered Strip Fins

• Design: Strips arranged in a staggered pattern.
• Advantages: Disrupts airflow to enhance convection.
• Applications: High-performance applications requiring efficient cooling.





Pin Fins:



Cylindrical Pin Fins

• Design: Circular pins extending from the base.
• Advantages: Allows airflow in multiple directions, suitable for omni-directional cooling.
• Applications: Electronics with variable airflow conditions.



Conical Pin Fins

• Design: Pins that taper from base to tip.
• Advantages: Reduces pressure drop, maintains airflow while providing surface area.
• Applications: Applications where airflow resistance must be minimized.



Elliptical Pin Fins

• Design: Pins with an elliptical cross-section.
• Advantages: Lower airflow resistance compared to cylindrical pins.
• Applications: Aerodynamically sensitive applications.



Choosing the appropriate fin shape depends on factors like airflow conditions, manufacturing capabilities, and thermal requirements. Advanced manufacturing methods like CNC machining allow for the creation of complex fin geometries to optimize performance.





Fin Thickness



Fin thickness affects both the structural integrity of the fins and the thermal performance of the heat sink.



Considerations:

• Thermal Conductivity: Thicker fins conduct heat more effectively from the base to the tip.
• Airflow Resistance: Thicker fins can obstruct airflow, increasing resistance.
• Manufacturing Constraints: Very thin fins may be challenging to produce and prone to damage.



Optimization:

• Balance: Select a thickness that provides adequate heat conduction without significantly impeding airflow.
• Manufacturing Techniques: Utilize CNC machining services to achieve precise fin thicknesses.





Fin Spacing



Proper fin spacing ensures optimal airflow through the heat sink, affecting convective heat transfer.



Factors Influencing Fin Spacing:



• Airflow Type: Natural convection requires wider spacing; forced convection allows for closer fins.
• Dust Accumulation: Wider spacing reduces the risk of dust clogging, important in dusty environments.
• Pressure Drop: Closer fins increase resistance, potentially reducing airflow rates.



Design Approach:



• Empirical Data: Use established guidelines or experimental data to determine optimal spacing.
• Simulation Tools: Employ computational models to predict airflow and thermal performance.





Fin Height



Fin height contributes to the total surface area but must be balanced against airflow resistance and structural considerations.



Considerations:



• Increased Surface Area: Taller fins provide more area for heat dissipation.
• Airflow Resistance: Very tall fins can create airflow shadows, reducing effectiveness.
• Structural Integrity: Tall, thin fins may be susceptible to vibration or damage.



Optimization:



• Trade-offs: Determine the optimal height that maximizes heat transfer without compromising airflow or structural stability.
• Manufacturing Capabilities: Ensure that the chosen fin height can be produced with available CNC machining equipment.









Applications of Heat Sinks





Heat sinks are integral components in a wide range of applications where thermal management is critical. Their design and performance directly impact the reliability and efficiency of electronic devices and systems.





CPU



• Role: Dissipate heat generated by the central processing unit in computers.
• Requirements: High-performance heat sinks with efficient thermal conductivity and airflow management.
• Design Considerations: Often incorporate heat pipes, fans, and complex fin geometries.





Power Amplifiers



• Role: Manage heat in high-power electronic circuits used in audio equipment, broadcasting, and telecommunications.
• Requirements: Robust heat sinks capable of handling significant thermal loads.
• Design Considerations: May require active cooling solutions and materials with high thermal conductivity like copper.





Optoelectronics



• Role: Control temperature in devices like lasers, LEDs, and photodetectors.
• Requirements: Precise thermal management to maintain performance and wavelength stability.
• Design Considerations: Utilize materials and designs that offer high thermal efficiency and minimal thermal resistance.









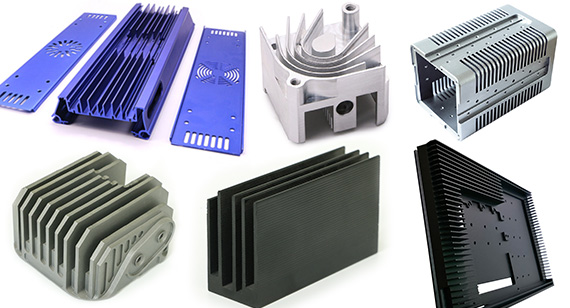

Common Manufacturing Methods for Heat Sink Design





Various manufacturing techniques are employed to produce heat sinks, each with its advantages, limitations, and suitability for different designs and production volumes.





Heat Sink Extrusion



• Process: Forcing aluminum billets through a die to create continuous profiles.
• Advantages: Cost-effective for high-volume production, suitable for standard shapes.
• Limitations: Limited to simpler cross-sectional designs.





CNC Machined Heat Sinks



• Process: Using CNC milling and CNC turning to machine heat sinks from solid blocks.
• Advantages: High precision, flexibility in design, suitable for prototypes and low-volume production.
• Limitations: Higher cost per unit compared to mass production methods.





Die Cast Heat Sinks



• Process: Molten metal is injected into a mold under high pressure.
• Advantages: Economical for large volumes, allows for complex shapes.
• Limitations: Tooling costs are high, and material choices are limited.





Forged Heat Sinks



• Process: Compressing metal under high pressure to form shapes.
• Advantages: Excellent thermal performance due to dense material structure.
• Limitations: Higher cost, limited to certain shapes and sizes.





Stamped Heat Sinks



• Process: Cutting and forming sheets of metal using stamping presses.
• Advantages: Cost-effective for simple designs, suitable for thin profiles.
• Limitations: Limited design complexity, material thickness constraints.





Skiving Heat Sinks



• Process: Slicing fins from a solid block of metal, creating integral fin structures.
• Advantages: High fin density, excellent thermal performance.
• Limitations: Limited to certain materials like copper and aluminum.





Bonded Heat Sinks



• Process: Assembling fins and bases using adhesives or mechanical methods.
• Advantages: Allows for mixing materials, flexibility in fin design.
• Limitations: Potential for reduced thermal conductivity at bonding interfaces.





Zipper Fin Heat Sink



• Process: Interlocking stamped fins to create a heat sink assembly.
• Advantages: High fin density, customizable fin shapes.
• Limitations: Assembly complexity, may require additional bonding techniques.



By selecting the appropriate manufacturing method, designers can balance performance, cost, and production requirements to create effective heat sinks.









Tips to Consider When Designing a Heat Sink





Designing an effective heat sink requires careful consideration of various factors to ensure optimal thermal performance and compatibility with the application.





Suitable Materials for Heat Sinks



Material selection impacts thermal conductivity, weight, cost, and manufacturability.



Interface Materials:



• Purpose: Enhance thermal contact between the heat sink and component.
• Options: Thermal grease, pads, adhesives, phase change materials.
• Considerations: Thermal conductivity, ease of application, long-term stability.



Heat Sink Materials:



• Aluminum: Balance of thermal conductivity, weight, and cost.
• Copper: Superior thermal conductivity, higher cost and weight.
• Composites: Combine materials to optimize properties.







Shape and Arrangement of Heat Sink Fins





Fin design affects airflow, surface area, and heat transfer efficiency.











Considerations:



• Airflow Direction: Align fins to maximize airflow over surfaces.
• Fin Spacing and Thickness: Optimize to balance thermal performance and airflow resistance.
• Fin Shape: Select shapes that enhance turbulence and heat transfer.





Thermal Resistance



Understanding and minimizing thermal resistance throughout the heat sink and interface is crucial.



Strategies:



• Material Selection: Use materials with high thermal conductivity.
• Interface Optimization: Ensure proper application of TIMs.
• Design Refinement: Adjust geometry to reduce thermal bottlenecks.







Heat Sink Connection Methods





Securely attaching the heat sink ensures good thermal contact and mechanical stability.





Typical Methods Include:



• Wire Clips: Simple, cost-effective, suitable for small heat sinks.
• Push Pins: Quick installation, commonly used in CPU coolers.
• Thermal Tape: Adhesive with thermal properties, easy to apply.
• Epoxy: Provides strong bond, suitable for permanent applications.
• Plastic Clips: Non-conductive, prevent electrical shorts.
• Spring Screws: Maintain consistent pressure, accommodate thermal expansion.





Considerations:



• Mechanical Stress: Avoid damaging components.
• Ease of Assembly: Select methods compatible with production processes.
• Reworkability: Consider whether the heat sink may need to be removed for maintenance.





By integrating these tips into the design process, engineers can create heat sinks that effectively manage thermal loads while meeting practical considerations of manufacturing and assembly.











Heat Transfer Mechanisms in Heat Sink Design







Understanding the fundamental mechanisms of heat transfer—conduction, convection, and radiation—is essential in designing effective heat sinks.





Conduction





Definition: Transfer of heat through a material due to temperature gradients.



Role in Heat Sinks: Conducts heat from the electronic component to the fins.



Factors Influencing Conduction:

• Material Thermal Conductivity: Higher conductivity materials like copper enhance conduction.
• Cross-Sectional Area: Larger areas reduce thermal resistance.
• Path Length: Shorter distances between the heat source and fins improve conduction.



Convection





Definition: Transfer of heat from a surface to a fluid (air or liquid) in motion.



Role in Heat Sinks: Removes heat from the fins to the surrounding environment.



Types:

• Natural Convection: Caused by buoyancy forces due to temperature differences.
• Forced Convection: Enhanced by fans or blowers increasing fluid movement.



Factors Influencing Convection:



• Surface Area: Larger areas increase heat transfer.
• Fluid Velocity: Higher velocities improve convection.
• Fin Geometry: Shapes that enhance airflow turbulence improve heat transfer.





Radiation





Definition: Transfer of heat through electromagnetic waves without the need for a medium.



Role in Heat Sinks: Can contribute to heat dissipation, especially at higher temperatures.



Factors Influencing Radiation:

• Emissivity: Surfaces with higher emissivity radiate heat more effectively.
• Surface Temperature: Radiation increases with the fourth power of temperature.



Integrating Heat Transfer Mechanisms



Effective heat sink design leverages all three mechanisms:

• Conductive Pathways: Optimize material selection and geometry to enhance conduction.
• Convective Surfaces: Design fins and airflow systems to maximize convection.
• Radiative Properties: Use surface treatments like anodizing to increase emissivity.



By understanding and optimizing these mechanisms, designers can create heat sinks that efficiently manage thermal loads in electronic systems.









Heat Sink Design Process







Designing a heat sink involves a systematic process to ensure it meets the thermal requirements of the application while considering practical manufacturing and cost constraints.





1. Define Requirements



• Thermal Specifications: Determine the maximum allowable temperatures, power dissipation, and environmental conditions.
• Physical Constraints: Consider size, weight, and space limitations.
• Regulatory Standards: Ensure compliance with industry-specific regulations.





2. Calculate Required Thermal Resistance (Rth)



• Use Thermal Equations: Calculate the maximum allowable thermal resistance based on temperature differences and power dissipation.
• Include All Components: Account for thermal resistances from the junction to the ambient environment.





3. Select Heat Sink Type and Material



• Material Selection: Choose materials based on thermal conductivity, weight, cost, and manufacturability.
• Heat Sink Type: Decide between passive or active cooling, and select appropriate fin designs.





4. Determine Heat Sink Geometry



• Fin Design: Optimize fin shape, thickness, spacing, and height.
• Base Thickness: Ensure sufficient material to conduct heat from the component to the fins.
• Overall Dimensions: Fit within physical constraints while meeting thermal requirements.





5. Perform Thermal Calculations



• Conduction Analysis: Calculate heat transfer within the heat sink.
• Convection Analysis: Evaluate heat dissipation to the environment.
• Simulation Tools: Use software to model thermal performance and identify potential issues.





6. Prototype and Test



• Create Prototypes: Use CNC prototype machining to produce initial designs.
• Testing: Measure thermal performance under operating conditions.
• Iterate Design: Refine based on test results to optimize performance.





By following this process, designers can develop heat sinks that effectively manage heat while meeting all application requirements.









Common Design Mistakes and How to Avoid Them



• Underestimating Thermal Loads: Ensure accurate calculations of power dissipation and thermal resistance requirements.
• Inadequate Material Selection: Choose materials with appropriate thermal conductivity and mechanical properties.
• Poor Fin Design: Optimize fin geometry to balance surface area and airflow resistance.
• Ignoring Interface Quality: Use proper TIMs and ensure good contact between the heat sink and component.
• Overlooking Manufacturing Constraints: Design within the capabilities of available manufacturing processes like CNC machining.





Avoiding these mistakes leads to more effective heat sink designs and improved device performance.









Conclusion





Radiator design is a critical aspect of thermal management in electronic systems. By understanding the principles of heat transfer, material properties, fin geometry, and the various factors influencing heat sink performance, designers can create efficient cooling solutions tailored to their specific applications. Advanced manufacturing techniques like radiator CNC machining enable precise fabrication of heat sinks, enhancing performance and reliability.



Whether dealing with CNC turning parts, CNC milling parts, or leveraging custom CNC machining in a CNC machining factory, the principles outlined in this guide provide a foundation for effective radiator design. By carefully considering all aspects of the design process, engineers can develop heat sinks that meet the thermal challenges of modern electronic devices.















Frequently Asked Questions





What Is the Best Design for a Heat Sink?



The best heat sink design depends on the specific application and thermal requirements. It involves optimizing material selection, fin geometry, and airflow conditions to achieve the desired thermal performance. Utilizing high thermal conductivity materials like copper or aluminum and designing fins to maximize surface area while minimizing airflow resistance are key factors.





What Are the Criteria for Heat Sink Design?



Criteria for heat sink design include:



• Thermal Performance: Ability to dissipate the required amount of heat.
• Material Properties: Thermal conductivity, weight, cost, and manufacturability.
• Mechanical Constraints: Size, weight, and compatibility with the device.
• Environmental Conditions: Operating temperature range, airflow availability.
• Manufacturing Considerations: Feasibility and cost of production methods.





What Are the Two Types of Heat Sinks?



• Passive Heat Sinks: Rely on natural convection and radiation without moving parts. Ideal for low-power applications where silence and reliability are important.
• Active Heat Sinks: Incorporate fans or pumps to enhance heat dissipation through forced convection. Suitable for high-power applications requiring more aggressive cooling.





What Is the Formula for a Heat Sink?



The basic formula for calculating the required thermal resistance of a heat sink is:



Rth_sink-ambient = (T_junction_max - T_ambient) / Q - (Rth_junction-case + Rth_case-sink)





Where:

• Rth_sink-ambient: Thermal resistance from heat sink to ambient.
• T_junction_max: Maximum allowable junction temperature.
• T_ambient: Ambient temperature.
• Q: Power dissipation.
• Rth_junction-case: Thermal resistance from junction to case.
• Rth_case-sink: Thermal resistance from case to heat sink.





What Is the Best Metal for a Heat Sink?



Copper is the best metal in terms of thermal conductivity (approximately 385 W/m·K), making it highly effective for heat sinks. However, aluminum is often used due to its balance of good thermal conductivity (approximately 205 W/m·K), lower weight, and cost-effectiveness.





What Is the Lifespan of a Heat Sink?



Heat sinks generally have a long lifespan, often matching or exceeding the life of the electronic components they cool. Passive heat sinks can last indefinitely, while active heat sinks with moving parts like fans may have a lifespan limited by the fan's operational hours, typically around 30,000 to 70,000 hours.





What Are the Best Heat Sinks?



The best heat sinks are those that effectively manage the thermal requirements of the application while meeting size, weight, and cost constraints. They utilize appropriate materials, optimized fin designs, and, when necessary, incorporate active cooling methods.





Why Are Heat Sinks Black?



Heat sinks are often anodized black to increase their emissivity, enhancing heat dissipation through radiation. The black surface emits thermal radiation more effectively than lighter colors, contributing to overall cooling performance.





What Is the Best Color for a Heat Sink?



Black is considered the best color for a heat sink due to its high emissivity, which improves radiative heat transfer. However, in applications where radiation is a minor component of heat dissipation, the color may have a negligible effect.





Does Aluminum Dissipate Heat Better Than Steel?



Yes, aluminum dissipates heat better than steel due to its higher thermal conductivity. Aluminum's thermal conductivity is approximately 205 W/m·K, while steel's is around 50 W/m·K. This makes aluminum more effective for heat sink applications.





Why Do Radiators Need Anodizing?



Anodizing a radiator (heat sink) improves corrosion resistance, surface hardness, and emissivity. The anodized layer enhances thermal radiation and provides a protective barrier against environmental factors, extending the heat sink's lifespan.





Which Radiator Material Is Best?



Copper is the best radiator material in terms of thermal performance due to its high thermal conductivity. However, aluminum is often preferred for its balance of good thermal performance, lower weight, and cost, making it suitable for most applications.





What Is the Difference Between a Radiator and a Heat Sink?



In the context of electronics, the terms "radiator" and "heat sink" are often used interchangeably to refer to components that dissipate heat. However, "radiator" may sometimes imply a focus on radiative heat transfer, while "heat sink" generally encompasses conduction, convection, and radiation mechanisms.







By understanding the fundamentals of radiator design and applying best practices, you can create effective thermal management solutions using radiator CNC machining, whether in CNC machining parts, CNC prototype machining, or full-scale production in a CNC machining factory. This ensures that your electronic devices operate reliably and efficiently, meeting the demands of today's technology-driven world.
