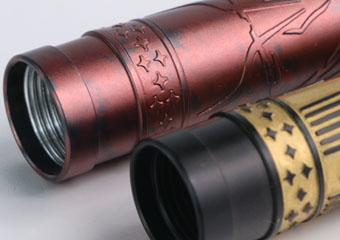

Custom Aluminum Etching CNC Machining Parts

Qualify Evaluation Report

For each order we receive, we can provide a list of quality inspection reports according to your processing requirements.

Inspection  report
Full dimension report
Material Test Report

Certificate

As an experienced manufacturer of on-demand CNC machined parts, has obtained the following certifications.

ISO 9001:2015

IATF 16949:2015

ROHS Directive

12 patent certifications

More Details>>

1. What is CNC machining, and how does it relate to aluminum etching?

CNC (Computer Numerical Control) machining is a precision process used to cut, shape, and form aluminum parts based on a digital design. After machining, etching can be applied to create fine patterns, logos, or text on the surface of the aluminum part. Etching involves using chemicals, lasers, or mechanical processes to remove a thin layer of material, creating a design or texture.

2. What is aluminum etching, and how is it done?

Aluminum etching is a process that removes material from the surface of aluminum parts to create patterns, logos, markings, or textures. It can be done using several methods:

1. Chemical etching: A chemical solution is applied to dissolve specific areas of the aluminum surface.
2. Laser etching: A high-powered laser removes material with extreme precision to engrave or mark the aluminum surface.
3. Mechanical etching: A tool physically engraves or scratches the surface of the aluminum.

3. Why is aluminum etching used in CNC-machined parts?

Aluminum etching is often used to:

Add logos, serial numbers, or identification markings on CNC-machined parts.

Create decorative patterns or designs for branding or aesthetic purposes.

Enhance surface texture for improved functionality, such as increasing grip or reducing light reflection.

Ensure permanent and wear-resistant markings that will not fade or wear off over time.

4. What are the benefits of etching CNC-machined aluminum parts?

Customization: Etching allows for highly detailed and precise custom designs, logos, or patterns.

Durability: The etching process is permanent and will not fade or rub off, ensuring long-lasting markings.

Versatility: Etching can be applied to a wide range of surfaces and shapes, making it adaptable for different design requirements.

Cost-effective: For high-volume production, chemical or laser etching is an efficient way to apply consistent designs or markings to each part.

5. What are the different types of aluminum etching available for CNC-machined parts?

Chemical etching: Ideal for mass production, this method is cost-effective and can achieve intricate designs with uniform depth.

Laser etching/engraving: This method offers the highest precision, allowing for detailed text, logos, or barcodes to be etched directly onto the surface. It can be used for both shallow etching and deep engraving.

Mechanical etching/engraving: Involves a physical tool that engraves the surface, typically used for deeper etching and more rugged surfaces.

6. What level of detail can be achieved with aluminum etching?

The detail level depends on the etching method used. Laser etching provides the highest resolution, allowing for very fine details such as small fonts, intricate logos, or QR codes. Chemical etching also allows for good detail, especially in larger patterns or logos, but is less precise than laser etching. Mechanical etching typically results in deeper but less detailed markings.

7. Can custom designs and logos be etched onto CNC-machined aluminum parts?

Yes, custom designs such as company logos, serial numbers, barcodes, QR codes, or decorative patterns can be etched onto CNC-machined aluminum parts. Designs are typically provided in vector file formats (such as .AI or .DXF) to ensure precision during the etching process.

8. What are the surface preparation steps before etching CNC-machined aluminum parts?

Proper surface preparation is critical to ensure the best results. Preparation steps may include:

Cleaning: Removing any oils, debris, or contaminants from the surface to allow for proper adhesion of etching agents.

Surface polishing: Depending on the desired finish, the aluminum may be polished to smooth out any rough areas.

Masking: For chemical etching, parts of the surface may need to be masked to protect them from the etching solution, allowing only specific areas to be etched.

9. How durable are etched markings on CNC-machined aluminum parts?

Etched markings are highly durable and permanent. Laser and chemical etching create wear-resistant designs that can withstand harsh environmental conditions, such as high temperatures, chemicals, or physical wear. The etched areas are resistant to fading or rubbing off, even after extended use.

10. What factors affect the cost of aluminum etching on CNC-machined parts?

The cost of aluminum etching depends on:

Etching method: Laser etching may be more expensive than chemical etching due to the precision and technology involved.

Design complexity: More intricate and detailed designs may require additional time and resources.

Surface area: The larger the area to be etched, the higher the cost.

Production volume: Higher quantities can reduce the cost per unit, especially for chemical etching, which is ideal for batch processing.

11. What are the limitations of etching CNC-machined aluminum parts?

Depth limitations: Etching typically removes a shallow layer of material, so it may not be suitable for applications requiring deep engraving.

Surface preparation: Proper surface preparation is critical for optimal results. Contaminants or improper cleaning can lead to uneven etching.

Material considerations: While aluminum is highly compatible with etching, other materials may require different treatments, so the process needs to be tailored accordingly.

12. What is the typical lead time for custom CNC aluminum parts with etching?

Lead times vary depending on the complexity of the design, the number of parts, and the specific etching method used. Typically, production lead times range from 1 to 4 weeks after finalizing the design, with prototypes often available in 1 to 2 weeks. Larger production runs may take longer, especially if intricate etching is involved.

13. Can prototypes be made before full production of etched CNC aluminum parts?

Yes, CNC machining services typically offer prototyping. A prototype can help verify the design, fit, and etching quality before moving into full-scale production. This ensures that both the machining and etching meet all specifications and expectations.

14. What materials should be provided for a quote on custom aluminum CNC parts with etching?

To obtain a quote, you will need to provide:

CAD drawings or design files that detail the dimensions and features of the part.

Design for etching in vector format (.AI, .DXF, or other similar file types), showing the placement of logos, text, or patterns.

Material specifications, such as the aluminum alloy (e.g., 6061, 7075).

Surface finish requirements, including any pre-etching treatments (e.g., polishing or anodizing).

Quantity of parts for production.

15. Can anodized aluminum be etched?

Yes, anodized aluminum can be etched. Laser etching is particularly effective on anodized surfaces, as the anodized layer provides contrast and makes etched designs stand out. This is commonly used to add logos or branding on anodized aluminum products.
