Black Oxide Coating: A Complete Guide



Black oxide coating is a widely used surface treatment process in the manufacturing industry, particularly for CNC machined parts. It is a conversion coating for ferrous materials that offers corrosion resistance, reduced light reflection, and an enhanced aesthetic appearance. This guide provides a comprehensive overview of black oxide coating, discussing its purpose, application process, types, materials suitable for black oxidation, and its advantages and disadvantages. The information will help manufacturers and engineers make informed decisions about when and how to use black oxide coatings in their custom CNC machining projects.









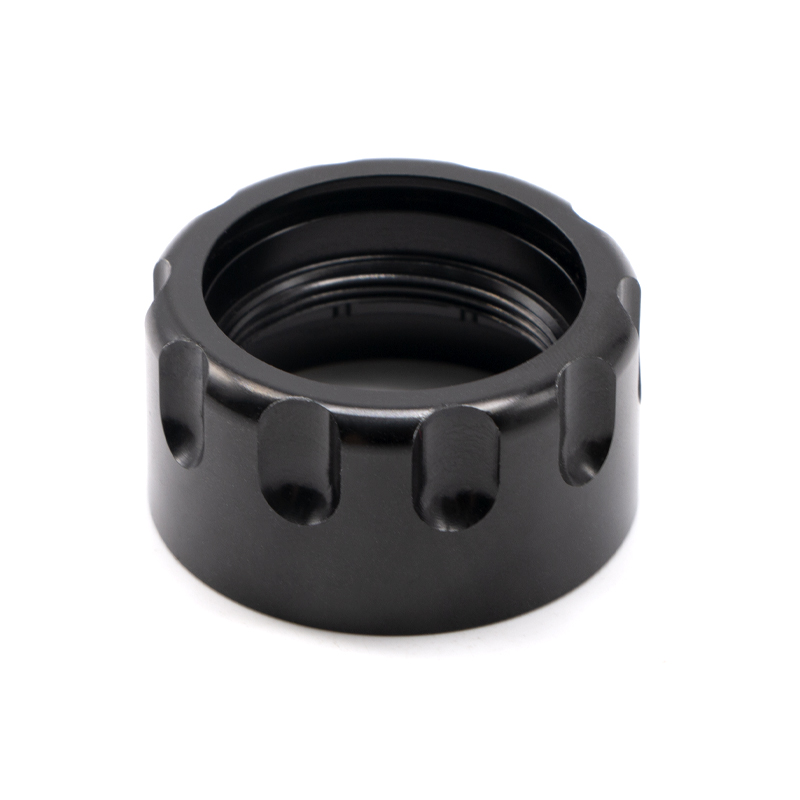

What is Black Oxide Coating?





Black oxide coating is a chemical conversion process that transforms the surface of ferrous metals into a layer of magnetite (Fe3O4). This layer is formed by immersing the metal parts in a hot alkaline solution, typically containing sodium hydroxide, nitrates, and nitrites. The result is a thin, black, matte or glossy coating that enhances the metal's appearance and provides minimal corrosion resistance. Unlike other coatings that add material to the surface, black oxide coating chemically alters the metal’s surface, resulting in a coating that is typically only a few microns thick. This makes it an ideal choice for parts that require minimal dimensional change while improving aesthetic appeal and performance.









When to Use Black Oxide Coating?





Black oxide coating is particularly useful in applications where moderate corrosion resistance, minimal dimensional change, and an enhanced aesthetic appearance are required. It is commonly used in the manufacturing of CNC machined parts for the automotive, aerospace, defense, and electronics industries. The coating is also favored in applications where light reflection needs to be minimized, such as in military or optical equipment. Additionally, black oxide coating is a cost-effective solution for improving the wear resistance and lubricity of mechanical parts, making it suitable for fasteners, gears, and other components subject to friction and movement.











What is the Purpose of Black Oxide Coating?







The primary purpose of black oxide coating is to enhance the properties of metal parts by providing a thin, durable surface layer that offers several benefits:





Prevents Corrosion: Black oxide coating provides moderate corrosion resistance by creating a passive layer on the metal surface. This layer reduces the metal’s susceptibility to rust and other forms of corrosion, particularly in environments with varying humidity and temperature.





Reduces Wear and Tear: The coating improves the surface hardness and wear resistance of metal parts, reducing friction between moving components and extending their service life. This makes black oxide coated CNC machining parts ideal for high-friction applications such as gears, bearings, and fasteners.





Aesthetics: Black oxide coating enhances the visual appeal of metal parts by providing a uniform black finish. This is particularly important in consumer products, where appearance plays a crucial role. The coating can be either matte or glossy, depending on the application requirements.





Reduces Light Reflection: The matte finish of black oxide coating reduces light reflection, making it suitable for applications where glare must be minimized, such as in optical instruments, military equipment, and camera components.











Comparison of Black Oxide with Other Metal Coatings





When compared to other metal coatings like zinc plating, anodizing, or powder coating, black oxide stands out for its unique properties and specific applications. While zinc plating offers better corrosion resistance, black oxide is preferred for its minimal dimensional change and better aesthetic appeal. Anodizing, typically used for aluminum parts, provides a thicker, more durable oxide layer, but black oxide is more suitable for ferrous metals and offers better surface lubricity. Powder coating provides a thicker, more protective finish but can alter the dimensions of precision parts, making black oxide a better choice for applications requiring tight tolerances.











What is the Application Process of Black Oxide Coating?







The application process of black oxide coating involves a series of carefully controlled chemical treatments that convert the surface of the metal into a thin layer of black oxide. This process ensures a uniform and durable coating that enhances the properties of CNC machined parts.





Black Oxide Coating Process Steps:





Cleaning: The metal parts are thoroughly cleaned to remove any grease, oil, dirt, or other contaminants that could interfere with the coating process. This is usually done using an alkaline cleaner or degreaser.



Rinsing: After cleaning, the parts are rinsed in water to remove any residual cleaning agents and to prepare the surface for the next step.



Descaling/Pickling: In this step, the parts are treated with an acid solution to remove any existing oxides, scale, or rust from the surface. This ensures that the black oxide coating will adhere properly and uniformly to the metal.



Neutralization: The parts are neutralized in a mild alkaline solution to prevent any acid residues from interfering with the black oxidation process.



Deplating: In some cases, deplating is necessary to remove any unwanted layers or previous coatings from the surface of the metal parts.



Black Oxidation: The parts are immersed in a hot alkaline bath containing sodium hydroxide, nitrates, and nitrites. The solution chemically reacts with the iron in the steel, forming a layer of black oxide (magnetite) on the surface.



Post-treatment: After the black oxidation step, the parts may undergo post-treatment to enhance the coating's properties. This can include immersion in an oil or wax bath to improve corrosion resistance and lubrication.



After-treatment: The final step involves drying and inspecting the parts to ensure the coating is uniform and meets the required specifications.











Types of Black Oxide Coatings







There are three main types of black oxide coatings, each suited to different applications and operating conditions:





Hot Black Oxidation: This is the most common black oxide process, involving immersion in a hot alkaline bath at temperatures around 285°F (140°C). It produces a deep, durable black finish with good corrosion resistance.



Medium Temperature Black Oxide: This process operates at lower temperatures, typically around 200°F (93°C), and is used for applications where hot black oxidation might cause thermal distortion or where a more cost-effective solution is needed.



Cold Black Oxide: A room temperature process that uses a proprietary solution to produce a black finish. This method is faster and less expensive but generally results in a thinner, less durable coating compared to hot black oxidation.









Hot Black Oxidation Process







Hot black oxidation is the most widely used black oxide process due to its durability and depth of color. The process consists of seven essential steps:





Surface Cleaning: The parts are cleaned to remove contaminants that could interfere with the oxidation process.



Rinsing: The cleaned parts are rinsed to remove any residual cleaning agents.



Pickling: The parts are treated with an acid to remove any existing oxides and to prepare the surface for black oxidation.



Rinsing: Another rinse follows the pickling process to ensure the parts are free of acid residues.



Black Oxidation Chemical Bath: The parts are immersed in a hot alkaline solution that reacts with the metal to form a layer of black oxide.



Rinsing: The oxidized parts are rinsed to remove any residual chemicals.



Sealing: The parts are immersed in an oil or wax bath to seal the coating and enhance corrosion resistance.











What is the Medium Temperature Black Oxidation Process?





The medium temperature black oxidation process is similar to hot black oxidation but operates at a lower temperature, around 200°F (93°C). This process is less aggressive and is used for parts that cannot withstand the high temperatures of traditional black oxidation. It provides a good balance between cost, durability, and appearance, making it suitable for a variety of applications. The lower temperature reduces the risk of thermal distortion, making it ideal for delicate or precision-machined components. The process involves similar steps to hot black oxidation but with adjusted parameters to accommodate the lower temperature.









What is the Cold Black Oxidation Process?





Cold black oxidation is a room temperature process that produces a black finish on metal parts without the need for high-temperature baths. This method uses a proprietary chemical solution to form a thin layer of black oxide on the surface. Cold black oxidation is faster and less expensive than hot or medium temperature processes, but the resulting coating is generally thinner and less durable. This process is often used for parts that require a quick, cost-effective black finish but do not need the same level of corrosion resistance or wear protection as those treated with hot or medium temperature black oxidation.









What Materials Can Be Black Oxidized?







Several materials can undergo black oxide treatment, each requiring specific process adjustments to achieve optimal results:









Copper: Black oxide coatings can be applied to copper to enhance its appearance and provide a mild level of corrosion protection. The process involves specific chemical treatments to ensure proper adhesion and coating uniformity.



Brass: Similar to copper, brass can be black oxidized to improve its aesthetic appeal and provide a slight increase in corrosion resistance. The process is often used for decorative purposes in hardware and fixtures.



Zinc: Black oxide coatings can be applied to zinc parts, particularly in the electronics and automotive industries. The coating improves the metal's appearance and provides a degree of corrosion protection.



Stainless Steel: Stainless steel can be black oxidized to enhance its corrosion resistance and reduce light reflection. This process is common in the medical, military, and aerospace industries, where both performance and appearance are critical.



Carbon Steel: Carbon steel is the most common material for black oxide coating due to its widespread use in manufacturing and engineering. The coating improves the metal’s wear resistance, corrosion resistance, and aesthetic appeal, making it suitable for a wide range of applications.



Aluminum: While aluminum is more commonly anodized, it can also undergo black oxide treatment, particularly in applications where a specific finish or appearance is desired. However, the process and chemicals used differ significantly from those used for ferrous metals.













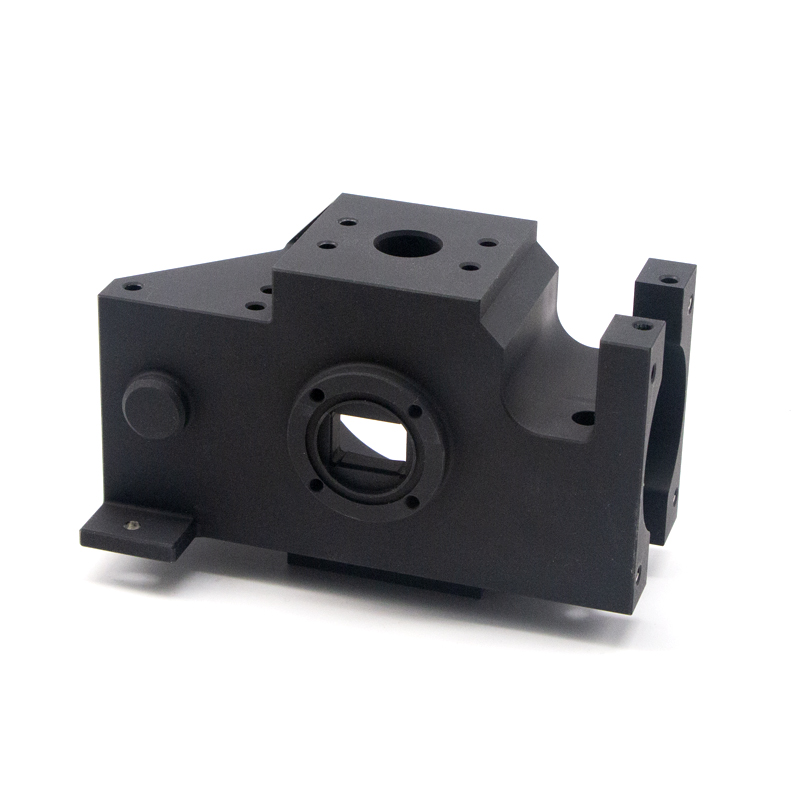

Applications of Black Oxide Coating Surface Treatment in Precision Machining Projects







Black oxide surface treatment is used in a variety of precision machining projects across several industries due to its unique properties and benefits:



Medical Applications: Black oxide coatings are applied to surgical instruments and medical devices to enhance corrosion resistance, reduce glare, and improve the ease of sterilization. The coating also helps in differentiating between different types of instruments.





Electrical Components: In electronics, black oxide coatings are used on connectors, contacts, housings, enclosures, and circuit board assemblies to reduce electrical resistance, improve corrosion resistance, and enhance the overall appearance.





Automotive Parts: Black oxide coatings are commonly used in the automotive industry for fasteners, brackets, wheel assemblies, brake assemblies, trim, and other components. The coating provides corrosion resistance and an attractive finish while maintaining the tight tolerances required in automotive applications.





Military Parts: The military industry benefits from black oxide coatings due to their anti-reflective properties and corrosion resistance. The coating is used on weapons, tactical gear, and other equipment exposed to harsh conditions.





Assembly Tools: Black oxide coatings are applied to screws, bolts, nuts, washers, and threaded rods to improve wear resistance, reduce friction, and provide corrosion protection. The coating also enhances the appearance of these fasteners, making them suitable for visible applications.





Aerospace Parts: In the aerospace industry, black oxide coatings are used on fasteners, brackets, landing gear components, avionics components, and trim. The coating provides corrosion resistance and reduces light reflection, which is critical in aerospace applications.





Machine Parts: Black oxide coatings are applied to machine parts, including rollers, gears, shafts, and other components, to reduce friction, improve wear resistance, and protect against corrosion.





Hand Tools and Measuring Instruments: The coating is used on hand tools, measuring instruments, jigs, dies, fixtures, tool holders, and other tools to enhance their durability, appearance, and resistance to corrosion.













Factors to Consider When Using Black Oxide Coatings









When selecting black oxide coatings for precision machined parts, several factors must be considered to ensure optimal performance and appearance:







Coating Thickness: The thickness of the black oxide coating is typically very thin, which is ideal for applications where minimal dimensional change is required. However, the thickness must be controlled to ensure sufficient corrosion resistance and wear protection.





Applications of This Section: The specific application of the part will dictate the type of black oxide process used, as well as any additional treatments or coatings that may be necessary. Factors such as environmental exposure, mechanical stress, and aesthetic requirements must be taken into account.





Where the Part Will Be Used: The environment in which the part will be used, including exposure to moisture, chemicals, and temperature variations, will influence the choice of black oxide coating. For example, parts used in marine or outdoor environments may require additional corrosion protection beyond what black oxide can provide.





Desired Final Appearance: The final appearance of the part, whether matte or glossy, should be considered when selecting a black oxide coating. The finish should meet both aesthetic and functional requirements, particularly in consumer products or visible components.





Recommended Service Life: The expected service life of the part will influence the choice of black oxide coating and any post-treatment processes. Parts requiring long-term durability may need additional coatings or treatments to ensure they meet performance expectations over time.















Common Defects and Solutions for Black Oxide Coatings









While black oxide coatings offer many benefits, certain defects can occur during the coating process. Identifying and addressing these issues is crucial to achieving a high-quality finish:





Gray Finish: A gray or dull finish can occur if the black oxide bath is not properly maintained or if the parts are not adequately cleaned before coating. To solve this, ensure that the cleaning process is thorough, and the chemical bath is regularly monitored and adjusted as needed.





Brown Scratches: Brownish scratches may appear on the surface of black oxide coated parts if the parts are not handled carefully after coating or if the sealing process is inadequate. To prevent this, handle the parts with care and ensure that the sealing process is complete.





Black Oxide Surface Discontinuities: Surface discontinuities, such as uneven coating or blotches, can result from improper cleaning, insufficient rinsing, or uneven chemical application. To address this, ensure that the parts are thoroughly cleaned, rinsed, and consistently exposed to the chemical bath during the coating process.















Black Oxide Coating Performance Tests







To ensure that black oxide coatings meet the required standards, several performance tests can be conducted:





Obscene Tests: These tests evaluate the coating’s resistance to abrasion, wear, and environmental factors such as moisture and temperature changes. The tests simulate real-world conditions to determine the coating’s durability and longevity.



Relative Humidity Tests: Relative humidity tests assess the coating’s ability to withstand prolonged exposure to moisture. This test is critical for parts that will be used in humid or wet environments, as it measures the coating’s effectiveness in preventing corrosion.













Advantages and Disadvantages of Black Oxide Coatings







Advantages:





Inexpensive: Black oxide coating is cost-effective, particularly for high-volume production runs. The process is relatively simple and does not require expensive materials or equipment.



Low Dimensional Variation: The coating adds minimal thickness to the part, making it ideal for applications where precise tolerances are required.



Wide Applications: Black oxide coatings can be applied to a variety of metals, including steel, stainless steel, copper, and brass, making it versatile for different industries.



High Lubricity: The coating provides a smooth surface that reduces friction, improving the performance and lifespan of moving parts.



Surface Aesthetics: Black oxide coatings enhance the visual appeal of metal parts with a uniform, black finish.



Excellent Surface Finish: The coating provides a high-quality finish that is both attractive and functional.



Minimizes Light Reflections: The matte black finish reduces light reflections, making it suitable for optical and military applications.



Improve Corrosion Resistance: While not as protective as some other coatings, black oxide offers moderate corrosion resistance, particularly when combined with a post-treatment oil or wax.



Anti-Seizure Properties: The coating’s lubricity helps prevent parts from seizing or galling, which is beneficial in assemblies with tight tolerances.



Wear Resistance: Black oxide enhances the wear resistance of metal parts, extending their service life.







Disadvantages:





Suitable to Wear and Rust: Although the coating provides some corrosion resistance, it is not as robust as other coatings like zinc or powder coating. Over time, the coating may wear off, exposing the underlying metal to corrosion.



Weaker Than Other Finishes: Black oxide is thinner and less durable than other finishes, such as hard anodizing or powder coating.



Resistant to Minor Corrosion: While it provides some protection, black oxide is not suitable for environments with high corrosion potential, such as marine or chemical exposure.



Delamination: If not properly applied, black oxide coatings can delaminate or peel off, particularly in harsh environments or under mechanical stress.











Selecting a Black Oxide Finish for Precision Machined Parts





When selecting a black oxide finish for precision machined parts, consider factors such as the material of the part, the required level of corrosion resistance, the application environment, and the desired aesthetic appearance. For parts requiring minimal dimensional change and a sleek, black finish, black oxide is an excellent choice. However, if the part will be exposed to harsh conditions or requires higher durability, additional coatings or treatments may be necessary.

















FAQs About Black Oxide Coatings







Which Black Oxide Coating is Best?



The best black oxide coating depends on the application. Hot black oxide provides the most durable finish, while medium and cold processes are suitable for lower-temperature applications or cost-sensitive projects.





Is Black Oxide Harmful?



The black oxide coating process involves chemicals that require proper handling and disposal. However, once applied, the coating itself is non-toxic and safe for most applications.





What Materials Are Commonly Used for Black Oxide Treatments?



Common materials include carbon steel, stainless steel, copper, brass, and zinc. Each material requires specific process adjustments for optimal results.





Does Black Oxide Increase the Size of the Part?



Black oxide adds a very thin layer, typically only a few microns, so dimensional changes are minimal and usually within acceptable tolerances.





What Does Black Oxide Coating Do?



Black oxide coating improves corrosion resistance, reduces friction, enhances aesthetics, and provides anti-seizure properties.





Does Black Oxide Coating Wear?



Yes, like all coatings, black oxide will eventually wear, especially in high-friction applications. Proper maintenance can extend its lifespan.





Is Black Oxide Better Than Zinc Coating?



Black oxide is better for applications requiring minimal dimensional change and aesthetic appeal, while zinc coating provides superior corrosion resistance.





Is Black Oxide Anodized?



No, black oxide is not the same as anodizing. Anodizing is an electrochemical process primarily used for aluminum, while black oxide is a chemical conversion process used for ferrous metals.





Is Black Oxide Coating Expensive?



Black oxide coating is generally inexpensive, particularly for high-volume production runs.





Which is Stronger, Black Oxide or Titanium?



Titanium is much stronger and more corrosion-resistant than black oxide. However, black oxide is often applied to titanium parts to enhance their appearance and provide additional surface properties.





Is Black Oxide Good for Hardened Steel?



Yes, black oxide can be applied to hardened steel, providing corrosion resistance and reducing glare, making it suitable for tools and fasteners.





What Are the Alternatives to Black Oxide Coating?



Alternatives include zinc plating, anodizing, powder coating, and phosphate coatings, each offering different levels of protection, durability, and aesthetic properties.
This comprehensive guide covers all aspects of black oxide coating, from its purpose and application process to its advantages and disadvantages. By understanding the nuances of this coating, manufacturers can make informed decisions about its use in custom CNC machining projects, ensuring high-quality, durable, and aesthetically pleasing parts.
