What is a Coordinate Measuring Machine (CMM)?

9482   |   Published by VMT at Sep 06 2021





When CNC manufactures all actual prototypes and custom machined parts, the most important thing to pay attention to is the geometric characteristics and manufacturing dimensions of the parts, because of whether the custom machined parts are successfully manufactured. Manual measurement often fails to notice the difference of a few tenths of a millimeter or even a few microns, which is an important part of affecting production for high-precision customized parts. In order to eliminate this concern, people invented a high tolerance measuring instrument in continuous exploration.



In order to make it easier for everyone to understand the height tolerance detection machine, this article takes the three-coordinate measuring machine as an example: understand how the coordinate measuring machine (CMM) machine performs measurement?



There are two general types:



1. Contact mechanism (contact probe) to measure custom processed parts.

2. Use other methods, such as camera or laser as the measuring mechanism.






Introduction



In today's advanced manufacturing processes, precision and accuracy play a crucial role. To ensure the quality of manufactured parts and components, precise measurement techniques are required. This is where Coordinate Measuring Machines (CMMs) come into play.





Definition of a CMM



A Coordinate Measuring Machine, commonly known as a CMM, is a sophisticated metrology instrument used to measure the physical geometrical characteristics of an object. It determines the dimensional accuracy and shape of various components by probing specific points on the object's surface.







What is a coordinate measuring machine (CMM) machine?



A coordinate measuring machine (CMM) is usually composed of software, probes, granite tables, lamps, air compressors and dryers. The full name of CMM is: coordinate (Coordinate), measurement (Measurement), machine (Machine). It is a measuring instrument with measurement function composed of three motion rails according to the Cartesian coordinate system. It is called a coordinate measuring machine and consists of a computer. To analyze and process the data of customized processing parts (which can also be controlled by a computer to achieve fully automatic measurement), it is a highly complex measurement equipment.







How Does a CMM Work?



A CMM works by utilizing a probe that is guided along three mutually perpendicular axes (X, Y, and Z) to measure the position of points on an object. These measurements are then used to create a three-dimensional representation of the object's surface.







Key Components of a CMM





A CMM consists of several essential components, including:



  • Probe: The probe is the part of the CMM that touches the object being measured. It is responsible for gathering the data points required for measurement.

  • Control System: The control system manages the movement of the CMM along its axes and coordinates the measurements taken by the probe.

  • Software: The software provides a user-friendly interface for operating the CMM and analyzing measurement data.

  • Machine Structure: The machine structure comprises the frame, rails, and bearings that support the movement of the CMM.







Types of CMM



There are various types of CMMs available, including:



  • Bridge CMM: This type of CMM has a bridge-like structure with the probe suspended from it. It offers high accuracy and is commonly used in quality control laboratories.

  • Cantilever CMM: In a cantilever CMM, the probe is attached to one end of a horizontal arm. It provides excellent flexibility for measuring large objects.

  • Gantry CMM: A gantry CMM consists of a horizontal arm mounted on a bridge-like structure. It offers stability and is often used for measuring large components in industries such as aerospace and automotive.







Applications of CMM





CMMs have extensive applications in various industries, including:



  • Automotive: CMMs are used for quality control and inspection of engine components, body parts, and other critical automotive parts.

  • Aerospace: CMMs play a vital role in ensuring the precision and accuracy of aircraft components, such as turbine blades and wing structures.

  • Medical Devices: CMMs are used to measure and verify the dimensions of medical implants, prosthetics, and surgical instruments.

  • Manufacturing: CMMs aid in the inspection and verification of machined parts, molds, and tooling in the manufacturing process.







Why do I need a coordinate measuring machine (CMM) machine?





Before answering this question, we should first know what its purpose is? Why is the manufacturing process of custom machined parts in the manufacturing industry related to it? We can first understand the difference between traditional measurement methods and new measurement methods.



Traditional measurement method: It requires professional operators to check the experience and skills of custom machined parts. If there is no inspection experience, it may lead to inaccurate inspection of custom machined parts.



New method of measurement: The coordinate measuring machine (CMM) can be used to obtain the measurement data of the custom-made parts more quickly. No matter the custom-made parts are complicated or easy, the measured values ??are very accurate.



Therefore, coordinate measuring machine (CMM) machines are better than traditional methods, improving the measurement efficiency of custom-made parts, reducing measurement errors, and improving the productivity of custom-made parts, as well as measurement speed and measurement accuracy.

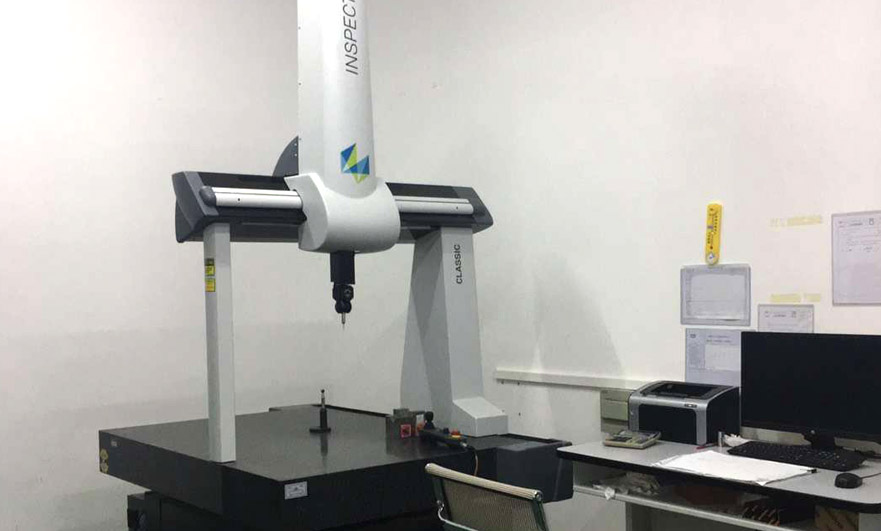

Custom machining parts coordinate measuring machine (CMM)







Advantages and disadvantages of coordinate measuring machine (CMM) machines









Advantages: CMM machines are an important part of the production process of custom machined parts. Even so, there are corresponding advantages and disadvantages.





Advantage:



1. The versatility of multiple probes and technologies



The CMM machine is compatible with many types of tools and components. The complexity of the custom machined parts has no effect, because the CMM machine will measure the custom machined parts.





2. Reduction of personnel costs



A CMM machine is a machine controlled by a computer. Therefore, the intervention of personnel is reduced, thereby reducing the errors of custom machining parts caused by operational errors and other problems.





3. Save time and money costs



The manufacturing of complex custom machined parts is becoming more and more common, and CMM machines are ideal for measuring their dimensions. CMM machines have become an indispensable part of the production process of custom machined parts due to their speed and precision. Reduce production costs and time.





4. Quality Assurance



The method of three-coordinate measuring machine to detect the size of custom-made parts is different from the traditional machine measuring method. The coordinate measuring machine can digitally measure and analyze custom-made parts. In the process, it also provides other services such as dimensional analysis, CAD comparison, tool certification, and reverse engineering. This is an important process to ensure the quality of custom machined parts.





  • High Accuracy: CMMs provide precise and accurate measurements, ensuring the quality of manufactured components.



  • Time Efficiency: CMMs can measure multiple points simultaneously, reducing the time required for inspection.



  • Automation: CMMs can be programmed to perform measurements automatically, reducing the need for manual intervention.



  • Data Analysis: CMM software allows for in-depth analysis of measurement data, facilitating process improvement and quality control.









Shortcoming:





While CMMs are powerful measurement tools, they do have some limitations, such as:




1. The correct probe must be selected



Since CMM machines use different types of probes, choosing the correct probe depends largely on the size of the custom machined part, the required design, and the capabilities of the probe.





2. Soft parts may cause defects



For custom machined parts made of soft materials such as rubber and elastomers, the use of probes will cause the custom machined parts to collapse. This also causes measurement data errors.





3. The probe must touch the surface



Because each CMM machine has the same mechanism. In order for the probe to work, it must touch the surface of the part being tested, which has a great impact on fragile surfaces or fine custom-machined parts.




  • Complexity: Operating and programming a CMM requires specialized knowledge and training.



  • Size Limitations: The size of the object being measured is limited by the physical dimensions of the CMM.



  • Surface Accessibility: CMMs may face challenges in measuring complex surfaces or hard-to-reach areas.









How Does a Coordinate Measuring Machine (CMM) Perform Measurements?





Coordinate Measuring Machines (CMMs) are sophisticated metrology instruments used for precise measurements of objects. These machines employ a series of steps to accurately measure the dimensions and geometrical characteristics of a workpiece. Let's take a closer look at how CMMs perform measurements.



  • Preparation: Before conducting any measurements, the CMM needs to be properly set up and calibrated. This involves aligning the machine's axes and verifying its accuracy using reference standards.



  • Probe Selection: Depending on the requirements of the measurement task, an appropriate probe is selected. Probes come in various types, such as touch-trigger probes, scanning probes, or non-contact probes like laser scanners.



  • Fixturing and Alignment: The workpiece or object being measured is securely fixed to the CMM's measurement platform or table. It is essential to align the workpiece accurately to ensure precise measurements.



  • Probe Calibration: The selected probe is calibrated to determine its exact dimensions and establish its measurement reference. This calibration compensates for any potential errors introduced by the probe itself.



  • Measurement Strategy: The operator defines the measurement strategy, which includes specifying the measurement points and paths that the probe will follow. This strategy is often guided by the part's design specifications or inspection requirements.



  • Contact Measurement: In touch-trigger probing, the CMM's probe touches specific points on the workpiece surface to collect measurement data. The probe is triggered to record the coordinate positions accurately. These measurements are typically taken at discrete points or specific features of the object.



  • Scanning Measurement: Alternatively, a scanning probe or laser scanner can be used for continuous measurements. These probes capture a continuous stream of data as they move along the surface of the workpiece, providing a more comprehensive representation of its geometry.



  • Data Collection: As the CMM performs measurements, it collects coordinate data that represents the position of the measured points relative to the machine's reference frame. This data is typically stored in a digital format for further analysis and processing.



  • Data Analysis: The collected measurement data is analyzed using specialized software. This software allows for dimensional analysis, geometric comparisons, and statistical evaluations. The software can also generate visual representations of the measured object, such as 3D models or inspection reports.



  • Measurement Reporting: The final step involves generating comprehensive measurement reports that provide detailed information about the dimensions, tolerances, and geometric characteristics of the measured object. These reports are essential for quality control, process improvement, and compliance purposes.





Coordinate Measuring Machines (CMMs) are highly versatile and accurate measurement devices that play a crucial role in industries that require precise dimensional inspection. They enable manufacturers to ensure the quality and conformity of their products, contributing to improved efficiency, reliability, and customer satisfaction.









Future Trends in CMM Technology





The field of CMM technology is continually evolving. Some emerging trends include:



  • Non-Contact Measurement: Advancements in optical and laser scanning technologies are enabling non-contact measurement techniques in CMMs.



  • Integration with Automation Systems: CMMs are being integrated into automated production lines, enhancing efficiency and productivity.



  • Enhanced Software Capabilities: CMM software is becoming more advanced, offering features such as real-time data analysis and predictive analytics.











Conclusion





This article has taken you to understand what is a three-coordinate measuring machine (CMM) machine? The advantages and disadvantages of CMM machines, etc. It demonstrates the function of CMM machine, which is also an important standard for our CNC machining and inspection. While ensuring the quality of custom machined parts, we must also report that the accuracy of custom machined parts meets customer requirements. If you need to outsource, VMT China custom machined parts The manufacturer is your best choice.



For all orders at VMT, we can provide complete custom machining parts size reports and quality assurance according to customer requirements. The report will include the following: the number of custom machined parts, key dimensions, threads and tolerances, thickness and depth, the appearance of custom machined parts, etc. You are welcome to start a new project.



Coordinate Measuring Machines (CMMs) have revolutionized the field of precision measurement in industries ranging from automotive to aerospace. Their ability to provide accurate and reliable measurements has become indispensable in ensuring the quality of manufactured components. As technology continues to advance, we can expect further improvements and applications of CMMs in the future.






FAQs



1. What is a CMM?

A CMM, or Coordinate Measuring Machine, is a metrology instrument used to measure the geometrical characteristics of objects.



2. What are the components of a CMM?

The key components of a CMM include the probe, control system, software, and machine structure.



3. What are the applications of CMMs?

CMMs are used in industries such as automotive, aerospace, medical devices, and manufacturing for quality control and inspection purposes.



4. What are the advantages of using a CMM?

Using a CMM offers advantages such as high accuracy, time efficiency, automation, and in-depth data analysis.



5. What are the limitations of CMMs?

Limitations of CMMs include complexity in operation and programming, size limitations, and challenges in measuring complex surfaces.





> <
