CNC Prototyping Machining: Steps and Advantages of CNC Prototyping Machining

26   |   Published by VMT at Aug 05 2022







There are several common processes for CNC prototyping machining: CNC machining, 3D printing, silicone molding, sheet metal processing, low pressure perfusion, etc. Today we will briefly describe the steps and advantages of CNC prototyping machining.

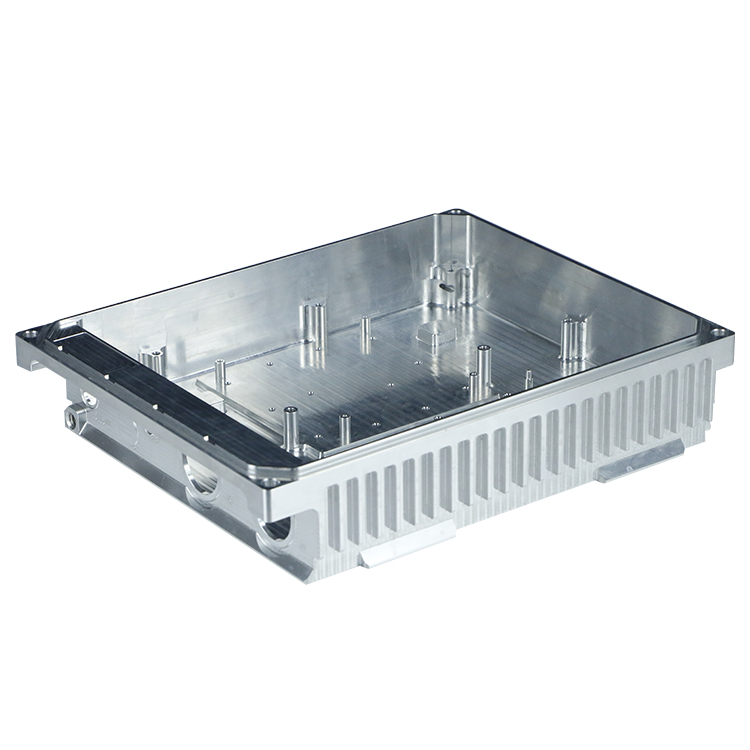

CNC prototype machining model, many people call it a sample model. In layman's terms, after the design of an industrial product is completed, it is not put into production immediately, but a small number of CNC machined sample parts should be produced according to the drawings. The purpose is to see the samples of CNC machined parts in advance. If you are not satisfied, then Make changes to the drawings until there is no objection, and then start batch CNC machining. This small amount of model is the CNC prototype machining model in the mouth.





If you want to know more about CNC prototyping, but the question or knowledge you want to know is not mentioned here, you can follow this link to contact us: https://www.machining-custom.com/contact/, We will answer for you.





The steps for the CNC prototyping machining process are as follows:




1) Negotiate the CNC machining price and delivery date, and sign a processing contract.


2) Analyze part drawings and product assembly drawings, and conduct process analysis on CNC prototype machining parts.


3) Select the blank.


4) CNC prototype machining programming.


5) Determine the CNC machining allowance of each process, and calculate the process size and tolerance.


6) Determine the equipment and tools, fixtures, measuring tools and auxiliary tools used in each process.


7) Determine cutting amount and working hour quota.


8) Determine the technical requirements and inspection methods of each main process.


9) Fill in the CNC prototype machining and proofing process documents.















CNC prototyping machining machining has the following advantages:





① No complicated tooling is required. If you want to change the shape and size of CNC prototype machining parts, you only need to modify the part CNC machining program, which is suitable for new product development and modification.



②The CNC prototype machining quality is stable, the CNC machining precision is high, and the repeatability is high, which is suitable for the CNC machining requirements of high-precision products.



③ In the case of batch CNC machining parts production, the production efficiency is high, which can reduce the time for production preparation, machine tool adjustment and process inspection.



④ It can process complex profiles that are difficult to process by conventional methods, and can even process some CNC machining parts that cannot be observed.
