Published by VMT at Feb 05 2025 | Reading Time：About 6 minutes

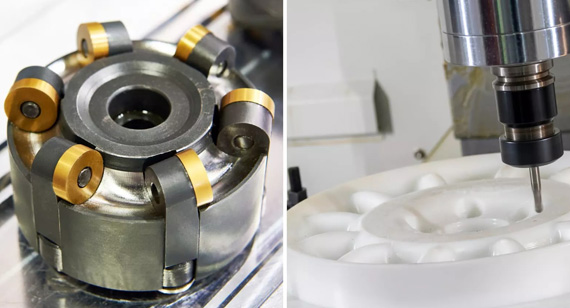

When it comes to precision machining, choosing the right milling process is critical for achieving desired results. The distinction between face milling and end milling plays a vital role in selecting the appropriate technique for your project. Both processes are fundamental in CNC machining, but their applications and advantages differ significantly. If you’ve ever found yourself wondering which process is best for your CNC milled parts or custom CNC milling, this guide will help you understand the key differences between face milling and end milling, as well as when and why to use them.
Face milling refers to a milling operation where the cutting tool (known as the face mill) is positioned perpendicular to the workpiece surface, typically to create a flat or smooth surface. During the face milling process, the cutting edges of the tool make contact with the surface, removing material efficiently across large areas. This technique is ideal for machining large, flat surfaces on parts such as CNC prototype processing or custom CNC milling where smoothness and precision are key.
The face milling process begins by positioning the workpiece securely on the milling machine. The milling cutter—usually a face mill—is mounted onto the spindle, and the machine is programmed for the required cutting parameters. These parameters, such as spindle speed, feed rate, and cutting depth, are adjusted to optimize performance based on the material being milled and the desired finish. As the milling cutter rotates, the cutting edges come into contact with the workpiece, removing material and leaving a precise, flat surface.
This technique is particularly effective for high material removal rates and producing large flat surfaces with excellent surface finishes.
Face milling is used to achieve a range of objectives in machining. The most common reason to use face milling is to create flat surfaces on a workpiece. This is essential in industries like aerospace, automotive, and machinery manufacturing, where large, smooth surfaces are required. Additionally, face milling is a versatile process that allows for high material removal rates and is capable of machining large, complex parts with consistent quality. The precision and smoothness achieved by face milling also make it ideal for CNC prototype processing where high-quality, custom parts are crucial.
When to Use Face Milling?
Face milling is a machining operation primarily used to create flat surfaces and smooth finishes on a workpiece. It is an ideal choice when you need to machine large, flat surfaces with precision. Face milling is typically employed when the workpiece is too large or complex for other methods such as turning or drilling, or when you require high material removal rates. If the goal is to achieve smooth, precise surfaces for subsequent operations like drilling, assembly, or coating, face milling is the go-to technique. This method is commonly used in industries like aerospace, automotive, heavy machinery, and tool manufacturing, where flat surfaces are a common requirement for the functionality and assembly of components.
In summary, face milling is used when:
Face milling is a highly versatile and efficient process, providing several benefits that make it suitable for different types of manufacturing. The key features of face milling include:
Face milling is widely used in manufacturing industries where the need for large, flat, and smooth surfaces is common. The following industries and applications benefit from the use of face milling:
Face milling offers numerous advantages, making it one of the most widely used machining operations in various industries. Below are the key benefits of face milling that contribute to its widespread use in CNC milling services and custom CNC milling.
1. Efficient Material Removal
Face milling allows for the removal of large amounts of material in a short period of time. This is particularly useful for roughing operations, where significant material is removed to bring the part close to its final dimensions. The ability to quickly remove material helps reduce overall cycle time, making it an efficient process for high-volume production.
2. Excellent Flatness and Surface Finish
One of the primary reasons for using face milling is its ability to create flat, smooth surfaces. The cutting action in face milling ensures uniformity across the workpiece, which is crucial for ensuring dimensional accuracy and achieving a high-quality finish. This smooth surface is especially important in industries such as aerospace and automotive, where precise and functional components are required.
3. Ability to Handle Large Workpieces
Face milling is ideal for large workpieces due to its ability to machine expansive flat surfaces efficiently. Whether it's machining large metal plates, automotive engine blocks, or industrial parts, face milling can easily accommodate heavy-duty workpieces that require flat surfaces for further processing or assembly.
4. High-Quality Surface Finish
Since face milling uses cutting tools that provide stable, consistent cutting action, it produces high-quality surface finishes. This makes it an excellent choice for parts that require post-processing or assembly, such as those in CNC prototype processing.
5. Low Cutting Forces
The face milling operation generates lower cutting forces compared to some other milling processes, which helps in prolonging tool life. Lower forces also reduce the stress on the machine and the workpiece, improving overall process stability and reducing the chance of tool deflection or breakage.
6. Flexible Cutting Depth
The cutting depth in face milling can be adjusted based on the material type and part geometry, making it a versatile process. Whether it's light finishing or heavy roughing, the depth can be easily tuned to suit the operation at hand, offering flexibility in machining various workpieces.
While face milling offers many advantages, it also comes with certain limitations. These drawbacks can influence whether face milling is the most suitable process for a specific project. Let’s examine the disadvantages of face milling.
1. Limited to Flat Surfaces
One of the main limitations of face milling is that it is best suited for flat surfaces. It cannot be effectively used to machine complex geometries, contours, or internal features, which makes it less versatile than other milling operations like end milling. If you need to machine internal pockets or shapes, face milling may not be the ideal choice.
2. Requires Large Machines
Face milling typically requires larger milling machines capable of handling the size of the cutter and the workpiece. This can make the equipment cost higher, and it might not be suitable for smaller machines or parts. In some cases, this can limit the flexibility and increase operational costs.
3. High Tooling Costs
Face mills tend to be more expensive than other types of milling tools due to their size and design. Additionally, since face mills often have multiple inserts or cutting edges, they can wear out more quickly, resulting in higher tooling costs over time. This can increase the cost of manufacturing, especially for small batch runs.
4. Not Suitable for Complex Geometries
As mentioned earlier, face milling is designed primarily for flat surfaces and cannot easily machine complex features or intricate geometries. For parts that require internal features or contours, other processes such as end milling or slot milling are typically required. This limits the applications of face milling in certain industries and machining tasks.
In conclusion, face milling is a powerful and efficient tool for machining flat surfaces with high precision and material removal rates. It is widely used in industries such as aerospace, automotive, and heavy machinery. However, its limitations, including its inability to machine complex geometries and the need for larger machines, should be considered when deciding whether to use face milling for your next project.
End milling is a machining process that involves using a rotating cutter to remove material from a workpiece. Unlike face milling, where the cutting action primarily happens along the surface of the workpiece, end milling allows for the machining of internal features, complex geometries, and vertical surfaces. The cutting tool, known as an end mill, can cut along the end as well as the sides, making it ideal for precision milling operations, including slotting, pocketing, and contouring. This versatility is what makes end milling widely used in CNC milling services for producing custom CNC milled parts and prototypes.
End mills come in a variety of shapes, sizes, and materials, which makes them suitable for different types of milling operations. Their ability to cut in all directions, including vertically, makes them ideal for machining complex parts with intricate internal and external features. The end milling process can be employed in industries like aerospace, automotive, electronics, and mold manufacturing, where high precision and flexibility are key requirements.
End milling uses specialized cutting tools designed for specific tasks. Below are the types of end mills typically used in CNC machining:
End mills come in a wide range of types, each designed for different applications. Understanding the function of each can help you choose the right tool for your specific project, whether you're engaged in CNC prototype processing, custom CNC milling, or large-scale production.
1. Square End Mills (for General End Milling)
Square end mills are the most common type of end milling cutter used in general milling operations. These mills have flat cutting edges and are typically used for flat bottom cuts, slotting, and profiling. They are versatile and can be used for both roughing and finishing operations. Square end mills are ideal for tasks where precision and flat surfaces are required, and they are commonly used for general machining of CNC milled parts.
2. Keyway End Mills (for Cutting Keyways)
Keyway end mills are designed specifically to cut keyways, which are slots used to accommodate keys for machine assemblies. These mills typically feature a long, narrow design that allows for precise cutting of the keyway. Keyway mills are critical for applications where parts need to fit with shafts and gears, such as in automotive or industrial equipment.
3. Ball End Mills (for Cutting Contoured Surfaces in Molds)
Ball end mills feature a rounded cutting edge and are ideal for 3D milling or machining complex contoured surfaces. These mills are commonly used in mold making, where intricate shapes and smooth finishes are required. The ball end mill's radius makes it highly suitable for cutting curved surfaces or spherical geometries.
4. Roughing End Mills (Remove a Lot of Material but Leave a Rough Surface)
Roughing end mills are designed for removing large amounts of material quickly. They leave behind a rough surface, which is ideal when the goal is to reduce the material bulk before using a finishing tool for a smoother cut. These mills typically have coarse teeth and a larger chip removal capacity.
5. Radius End Mills (for Cutting Radiused Corners)
Radius end mills have rounded corners, making them ideal for cutting radiused edges. This feature helps when machining parts that require rounded corners or fillets, such as in certain components for aerospace, automotive, and industrial machinery. These mills also allow for smoother cuts, reducing tool wear and improving overall surface finish.
6. Roughing and Finishing End Mills (Remove a Lot of Material at Once and Leave a Fine Surface)
These end mills combine the functions of roughing and finishing in one tool. They are designed to remove a significant amount of material while still leaving a smooth finish. These mills are particularly useful for projects that need both high material removal rates and fine surface finishes, helping reduce production time and tooling costs.
7. Drill Mills (for Drilling, Locating, Countersinking, and Chamfering)
Drill mills are multi-purpose end mills that can be used for drilling, locating, countersinking, and chamfering. They are essential for tasks that require multiple functions in one tool, such as creating holes, angled surfaces, or chamfered edges, which reduces the need for tool changes during machining.
8. Tapered End Mills (for Mold Cutting)
Tapered end mills have a conical shape, which allows for the creation of tapered features or angled cuts. These mills are commonly used in mold making, where angled features are often needed. Tapered mills are versatile and can produce both fine and rough cuts, depending on the geometry of the tool and the parameters set for the machining process.
The end milling process typically begins with the workpiece being securely clamped to the machine table or fixture. Once the workpiece is positioned, the end mill cutter is installed in the machine's spindle. The machine then moves the workpiece into the rotating cutter, which removes material as it cuts along the edges or surfaces of the workpiece.
The end milling tool is capable of cutting in multiple directions, both horizontally and vertically, allowing for the creation of slots, pockets, contours, and complex shapes. The process can be performed in a variety of materials, including metals, plastics, and composites, and can involve a range of cutting speeds, feeds, and depths to achieve the desired results.
Steps in the End Milling Process:
End mills are used because of their versatility and ability to perform various operations in a single tool. They can machine vertical surfaces, internal features, and complex shapes that other tools like face mills cannot handle. Additionally, end mills provide a high level of precision, making them perfect for intricate parts that require accuracy. They are ideal for machining parts that require tight tolerances, complex geometries, or high-quality finishes.
Use an end mill when:
End mills are used across a wide range of industries and applications due to their ability to machine complex parts with high precision. Some key applications include:
End mills are indispensable in CNC milling services, custom CNC milling, and CNC prototype processing, offering precision and versatility for manufacturing components in various industries.
End milling, with its versatility, precision, and ability to handle complex tasks, is an essential operation in modern CNC machining. Whether you're working on custom CNC milling projects or
prototyping new parts, understanding the wide range of end mills available and their specific applications will ensure the success of your machining operations.
Advantages and Disadvantages of End Milling
End milling is a highly versatile and widely used machining process, especially in CNC machining. It provides several key benefits that make it the go-to option for creating complex, precise, and detailed parts. However, like any machining process, end milling also has certain limitations. Understanding both the advantages and disadvantages of end milling is crucial for choosing the right milling process for your project.
Advantages of End Mills
End mills offer numerous advantages, especially when it comes to machining complex parts with high precision. These advantages make them ideal for CNC milling services and custom CNC milling projects that require accurate and intricate cuts.
1. Precision and Accuracy
End mills are specifically designed to provide high precision and tight tolerances. This makes them perfect for applications where exact measurements are critical. The ability to machine internal features, sharp edges, and complex geometries with high accuracy is one of the main reasons end milling is used in industries like aerospace, automotive, and medical device manufacturing. CNC milled parts that require a fine surface finish and minimal deviation from design specifications greatly benefit from the precision offered by end mills.
2. Ability to Process Complex Geometries
End mills are especially useful for cutting complex geometries that may involve intricate pockets, slots, or contoured surfaces. This makes them highly suitable for tasks like mold making, tooling, and the manufacturing of parts with detailed internal features, such as engine components and turbine blades. Whether you need to cut sharp internal corners or produce deep, narrow slots, end mills can handle these complexities with ease.
3. Internal Feature Processing
Unlike face milling, which primarily works on the surface of a workpiece, end mills are versatile enough to cut internal features, such as pockets, holes, and slots. This makes them invaluable in CNC milling services where creating deep internal cuts or machining hollowed-out sections is required. They are used extensively in industries that need to machine internal cavities, such as in the production of medical implants, aerospace components, and consumer electronics.
4. Operational Flexibility
End mills offer operational flexibility, meaning they can be used for a wide variety of milling operations. They can cut in multiple directions, both axially and radially, allowing them to work on 3D parts, vertical surfaces, and complex shapes. This flexibility is one of the reasons why end mills are commonly used for both roughing and finishing operations, making them a go-to tool for many CNC milling applications.
5. Versatility
End mills come in numerous shapes and sizes, making them suitable for a range of tasks. They can be used for general milling, slotting, profiling, drilling, and even chamfering. Their multi-functional capabilities reduce the need for multiple tools, making them cost-effective and time-efficient in both small batch production and larger-scale manufacturing. For manufacturers, this versatility helps streamline processes and reduce tool changeovers.
6. Suitable for Vertical Surfaces
End mills are highly effective when machining vertical surfaces, whether they are on the side of the part or within a pocket. Their ability to cut along both horizontal and vertical axes makes them an essential tool for creating precise, vertical features, such as walls or holes, in complex parts. This is particularly useful in industries that require detailed and high-precision work, such as automotive and electronics.
7. Cost-Effective for Small Batches
For smaller production runs or custom CNC milling projects, end mills can be a cost-effective solution. Unlike other processes that may require expensive tooling or setup, end milling is ideal for prototyping or low-volume production. It is a more economical choice for custom parts and CNC prototype processing, where the volume of work may not justify the use of other, more costly methods.
Disadvantages of End Mills
While end milling offers numerous benefits, it does come with a few challenges and limitations. Understanding these drawbacks is crucial in determining when and how to use end milling effectively in your project.
1. Tool Deflection
One of the primary disadvantages of end milling is tool deflection, especially when milling large, heavy parts or cutting deeper into the material. As the tool deflects under the cutting forces, the resulting cuts can become less accurate. This is particularly problematic for precision machining where tight tolerances are required. To combat this issue, careful control of cutting speeds, feeds, and tool geometry is necessary.
2. More Severe Wear on Cutting Edges
End mills experience more wear on the cutting edges compared to other cutting tools. The wear can be accelerated when machining harder materials, and this can lead to a shorter tool life. This is an important consideration in high-volume machining where tool costs can add up quickly. Regular monitoring and tool maintenance are needed to ensure quality results and avoid unexpected tool failures.
3. Slower Material Removal Rates
In comparison to roughing operations or other milling techniques, end milling can have slower material removal rates. The cutting action of the tool is less aggressive than other methods, which can result in longer machining times for large or bulk material removal. This can be a disadvantage in projects where time and efficiency are critical. However, using the appropriate roughing end mills and adjusting machine settings can help mitigate this issue.
4. Higher Cutting Forces
End milling can generate higher cutting forces, particularly when the tool is working at deeper cuts or high feed rates. These forces can lead to tool deflection and reduced surface finish quality. Managing cutting parameters such as spindle speed and feed rate is crucial to prevent excessive forces that could compromise the quality of the part and the durability of the tool.
5. Poor Results for Large Surface Areas
End mills are not ideal for machining large surface areas because they are primarily designed to cut smaller, more detailed sections. When milling large flat surfaces, end mills can leave undesirable tool marks and fail to produce the smooth finish achieved by face mills. This can be problematic for projects where a high-quality surface finish over a large area is required.
6. Difficulty with Long and Thin Features
When machining long and thin features, end mills may struggle with tool deflection and may not be able to produce accurate results. The flexibility of the long tool can lead to unwanted bending, making it difficult to achieve the necessary precision for delicate geometries. In these cases, it may be more appropriate to use other tools or employ strategies to minimize deflection.
Conclusion
In conclusion, end milling is a highly effective machining process that offers precision, versatility, and the ability to handle complex geometries. It is especially useful in CNC milling services, custom CNC milling, and CNC prototype processing for applications requiring high accuracy and internal feature processing. However, it also comes with challenges, including tool deflection, higher cutting forces, and slower material removal rates. By understanding both the advantages and disadvantages, manufacturers can select the right milling process based on the specific needs of their project.
When choosing between face milling and end milling, it's essential to understand how each process works and what it offers in terms of performance, tool selection, and applications. Both are versatile techniques used in CNC milling services and custom CNC milling, but they are suitable for different tasks. Below are four critical differences to consider when deciding which process is best for your specific manufacturing needs.
1. Cutting Direction and Tool Use
Face Milling:
In face milling, the cutting tool’s edges are positioned perpendicular to the workpiece surface, with the primary cutting action happening at the face of the tool. The tool rotates on the workpiece's surface, and the cutting forces are spread across the face of the cutter. This type of milling is generally used for cutting flat surfaces or shallow depths.
End Milling:
End milling, on the other hand, uses a tool with a cutting edge on both the end face and the sides of the tool. The tool is oriented parallel to the surface of the workpiece, allowing for cutting in both vertical and horizontal directions. This allows end mills to perform more intricate cuts, such as internal slots or pockets, and to machine complex shapes or contoured surfaces that require precise internal cuts.
2. Surface Finish
Face Milling:
The surface finish achieved with face milling is generally smooth and consistent on flat surfaces, especially when using the correct tool and cutting parameters. It is highly effective for producing level, flat surfaces where the focus is on surface precision. However, face milling can sometimes leave tool marks on large flat surfaces if the tool is not sharp or the feed rate is too high.
End Milling:
End milling often provides a fine surface finish, especially when used for finishing cuts after roughing operations. End mills can be used for both roughing and finishing, and they are particularly useful for machining vertical surfaces or complex features that require fine details. Because end mills can engage the material at multiple angles, they generally produce a higher quality finish for more intricate and detailed parts.
3. Applications and Suitability for Various Materials
Face Milling:
Face milling is ideal for applications that involve removing material from a flat surface or creating wide, shallow cuts. It is commonly used for surface preparation in industries like aerospace, automotive, and heavy equipment manufacturing. Face milling is also suitable for parts made of soft to medium-hard materials, as it can handle high material removal rates with lower cutting forces. However, it's not suitable for intricate internal features or deep pockets.
End Milling:
End milling is better suited for more intricate tasks, such as cutting internal features, pockets, or slots in a part. It can also be used for profile cutting and creating complex geometries. This makes end milling a go-to choice for applications in mold making, tooling, and machining of detailed internal components. End mills are often used with harder materials, such as stainless steel or titanium, due to their ability to handle more precise cuts with greater versatility in tool movement.
4. Tool Types and Geometries
Face Milling:
Face milling uses larger-diameter cutters, such as shell mills and indexable inserts, that have cutting edges around the perimeter of the tool. These tools are typically used for shallow cuts on flat surfaces and are designed to achieve high material removal rates. The geometry of face mills is generally optimized for cutting flat surfaces and wide areas, making them ideal for general surface preparation and finishing.
End Milling:
End mills come in a wide variety of shapes and sizes, including ball end mills, square end mills, radius end mills, and tapered end mills. These tools allow for a diverse range of cutting actions, such as roughing, finishing, and profiling. End mills can be used to machine internal geometries, deep slots, and complex contours, providing far more flexibility in tool selection compared to face milling.
Combining Face Milling and End Milling
In many CNC machining projects, face milling and end milling work together to produce the final product. For example, in CNC prototype processing or custom CNC milling tasks, face milling can be used for initial rough cuts to create a flat, level surface, while end milling takes over for internal cuts, pocketing, and detailed profiles. The complementary nature of these two milling processes allows manufacturers to optimize both efficiency and precision.
Prototyping and Custom Part Manufacturing with Face Mills and End Mills
For custom CNC milling projects and prototyping, combining face milling and end milling can drastically improve the speed and quality of part production. Face mills are typically used for preparing larger, flatter surfaces, while end mills come into play for more precise and detailed work, such as creating internal features, complex geometries, and tight tolerance cuts. By utilizing both tools, manufacturers can achieve superior results in complex parts and multi-featured prototypes.
Conclusion
Understanding the differences between face milling and end milling is crucial for selecting the right process for your project. Face milling excels in creating flat surfaces and handling larger workpieces, while end milling offers precision, versatility, and the ability to work on complex internal features. By strategically using both techniques in tandem, manufacturers can streamline operations and deliver high-quality CNC milled parts for a wide range of industries and applications.
Both face milling and end milling are crucial processes in various industries, providing essential machining capabilities for precision, durability, and performance. These milling techniques help manufacturers create complex parts with intricate designs, tight tolerances, and surface finishes suitable for demanding applications. Below, we explore how face milling and end milling are applied across various industries.
| Industries |
Applications |
Why Face Milling |
| Aerospace Industry |
Wing sections of airplanes |
It creates precise and smooth surfaces, which are important for parts utilized in the aerospace industry |
| Automotive Industry |
Machining engine parts and Cylinder heads |
It is an efficient and versatile technique that produces high-quality and smooth surfaces, even on large components |
| Heavy Equipment and Machinery |
Making uneven surfaces flat, like machine bases and structural items. |
It prepares the surface for more work and ensures that the parts feature smooth finishes and precise dimensions |
| Tool and Die Making |
Mold Making Die prototyping and manufacturing |
It can create intricate shapes, create smooth surfaces by removing materials evenly, and work on different surfaces and materials. |
| Energy and Power Generation |
Designing tools Cutting energy Modeling |
It is energy efficient and can utilize different cutting tools including end mill, shell mill, or fly cutter. |
Applications of Face Milling in Different Industries
Aerospace Industry
Applications:
Face milling is commonly used in the aerospace industry for the preparation of large, flat surfaces such as aircraft wing panels, fuselage sections, and landing gear components. These parts often require tight tolerances and high-strength materials, making face milling an ideal choice for ensuring flatness and surface integrity.
Why Face Milling:
The ability of face milling to handle large workpieces efficiently, while maintaining high material removal rates, makes it indispensable for aerospace applications. Additionally, face milling ensures smooth surfaces which are crucial for the performance and safety of aerospace components.
Applications:
In the automotive industry, face milling is used to machine engine blocks, cylinder heads, chassis components, and brackets. It's also used in the manufacturing of large, flat surfaces such as engine parts, frames, and gear housings. The automotive sector often requires machining of metal parts with specific surface finish requirements for performance and durability.
Why Face Milling:
Face milling is ideal for these applications due to its ability to provide high material removal rates and deliver precise flat surfaces. In the automotive industry, where cost efficiency and high production volumes are critical, face milling helps to reduce cycle times and improve machining productivity.
Heavy Equipment and Machinery
Applications:
Heavy machinery, including excavators, cranes, and mining equipment, requires face milling for the machining of large, flat surfaces on structural components such as frames, housing units, and engine blocks. This process ensures a high-quality surface finish and flatness for critical load-bearing parts.
Why Face Milling:
The durability and strength of heavy machinery components are directly tied to the quality of surface preparation. Face milling can rapidly remove material from large workpieces, ensuring the precise flatness needed for further processing and optimized performance under high-stress conditions.
Tool and Mold Manufacturing
Applications:
In tool and mold manufacturing, face milling is used to machine mold cavities, tooling plates, and large die surfaces. The process is essential for producing precision molds with flat faces and smooth surfaces, which are critical for injection molding, casting, and other high-precision operations.
Why Face Milling:
Face milling ensures high-precision flatness and a smooth surface finish, which are essential for the manufacturing of high-quality molds and tools. The ability to work with large blocks of metal or other hard materials makes face milling the ideal choice for this application.
Energy and Power Generation
Applications:
In the energy and power generation sectors, face milling is used to machine large turbine components, generator housings, and heat exchanger panels. These parts require high strength, resistance to wear, and precise dimensions to function effectively in high-pressure and high-temperature environments.
Why Face Milling:
Face milling is capable of removing material quickly from large, rigid parts, which is vital for the power generation industry where high material removal rates and reliable performance are required for the long-lasting operation of components under extreme conditions.
Applications of End Milling in Different Industries
| Industries |
Applications |
Why End Milling |
| Aerospace Industry |
Components of aircraft like structural parts, turbine blades, and engines |
End milling is important here due to its reliability, efficiency, and precision in creating complex components |
| Automotive Industry |
For cutting external and internal shapes of cars Engraving texts in car parts Creating complex parts in automotive like frameworks and gears |
It is a machining process that creates holes and shapes in Workpieces. This makes them useful in profile milling, and creating molds and prototypes |
| Mold and Die Making |
Creating molds and dies as well as other tooling |
The use of end milling in mold and die making helps in creating contours and complex shapes with accuracy. It is also versatile and creates high-quality finishes |
| Electronics Industry |
Engraving, slotting, profiling, and plunging |
For shaping the eventual form of different components. It is also useful in creating complex designs on electronic enclosures, PCBs, etc. |
| Medical Device Manufacturing |
Creating detailed and precise components for medical devices like implants, prosthetics, and surgical instruments |
Useful here due to its importance in creating intricate designs as well as its efficiency in producing complex parts. It is also versatile and can work with different materials including composites, plastics, and metals. |
| Consumer Electronics |
Profile milling, engraving, detailing, plunging, and drilling |
End milling is useful here because it helps in creating a part’s external shape. It adds details to parts and creates flat and smooth surfaces on a workpiece. |
Aerospace Industry
Applications:
End milling is used extensively in aerospace manufacturing for the production of internal features like pockets, slots, and grooves in critical components such as turbine blades, wing structures, and engine parts. The precision needed for these components demands the use of end milling tools for intricate internal machining.
Why End Milling:
End mills are excellent for creating complex geometries and internal features that face milling cannot achieve. The aerospace industry, which requires high-precision, lightweight parts, uses end milling for versatile, accurate machining of these challenging shapes.
Applications:
In the automotive sector, end milling is commonly employed for the machining of engine blocks, transmission components, brake components, and gearbox parts. End mills are used to machine internal pockets, slots, and complex shapes that require high precision and tight tolerances.
Why End Milling:
The ability of end mills to create detailed internal features and complex shapes makes them indispensable for automotive manufacturing. This process is especially useful when parts have non-flat geometries or require fine finishes in tight spaces or hard-to-reach areas.
Mold Manufacturing
Applications:
End milling is crucial for mold manufacturing, where it is used to machine complex mold cavities, channels, and detailed geometric features in molds for injection molding, die casting, and blow molding.
Why End Milling:
End mills can machine deep pockets and create intricate geometries, which are essential for mold and die manufacturing. End milling allows manufacturers to produce molds with detailed internal features, ensuring a high-quality surface and fit for the molding process.
Applications:
In the electronics industry, end milling is used for cutting slots, pockets, and microstructures in components such as circuit boards, connector housings, and integrated circuit packaging. The precise geometries required in electronics make end milling a go-to choice for these applications.
Why End Milling:
The ability of end mills to cut complex and precise internal features in small or detailed components makes them essential in electronics manufacturing. End milling helps achieve tight tolerances and high-precision finishes necessary for electronic devices that require exact dimensions and surface quality.
Applications:
End milling is used in the medical device manufacturing sector to machine medical implants, surgical instruments, and orthopedic parts. These parts often need precision internal features and complex shapes that can only be achieved with end milling.
Why End Milling:
The versatility of end mills allows manufacturers to create high-precision parts required for medical devices. From creating small channels in implants to machining complex geometries, end milling ensures safety and effectiveness in the medical industry.
Consumer Electronics
Applications:
In consumer electronics, end milling is used to machine parts like phone casings, laptop components, and circuit boards. End mills are especially helpful for detailed internal cuts, slots, and small, intricate features.
Why End Milling:
End milling’s precision allows manufacturers to create complex internal features and tight geometries required for consumer electronics. It is ideal for machining small parts with tight tolerances and complex designs used in electronics like smartphones and tablets.
Conclusion
Both face milling and end milling have distinct roles in various industries. While face milling is primarily used for machining large, flat surfaces and high material removal rates, end milling excels in creating internal features, complex shapes, and intricate geometries. Understanding the unique benefits of each process helps manufacturers choose the right tool for the right application, ensuring the highest quality in production for industries like aerospace, automotive, electronics, and medical device manufacturing.
The geometry of face mills and end mills is one of the key factors that distinguishes them in their machining capabilities and applications. Understanding the differences between the two is crucial for selecting the right tool for your specific machining needs.
Face Mills Geometry
Face mills are typically larger, with a cutting surface that is perpendicular to the workpiece. The main cutting action occurs on the flat face of the tool, and the cutting edges are positioned around the perimeter of the cutter. Face mills are primarily designed for shallow, wide cuts, making them ideal for removing large amounts of material from flat surfaces. Their large cutting diameter also allows them to cover a broader area of the workpiece.
The geometry of face mills allows them to achieve a high material removal rate and produce smoother surface finishes on large, flat areas. They are particularly effective for machining large workpieces or flat faces.
End Mills Geometry
End mills, on the other hand, have a cutting edge that runs along the tip of the tool as well as around the sides. This allows them to perform cutting operations in multiple directions, including cutting vertically (into the workpiece) and laterally (on the side). The geometry of end mills makes them highly versatile for both shallow and deep cuts, and they can be used to create internal features, pockets, slots, and complex 3D shapes. The side cutting capability is one of the defining features of end mills, making them ideal for machining vertical walls, contoured surfaces, and precise internal geometries.
While face mills are mostly for flat machining, end mills offer more complex geometries, providing the flexibility needed to cut deep pockets or intricate shapes in the workpiece.
Both face milling and end milling are invaluable techniques, but choosing between them depends on several factors, including the specific machining task, the material, and the desired geometry of the finished part.
Choosing the Right Process for Your Project
When selecting between face milling and end milling, here are a few considerations to guide your decision:
Workpiece Geometry:
Material Removal Rate (MRR):
Cutting Depth:
Surface Finish:
Face milling tends to provide a smoother, higher-quality surface on flat surfaces, while end milling can achieve finer finishes on complex geometries or parts requiring tight tolerances.
Cost and Efficiency Considerations
In terms of cost-effectiveness, face milling is generally more economical for bulk material removal on larger surfaces, while end milling can justify the additional cost for complex, high-precision parts.
Table Contrast
| Feature |
Face Milling |
End Milling |
| Tool Orientation |
Perpendicular to surface |
Parallel to surface |
| Cutting Surface |
Primarily the periphery |
End and sides |
| Application |
Flat surfaces |
Complex shapes and slots |
| Speed |
Fast |
Slower |
| Precision |
Moderate |
High |
| Material Removal Rate |
High |
Low to moderate |
| Surface Finish |
Smooth, flat |
Detailed, intricate |
Understanding the geometrical differences between face mills and end mills is essential for selecting the right process for your project. Face milling is more suited for high material removal rates on flat surfaces, while end milling excels at creating detailed features and precise internal geometries. The choice between these processes largely depends on the type of part you are manufacturing, the complexity of the features, and the desired finish. By evaluating these factors and considering both the cost and efficiency of each method, you can make an informed decision on which milling process will best suit your project’s needs.
What is the difference between a face mill and an end mill?
The primary difference between a face mill and an end mill lies in their cutting geometry and intended applications. A face mill has a cutting surface located on the face of the tool, designed primarily for machining flat surfaces or broad, shallow cuts. In contrast, an end mill has cutting edges on both the end and sides of the tool, allowing it to cut both vertically and laterally, making it ideal for complex geometries and internal features such as pockets, slots, or holes.
What is the difference between face milling and side milling?
Face milling involves cutting the surface of the workpiece using the flat face of the tool, typically removing a large amount of material from flat surfaces. It’s great for creating smooth finishes and shallow cuts. On the other hand, side milling refers to using the side edges of the cutter (often end mills) to machine vertical surfaces or slots. While both processes involve cutting the surface, face milling is used for broader applications, and side milling is more specific to vertical or narrow features.
What is the difference between end milling and slab milling?
End milling and slab milling are both used for cutting, but they differ in tool positioning and capabilities. End milling uses an end mill, where the cutting action occurs on both the sides and the bottom of the tool, making it suitable for vertical cuts, complex shapes, and internal features. Slab milling, on the other hand, involves a slab mill, which has a larger cutting surface and removes material by cutting the top surface of the workpiece. Slab milling is commonly used for flat surfaces and is less versatile than end milling.
Can you face mill with an end mill?
Yes, you can use an end mill to perform face milling in some cases, especially for small-scale operations or when you're dealing with complex geometries. However, face mills are generally preferred for high-efficiency material removal on large flat surfaces because they cover a broader area and remove material more quickly. End mills, while capable of face milling, are often slower for large surface areas.
What is the difference between a milling cutter and an end mill?
A milling cutter is a general term for any cutting tool used in a milling machine to remove material from a workpiece. End mills are a type of milling cutter that can cut vertically and laterally and are specifically designed for precise cuts and complex geometries. While all end mills are milling cutters, not all milling cutters are end mills. There are other types like face mills and slab mills.
What is the most preferred milling technique?
The preferred milling technique depends on the specific application and the part being machined. Face milling is often the most preferred method for removing large volumes of material from flat surfaces. For precision work and complex geometries, end milling is preferred due to its versatility and ability to work on both internal features and external profiles. Each technique has its place in machining, and the choice depends on factors like material type, geometry, and desired finish.
What is the difference between slab milling and face milling?
Slab milling uses a slab mill to cut the top surface of the workpiece with cutting edges around the circumference of the tool, making it ideal for removing material from large flat surfaces. Face milling, on the other hand, uses a face mill, where the cutting edges are on the face of the tool, allowing for shallow cuts and a smoother finish on the surface. While both processes remove material from flat surfaces, face milling generally provides a finer finish and can handle shallower cuts more efficiently.
What is the most common type of milling?
The most common type of milling depends on the application, but face milling is one of the most frequently used milling operations. It’s employed for machining flat surfaces and achieving high material removal rates. It is widely used in manufacturing industries for wide, flat components. However, end milling is also very common, especially when parts require complex geometries, internal cuts, or precision features. Both face milling and end milling are essential techniques in the CNC milling process.
Why is milling so expensive?
Milling can be expensive due to several factors. High tooling costs are often involved because precision tools like end mills and face mills can be expensive, especially for materials like carbide. The complexity of the machining process also contributes to the cost, as it often requires skilled labor, advanced machinery, and specific setups. Additionally, the cost of time for setup, tool changes, and machine operation also affects the overall expense, especially when working with tight tolerances or complex geometries.
What is the difference between face milling and peripheral milling?
Face milling involves cutting the surface of the workpiece with the face of the cutter and is typically used for creating flat surfaces. Peripheral milling (also known as slab milling) involves cutting with the side of the tool, typically used for cutting deep slots, profiles, or edges. While both methods involve horizontal cutters, peripheral milling focuses more on vertical cuts and features, whereas face milling focuses on creating shallow cuts and improving surface finish.
+86 15099911516
Read more
