Laser Engraving vs Etching vs Silk Screen Printing for CNC Machining Part Logos: Differences Guide







A logo can look perfect in your design file but fail after production if the marking process does not match the material, surface finish, durability requirement, or production quantity. Weak laser contrast, uneven etching, poor ink adhesion, color variation, and premature logo wear are often process-selection problems rather than artwork problems.



Laser engraving is ideal for fine, permanent logos, serial numbers, and traceability marks; chemical etching creates precise recessed patterns without mechanical cutting; screen printing, also called silk screen printing, is better when your CNC part requires defined colors or multi-color graphics. The best choice depends on material, detail, durability, color, surface finish, quantity, and cost.



There is no single best logo process for every CNC machined part. The right method should be selected together with your material, surface treatment, logo geometry, cosmetic standard, inspection requirements, and production plan.









Laser Engraving vs Etching vs Screen Printing at a Glance





Before looking at each process in detail, the following comparison gives you a practical starting point.











For CNC machined parts, the selection can often be simplified:



• Choose laser engraving when you need fine detail, permanent identification, serial numbers, QR codes, or marking after anodizing.
• Choose chemical etching when you need a fine permanent recessed pattern on a compatible metal surface.
• Choose screen printing when your logo needs a specific color, opaque white, or multiple colors.



However, part geometry, surface finish, logo size, wear environment, and batch quantity can change the final decision.









Which Logo Process Should You Choose for CNC Machined Parts?





The most useful question is not:



Which logo process is best?



It is:



Which logo process is best for the function and appearance required on my part?



Different marks on the same CNC part can even use different processes.



For example, an anodized aluminum control housing could use:

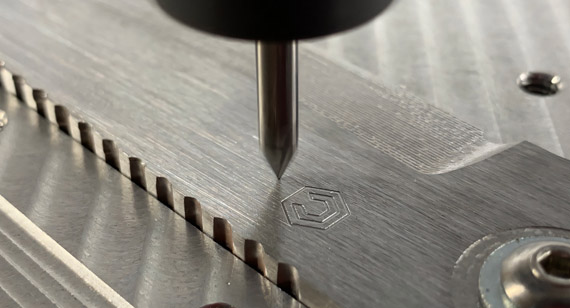

• CNC engraving for a functional scale
• Laser engraving for a serial number
• Screen printing for a white company logo



Each method solves a different requirement.





Choose Laser Engraving When You Need:



• Small text
• Fine logos
• Serial numbers
• QR codes
• Barcodes
• Variable data
• Permanent identification
• High repeatability
• Non-contact processing
• Marking after anodizing or coating
• Short runs or frequent artwork changes





Choose Chemical Etching When You Need:



• A permanent recessed metal logo
• Fine patterns
• Metal nameplates
• Detailed graphics over a flat surface
• No mechanical cutter marks
• High-detail repeated patterns





Choose Screen Printing When You Need:



• White logos on dark housings
• Defined brand colors
• Multi-color logos
• Large symbols
• Product labels
• Control-panel graphics
• Warning information
• Cost-efficient repeated printing for suitable batch quantities









What is Laser Engraving Logo?





Laser engraving logo is a process that utilizes a laser beam to etch or engrave logos, patterns, or text onto the surface of a material. This process involves the use of laser technology to precisely focus high-energy laser beams onto the surface of the material, thereby permanently altering the characteristics of that surface to create the desired logo or pattern. Laser engraving logos are commonly employed on various materials, including metals, plastics, wood, and more, to achieve high precision and long-lasting logo effects. It finds extensive applications in CNC machining part manufacturing and custom product production, among other fields.

















Advantages and disadvantages of laser engraving logo





Advantages of Laser Engraving Logo



• Precision: Laser engraving offers exceptional precision, allowing for intricate and detailed logo designs with fine lines and high-resolution graphics.
• Durability: Laser-engraved logos are highly durable and resistant to wear, fading, and damage, ensuring a long-lasting branding solution.
• Versatility: It can be used on a wide range of materials, including metal, plastic, wood, glass, and more, providing versatility in logo application.
• Speed: Laser engraving is a fast process, making it suitable for high-volume production and quick turnaround times.
• Customization: Logos can be easily customized to meet specific design requirements, offering flexibility in branding.
• Clean and Precise: Laser engraving produces clean, sharp edges without the need for additional finishing processes.
• Contactless: It is a non-contact process, minimizing the risk of material damage or contamination.





Disadvantages of Laser Engraving Logo



• Material Limitations: Not all materials are suitable for laser engraving, and some may produce undesirable results.

• Initial Setup Cost: The equipment and software required for laser engraving can be costly, particularly for small businesses.

• Limited Color Options: Laser engraving typically produces monochromatic logos, limiting color choices.

• Depth Control: Achieving consistent engraving depth on curved or uneven surfaces can be challenging.

• Material Removal: Depending on the depth of engraving, some material removal occurs, which may not be suitable for all applications.

• Safety Measures: Laser systems require safety precautions to protect operators from laser radiation.

• Maintenance: Regular maintenance is necessary to keep the laser equipment functioning optimally.



It's important to consider these factors when deciding whether laser engraving is the right choice for your specific logo branding needs.











What is an Etched Logo?





An etched logo refers to a design, pattern, or text that is created on a material's surface through a chemical or physical process known as etching. Etching involves selectively removing or altering portions of the material's surface to create the desired logo or design. There are two primary methods of etching:



• Chemical Etching: In chemical etching, a mask or stencil is applied to the material's surface, leaving only the areas intended for etching exposed. The material is then exposed to a chemical solution that selectively corrodes or dissolves the exposed areas, creating the logo or pattern.
• Physical Etching: Physical etching, also known as mechanical etching or engraving, involves using mechanical tools or abrasives to physically remove material from the surface. This can be done by hand or with the assistance of machinery.



Etched logos are known for their precision and permanence, making them a popular choice for various applications, including product branding, signage, and decorative elements. The choice between chemical and physical etching depends on factors such as the material, design complexity, and production requirements.















Advantages and Disadvantages of Etching a Logo





Advantages of Etching a Logo:



• Precision: Etching allows for high precision and fine detailing, making it suitable for intricate logo designs.

• Durability: Etched logos are highly durable and resistant to wear, ensuring long-lasting branding.

• Versatility: It can be applied to a wide range of materials, including metal, glass, plastic, and more, providing versatility in logo application.

• Customization: Logos can be customized to meet specific design requirements, offering flexibility in branding.

• Consistency: Etching produces consistent results, ensuring uniformity in logo appearance.

• Permanence: Etched logos are permanent and do not fade or wear off over time.

• Professional Appearance: Etching gives logos a professional and polished appearance.

• Cost-Effective for Mass Production: It can be cost-effective for high-volume production due to its speed and efficiency.







Disadvantages of Etching a Logo:





• Limited Color Options: Etching typically produces monochromatic logos, limiting color choices.

• Material Thickness: The depth of etching is limited by the material's thickness, which can affect design options.

• Initial Setup: Some etching methods may require specialized equipment and setup, which can be costly.

• Complex Designs: Highly complex designs may be challenging to etch accurately.

• Surface Finish: Etching may alter the material's surface finish, which may or may not be desirable depending on the application.

• Material Compatibility: Not all materials are suitable for etching, and some may not produce satisfactory results.

• Safety Precautions: Chemical etching processes may require safety measures and proper disposal of chemicals.





When considering etching as a logo branding method, it's essential to weigh these advantages and disadvantages against your specific needs and preferences to determine if it's the right choice for your application.

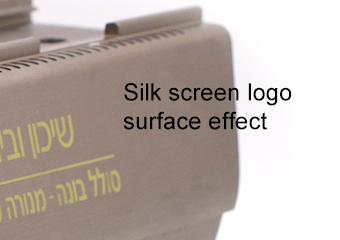

What is a Silk Screen Logo?





A silk screen logo, also known as screen printing or serigraphy, is a branding or decorative technique that involves transferring a design or logo onto a surface using a screen or mesh stencil. Here's how it works:



• Design Preparation: The logo or design to be printed is first prepared as a stencil, typically on a fine mesh screen made of silk, polyester, or other materials. Each color in the design usually requires a separate screen.
• Screen Preparation: The screen is coated with a light-sensitive emulsion, which is then exposed to the prepared design. Wherever the emulsion is exposed to light, it hardens, creating a stencil that corresponds to the logo or design.
• Ink Application: The screen is placed onto the surface to be printed, such as a T-shirt, paper, plastic, or fabric. Ink is applied to the top of the screen.
• Printing Process: A squeegee is used to force the ink through the open areas of the screen, transferring the design onto the surface beneath. Each color is applied one at a time, with the screen being repositioned for accuracy.
• Drying: After each color is applied, the printed item is typically dried or cured to set the ink and make it permanent.



















Advantages and Disadvantages of Silk Screen Logo





Advantages of Silk Screen Logos:



• Versatility: Silk screen printing can be used on various materials, including fabric, paper, plastic, metal, and more.

• Durability: The ink used in silk screen printing is typically durable and resistant to fading or washing out.

• Cost-Effective for Large Quantities: It's cost-effective for large production runs, making it suitable for mass branding.

• Vibrant Colors: Silk screen printing can achieve vibrant and opaque colors.

• Customization: It allows for customization of designs, making it suitable for unique branding needs.





Disadvantages of Silk Screen Logos:





• Limited Detail: Fine details and intricate designs may not be reproduced as accurately as other methods.

• Multiple Screens: Each color in a design requires a separate screen, which can increase setup costs.

• Not Ideal for Small Runs: It may not be cost-effective for small production runs.

• Not Suitable for All Materials: Some materials may not be suitable for silk screen printing.

• Ink Thickness: The thickness of the ink can affect the texture of the printed surface.




Silk screen logos are commonly used in various applications, including apparel, promotional products, signage, and packaging, where durability and customization are essential considerations.











The difference between laser engraving logo, etching logo and silk screen logo: detailed comparison







Laser Engraving Logo, Etching Logo, and Silk Screen Logo are three distinct methods for applying logos or designs to various surfaces. Here's a detailed comparison of these techniques:







1. Laser Engraving Logo:





• Process: Laser engraving uses a focused laser beam to remove or mark the material's surface, creating the desired design.
• Precision: Extremely high precision, allowing for intricate and detailed logos.
• Durability: The engraving is permanent and durable, resistant to fading or wear.
• Materials: Suitable for a wide range of materials, including metal, wood, acrylic, glass, and more.
• Color Options: Typically, laser engraving results in monochromatic designs, with variations in color based on the material itself.
• Cost: Moderate to high, depending on the complexity of the design and material.















2. Etching Logo (Chemical Etching):





• Process: Chemical etching involves using chemicals to selectively remove material from the surface, leaving behind the desired logo or design.
• Precision: High precision, suitable for fine details and complex designs.
• Durability: The etched logo is permanent and resistant to wear and fading.
• Materials: Commonly used for metals like stainless steel, brass, and aluminum.
• Color Options: Typically, etched logos have a metallic appearance but can be further colored or filled for contrast.
• Cost: Moderate, with costs influenced by the material type and complexity of the design.







3. Silk Screen Logo (Screen Printing):





• Process: Silk screen printing uses a stencil (screen) to transfer ink onto the material's surface, creating the logo or design.
• Precision: Good precision for simpler designs, but may not achieve the same level of detail as laser engraving or etching.
• Durability: Durability can vary depending on the ink used, but it may not be as resistant to wear and fading as engraving or etching.
• Materials: Commonly used on various surfaces, including paper, fabric, plastic, and some metals.
• Color Options: Offers a wide range of color choices, allowing for multi-color logos.
• Cost: Generally lower cost, making it suitable for larger quantities and budget-conscious projects.

















Summary:





Laser engraving offers the highest precision and durability but can be more expensive.

Etching provides high precision and durability, mainly on metal surfaces.

Silk screen printing is cost-effective and allows for multi-color designs but may have limitations in precision and durability.













Laser Engraving Logo vs. Etching Logo, Silk Screen Logo: Which One is Best for You?





Choosing between laser engraving, etching, and silk screen printing for your logo depends on your specific needs and priorities. Here's a comparison to help you decide which method is best for you:





Laser Engraving Logo:





Best For: Detailed and permanent logos on a variety of materials, including metal, wood, acrylic, and glass.



Pros:

High precision for intricate designs.

Durable and resistant to wear and fading.

Versatile across materials.



Cons:

Moderate to high cost, especially for complex designs.

Monochromatic appearance.







Etching Logo (Chemical Etching):





Best For: Permanent logos on metal surfaces, such as stainless steel, brass, and aluminum.



Pros:

High precision for fine details and complex designs.

Durable and resistant to wear and fading.

Suitable for metal materials.



Cons:

Moderate cost, which can vary depending on material and design complexity.

Limited to metal surfaces.







Silk Screen Logo (Screen Printing):





Best For: Multi-color logos on various surfaces like paper, fabric, plastic, and some metals.



Pros:

Cost-effective for large quantities.

Offers a wide range of color options.

Suitable for various surfaces.



Cons:

Lower precision for intricate designs.

May not be as durable as engraving or etching.







Considerations:





• Design Complexity: If your logo has fine details and intricate patterns, laser engraving or etching is preferable.
• Material: Consider the surface material. Laser engraving is versatile, while etching is ideal for metals. Silk screen printing is versatile but less durable on some materials.
• Budget: Silk screen printing is cost-effective for bulk orders, while engraving and etching are suitable for premium applications with a higher budget.
• Durability: If long-lasting durability is critical, laser engraving and etching are better choices than silk screen printing.
• Color: If your logo requires vibrant, multi-color printing, silk screen printing is the way to go.



Ultimately, the choice depends on your specific logo, the surface it will be applied to, your budget, and the desired level of precision and durability.













Laser Engraving vs Etching vs Screen Printing: How to Choose?





The correct method depends on your actual priorities.





Design Complexity



If your logo contains:



• Very fine lines
• Tiny text
• Complex graphics



laser engraving or etching is usually easier to evaluate first.







Material



The substrate matters.



• Laser engraving is versatile but requires the correct laser-material combination.
• Chemical etching is particularly useful for compatible metal surfaces.



Screen printing can work on many surfaces, but the correct ink and preparation process are essential.







Budget





For suitable batch quantities, screen printing can provide a cost-effective colored-logo solution.



Laser engraving and chemical etching may provide additional permanence or detail but involve different processing costs.







Durability





If maximum marking permanence is important, laser engraving or chemical etching is usually preferable to a simple ink-only process.



However, high-quality industrial screen printing can also provide good durability when:



• Surface preparation is controlled
• Ink is suitable
• Curing is correct
• The service environment is appropriate





Color





If you require:



• White
• Blue
• Red
• Yellow
• Defined brand color
• Multiple colors



screen printing usually provides the greatest flexibility.









How Material Selection Affects the Logo Process





For CNC machined parts, material is one of the first decisions that should be reviewed before selecting a logo process.





Aluminum



Aluminum is widely used in:



• Electronics housings
• Camera components
• Robotics parts
• Automotive components
• Control panels
• Premium hardware

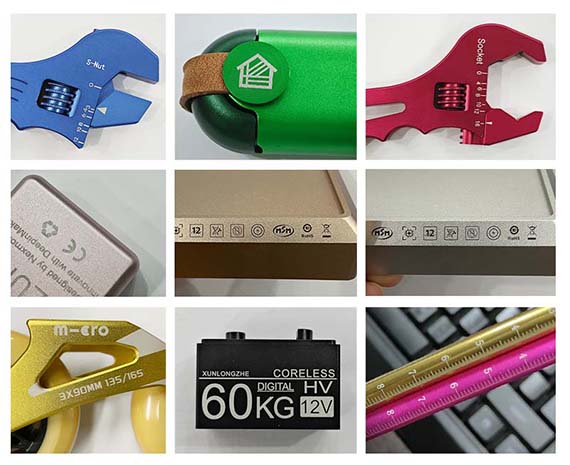

Laser Engraving on Aluminum





Useful for:



• Fine logos
• Serial numbers
• QR codes
• Identification



Anodized aluminum is particularly common.







Chemical Etching on Aluminum



Possible when the alloy, surface condition, and chemical process are suitable.







Screen Printing on Aluminum





Useful for:



• White logos
• Brand colors
• Multi-color graphics
• User-interface symbols



The printing process must be matched to the aluminum surface finish.







Stainless Steel





Laser Engraving



Common for:



• Fine identification
• Traceability
• Logos
• Serial numbers





Chemical Etching





Useful for:



• Permanent recessed patterns
• Metal labels
• Nameplates
• Detailed graphics





Screen Printing



Can provide colored branding and information on suitable prepared stainless-steel surfaces.









Brass and Copper





Laser engraving and chemical etching can both be considered.



The final appearance depends on:



• Alloy
• Surface finish
• Oxidation behavior
• Polishing
• Plating



Screen printing can be used when a colored printed result is required.







Titanium





Laser marking and engraving are frequently considered for fine identification.



Chemical processes require careful compatibility review.



Screen printing can be used in suitable cosmetic applications when ink adhesion and durability requirements can be achieved.







Engineering Plastics





Materials such as:



• ABS
• PC
• POM
• PEEK
• PMMA
• PA





may support laser marking or screen printing depending on the specific material.



Chemical etching is much less common for CNC machined engineering-plastic logo applications.









How Surface Finishing Changes Your Logo Process





For CNC machined parts, logo marking should be planned together with the complete surface-finishing sequence.





Anodizing



For anodized aluminum, common approaches include:





Laser Engraving After Anodizing



Useful when you want:



• Fine contrast
• Small logo
• Serial number
• QR code





Screen Printing After Anodizing



Useful when you need:



• White
• Brand color
• Multi-color graphic
• User-interface symbol





Engraving Before Anodizing



Mechanical CNC engraving can be completed before anodizing when a physical recessed feature is required.







Bead Blasting and Sand Blasting



Blasting changes the surface texture before anodizing or other finishing.





This can affect:



• Laser contrast
• Screen-print ink contact
• Visual edge definition



The blast texture should therefore be stable when appearance consistency is important.







Powder Coating





Screen printing can be applied to suitable cured powder-coated surfaces when the correct ink and surface preparation are used.



Laser processing can also modify or remove parts of a coating to expose another layer or substrate.



The required visual result should be tested because coating composition and thickness affect the result.







Plating







Laser engraving after plating may intentionally modify the plated surface.



Chemical etching before or after plating requires careful process planning because the plating layer changes the final surface structure.



Screen printing can be applied over suitable plated surfaces if adhesion requirements are met.







Polishing



Highly polished cosmetic surfaces require careful handling.



Laser parameters must avoid unwanted heat discoloration or large surrounding heat marks.



Etching masks must protect surrounding polished areas.



Screen-printing operations must avoid scratching the polished surface during handling and fixture loading.











Common Logo Marking Problems: Root Causes and Solutions





Choosing the right process is only the first step.



Production consistency also depends on controlling the actual failure modes.















Laser Engraving Problems and How to Control Them





Weak Contrast





Root Causes



• Incorrect laser power
• Wrong focal position
• Material variation
• Anodizing variation
• Surface texture variation



Solution



The laser process should be validated on the actual material and finish rather than on an unrelated sample.

For appearance-sensitive parts, compare the first article against an approved visual standard.







Heat Discoloration





Root Cause



Too much laser energy can produce unwanted heat effects.





Solution



Control:

• Power
• Speed
• Frequency
• Focus
• Pass count



Several controlled passes may provide a better result than applying excessive energy in one pass.







Inconsistent Marking on Curved Surfaces





Root Cause



The surface moves away from the optimum focal plane.





Solution



Evaluate:

• Part orientation
• Focus range
• Marking area
• Fixture
• Multi-position processing if required









Chemical Etching Problems and How to Control Them





Over-Etching



If the chemical process continues for too long, the etched region can become:



• Too deep
• Wider
• Less sharp



The etch time should match the material and required feature.





Poor Edge Definition



Mask quality directly affects the logo boundary.



The artwork, mask, surface cleanliness, and process control all influence final detail.





Surface Staining



Chemical residue or poor rinsing can affect appearance.



Controlled:



• Cleaning
• Rinsing
• Surface protection





is especially important on cosmetic components.









Screen Printing Problems and How to Control Them





Poor Ink Adhesion



This is one of the biggest risks for screen-printed CNC components.





Possible Root Causes

• Incorrect ink
• Surface contamination
• Unsuitable surface energy
• Inadequate curing
• Incorrect surface preparation





Solution



The actual combination should be validated:



substrate + surface finish + ink + curing process



rather than assuming one ink works on every aluminum, stainless steel, or plastic surface.







Color Variation



For brand-sensitive products, color consistency matters just as much as logo position.



Variation can come from:

• Ink mixing
• Batch differences
• Printing thickness
• Curing
• Base surface color
• Surface texture



Approved color samples can be used as a reference for repeat production.







Multi-Color Registration Error



Each color normally requires a separate screen.



If screens are not aligned correctly, the colors can shift relative to one another.



Fixtures and registration controls are therefore particularly important for small multi-color logos.











How VMT Selects the Right Logo Process for CNC Machined Parts





The logo process should not be selected independently from the part.



During DFM review, VMT can evaluate:



• CNC machining process
• Material
• Logo geometry
• Text size
• Minimum line width
• Required depth
• Required colors
• Logo location
• Part curvature
• Cosmetic surface
• Anodizing
• Plating
• Powder coating
• Polishing
• Production quantity
• Wear requirement
• Variable serial information
• Inspection requirements





The goal is not to choose the most sophisticated marking method.



The goal is to choose the method that satisfies the drawing with the lowest avoidable manufacturing risk.









Which Logo Method Works Best for Different Requirements?









Note: This table is a process-selection starting point, not a universal rule. Actual material, geometry, durability, and surface finishing requirements still need to be reviewed.









Laser Engraving Logo, Etching Logo, Silk Screen Logo: Application







Here are the typical applications for laser engraving, etching, and silk screen logo methods:





Laser Engraving Logo:



• Metal Products: Laser engraving is commonly used for branding logos on metal products such as stainless steel, aluminum, and brass.
• Awards and Trophies: Precise and detailed logos can be engraved onto awards and trophies for a professional finish.
• Wood Products: Wooden plaques, signs, and promotional items can feature laser-engraved logos.
• Glass and Acrylic: Laser engraving can add logos to glassware, awards, and acrylic items.
• Electronics: Logos can be engraved onto electronic devices, gadgets, and components for branding.





Etching Logo (Chemical Etching):



• Metal Labels: Etching is popular for creating durable metal labels and nameplates for various industries.
• Aerospace: Etched logos are used on aerospace components, providing permanent branding.
• Medical Devices: Medical instruments often have etched logos for traceability and identification.
• Automotive: Etched logos are common on automotive parts and components.
• Consumer Electronics: High-quality logos on electronic devices and gadgets are achieved through etching.





Silk Screen Logo (Screen Printing):



• Textiles: Silk screen printing is widely used for applying logos to clothing, bags, and textiles.
• Promotional Products: It's common for promotional items like pens, mugs, and tote bags.
• Paper and Packaging: Logos on paper products, packaging, and labels are often done through silk screen printing.
• Outdoor Signs: Large outdoor signs and banners often feature silk screen-printed logos.
• Custom Apparel: Customized apparel items with vibrant, multi-color logos are a prime application.





Considerations:



• Volume: Silk screen printing is ideal for large quantities of promotional items. Laser engraving and etching are suited for lower volumes with a premium look.
• Material: The material you're working with plays a significant role in the choice of method.
• Precision: Laser engraving and etching offer high precision, while silk screen printing may have limitations on fine details.
• Durability: The durability requirements of your logo should match the chosen application.


Ultimately, the choice of logo application method depends on the materials you're working with, the desired look, and the intended use of the branded products.















How Production Volume Affects Logo Process Selection





Quantity changes the economics of all three processes.





Laser Engraving



Laser engraving is flexible for:



• Prototypes
• Low-volume production
• Batch production
• Variable serial data



Artwork is digital, so changing information usually does not require a new physical screen.







Chemical Etching



Chemical etching has process setup requirements.



Its economics improve when:



• The same pattern repeats
• The process is stable
• Production quantity justifies mask and setup preparation





Screen Printing



Screen printing generally becomes more economical as the same graphic is repeated across more parts.



However, each additional color normally increases:



• Screen quantity
• Setup
• Registration work



For low quantities, the screen-making cost can be significant relative to the total order.









How Logo Complexity Affects Cost



The lowest-cost logo process depends on the artwork.





Laser Engraving Cost Factors



• Marking area
• Number of characters
• Number of passes
• Required depth
• Part fixture
• Part curvature
• Serial-number changes
• Material
• Surface finish





Chemical Etching Cost Factors



• Mask preparation
• Etching area
• Material
• Required depth
• Pattern complexity
• Batch quantity
• Cleaning
• Secondary filling





Screen Printing Cost Factors



• Number of colors
• Number of screens
• Printing area
• Registration
• Ink type
• Fixture
• Curing
• Quantity



A one-color screen-printed logo can be economical at volume, while a four-color small batch may require substantially more setup.









Quality Inspection for Laser Engraved, Etched, and Screen Printed Logos





Logo quality should be treated as part of final product quality rather than as a decoration added after inspection.



Depending on your project, inspection can include:



• Logo location
• Orientation
• Overall dimensions
• Character readability
• Line definition
• Serial-number accuracy
• QR-code readability
• Engraving or etching depth
• Laser contrast
• Screen-print color
• Ink coverage
• Registration
• Surface scratches
• Cosmetic defects
• Adhesion where required
• Batch appearance consistency



For appearance-sensitive projects, an approved first-article sample is especially valuable.



The sample provides a physical reference for:



• Color
• Contrast
• Logo position
• Surface texture
• Cosmetic acceptance







CNC Machined Logo Case Study: Anodized Aluminum Electronics Housing





Project Background





A customer required a CNC machined aluminum electronics housing with:



• Black anodizing
• A white company logo
• A product model number
• A unique serial number for every part



The housing had a visible cosmetic surface, so the logo needed to maintain a premium appearance after batch production.







Project Challenge





The three markings did not have the same requirement.





Company Logo



The customer required a defined opaque white appearance.





Model Number



The information was small but remained the same across the batch.





Serial Number



Every component required unique information.



If all three were screen printed, variable serial numbers would increase printing complexity.



If all three were laser engraved, the company logo would not provide the same controlled opaque white ink appearance requested by the customer.







Root Cause Analysis



The project contained three different manufacturing requirements:

• Color requirement
• Fine-detail requirement
• Variable-data requirement



Using only one marking method would compromise at least one of those requirements.





VMT Solution



The complete manufacturing sequence was reviewed before production.





Step 1: CNC Machining



The aluminum housing was CNC machined according to the customer's dimensional drawing.





Step 2: Cosmetic Surface Preparation



The specified surface preparation was completed before anodizing.





Step 3: Black Anodizing



The housings received the specified black anodized finish.





Step 4: Screen Printing



Screen printing was used for the white company logo because the customer required an opaque branded appearance.



The screen, fixture, ink, and curing process were validated on prototype parts.





Step 5: Laser Engraving



The serial number and fine identification information were laser engraved after anodizing.



A positioning fixture referenced the machined geometry so the markings remained aligned with the housing.





Step 6: Final Inspection



The finished parts were inspected for:

• Logo position
• White ink coverage
• Laser-mark clarity
• Serial-number accuracy
• Cosmetic scratches
• Overall appearance



Result



The combined process allowed each marking method to perform the task it was best suited for:



• Screen printing provided the required white branding.
• Laser engraving provided fine permanent variable identification.
• CNC machining and fixture datums controlled marking position.
• Prototype approval established the appearance reference for repeat production.



This is why the best logo solution is often based on the function of each individual mark rather than choosing one process for the entire component.











From Prototype Logo Validation to Batch Production





For cosmetic CNC machined parts, it is valuable to validate the complete marking process before mass production.



A typical workflow can include:



1. Receive the 3D CAD model.
2. Review the 2D manufacturing drawing.
3. Review the vector logo file.
4. Confirm material.
5. Confirm surface finishing.
6. Define cosmetic surfaces.
7. Review logo location and size.
8. Select laser engraving, chemical etching, screen printing, or a combination.
9. Manufacture prototype parts.
10. Complete the specified finish.
11. Apply the selected logo process.
12. Inspect logo and surface quality.
13. Approve the first article.
14. Freeze key processing parameters.
15. Start batch production.
16. Perform final inspection.
17. Protect cosmetic surfaces during packaging and shipping.



This workflow helps reduce situations where the CNC dimensions are correct but the final logo appearance fails customer approval.











What Files Should You Send for a Custom CNC Part Logo?





The quality of the logo process begins with clear manufacturing information.





3D CAD Model



Provide the complete part geometry in a suitable format such as:



• STEP
• STP
• IGES



This helps evaluate:



• Part geometry
• Logo surface
• Curvature
• Tool access
• Marking fixture
• Assembly orientation





2D Manufacturing Drawing





The drawing should identify:



• Logo position
• Logo dimensions
• Orientation
• Required marking process if specified
• Engraving or etching depth if required
• Surface finish
• Cosmetic areas
• Relevant datums





Vector Logo File



Whenever possible, provide clean vector artwork such as:



• AI
• SVG
• DXF
• Vector PDF



This provides cleaner boundaries than a low-resolution raster image.







Color Specification



For screen printing, specify:



• Required color
• Brand color reference
• Number of colors
• Matte or gloss requirements if relevant





Variable Information



For laser engraving, identify whether the parts require:



• Serial numbers
• Date codes
• Batch codes
• QR codes
• Different text on each part





Cosmetic Requirements



If the logo is on a high-visibility surface, provide:



• Cosmetic standard
• Approved sample
• Color requirement
• Scratch acceptance
• Surface texture requirement









Conclusion: Select the Logo Process Based on Material, Function, Color, and Durability





Laser engraving, chemical etching, and silk screen printing are three different ways of adding logos, text, patterns, or identification information to a product.



• Laser engraving is a strong option when you need fine detail, permanent identification, serial numbers, QR codes, variable data, or marking on finished CNC parts.
• Chemical etching is suitable when you need fine, permanent recessed patterns on compatible metal surfaces.
• Screen printing / silk screen printing is usually the stronger option when your priority is white graphics, defined brand colors, multi-color logos, large symbols, or cost-efficient repeat printing.



The process should not be selected from appearance alone. Material, logo detail, required durability, surface treatment, part geometry, batch quantity, cost, and inspection requirements should all be reviewed together.



If your next project requires a custom logo on a CNC machined part, upload your 2D drawing, 3D CAD model, and vector logo file. VMT can review your material, logo geometry, marking process, surface finish, cosmetic requirements, production quantity, and inspection criteria and provide DFM feedback before prototype or mass production.









Frequently Asked Questions about Laser Engraved Logo, Etched Logo, and Silk Screen Logo







Certainly! Here are some frequently asked questions about laser engraved logos, etched logos, and silk screen logos:





1. What is the main difference between laser engraving and etching logos?



Laser engraving involves physically removing material to create a logo, while etching is a chemical process that corrodes the surface to form the design. Laser engraving is deeper and more permanent.



2. Which method is best for adding logos to metal products?



Laser engraving is a popular choice for metal products due to its durability and precision. It provides a long-lasting logo with a premium look.



3. Can I use silk screen printing for outdoor signage?



Yes, silk screen printing is suitable for outdoor signs and banners. It offers vibrant colors and is cost-effective for large format prints.



4. Which method is best for textiles like t-shirts and bags?



Silk screen printing is commonly used for textiles. It allows for multi-color designs and is flexible for custom apparel.



5. Are laser engraved logos suitable for glassware and acrylic items?



Yes, laser engraving can create precise and permanent logos on glassware and acrylic products. It provides a clean and professional look.



6. Does etching work well for medical device branding?



Yes, etching is often used for medical device branding because it's durable and can withstand sterilization processes.



7. Can I get detailed and intricate logos with silk screen printing?



Silk screen printing may have limitations with fine details and intricate designs. Laser engraving or etching is better for highly detailed logos.



8. Are there specific materials that are not suitable for silk screen printing?



Silk screen printing is versatile, but it may not adhere well to certain materials like rubber or very soft plastics. Always check material compatibility.



9. Which method is more cost-effective for large quantities of promotional items?



Silk screen printing is often cost-effective for large quantities of promotional items due to its efficiency in high-volume production.



10. Are there any limitations on the size of logos with laser engraving and etching?

Laser engraving and etching can handle logos of various sizes, but extremely large designs may require specialized equipment.







These FAQs should help provide a better understanding of the differences and considerations when choosing the right method for your logo application needs.
