Medical Robots: Types, Benefits, Applications, and Component Manufacturing









Medical robots are revolutionizing healthcare, offering improved precision, faster recovery times, and enhanced patient outcomes. However, despite the significant advancements, the integration of medical robots into the healthcare system raises several concerns—ranging from their effectiveness to the complexities of manufacturing such sophisticated machines.



In this article, we will explore the different types of medical robots, their advantages, and the crucial technologies involved in manufacturing their parts, with a focus on CNC machining and other precision methods. Whether you're a healthcare professional or an engineer interested in robotic technology, understanding these factors is key to unlocking the potential of medical robotics in improving patient care and operational efficiency.



At the end, we will also share a case study of how we completed custom cnc machining for a surgical robotic arm joint and achieved tolerance of ±0.005 mm, biocompatibility and zero surface defects.







What is a Medical Robot?



Medical robots refer to robotic systems designed to perform specific tasks in healthcare settings. These robots for medicine vary in complexity and functionality, ranging from basic support tools to highly sophisticated systems capable of performing minimally invasive surgeries. They are designed to aid healthcare professionals, improving the quality, precision, and efficiency of procedures. From robotic surgical systems to rehabilitation robots and hospital service bots, the medical robotics industry is diverse and continues to evolve rapidly.



Medical robots typically consist of several key components: a controller for managing operations, sensors for gathering data, and end-effectors (tools or limbs) to interact with the patient or environment. Depending on their design, medical robots can function autonomously or assist human operators in performing tasks. With the ongoing development of artificial intelligence (AI) and machine learning, medical robots are becoming more advanced, offering even greater potential for transforming healthcare practices.

















What Are the Technical Characteristics of Medical or Non-Medical Robots?





Medical robots, much like their non-medical counterparts, are built upon several critical technical characteristics. These features enable them to perform tasks with a high degree of accuracy, reliability, and safety. The primary components that define medical robots include:





1. Controller



The controller is the brain of the robot. It processes data from sensors and commands the robot to act accordingly. Controllers are responsible for decision-making and orchestrating the entire process, ensuring that the robot performs its tasks accurately and efficiently.





2. Power



Medical robots require a power source to operate. Depending on their design, they may use electrical or battery power. Power management is crucial for ensuring the robot functions continuously without interruption, especially in critical environments like operating rooms.





3. Programming



Programming medical robots involves developing software that directs the robot’s movements and responses to various stimuli. This requires a deep understanding of the robot's mechanical functions and the specific tasks it needs to perform, such as making precise incisions during surgery or assisting with patient rehabilitation exercises.





4. Sensor



Sensors are critical for the robot's ability to perceive its environment. They allow the robot to gather real-time data, such as the location of tissues during surgery or the pressure applied during rehabilitation. The accuracy and sensitivity of these sensors directly impact the robot's performance.





5. End Effector



The end effector is the part of the robot that interacts directly with the patient or environment. This could include surgical instruments, robotic arms, or prosthetic limbs, depending on the type of medical robot. These components must be highly precise, often custom-manufactured to ensure safety and efficiency in healthcare applications.









Benefits of Medical Robots in Healthcare



The integration of robots into healthcare offers a myriad of advantages, transforming the way medical procedures are carried out and enhancing the overall patient experience. Below are the primary benefits of medical robots in healthcare:





1. Shared Medical Work



Robots in medical are often designed to assist healthcare professionals by taking over repetitive or tedious tasks, freeing up medical staff to focus on more complex aspects of patient care. For example, in surgery, robots can handle certain aspects of the operation, such as making precise incisions, allowing surgeons to concentrate on other critical components of the procedure.





2. Improved Workplace Safety



In hazardous medical environments, such as radiation therapy or chemical handling, robots can help mitigate risks to human workers. By performing dangerous tasks, medical robots protect healthcare professionals from exposure to harmful substances or intense radiation.











3. Assisted Surgery

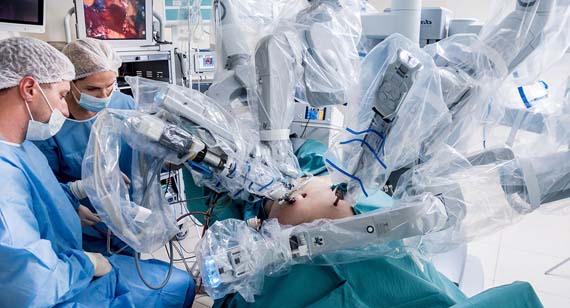

Surgical robots, such as the da Vinci Surgical System, provide surgeons with enhanced control, precision, and flexibility. These robots in medical allow for minimally invasive procedures, reducing the size of incisions, decreasing recovery times, and improving overall patient outcomes. The ability to perform precise operations with robotic assistance leads to fewer complications and better results.









Types of Medical Robots



As robots for medicine continue to shape the future of healthcare, understanding the various types of robots used in hospitals, clinics, and rehabilitation centers is essential. Next, we’ll explore the different categories of medical robots (medical robots examples) and how are robots used in the medical field.



Medical robots are classified based on their specific function and application. These robots play diverse roles in healthcare, ranging from patient care to assistance in surgical procedures. The following are the most common types of medical robots:

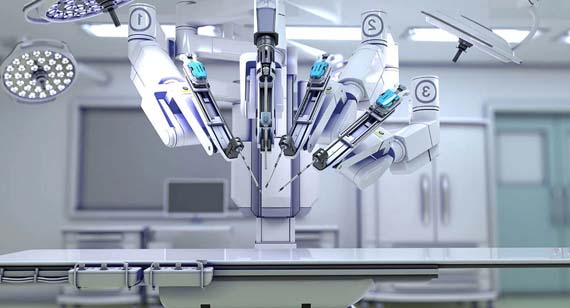

1. Surgical Robots



Surgical robots are perhaps the most well-known medical robots. These robotic medical devices assist surgeons during complex procedures, offering superior precision, dexterity, and control. They are especially beneficial in minimally invasive surgeries, where small incisions are made, and the surgeon uses robotic arms to carry out the operation.





2. Radiation Therapy Robots



Radiation therapy robots are used to deliver targeted radiation to patients undergoing cancer treatment. These robots ensure accurate positioning, precise dose delivery, and better control over treatment, reducing the risks of harming healthy tissues surrounding cancerous areas.





3. Rehabilitation Robots



Rehabilitation robots assist patients recovering from injuries or surgeries. These robots help patients regain mobility, strength, and function by providing repetitive movements that encourage muscle strengthening and coordination.





4. Laboratory Robots



Laboratory robots automate tasks in medical research, diagnostics, and drug development. These robots perform routine tasks such as sample preparation, testing, and data analysis, allowing laboratory technicians to focus on more specialized work.





5. Robotic Prostheses



Robotic prostheses replace missing limbs or other body parts. These devices often feature advanced sensors and actuators, allowing them to mimic the natural movement of human limbs and improve the quality of life for individuals with disabilities.





6. Hospital Robots



Hospital robots are used for logistical tasks, such as delivering medications, supplies, or even meals to patients. They improve the efficiency of hospital operations by reducing the need for manual labor and minimizing human error.





7. Service Robots



Service robots assist with non-medical tasks, such as cleaning, patient monitoring, and administrative duties. They enhance hospital environments by taking on tasks that would otherwise require human staff.





8. Exoskeleton Robots



Exoskeleton robots are wearable devices that provide mobility and support to individuals with spinal injuries or mobility impairments. These health care robots enable patients to stand, walk, and perform tasks that they otherwise would not be able to do due to paralysis or muscle weakness.









Common Methods for Manufacturing Medical Robot Parts





Manufacturing medical robot parts requires precision, high-quality materials, and advanced technology to ensure safety and functionality. Some of the most common manufacturing methods for medical robot components include:





1. Precision CNC Machining



CNC machining is one of the most widely used methods for high-precision medical robot parts machining. CNC machining involves using computer-controlled machines to cut, shape, and finish materials such as metal, plastic, and composites. The precision of CNC machining makes it ideal for producing critical components, such as robotic arms, sensors, and actuators.











What is Precision CNC Machining?



Precision CNC machining refers to the use of highly accurate, automated machines to produce parts to extremely tight tolerances. This method is particularly effective for creating complex shapes and ensuring the components fit seamlessly into robotic systems.





Benefits of Precision CNC Machining

• Fast Production Process: CNC machines can operate continuously, increasing the speed at which parts are produced.
• Complex Shapes and Tight Tolerances: CNC machines are capable of producing highly detailed and intricate components, often with tolerances as small as a few microns.
• Versatility: CNC machining is adaptable to a wide range of materials and is suitable for various applications, from surgical robots to prosthetics.







2. Overmolding and Insert Molding





Overmolding and insert molding are techniques used for creating parts with multiple materials, such as robotic end-effectors or handles. In overmolding, one material is molded over another, while insert molding involves placing a part into a mold and injecting additional material around it.





Benefits of Overmolding and Insert Molding

• Economical Efficiency: Both methods reduce manufacturing costs by combining multiple processes into one.
• Durability: Parts made through overmolding or insert molding are often more durable and offer better wear resistance.







3. 3D Printing





3D printing (also known as additive manufacturing) is another popular method for creating custom parts for medical robots. This technique builds objects layer by layer, which allows for highly customized and intricate designs.



Advantages of 3D Printing

• Rapid Prototyping: 3D printing allows for quick iteration of designs, making it ideal for developing prototypes of medical robots and testing them before mass production.
• Flexibility: 3D printing can produce parts in almost any shape or size, making it a versatile option for creating medical robot components.









How to Choose the Right Process for Medical Robot Parts?



Medical robots, from surgical systems to rehabilitation aids, are increasingly used in healthcare for their precision and ability to assist in complex tasks. Precision manufacturing technologies, such as CNC machining, 3D printing, and molding processes, are essential to producing the high-quality components required for these robots. Whether you're creating CNC machined medical robot parts or considering CNC prototype machining for a new design, choosing the right manufacturing method ensures safety, accuracy, and performance.





Selecting the correct



manufacturing process for medical robot parts is crucial to ensuring high-quality, functional, and safe components. Factors to consider when choosing the right process include:



• Prototyping vs. Real-Time Manufacturing: Depending on whether you're in the development or production phase, you may require different manufacturing processes. For prototype parts, methods like 3D printing or CNC prototype machining are ideal, while for mass production, CNC machining or molding may be preferred.
• Accuracy and Tolerances: The level of precision required for the parts is a key consideration. CNC machining is often the best choice for parts that need tight tolerances.
• Suitable for Complex Designs: If your design involves complex geometries or materials, methods like 3D printing or overmolding may be more suitable than traditional machining.









Key Precision CNC Machined Component Examples of Medical Robots





The reliability and performance of a surgical or diagnostic or other medical robot depend heavily on the accuracy and durability of its mechanical parts.



Below are the critical precision components for medical robots that require custom CNC machining:



• Robotic Arm Joints and Articulations: These components provide flexible, multi-axis movement for surgical instruments. They must be manufactured with extreme precision to ensure zero backlash and smooth motion during sensitive operations.

• Structural Housings and Frames: Serving as the protective skeleton, these lightweight yet strong housings enclose delicate electronics, motors, and reduction gears, protecting them from physical shock and sterilizing agents.

• End-Effectors and Tool Holders: The working end of a surgical robot holds micro-instruments (graspers, scalpels, cauterizing tools). These parts demand precision machining for precisely surgical maneuvers inside the human body.

• Custom Actuator Housings & Gearboxes: Compact gear systems require tight tolerances to keep steady movements without vibration.









Material Selection for Medical Robotic Arms and Other Components





Choosing the right materials for medical robotic arms and internal parts is essential for achieving the required strength-to-weight ratio, biocompatibility, and resistance to harsh chemical sterilization.



Here are the popular materials examples used in medical robot manufacturing:

















Precision Machining Solutions & ISO 13485 Compliance





1. Meeting Tight Tolerances for Medical Robotic Components



Medical robotics demands tolerances as tight as ±0.002 mm to ±0.005 mm (0.00008" - 0.0002"). For example, for surgical robotics, achieving these tolerances prevents mechanical play and ensures exact positioning during minimally invasive surgeries. High-precision 5-axis CNC milling, and Swiss lathe turning are critical techniques used to produce complex micro-features.





2.Surface Finishing for Medical Robotic Parts



Surfaces must be smooth and free of microscopic burrs or crevices where bacteria can harbor. Key surface treatment solutions include:



• Passivation (ASTM A967): Removes free iron from stainless steel surfaces, maximizing corrosion resistance.
• Anodizing (Type II / Type III Hardcoat): Provides a durable, corrosion-resistant protective layer on aluminum components while preventing chemical leaching.
• Electropolishing: Removes microscopic peaks on metal surfaces, resulting in a mirror-like finish that significantly reduces friction and enhances cleanability.





3. ISO 13485 Medical-Grade Quality Assurance



To meet international regulatory standards (such as ISO 13485 certification), please assure your partner factory maintaining these strict quality control protocols:



• Traceability: Full raw material certification (Mill Test Certificates) and lot tracking.
• CMM Inspection: 100% dimensional verification using Coordinate Measuring Machines (CMM) and optical measurement tools.
• Cleanroom Packaging: Ultrasonic cleaning and vacuum sealing in controlled environments to prevent surface contamination before assembly.











Future Trends of Robots in the Medical Field







The future of medical robots holds exciting possibilities. With advancements in AI, machine learning, and materials science, the following trends are likely to shape the future of healthcare robotics:







1. Improved Humanization



Medical robots are expected to become more "human-like" in their interactions with patients, making them more approachable and empathetic.





2. Better Robot Performance in Surgery



Surgical robots(medical device robotics) will continue to improve in terms of precision and capabilities, enabling even more complex surgeries to be performed with minimal invasiveness.





3. Enhanced Empathy for Robots



Robots will be designed with emotional intelligence, providing more personalized care and making interactions with patients more comforting and effective.





4. Remote Care



Telemedicine and remote surgeries will become more prevalent as robots are increasingly capable of performing tasks from a distance, enabling healthcare delivery in underserved or remote areas.

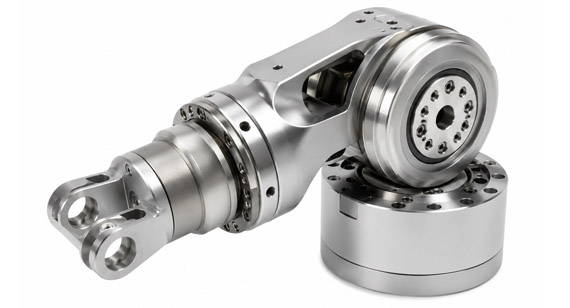

VMT CNC Machining Factory Case Study: Custom CNC Machining for a Surgical Robotic Arm Joint









A medical device manufacturer required a lightweight yet high-strength elbow joint for their surgical robotic arm. The component featured complex internal channels, extremely thin walls, and demanded a strict dimensional tolerance of ±0.005 mm to prevent mechanical backlash during delicate surgical procedures. Additionally, the part required full biocompatibility and zero surface defects to ensure seamless sterilization.



To address these challenges, our team implemented a high-precision 5-axis CNC micromachining strategy using Grade 5 Titanium (Ti-6Al-4V). By optimizing toolpaths and utilizing specialized high-speed carbide tooling, we successfully machined the complex geometric features in a single setup, avoiding repositioning errors. Post-machining operations included ultrasonic deburring, precise passivation (ASTM A967), and electropolishing to create a ultra-smooth, corrosion-resistant surface that meets ISO 13485 medical standards.



The delivered titanium joint components passed 100% CMM dimensional inspection and strict cleanliness verification, meeting all engineering specifications on the first attempt. The lightweight design reduced overall arm inertia by 15%, enhancing positional accuracy and response speed during surgical tasks.











VMT Provides Medical Prototyping and Machining Services for Your Robot Project





At VMT, we offer high-quality CNC machining, 3D printing, and molding services for the medical robotics industry. Our expertise in precision manufacturing ensures that your medical robot parts meet the highest standards of safety and performance. Whether you need custom CNC machining for a prototype or are preparing for large-scale production, we have the expertise to bring your robot project to life.















Conclusion



Medical robots are rapidly transforming healthcare by offering precise, efficient, and safe solutions to complex medical problems. Understanding the various types of robots, their benefits, and the technologies behind their manufacturing is essential for harnessing the full potential of this innovation. From CNC machining to 3D printing, the methods used to create medical robot parts play a critical role in ensuring these devices function effectively and safely. Looking for high-precision medical robot parts manufacturing? At VMT, we specialize in 5-axis cnc machining, swiss turning, and rapid prototyping certified to medical-grade standards. Upload your drawing today for a free quote & dfm analysis. [2D Drawings (PDF files), 3D Drawings (IGS/STP/STEP files)]





FAQs





1. What is the most popular medical robot?



The da Vinci Surgical System is one of the most widely recognized and used medical robots, particularly for minimally invasive surgeries.





2. Can medical robots make mistakes?



While medical robots are designed to be highly accurate, human error or malfunctions in the system can lead to mistakes.





3. How safe is it to use medical robots for surgery?



Medical robots are generally very safe, especially when operated by trained surgeons. They provide high precision and reduce the risk of human error.





4. What is the best manufacturing process for producing medical robots?



The best manufacturing process depends on the complexity and material requirements of the parts. CNC machining is ideal for precision parts, while 3D printing is excellent for prototyping.





5. What does a medical robot do?



A medical robot assists in performing specific healthcare tasks, such as surgery, rehabilitation, diagnostics, and hospital logistics.





6. What is the failure rate of robotic surgery?



The failure rate of robotic surgery is very low, but it can vary depending on the complexity of the procedure and the experience of the surgical team.





7. What are the two jobs that robots do in the medical field?



Robots assist with surgery and provide rehabilitation support.





8. What is the common power source for robot tooling?



A common power source for robot tooling is pneumatic power for for fast, simple opening and closing actions. But the other common one is electric power for clean environments and tasks needing precise position control.
