Stainless Steel Passivation: A Comprehensive Guide



Stainless steel passivation is a crucial surface treatment technique designed to enhance the corrosion resistance of stainless steel parts, extend their service life, and improve surface finish and aesthetics. This article provides a comprehensive overview of stainless steel passivation, covering the fundamental concepts, necessity, functions, process steps, testing methods, precautions, industry standards, equipment characteristics, practical tips, and frequently asked questions. It serves as an extensive guide for professionals in the CNC machining parts manufacturing field.









What is Stainless Steel Passivation?



Stainless steel passivation refers to the chemical or electrochemical treatment process that reacts with the surface of stainless steel using a passivating agent to form a dense, uniform oxide layer (known as the passivation layer). This layer effectively isolates the stainless steel substrate from corrosive agents (such as oxygen and water), significantly reducing the corrosion rate and enhancing corrosion resistance. Passivation is an essential step in the post-processing of CNC machined stainless steel parts.

















Why Does Stainless Steel Need Passivation?



Although stainless steel inherently possesses good corrosion resistance, its surface may be contaminated or damaged during production, machining, welding, assembly, or use, with issues like oil stains, rust, and scratches. These factors can reduce the corrosion resistance of stainless steel, leading to rusting. Passivation repairs this damage by forming a new protective layer, thus extending the lifespan of stainless steel parts and reducing maintenance costs. Specific reasons for passivation include:



Inferior Raw Materials: Some stainless steel materials may contain impurities, affecting corrosion resistance.

Barrier Against Rusting: The passivation layer isolates corrosive agents, preventing rust.

Machining/Grinding: Scratches and burrs from machining accelerate corrosion.

Welding: Welding can create heat-affected zones and oxide scales, reducing corrosion resistance.

Assembly: New contaminants might be introduced during assembly.

Normal Wear and Tear: Wear during use can damage the original protective layer.









What Are the Functions of Stainless Steel Passivation?



Passivation of stainless steel parts serves several purposes:



Improved Corrosion Resistance: The passivation layer effectively blocks oxygen, water, and other chemicals, significantly enhancing stainless steel's corrosion resistance.

Enhanced Surface Finish: Passivation removes burrs and roughness, making the stainless steel surface smoother and more even.

Increased Aesthetics: By controlling passivation conditions, different colors of oxide layers can be formed on the stainless steel surface, increasing its decorative appeal.

Better Chemical Stability: Passivated stainless steel surfaces are more resistant to chemical attack.

Improved Coating Adhesion: The passivation layer enhances the adhesion of coatings, improving their protective performance.







When Should Stainless Steel Be Passivated?



Passivation is typically required in the following situations:



Newly machined stainless steel parts, especially those that have undergone welding, cutting, grinding, or other machining processes.

Stainless steel parts that show rust, contamination, or surface damage after prolonged use.

Stainless steel products that need enhanced corrosion resistance, improved surface finish, or increased aesthetic appeal.









What Isn't Passivation?



Passivation is not an electrolytic process, nor is it equivalent to descaling or painting. Electrolysis usually involves the application of an electric current, while passivation forms a protective layer on metal surfaces through chemical or electrochemical methods. Descaling removes dirt and impurities from the metal surface, while passivation creates a new protective layer. Painting involves applying a layer of paint or other coatings to the metal surface, which is fundamentally different from the passivation layer.











Three Steps of the Stainless Steel Passivation Process



The stainless steel passivation process generally includes three main steps: cleaning, acid bath, and quality testing.



Step 1: Cleaning

Cleaning is the first and most critical step in stainless steel passivation. In this step, contaminants and damages like oil, rust, weld slag, and scratches are thoroughly removed from the stainless steel surface. Alkaline cleaners or solvents are typically used to ensure the surface is clean and free from contaminants. After cleaning, the surface should be rinsed with clean water and dried naturally or with compressed air.





Step 2: Acid Bath

The acid bath is the core step in stainless steel passivation. In this step, the cleaned stainless steel parts are immersed in a solution containing a passivating agent, where a dense oxide layer is formed on the metal surface through a chemical or electrochemical reaction. There are various types of acid baths, including nitric acid, nitric acid with sodium dichromate, and citric acid. Each passivating agent has different characteristics and applications.





Types of Acid Baths:



Nitric Acid: Nitric acid is a strong oxidizing acid that can form a high-quality chromium oxide layer on stainless steel. However, nitric acid is harmful to humans and pollutes the environment, so its concentration and operating conditions must be strictly controlled.

Nitric Acid with Sodium Dichromate: This mixture provides stronger oxidation, forming a thicker passivation layer. However, it also poses environmental pollution and safety risks.

Citric Acid: Citric acid is an organic acid that is both safe and environmentally friendly. It is more effective at removing iron ions from the stainless steel surface while promoting chromium oxidation, forming a uniform passivation layer. Citric acid passivation is suitable for environments with high environmental requirements.



The acid bath step is controlled by three parameters: concentration, temperature, and duration. These parameters must be selected based on the stainless steel's material, surface condition, and desired passivation effect. Excessive concentration, temperature, or duration may lead to over-passivation, where the passivation layer becomes too thick and prone to cracking, reducing corrosion resistance. Conversely, insufficient concentration, temperature, or duration may result in inadequate passivation, failing to form an effective protective layer.







Nitric Acid vs. Citric Acid: Technical Comparison





Nitric Acid: Nitric acid passivation is fast and produces a dense, corrosion-resistant passivation layer. However, its strong oxidizing and corrosive nature is harmful to humans and the environment, requiring strict operational controls.

Citric Acid: Citric acid passivation is milder, safe for humans and the environment, and easier to handle waste liquids. Although its passivation speed is relatively slower, the effect can be optimized by adjusting concentration and temperature. While the passivation layer formed by citric acid may not be as dense as that formed by nitric acid, it is sufficient for many applications.





Step 3: Quality Testing

Quality testing is crucial to ensure the effectiveness of stainless steel passivation. A series of testing methods can evaluate the passivation layer's integrity, uniformity, and corrosion resistance. Common testing methods include water immersion, high humidity testing, salt spray testing, copper sulfate testing, potassium ferricyanide-nitric acid test, and free iron testing. These methods have their own advantages and disadvantages, and the appropriate method should be chosen based on specific needs.









Stainless Steel Parts Passivation Process Flow





Alkaline cleaning of the material: Remove oil stains, grease, and other organic contaminants from the surface.

Water rinse: Ensure the alkaline cleaner is thoroughly rinsed off to avoid residues affecting subsequent steps.

Nitric or citric acid immersion bath: Immerse the part in the selected passivating agent to form a passivation layer.

Water rinse: Rinse again to remove any remaining passivating agent.

Second water rinse: Ensure complete rinsing, avoiding water spots.

Air-dry parts: Use compressed air or a hot air dryer to dry the surface of the parts.

Quality testing: Conduct quality tests on the passivated parts to ensure the passivation meets requirements.







Passivation Testing Methods



Water Immersion Test: Immerse the passivated part in distilled water to check for bubbles or color changes, assessing the integrity of the passivation layer.

High Humidity Test: Place the part in a high-humidity environment and observe for rust or discoloration on the surface.

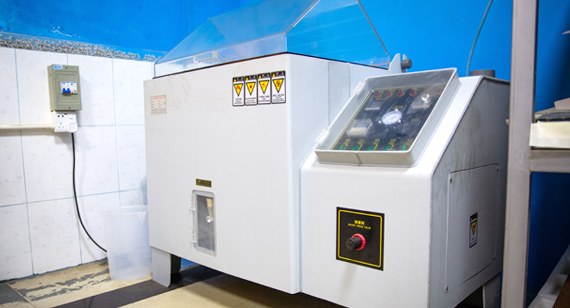

Salt Spray Test: Place the part in a salt spray chamber to simulate a marine environment and assess corrosion resistance.









Copper Sulfate Test: Use copper sulfate solution to detect unpassivated iron ions in the passivation layer.

Potassium Ferricyanide-Nitric Acid Test: Used to detect free iron ions on the stainless steel surface.

Free Iron Test: Chemically detect the presence of free iron beneath the passivation layer to evaluate passivation effectiveness.









What to Pay Attention to During Metal Passivation?





Keep Acidic Solutions Free of Contaminants: Ensure the passivating agent is pure and free of contaminants to avoid affecting passivation results.

Thoroughly Clean Stainless Steel Parts Before Acid Bath: Cleaning is the foundation of passivation; the surface must be free of contaminants.

Avoid Mixing Different Grades of Stainless Steel in the Same Treatment: Different grades of stainless steel may react differently to passivating agents, leading to uneven passivation.

Control Acid Bath Parameters: Adjust the acid bath concentration, temperature, and duration based on the stainless steel grade and desired passivation results.

Safety Precautions: Chemicals used in passivation can be harmful, so safety measures must be in place.









Common Industry Standards for Stainless Steel Passivation





Stainless steel passivation follows various international and industry standards, such as those established by the American Society for Testing and Materials (ASTM), International Organization for Standardization (ISO), and other national standards. These standards specify passivation methods, requirements, testing methods, and acceptance criteria, providing technical guidance and quality assurance for stainless steel passivation.









Features of Stainless Steel Passivation Equipment





Passivation equipment includes passivating agent storage tanks, immersion tanks, rinse tanks, drying chambers, and more. The equipment can be customized based on production requirements. Automated passivation equipment provides high production efficiency and stable quality.



Stainless steel passivation equipment typically has the following features:





Variety of Sizes: The equipment can be designed in various sizes and capacities to meet different production needs.

Strong Passivation Capability: It utilizes efficient passivating agents and advanced process designs to ensure stable and reliable passivation results.

Comprehensive Functionality: The equipment integrates functions such as cleaning, passivation, rinsing, drying, and testing, enabling automated production.
Manual/Automatic Options: Depending on production requirements, the equipment can be operated manually or in an automated mode, enhancing production efficiency and flexibility.









Practical Tips for Stainless Steel Passivation







Always Passivate New and Repaired/Replaced Parts: Ensure that all parts undergo passivation to maintain excellent corrosion resistance.





Regularly Monitor Equipment: Regular inspection and maintenance of passivation equipment are crucial. This includes checking the concentration of acid baths, temperature control systems, cleaning and rinsing devices, and drying equipment. Early detection and repair of potential issues can prevent production interruptions and product quality problems.



Use Dedicated Machinery and Tools for Stainless Steel: Stainless steel is sensitive to contamination and scratches. It is essential to use specialized machinery and tools for processing and handling stainless steel to avoid cross-contamination and damage. This helps maintain the surface finish and corrosion resistance of stainless steel.



Quality Control of Industrial Fluids: The chemicals and fluids used in the passivation process, such as cleaners, passivating agents, and rinse water, must be strictly controlled for quality. Ensuring that these fluids are pure and free from contaminants and are used according to specified ratios and conditions is key to achieving consistent and stable passivation results.



Adjust Passivation Methods According to Steel Type: Different types of stainless steel have varying chemical compositions and microstructures, and they react differently to passivating agents. Therefore, the passivation method and parameters should be selected based on the specific steel type and performance requirements to achieve the best passivation effect.









Conclusion





Stainless steel passivation is a critical post-processing step in CNC machining that significantly enhances the corrosion resistance, extends the service life, and improves the surface quality of parts. By following scientific passivation processes and strict quality control measures, stainless steel parts can maintain excellent performance and appearance even in harsh environments. When choosing CNC machining services, it is important to ensure that the manufacturer has comprehensive passivation capabilities and technical expertise to guarantee product quality and customer satisfaction.









Choose a Reliable Post-Processing Partner for Your CNC Parts Passivation Projects





For manufacturing services that cover everything from part production to stainless steel passivation, VMT is the right choice. With advanced technology and an experienced team, we can meet all your requirements and deliver in the shortest time possible.



With 20 years of experience and professional surface treatment process engineers, as well as 12 stages of quality inspection and control, you can rest assured that whether it's stainless steel passivation or any other surface treatment process, you will receive durable and perfectly performing parts. Please contact us for your passivation projects, and we will provide an instant quote and DFM feedback within 4 hours.













Frequently Asked Questions About Passivation





Do 304 and 316 stainless steels need passivation?



Yes, both 304 and 316 stainless steels usually require passivation after machining, welding, or assembly to enhance their corrosion resistance. Although these stainless steels inherently possess good corrosion resistance, passivation can further improve their protective properties.





How often should stainless steel be passivated?



The frequency of stainless steel passivation depends on its usage environment and requirements. Parts used in harsh environments may require more frequent passivation. In general, regular inspections and maintenance are recommended, and passivation should be repeated as needed based on the actual condition.





Can stainless steel be passivated more than once?



Yes, stainless steel can undergo multiple passivation treatments. In some cases, a second or multiple passivations may be performed to achieve a thicker passivation layer or to repair a damaged passivation layer. However, it's important to control passivation parameters and time to avoid over-passivation, which can have negative effects.





Which acid is best for stainless steel passivation?



The choice of acid for stainless steel passivation depends on specific application needs and environmental requirements. Nitric acid is one of the most commonly used passivating agents and can form a high-quality passivation layer. However, it poses environmental and safety risks. Citric acid, an organic acid, is more environmentally friendly and safer, making it suitable for applications with high environmental standards.





How long does stainless steel passivation last?



The longevity of stainless steel passivation depends on various factors, including the material of the stainless steel, the environment in which it is used, the quality of the passivation, and subsequent maintenance. Under ideal conditions, the passivation layer can maintain its protective properties for a long time. However, in harsh environments or if the passivation layer is physically damaged, its protective effect may be compromised.





Can the passivation layer be removed?



Yes, the passivation layer on stainless steel surfaces can be removed using chemical or physical methods. However, this is typically done only when the stainless steel surface needs to be reprocessed or treated. After removing the passivation layer, it is necessary to re-passivate to restore its corrosion resistance.





Can 400 series stainless steel be passivated?



Yes, 400 series stainless steel, which includes ferritic and martensitic grades, can be passivated to enhance corrosion resistance. However, the passivation effect may not be as significant as that of austenitic stainless steels like 304 and 316. Therefore, careful consideration is required when selecting passivation methods and parameters.





What happens if stainless steel is not passivated?



If stainless steel is not passivated, its surface is more susceptible to contamination and damage, leading to reduced corrosion resistance and potential rusting. This is especially true for parts used in harsh environments, where corrosion can negatively impact their lifespan and performance.





What are the standards for stainless steel passivation?



Stainless steel passivation is governed by various international and industry standards, such as those from ASTM, ISO, and other organizations. These standards outline the methods, requirements, testing methods, and acceptance criteria for passivation. When selecting passivation services, it is important to reference relevant standards to ensure passivation quality and product compliance.





Does passivation change the color of stainless steel?

The color change depends on the passivating agent and process parameters. Some passivating agents can alter the surface color, but typically the process should not significantly affect the original color.





How often should stainless steel parts be passivated?

The frequency depends on usage conditions and the environment. Stainless steel parts should be passivated if surface damage or corrosion is noticed.





What are the benefits of using citric acid for passivation?

Citric acid is environmentally friendly, safer to handle, and effective at removing iron ions while promoting chromium oxidation.
