Alodine Coating: A Complete Guide to Chromate Conversion Coatings for Precision Machined Parts



Are you struggling to find a protective finish for your CNC machined parts that ensures both corrosion resistance and conductivity, while maintaining the tight tolerances of your precision machined parts? Perhaps you’ve tried various coatings only to face issues with poor adhesion, limited durability, or complicated procedures that slow down production. For many manufacturers and designers, achieving an ideal surface treatment can feel like an uphill battle, threatening to erode the quality and reputation of your custom CNC machining products.



Without an effective solution, your components might succumb to corrosion, lose essential conductivity, or fail to meet rigorous industry standards. This leads to dissatisfied customers, increased rework, and potential damage to your brand’s image. The longer you go without a reliable coating method, the more you risk compromising product integrity, performance, and long-term customer satisfaction. In a competitive market, these setbacks could cost you valuable time, resources, and opportunities.



Enter Alodine coating—a proven chromate conversion coating process designed specifically to enhance corrosion resistance, paint adhesion, and conductivity for CNC machined parts. By understanding and applying Alodine coatings, you can produce Alodine CNC machined parts that meet stringent requirements while simplifying your workflow. This guide will detail the entire process, from what Alodine is to how to choose the right treatment for your project, ensuring that your precision machined parts benefit from a reliable, stable, and performance-oriented finish.





For superior corrosion resistance, paint adhesion, and conductivity in precision machined parts, apply Alodine coating after thorough cleaning and deoxidizing. Follow MIL-DTL-5541 standards, choose Type 1 or Type 2 based on regulatory needs, and ensure proper rinsing and drying. This streamlined process creates a thin, uniform protective layer—ideal for custom CNC machining projects and CNC prototypes.





Now that you understand the potential value Alodine coatings bring to CNC machined parts, it’s time to delve deeper. In the following sections, we’ll explore what Alodine is, how Alodining works, compare different types and classes of chromate conversion coatings, and provide step-by-step instructions. By the end, you’ll have the insights needed to select the right Alodine treatment for your custom CNC machining projects.







Foreword





Alodine coating, a form of chromate conversion coating, is integral in industries such as aerospace, automotive, defense, and electronics. This treatment enhances precision machined parts by forming a thin, protective chemical film on metal surfaces—particularly aluminum. Unlike thicker coatings, Alodine’s minimal thickness preserves dimensional accuracy, crucial for close-tolerance CNC machined parts. By following established guidelines (like MIL-DTL-5541), manufacturers can ensure consistent, high-quality finishes that stand up to harsh conditions while maintaining optimal functionality, adhesion properties, and conductivity. This foreword sets the stage for understanding the fundamentals and practical applications of Alodine coating in modern CNC machining services.









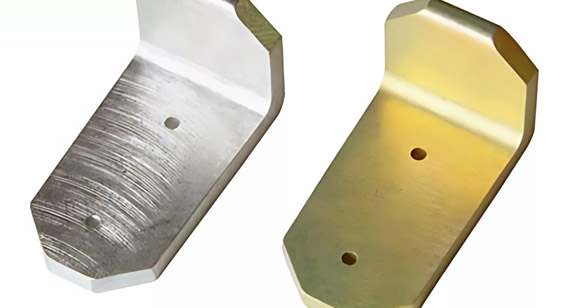

What is Alodine?





Alodine is a trademarked name commonly associated with chromate conversion coatings. In essence, Alodine coating is a chemical film applied to aluminum and other metals to create a corrosion-resistant, paint-ready, and electrically conductive surface. This protective layer is extremely thin—often just a few micrometers—ensuring it doesn’t significantly alter part dimensions or compromise the precision integral to CNC machined parts.



For custom CNC machining operations, Alodine provides an ideal balance between surface protection and maintaining the exacting tolerances of components. By opting for Alodine CNC machined parts, you ensure longevity, performance, and reliability across various applications. This coating is especially useful in environments where moisture, chemicals, or temperature fluctuations can degrade untreated metal surfaces.















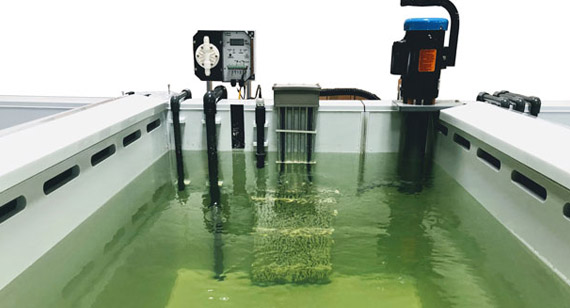

How Does Alodining Work?



Alodining involves a chemical reaction between the metal’s surface and a specialized chromate solution. The process forms a stable, corrosion-inhibiting, and slightly absorptive oxide-chromate layer that enhances adherence for subsequent coatings like paints or primers. It can also improve electrical conductivity—a crucial factor in aerospace, military, and electronics industries.













Type 1 Chromatizing Process



Type 1 involves hexavalent chromium compounds, long the industry standard but now carefully managed due to environmental and health concerns. Despite the caution, Type 1 still offers reliable corrosion resistance and excellent adhesion for downstream finishes.





Step #1: Clean the Metal Product

Start by thoroughly cleaning CNC machined parts to remove oils, greases, and contaminants. Proper cleaning ensures uniform coating and prevents defects like spotting or poor adhesion.





Step #2: Etch the Product

An etching solution lightly removes the metal’s natural oxide layer, creating a receptive surface for chemical conversion. This step ensures the metal surface is primed for uniform film formation.





Step #3: Deoxidize

Deoxidizing strips away any residual oxides or impurities, ensuring the metal surface is chemically clean. A clean substrate is essential for achieving a stable and consistent chromate conversion layer.





Step #4: Apply Chemical Film Coating



The Alodine solution (containing hexavalent chromium) is applied according to specified dwell times and temperatures. The solution reacts with the metal, creating a thin, durable chemical film. This controlled reaction is what imparts corrosion resistance and improved paint adhesion.





Step #5: Final Rinse

After the coating forms, a final rinse removes excess chemicals and stabilizes the film. Proper rinsing ensures the coating’s integrity and prepares the part for final drying, inspection, or further finishing processes.







Type 2 Chromatizing





Type 2 employs trivalent chromium or chromium-free formulations to meet increasingly stringent environmental and health regulations. It delivers similar benefits as Type 1—corrosion resistance, paint adhesion, conductivity—but without relying on hexavalent chromium.



By choosing Type 2, a CNC machining shop can produce Alodine CNC machined parts that comply with modern safety and environmental standards, appealing to industries requiring greener solutions.





Acid Cleaning Process



For both Type 1 and Type 2 treatments, cleaning is paramount. Acid cleaning targets stubborn contaminants and prepares the surface for effective chemical conversion.





Cleaning the Product with Acid:

A mild acid solution dissolves surface oils and oxides, ensuring a pristine substrate.





Rinse with Water:

A thorough rinse removes acid residues. This prevents contamination and ensures a neutral starting point for the Alodine solution.





Apply Type 2 Alodin:

For Type 2 treatments, introducing the chromium-free Alodine solution after acid cleaning yields a safe, compliant, and effective conversion layer.







Alkaline Cleaning Process



Alkaline solutions are another route to ensure cleanliness. They excel at removing grease, oils, and organic residues commonly found on machined parts.





Cleaning the Product with Alkaline Solution:

Alkaline cleaners break down organic contaminants, ensuring no obstructive films remain.





Rinse with Water:

Rinsing clears alkaline residues, preventing chemical interference during coating application.





Deoxidize to Remove Oxygen Contaminants:

Deoxidizing re-establishes a clean, oxide-free surface, essential for a stable Alodine film.





Rinse with Water:

A second rinse ensures a neutral, contaminant-free surface.





Apply Type 2 Alodin:

Finally, the Type 2 solution is applied, creating an eco-friendly, corrosion-resistant film over the prepared metal.











Why is Alodin Coating Critical for Precision Machined Parts?



Precision machined parts often face challenging environments, from corrosive atmospheres to mechanical stress. Alodine coating addresses these challenges, ensuring long-term reliability and functionality.





Enhanced Corrosion Resistance:

The Alodine film acts as a barrier against moisture, salts, and other corrosive agents. This is crucial in sectors like aerospace and defense, where prolonged durability is non-negotiable.





Promotes Adhesion of Paints and Primers:

Alodine’s slightly porous nature gives paint primers and coatings an excellent anchoring surface. This ensures uniform, long-lasting finishes that won’t peel or flake under stress.





Conductivity Advantages:

Unlike thicker finishes that might reduce conductivity, Alodine coatings maintain or even enhance surface conductivity. This is vital in electronic and electrical components, ensuring steady signal flow and grounding paths.









When to Choose Alodin Finishing?





Alodine coating is ideal when you need a corrosion-resistant, paint-ready surface that won’t alter critical part dimensions. It’s especially suitable for components requiring both conductivity and durability. If you aim for compliance with environmental regulations, consider Type 2 Alodine coatings. Whether you’re managing CNC prototype machining for aerospace connectors or producing large batches of electronic housings, Alodine provides a versatile solution.









How Alodine Finish Works





Alodine finishes rely on a chemical reaction between the metal surface and a chromate-based solution. The process forms a stable oxide-chromate film that integrates with the substrate’s crystalline structure. This creates a robust, stable barrier without adding significant thickness. The result: your CNC machining services can produce parts that resist corrosion, bond well with paints, and maintain electrical conductivity—factors essential in producing Alodine CNC machined parts that outperform untreated alternatives.









Types of Aluminum Alodine Coatings



Various specifications define how chromate conversion coatings should be applied and tested. Two common standards are MIL-DTL-5541 Type 1 and Type 2.









MIL-DTL-5541 Type 1:

This type uses hexavalent chromium. It’s been a mainstay in industry but is gradually phased out in some regions due to health and environmental considerations.





MIL-DTL-5541 Type 2:

Type 2 coatings rely on trivalent chromium or chromium-free chemistries. These meet modern environmental standards and still deliver comparable performance, making them a favored option today.

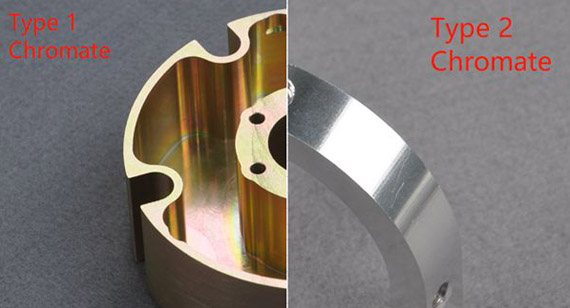

Comparing MIL-DTL-5541 Type 1 and Type 2

Choosing between Type 1 and Type 2 involves understanding their differences.





Chromium Type:

Type 1 uses hexavalent chromium; Type 2 uses safer alternatives.





Color:

Type 1 coatings often appear yellowish; Type 2 coatings are usually transparent or lightly tinted.





Application Temperature:

Both generally operate at room temperature, but follow product guidelines for optimal results.





Safety:

Type 2 is generally safer due to the absence or reduction of hazardous chromium compounds.





Corrosion Resistance:

Both provide excellent corrosion resistance, though environmental mandates increasingly favor Type 2.





Adhesion:

Both offer good paint adhesion, though consistent preparation is key.





Regulatory Limits:

Strict regulations push industry towards Type 2 for sustainable, compliant solutions.





















Alodine Coating Process: Step-by-Step Instructions



Implementing Alodine coatings effectively ensures consistent, high-quality results.









Type 1 Chromatizing Process

Type 1 coatings follow traditional hexavalent chromium-based formulations.



Step 1: Clean the Metal Product
Remove all contaminants via cleaning agents, ensuring a grease- and oil-free surface.



Step 2: Etch the Product
A mild etch refines the metal surface, optimizing adhesion.



Step 3: Deoxidize
Deoxidation ensures a chemically pure substrate, essential for stable coating formation.



Step 4: Apply Chemical Film Coating
Dip or spray the Alodine solution as per recommended dwell times, allowing the chemical reaction to occur.



Step 5: Final Cleaning
Rinse thoroughly, removing excess solution, and dry gently to prevent staining or smudging.







Type 2 Chromatizing

Type 2 processes mirror Type 1 steps but use environmentally friendly solutions.



Pickling Process Steps:
Acid pickling removes stubborn oxides, preparing the metal for subsequent neutralization and coating.



Alkaline Cleaning Process Steps:
Alkaline cleaners remove organics, followed by a rinse and deoxidation before applying the Type 2 Alodine solution. The result is a safe, stable, and compliant coating.











Types of Chromate Conversion Coatings



Within MIL-DTL-5541, coatings classify further into Class 1A and Class 3, each with unique attributes.





MIL-DTL-5541 Class 1A:

Class 1A provides maximum corrosion resistance and a robust base for paint adhesion. This class is suited for parts exposed to harsh conditions or requiring long service life.





MIL-DTL-5541 Class 3:

Class 3 focuses on maintaining electrical conductivity, making it a prime choice for electronic components, connectors, and assemblies where signal integrity matters.







MIL-DTL-5541 1A Class 3 and MIL-DTL-5541 Class 3



Features:



• Corrosion Resistance: Class 1A excels in harsh environments; Class 3 still offers decent protection but emphasizes conductivity.
• Color: Class 1A may exhibit a distinct color; Class 3 tends to be lighter or more transparent.
• Thickness: Both maintain minimal thickness, ideal for precision machined parts.
• Conductivity: Class 3 prioritizes conductivity, ensuring stable electrical performance.
• Applications: Class 1A suits structural components and chassis; Class 3 is ideal for connectors, PCBs, and other electrical assemblies.













Advantages of Alodine Surface Treatment for Aluminum



Alodine coatings deliver a range of practical benefits:



• Simple Process: Straightforward steps make it accessible for CNC machining shops.
• Thin and Uniform Coating: Minimal thickness ensures no loss of part precision.
• Corrosion Resistance: Extends product life and reduces maintenance.
• Apply at Room Temperature: Energy-efficient and compatible with delicate parts.
• Alodine Solution is Toxic: Proper handling and safety measures are mandatory.
• Quick Application Process: Speeds up finishing stages, enhancing productivity.
• Excellent Conductive Surface: Ideal for electrical connections and shielding.
• Compatibility with a Wide Range of Metals: Versatile across various alloys.
• Improves Paint Adhesion: Ensures paints or primers firmly bond, enhancing aesthetics and durability.







Disadvantages of Aluminum Anodizing



Anodizing, while popular, presents certain challenges when compared to Alodine:



• Thin Coatings: Although protective, anodizing layers can be thinner or less uniform than desired.
• Toxicity and Environmental Issues: Some anodizing baths involve hazardous chemicals.
• Limited Color Options: Unless specially dyed, natural anodize colors are limited.
• Lower Durability Compared to Anodizing (Correction): Actually, anodizing typically offers a harder, more wear-resistant surface than Alodine. But anodizing can be more complex and costly.
• Limited Thickness Control: Achieving precise thickness with anodizing may be more challenging compared to the predictable uniform film from Alodine.





While anodizing often provides a harder, more durable surface, it comes with complexity, potential environmental concerns, and sometimes less adaptability in certain conditions compared to the simplicity and conductivity benefits of Alodine.









Alodined vs Anodized Aluminum Parts



Choosing between Alodine and anodizing depends on your project’s priorities:



• Prevents Mechanical Damage: Anodizing forms a hard oxide layer, excellent for wear resistance. Alodine is less about hardness, more about corrosion resistance and bonding.
• Design Clearance Considerations: Anodizing adds thickness that may affect tolerances; Alodine is minimal, preserving part dimensions.
• Conductivity: Alodine maintains conductivity; anodizing typically reduces it.
• Colored Parts: Anodizing supports vibrant dyes; Alodine usually results in neutral, subtle finishes.
• Cost and Technical Expertise: Anodizing may require more investment in equipment and skill, while Alodine is generally more straightforward.
• Safety and Sustainability: Type 2 Alodine solutions align with modern environmental standards, while anodizing processes can involve more aggressive chemicals.









Key Differences Between Alodined and Anodized



For an even clearer picture, consider these factors:









• Process: Anodizing grows a controlled oxide layer; Alodine chemically converts the surface.
• Impact: Anodizing enhances hardness and wear resistance; Alodine improves paint adhesion and conductivity.
• Purpose: Anodizing suits mechanical resilience; Alodine supports electrical and finishing needs.
• Function: Anodizing forms a ceramic-like surface; Alodine creates a thin, chromate-based film.
• Cost: Anodizing might be pricier, involving more complex baths; Alodine is simpler and more cost-effective.
• Coating Thickness: Anodizing layers can be thicker; Alodine is ultra-thin.
• Corrosion Resistance: Both offer corrosion protection, but their mechanisms differ.
• Surface Hardness: Anodizing excels in hardness; Alodine does not significantly harden surfaces.
• Application Temperature: Both generally occur at low temperatures; follow manufacturer guidance.
• Processing Time: Alodine typically takes less time.
• Color Options: Anodizing supports dyes; Alodine offers limited coloration.
• Energy Consumption: Anodizing may require more energy; Alodine is typically less resource-intensive.
• Dimensional Tolerances: Alodine preserves tolerances due to negligible thickness.
• Safety Issues: Type 2 Alodine solutions are less hazardous; anodizing involves acids and can be risky without proper measures.











Applications of Anodizing



Despite focusing on Alodine, anodizing still has broad applications:



• CNC Precision Machined Parts: When hardness and wear resistance are crucial, anodizing stands out.
• Aerospace Industry: Anodized parts handle extreme temperatures, pressures, and corrosion challenges.
• Military and Defense Industry: Toughness and durability matter, making anodizing a strong contender.
• Electronic and Electronic Industry: Anodizing can provide insulation layers, though at the expense of conductivity.







Design Considerations: How to Make Alodine Coating Look Good



To achieve visually appealing, functionally sound Alodine finishes, keep these tips in mind:



• Blocking Threaded Holes/Reaming: Avoid coating threaded areas if not needed, or use plugs to ensure threads remain functional.
• Deburring: Smooth edges and burr-free surfaces ensure uniform coating coverage.
• pH and Temperature: Maintain proper solution pH and temperature for consistent results.
• Bad Aluminum: Use high-quality, low-alloy aluminum to prevent impurities from affecting coating integrity.

















Choosing the Right Aluminum Alodine Treatment for Your Project





Selecting the right Alodine treatment hinges on performance needs, environmental considerations, and regulatory requirements. For projects demanding maximum corrosion resistance, Class 1A is ideal. For electronics requiring high conductivity, Class 3 coatings excel. If regulatory compliance and safety are priorities, consider Type 2 Alodine solutions. Consult with your CNC machining shop, leverage their CNC machining services expertise, and request samples or test runs. By aligning your choice with project goals and constraints, you ensure optimal results.













Conclusion





Alodine coating provides a vital, versatile finishing solution for precision machined parts. Its ability to deliver corrosion resistance, improve paint adhesion, and maintain conductivity—without compromising dimensional accuracy—makes it a valuable asset in the CNC machining realm. By understanding the differences between Type 1 and Type 2 solutions, Class 1A and Class 3 coatings, and comparing Alodine to anodizing, you’re equipped to make informed decisions for your custom CNC machining projects. Whether you produce high-performance aerospace components, advanced electronics, or complex prototypes, Alodine CNC machined parts help you achieve reliability, durability, and compliance with industry standards.











FAQs





Why is anodizing so important for CNC machined parts?

Anodizing is crucial because it enhances surface hardness, wear resistance, and corrosion protection. For CNC machined parts used in harsh environments, anodizing ensures longevity, reduces maintenance, and preserves mechanical integrity.





How thick is the chromate conversion coating?

Chromate conversion coatings, including Alodine, are extremely thin, typically only a few micrometers thick. This thinness ensures minimal dimensional impact on precision machined parts.





What is Alodine Coating?

Alodine coating is a chromate conversion process that creates a corrosion-resistant, paint-ready, and electrically conductive film on metal surfaces, especially aluminum. It’s widely used in aerospace, automotive, and electronics industries.





How to Apply Alodine Chromate Coating?

First, thoroughly clean and deoxidize the part. Then apply the Alodine solution, following recommended time and temperature conditions. Finally, rinse and dry the part. Adhering to MIL-DTL-5541 guidelines ensures consistent quality.





How long do you leave alodine on aluminum?

The dwell time varies depending on the solution and desired film weight, but it typically ranges from a few seconds to several minutes. Always follow product-specific instructions.





Can you alodine after anodize?

Generally, no. Anodizing and Alodine serve different purposes. Once anodized, the surface is already transformed. Applying Alodine afterward isn’t standard practice and may not yield desired benefits.





Can you anodize Grade 2 titanium?

Yes, titanium can be anodized, though the process differs from aluminum anodizing. Titanium anodizing often focuses on decorative and functional oxide layers in various colors.





Can you powder coat over anodised Aluminium?

Yes, you can powder coat over anodized aluminum. The anodized layer often improves paint or powder adhesion, enhancing the overall finish and durability.





Can you chem film and anodize?

In most cases, you choose one or the other. Chem film (Alodine) and anodizing serve distinct roles. Combining them is uncommon and may complicate the surface structure without providing additional benefits.
