Copper Electroplating: Working Principle, Advantages, and Common Applications



In the highly competitive field of CNC machining parts manufacturing, achieving superior performance, durability, and cost-effectiveness is crucial. Manufacturers often grapple with challenges such as surface wear, corrosion, and inadequate electrical conductivity, which can compromise the quality and longevity of machined components. These issues not only lead to increased maintenance costs but also diminish the efficiency and reliability of products in demanding applications. However, electroplating copper emerges as a strategic solution, offering enhanced surface properties, improved conductivity, and superior corrosion resistance. By understanding the working principles, advantages, and common applications of copper electroplating, manufacturers can optimize their CNC machining processes and produce high-quality, reliable, and aesthetically appealing parts.



Electroplated copper is a vital process in CNC machining, providing enhanced conductivity, corrosion resistance, and surface finish to machined parts. By applying a thin layer of copper through electrochemical means, manufacturers can significantly improve the performance and durability of their components, making copper electroplating a standard solution for a variety of industrial applications.



Choosing the right surface treatment is essential for optimizing the functionality and longevity of CNC machined parts. Electroplating copper stands out as a standard solution, offering a range of benefits that address common manufacturing challenges. To fully leverage the advantages of copper electroplating, it is essential to delve into its working principles, explore its various benefits, and understand its widespread applications across different industries. This comprehensive guide provides an in-depth exploration of copper electroplating, equipping manufacturers with the knowledge needed to implement this technique effectively in their CNC machining processes.





Foreword



In the competitive landscape of CNC machining parts manufacturing, the pursuit of excellence in performance, durability, and cost-efficiency drives continuous innovation. Electroplating copper has emerged as a pivotal technique, offering substantial enhancements to machined components through its unique surface treatment properties. This guide aims to provide a detailed exploration of copper electroplating, encompassing its working principles, advantages, and common applications. By understanding the fundamental aspects of electroplated copper, manufacturers can optimize their CNC machining processes, resulting in high-quality, reliable, and long-lasting parts that meet the stringent demands of various industries. Whether you are involved in automotive, electronics, or renewable energy sectors, mastering copper electroplating techniques can significantly elevate the performance and competitiveness of your CNC machined products.







Copper Electroplating: A Brief Overview

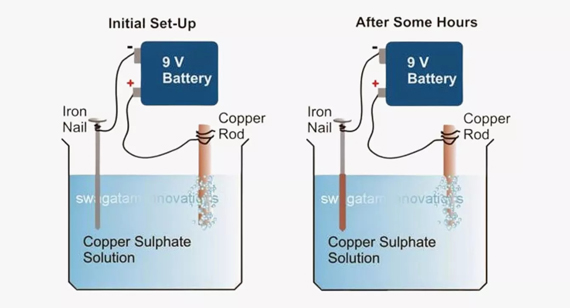

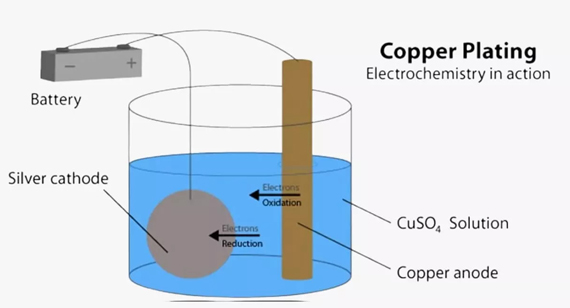

Copper plating, also known as electroplated copper, is a surface treatment process that involves the deposition of a thin layer of copper onto a substrate metal through an electrochemical process. This technique is widely utilized in CNC machining parts manufacturing to enhance the physical and chemical properties of components, thereby improving their overall performance and lifespan. The process begins with the preparation of the substrate, which is thoroughly cleaned to remove any contaminants that could impede the plating process. Once prepared, the part is submerged in an electrolyte solution containing copper ions. An electric current is then applied, causing copper ions to migrate from the solution and deposit onto the surface of the substrate, forming a uniform and adherent copper layer.



The thickness of the copper plating can be precisely controlled by adjusting the duration of the electroplating process and the current density, allowing manufacturers to tailor the coating to specific application requirements. Copper plating is prized for its excellent electrical conductivity, which makes it indispensable in electronic components and circuitry. Additionally, copper's natural corrosion resistance, while not as robust as stainless steel, provides a protective barrier that extends the lifespan of the underlying material. Beyond these functional benefits, copper plating also enhances the aesthetic appeal of parts, offering a smooth and lustrous finish that is often desired in decorative applications.



In CNC machining parts manufacturing, copper plating serves multiple purposes. It can improve the machinability of certain metals, reduce friction, and provide a foundation for further plating or coating processes, such as nickel or gold plating. The versatility and effectiveness of copper plating make it a fundamental technique in enhancing the performance and quality of machined components across a wide range of industries.







When to Choose Copper Electroplating?



Choosing copper electroplating for CNC machining parts involves evaluating the specific requirements and operational conditions of the intended application. Manufacturers should consider copper plating when enhanced electrical conductivity, improved thermal performance, and increased corrosion resistance are critical to the component's functionality and longevity.



One of the primary scenarios for choosing copper electroplating is in the electronics industry, where components such as connectors, circuit boards, and electronic housings require high electrical conductivity to ensure efficient signal transmission and power distribution. The copper layer facilitates better electrical connections and reduces resistance, thereby enhancing the overall performance of electronic devices.



Another key consideration is the need for improved thermal management. Copper's high thermal conductivity makes it an excellent choice for components that dissipate heat, such as heat sinks and thermal interface materials. By electroplating copper onto these parts, manufacturers can significantly enhance their ability to manage and dissipate heat, preventing overheating and ensuring reliable operation of electronic and mechanical systems.



Corrosion resistance is also a major factor in selecting copper electroplating. Components exposed to harsh environments, moisture, or corrosive chemicals can benefit from a copper coating, which acts as a protective barrier against oxidation and corrosion. This is particularly important in industries like automotive, aerospace, and renewable energy, where parts are subjected to extreme conditions and require long-term durability.



Additionally, copper electroplating can enhance the surface finish and aesthetic appeal of machined parts, making it suitable for applications where visual appearance is important, such as in consumer electronics, medical devices, and decorative hardware. The smooth and lustrous finish provided by copper plating can improve the overall look and feel of products, increasing their market appeal and customer satisfaction.



Manufacturers should also consider the machinability and surface preparation aspects. Copper plating can improve the machinability of certain metals, reducing tool wear and extending the life of cutting tools. This results in more efficient CNC machining processes, lower production costs, and higher precision in the final components.



In summary, copper electroplating is an optimal choice for CNC machining parts when the application demands enhanced electrical and thermal conductivity, improved corrosion resistance, superior surface finish, and increased machinability. By carefully assessing these factors, manufacturers can leverage copper electroplating to produce high-performance, durable, and aesthetically pleasing components that meet the rigorous standards of modern industries.







Main Copper Electroplating Technologies





Copper plating encompasses a variety of technologies tailored to meet the specific needs of different applications and industries. Understanding the main copper plating technologies is essential for manufacturers aiming to optimize their CNC machining parts manufacturing processes. Each technology offers unique advantages and is suited for particular types of components and performance requirements. This section explores the four main copper plating technologies used by industry experts: Dual Damascene Plating, Through Silicon Via Plating, Copper Pillar Plating, and Redistribution Layer Plating. Additionally, a comparative overview table highlights the key aspects of each technology, providing a quick reference for selecting the appropriate plating method.

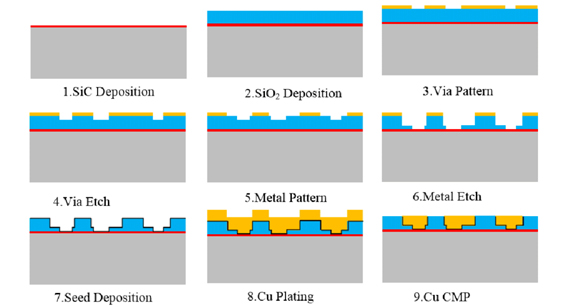

Dual Damascene Plating



Dual Damascene Plating is a sophisticated copper plating technique primarily used in the semiconductor and electronics industries for fabricating integrated circuits and printed circuit boards (PCBs). This method involves creating a pattern of interconnected trenches and vias in the dielectric layer, which are then filled with copper to form the electrical pathways required for chip interconnects.



• Bottom-up Fill Time: In Dual Damascene Plating, the copper filling process starts from the bottom of the trenches and vias, gradually building up the copper layer to achieve complete coverage without voids. Precise control of the fill time is crucial to ensure uniform deposition and avoid defects.
• Accelerator Concentration: The concentration of accelerators in the plating solution plays a significant role in enhancing the copper deposition rate. Accelerators reduce the overpotential required for copper ion reduction, promoting faster and more efficient plating while maintaining a high-quality surface finish.
• Suppressor: Suppressors are additives that control the deposition rate by inhibiting copper ion reduction in specific areas, preventing excessive plating in unwanted regions. This selective inhibition is essential for maintaining the integrity of fine features and ensuring that copper fills the desired pathways accurately.
• Leveler: Levelers are compounds that promote a smooth and even copper surface by mitigating the formation of roughness and surface irregularities during plating. This results in a high-quality, uniform copper layer that enhances the electrical performance and reliability of the final components.



Dual Damascene Plating is critical for achieving the high-density copper interconnects required in modern electronics, where precision and uniformity are paramount. The technology enables the production of intricate and reliable electrical pathways, essential for the performance of integrated circuits and advanced PCBs used in a wide range of electronic devices.

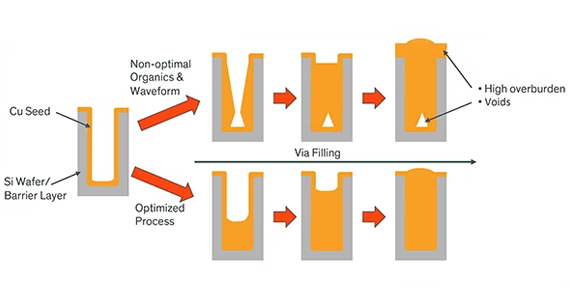

Through Silicon Via Plating



Through Silicon Via (TSV) Plating is a key technology in the fabrication of three-dimensional (3D) integrated circuits and advanced semiconductor devices. TSVs are vertical interconnects that pass through silicon wafers, allowing for higher levels of integration and improved performance in electronic devices.





• Bottom-up Fill Time: Similar to Dual Damascene Plating, TSV Plating requires careful control of the copper deposition process. The bottom-up fill time ensures that copper ions are deposited uniformly from the bottom of the vias to the top, preventing void formation and ensuring complete and reliable filling of the vias.
• Accelerator Concentration: The accelerator concentration in TSV Plating solutions is optimized to achieve a balanced deposition rate, facilitating efficient copper filling while maintaining the necessary precision for high-density interconnects. Proper accelerator levels are essential for achieving the desired plating characteristics and avoiding defects.
• Suppressor: Suppressors in TSV Plating are used to control the plating rate in specific areas, ensuring that copper is deposited only where needed. This selective control is vital for maintaining the structural integrity of the vias and preventing unwanted plating in adjacent regions.
• Leveler: Levelers help achieve a smooth and even copper surface within the TSVs by reducing surface roughness and promoting uniform deposition. This results in high-quality copper layers that enhance the electrical connectivity and reliability of the interconnects.



TSV Plating is instrumental in advancing semiconductor technology, enabling the creation of densely packed 3D integrated circuits that offer superior performance and miniaturization. By facilitating vertical interconnects through silicon wafers, TSV Plating supports the development of high-performance electronic devices with enhanced capabilities and reduced power consumption.





Copper Pillar Plating



Copper Pillar Plating is a specialized copper plating technique used primarily in the electronics industry for creating high-density interconnects in semiconductor packages and advanced electronic components. Copper pillars serve as vertical connections between different layers of a semiconductor device, providing robust and reliable electrical pathways.



• Bottom-up Fill Time: In Copper Pillar Plating, the deposition process begins at the bottom of the pillar structure, gradually filling the space with copper to form a solid and continuous pillar. Controlled fill time ensures that the copper is deposited uniformly, avoiding voids and ensuring the structural integrity of the pillars.
• Accelerator Concentration: The concentration of accelerators in the plating bath is carefully regulated to enhance the copper deposition rate. Accelerators facilitate the efficient and controlled plating of copper, ensuring that the pillars are formed with the desired thickness and density.
• Suppressor: Suppressors are employed to manage the copper deposition in specific areas, preventing overplating and ensuring that copper is only deposited where required. This selective suppression is crucial for maintaining the precise dimensions and uniformity of the copper pillars.
• Leveler: Levelers help achieve a smooth and even surface on the copper pillars by reducing surface roughness during deposition. This results in high-quality, consistent copper pillars that enhance the electrical performance and reliability of the interconnects.



Copper Pillar Plating is essential for developing advanced semiconductor packages that require high-density and reliable interconnects. By providing robust vertical connections, copper pillars enable the creation of compact and high-performance electronic devices, supporting the ongoing miniaturization and integration trends in the electronics industry.













Redistribution Layer Plating



Redistribution Layer (RDL) Plating is a copper plating technology used in the semiconductor and electronics industries to create complex interconnect patterns on semiconductor chips and advanced packaging solutions. RDLs redistribute the electrical connections from the active areas of the chip to the external contacts, facilitating high-density interconnections and enhanced performance.



• Bottom-up Fill Time: In RDL Plating, precise control of the copper deposition process ensures that the redistribution patterns are filled uniformly and accurately. Bottom-up fill time is critical for achieving complete and defect-free copper layers that form reliable electrical connections.
• Accelerator Concentration: The accelerator concentration in RDL Plating solutions is optimized to enhance the deposition rate while maintaining control over the plating process. This ensures that the copper is deposited efficiently and consistently across the intricate interconnect patterns required for high-density RDLs.
• Suppressor: Suppressors in RDL Plating are used to regulate the copper deposition in specific areas, preventing overplating and ensuring that copper is only deposited where it is needed. This selective suppression is essential for maintaining the precision and uniformity of the redistribution patterns.
• Leveler: Levelers help achieve a smooth and even copper surface within the RDLs by reducing surface roughness and promoting uniform deposition. This results in high-quality, consistent copper layers that enhance the electrical performance and reliability of the interconnections.



RDL Plating is fundamental in the development of advanced semiconductor devices and high-performance electronics, enabling the creation of complex and high-density interconnect patterns that support the increasing demands for miniaturization and enhanced functionality. By facilitating efficient and reliable redistribution of electrical connections, RDL Plating contributes to the performance and competitiveness of modern electronic components.







Different Types of Copper Electroplating Tanks





The efficiency and quality of copper plating in CNC machining parts manufacturing depend significantly on the type of plating tanks used. Different plating solutions and tank configurations are tailored to meet specific plating requirements, ensuring optimal performance and consistency in the electroplating process. Understanding the various types of copper plating tanks is essential for selecting the right equipment and processes for your manufacturing needs. This section explores the main types of copper plating solutions utilized in the industry today, including typical alkaline copper baths, acid copper plating baths, and electroless copper baths.





1 – Typical Alkaline Copper Baths





Typical alkaline copper baths are widely used in copper plating due to their versatility and efficiency. These baths operate in an alkaline pH range, providing an environment conducive to stable and uniform copper deposition. The main types of alkaline copper solutions can be categorized into alkaline cyanide solutions and alkaline cyanide-free solutions, each offering distinct advantages and challenges.









Three Main Types of Alkaline Solutions Are Used:



Alkaline Cyanide Solutions



Alkaline cyanide solutions are traditional copper plating baths that utilize cyanide compounds as complexing agents. These solutions facilitate efficient and uniform copper deposition by forming stable copper-cyanide complexes, which enhance the plating rate and quality. Alkaline cyanide baths are known for their excellent throwing power, ensuring consistent copper coverage even in recessed or complex geometries.



Disadvantages of Using Cyanide Solutions:





Difficult to Control



Cyanide concentration and bath conditions must be meticulously controlled to prevent issues such as hydrogen evolution, which can lead to surface defects and poor plating quality.





Extremely Hazardous



Cyanide compounds are highly toxic and pose significant health and safety risks. Proper handling, storage, and disposal procedures are mandatory to ensure worker safety and environmental compliance.





Requires Special Handling



The hazardous nature of cyanide solutions necessitates specialized equipment and protective measures, increasing the complexity and cost of the plating process.





Not Suitable for High Current Densities



Alkaline cyanide baths are generally unsuitable for high current density plating applications, limiting their use in processes that require rapid deposition rates.





Alkaline, Cyanide-free Solutions





Copper Pyrophosphate (Weakly Alkaline)



Copper pyrophosphate solutions represent a safer and environmentally friendly alternative to traditional cyanide-based alkaline baths. These weakly alkaline solutions use pyrophosphate as a complexing agent, providing stable copper deposition without the associated hazards of cyanide compounds. Copper pyrophosphate baths offer improved safety profiles and are easier to manage in terms of handling and environmental impact, making them increasingly popular in industries seeking sustainable plating solutions.







2 – Typical Acid Copper Electroplating Baths





Acid copper plating baths are another prevalent type of copper plating solution used in the industry, characterized by their acidic pH levels. These baths provide distinct advantages in terms of plating rate, surface finish, and compatibility with certain substrates. Two common types of acid copper plating solutions are copper sulfate baths and copper fluoroborate baths.







Two Common Copper Electroplating Solutions Are Used in the Industry:

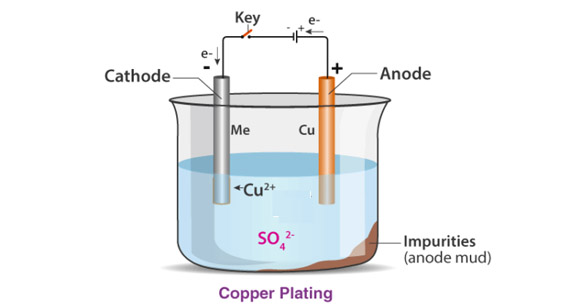

Copper Sulfate Baths



Copper sulfate baths are widely used in acid copper plating due to their effectiveness in producing smooth and bright copper deposits. These baths utilize copper sulfate pentahydrate as the primary copper source, dissolved in an acidic solution with sulfuric acid to maintain the pH and stabilize the plating process. Copper sulfate baths offer high deposition rates and excellent surface finishes, making them suitable for applications requiring fine detail and high-quality copper layers.



Copper Fluoroborate Baths



Copper fluoroborate baths are another type of acid copper plating solution that utilizes copper fluoroborate compounds as the copper source. These baths provide similar benefits to copper sulfate baths, including high deposition rates and smooth surface finishes, but with enhanced stability and reduced hydrogen evolution. Copper fluoroborate baths are particularly effective for plating applications that require consistent and reliable copper deposition, even in challenging conditions.







3 – Electroless Copper Baths





Electroless copper baths represent an alternative copper plating method that does not require an external electrical current for deposition. Instead, these baths utilize a chemical reduction process, typically involving a reducing agent such as formaldehyde or sodium hypophosphite, to deposit copper onto the substrate. Electroless copper plating offers several advantages, including uniform deposition on complex and non-conductive surfaces, excellent adhesion, and the ability to plate intricate geometries without the limitations of electrical connectivity. This makes electroless copper plating ideal for applications requiring high precision and consistency in copper layers.





Copper Electroplating on Different Metals



Copper plating can be applied to a variety of base metals, each requiring specific considerations to ensure successful deposition and optimal performance of the plated layer. The compatibility of copper plating with different metals, including aluminum, steel, nickel, brass, and zinc, depends on factors such as surface preparation, bath composition, and plating parameters. Understanding how copper plating interacts with various substrates is essential for achieving reliable and high-quality electroplated copper layers in CNC machining parts manufacturing.

Metals Included:



Aluminum



Copper plating on aluminum provides improved conductivity, enhanced surface finish, and additional corrosion protection. However, aluminum's native oxide layer must be properly removed through etching and activation processes to ensure good adhesion of the copper layer. Techniques such as chromate conversion or chemical activation are often employed before copper electroplating to prepare the aluminum surface.





Steel



Copper plating on steel enhances electrical conductivity, provides a decorative finish, and offers a protective barrier against corrosion. Proper surface preparation, including cleaning and activation, is essential to ensure strong adhesion and uniform copper deposition on steel substrates. Copper-plated steel is commonly used in electrical components, connectors, and decorative hardware.





Nickel



Plating copper on nickel-coated surfaces can further enhance the corrosion resistance and surface hardness of the final product. Nickel serves as an excellent base layer for copper deposition, providing additional protection and improving the overall durability of the component.





Brass



Brass, an alloy of copper and zinc, is inherently compatible with copper plating, allowing for uniform and adherent copper layers. Copper plating on brass is often used in decorative applications and in electrical connectors where enhanced conductivity is desired.





Zinc



Zinc-plated surfaces benefit from copper plating by gaining improved corrosion resistance and electrical conductivity. Copper plating on zinc is commonly used in applications where the component is exposed to harsh environments or where additional surface protection is required.







Benefits of Copper Electroplating





Copper plating offers a multitude of benefits that make it a valuable surface treatment process in CNC machining parts manufacturing. These advantages not only enhance the physical and chemical properties of the components but also contribute to improved performance, durability, and aesthetic appeal. Understanding the key benefits of copper plating can help manufacturers leverage this technique to optimize their production processes and deliver high-quality machined parts.









Flexibility and Durability



Copper plating significantly enhances the flexibility and durability of CNC machined parts. The deposited copper layer provides a robust and wear-resistant surface that can withstand mechanical stresses, friction, and abrasion encountered during operation. This increased durability extends the lifespan of components, reducing the need for frequent replacements and maintenance. Additionally, copper's malleability allows it to conform to complex geometries and intricate designs, enabling the production of precise and reliable parts that meet the specific demands of various applications.





Excellent Corrosion Protection



Copper plating offers superior corrosion protection, safeguarding the underlying metal from environmental factors such as moisture, chemicals, and oxidation. The copper layer acts as a barrier that prevents corrosive agents from reaching the substrate, thereby extending the service life of the components. This protective property is particularly important in industries where components are exposed to harsh or corrosive environments, such as automotive, aerospace, and marine applications. By mitigating corrosion, copper plating ensures the structural integrity and functionality of CNC machined parts over time.





Good Electrical Conductivity



One of the most significant benefits of copper plating is its excellent electrical conductivity. Copper is one of the most conductive metals, making it an ideal choice for electrical and electronic components that require efficient signal transmission and power distribution. Electroplated copper layers enhance the electrical performance of CNC machined parts used in connectors, circuit boards, and electronic housings, ensuring reliable and efficient operation of electronic devices. The high conductivity of copper also reduces electrical resistance, minimizing energy loss and improving overall system efficiency.





Excellent Antimicrobial Properties



Copper possesses inherent antimicrobial properties, making it an attractive choice for applications where hygiene and contamination prevention are critical. Electroplated copper surfaces inhibit the growth of bacteria, viruses, and fungi, providing a sanitary and safe environment. This property is particularly beneficial in industries such as healthcare, food processing, and consumer electronics, where maintaining high hygiene standards is essential. By incorporating copper plating, manufacturers can produce CNC machined parts that contribute to healthier and safer environments.





Cost Effectiveness



Copper plating offers a cost-effective solution for enhancing the performance and longevity of CNC machined parts. The relatively low cost of copper compared to other noble metals makes it an economical choice for large-scale production. Additionally, the increased durability and reduced maintenance requirements associated with copper-plated components result in long-term cost savings by minimizing downtime and extending the lifespan of parts. The versatility and efficiency of copper plating also contribute to streamlined manufacturing processes, further enhancing its cost-effectiveness in CNC machining parts manufacturing.







Limitations of Copper Electroplating







While copper plating provides numerous benefits, it also presents certain limitations that manufacturers must consider when integrating this process into their CNC machining parts manufacturing workflows. Understanding the potential drawbacks of copper plating is essential for making informed decisions and mitigating any challenges that may arise during production. This section explores the key limitations of copper plating, including adhesion issues, uneven coatings, surface defects, and compatibility with other metals.



Adhesion Issues



Achieving strong adhesion between the copper layer and the substrate metal can be challenging, particularly when plating on surfaces with high levels of contaminants or native oxide layers. Poor adhesion can lead to delamination, flaking, or peeling of the copper coating, compromising the integrity and functionality of the CNC machined parts. To overcome adhesion issues, thorough surface preparation, including cleaning, etching, and activation, is essential. Additionally, selecting the appropriate plating parameters and using compatible base layers or undercoatings can enhance the adhesion of the copper layer and ensure a durable and reliable finish.





Uneven Coatings



Copper plating may result in uneven coatings, particularly on complex or recessed geometries, leading to inconsistent thickness and surface finish. Uneven copper deposition can negatively impact the performance and appearance of the machined parts, potentially causing weak points or aesthetic defects. To achieve uniform copper layers, precise control of plating parameters such as current density, bath composition, and agitation is necessary. Utilizing advanced plating techniques and optimizing process conditions can help minimize uneven coatings and ensure a consistent and high-quality finish on CNC machined components.





Surface Defects



Surface defects, such as nodules, bumps, and roughness, can occur during the copper plating process, affecting both the functionality and aesthetic quality of the machined parts. These defects can result from improper bath chemistry, inadequate agitation, or fluctuations in plating conditions. Surface defects may compromise the electrical conductivity, corrosion resistance, and overall performance of the copper-plated components. Implementing stringent quality control measures, maintaining stable plating conditions, and using appropriate additives in the plating bath can help prevent surface defects and achieve a smooth and defect-free copper layer.





Compatibility with Other Metals



Copper plating may face compatibility issues when applied to certain base metals, particularly those with high levels of impurities or those that react adversely with copper. Some metals may require specialized plating techniques or additional surface treatments to ensure successful copper deposition. Additionally, when copper-plated parts are used in conjunction with other metals, galvanic corrosion can occur if proper precautions are not taken. Ensuring compatibility through careful material selection, appropriate plating processes, and the use of protective coatings can help mitigate compatibility issues and enhance the performance of copper-plated CNC machined parts.







Four Major Industrial Applications for Copper Electroplating





Copper plating finds extensive applications across various industries, driven by its unique combination of electrical conductivity, corrosion resistance, and aesthetic appeal. These properties make copper-plated components essential in sectors that demand high-performance, reliable, and visually appealing parts. This section highlights four major industrial applications of copper plating: electrical wiring, electronics, automotive, and renewable energy. Additionally, decorative applications demonstrate the versatility of copper plating in enhancing the visual and functional aspects of machined parts.







Electrical Wiring



Copper plating plays a crucial role in the electrical wiring industry, where the demand for highly conductive and reliable connections is paramount. Electroplated copper is extensively used in manufacturing electrical wires, cables, connectors, and terminals, where it ensures efficient transmission of electrical signals and power. The excellent conductivity of copper reduces energy loss and enhances the overall performance of electrical systems, making it indispensable in both residential and industrial applications.





Electronics



In the electronics industry, copper plating is fundamental for fabricating components such as printed circuit boards (PCBs), connectors, and semiconductor devices. Copper's superior electrical conductivity and ability to form fine, intricate patterns make it ideal for creating dense interconnects and high-performance electronic components. Electroplated copper layers enhance the reliability and performance of electronic devices, supporting the increasing complexity and miniaturization of modern electronics.





Automotive



The automotive industry utilizes copper plating for various applications, including electrical connectors, wiring harnesses, and decorative trim. Copper-plated components offer enhanced electrical conductivity, corrosion resistance, and durability, contributing to the performance and longevity of automotive systems. Additionally, copper plating can be used to create aesthetically appealing finishes for interior and exterior components, adding value and appeal to vehicles.





Renewable Energy



In the renewable energy sector, copper plating is employed in the manufacturing of components for solar panels, wind turbines, and electrical storage systems. Copper's high conductivity and corrosion resistance make it suitable for critical applications that require efficient energy transmission and durability in harsh environmental conditions. Electroplated copper parts enhance the performance and reliability of renewable energy systems, supporting the transition to sustainable energy sources.





Decorative Applications



Beyond functional uses, copper plating is widely valued for its aesthetic appeal in decorative applications. Electroplated copper provides a lustrous and attractive finish that enhances the visual appeal of products such as jewelry, watches, lighting fixtures, and architectural elements. The ability to create smooth and consistent copper coatings allows manufacturers to achieve elegant and sophisticated designs, making copper plating a popular choice for consumer goods and decorative hardware.







Get Beautiful Metal Parts with VMT’s Finishing Services





In the competitive world of CNC machining parts manufacturing, achieving both functional excellence and aesthetic appeal is crucial for delivering high-quality products. VMT’s finishing services offer comprehensive solutions for electroplating copper, ensuring that your machined parts not only perform reliably but also exhibit a stunning finish that meets the highest standards. Our state-of-the-art electroplating facilities and expert technicians utilize advanced copper plating technologies to deliver uniform, durable, and visually appealing copper coatings on a wide range of substrates. Whether you require copper-plated components for electrical conductivity, corrosion resistance, or decorative purposes, VMT’s custom CNC machining and finishing services are designed to meet your specific needs. Partner with us to enhance the performance and appearance of your CNC machined parts, ensuring they stand out in the market for their quality and craftsmanship.





Conclusion



Copper electroplating is a transformative process in CNC machining parts manufacturing, offering a blend of enhanced electrical conductivity, corrosion resistance, durability, and aesthetic appeal. By understanding the working principles, leveraging the benefits, and recognizing the limitations of copper plating, manufacturers can optimize their production processes and deliver high-quality, reliable, and visually appealing components across various industries. From electrical wiring and electronics to automotive and renewable energy applications, copper-plated CNC machined parts play a pivotal role in the performance and longevity of modern products. Embracing copper electroplating not only elevates the functionality of machined parts but also contributes to cost-effective and sustainable manufacturing practices. As technology advances, the applications and techniques of copper plating continue to evolve, making it an indispensable tool for manufacturers striving for excellence in the competitive landscape of CNC machining.







FAQs





How do I electroplate non-conductive objects?



Electroplating typically requires a conductive surface, but non-conductive objects can be electroplated using specialized techniques. One common method involves coating the non-conductive object with a conductive layer, such as using a thin layer of copper or nickel via electroless plating. This conductive layer allows the subsequent electroplating process to deposit copper onto the surface. Another technique is using conductive paints or sprays to make the surface conductive before electroplating. Proper surface preparation and ensuring a uniform conductive layer are essential for successful electroplating on non-conductive objects.





Can I use copper chloride or other electrolytes instead of electrolytes made with vinegar and similar substances?



Yes, copper chloride and other copper salts can be used as electrolytes for copper electroplating. The choice of electrolyte depends on the specific plating requirements, desired copper deposition rate, and the properties of the final copper layer. Copper chloride baths offer good conductivity and can produce bright and smooth copper deposits, making them suitable for various applications. It is essential to select an appropriate electrolyte based on factors such as pH, temperature, and the presence of additives to achieve the desired plating characteristics.





Are there other acids that can be used besides acetic acid (vinegar)?



Yes, various acids can be used in copper electroplating baths besides acetic acid. Common alternatives include sulfuric acid, which is widely used in copper sulfate-based baths for its ability to enhance copper deposition rates and improve bath stability. Hydrochloric acid can also be used, particularly in acid copper plating baths, to maintain the pH and facilitate uniform copper deposition. Each acid has its specific properties and effects on the plating process, so the choice depends on the desired plating characteristics and the compatibility with other bath components.





Can I plate aluminum?



Yes, aluminum can be electroplated, but it requires specialized surface preparation and plating techniques due to aluminum's native oxide layer, which is highly resistant to electroplating. The process typically involves etching the aluminum surface to remove the oxide layer, followed by chemical activation or using a pre-plating strike to create a conductive surface. After these preparation steps, copper or other metals can be successfully electroplated onto the aluminum substrate. Proper handling and adherence to specific plating procedures are essential to achieve a uniform and adherent copper layer on aluminum parts.





Does copper plating prevent steel parts from rusting?



Yes, copper plating can help prevent steel parts from rusting by providing a protective barrier that shields the steel from exposure to moisture and corrosive agents. Copper is resistant to corrosion itself, and the copper layer acts as a sacrificial anode, preventing the underlying steel from oxidizing and rusting. However, the effectiveness of copper plating in preventing rust depends on the integrity of the copper layer. Any defects or breaches in the plating can allow moisture and oxygen to reach the steel substrate, potentially leading to rust formation. Therefore, ensuring a uniform and defect-free copper coating is crucial for maximizing rust prevention in steel parts.





How to electroplate copper?



To electroplate copper, follow these general steps:



• Surface Preparation: Clean the substrate thoroughly to remove dirt, grease, and contaminants. This typically involves degreasing, rinsing, and possibly etching or activating the surface to ensure good adhesion.
• Activation: Apply an activation layer, such as using a copper strike or electroless plating, to create a conductive surface if plating on non-conductive materials.
• Plating Bath Preparation: Prepare the copper plating bath with the appropriate copper salt, acid, and additives according to the desired plating specifications.
• Electroplating Process: Submerge the prepared substrate into the plating bath and apply a direct current (DC) voltage. Copper ions from the solution will migrate to the substrate and deposit as a thin copper layer.
• Control Parameters: Monitor and control key parameters such as current density, temperature, and bath composition to ensure uniform and high-quality copper deposition.
• Rinsing and Finishing: After plating, rinse the electroplated part thoroughly with water to remove residual plating solution. Optionally, apply post-plating treatments such as polishing or passivation to enhance the finish and corrosion resistance.





What metals cannot be copper plated?



While copper plating can be applied to a wide range of metals, certain metals pose challenges due to their chemical properties or the formation of stable oxide layers that prevent effective plating. Metals that are particularly difficult or cannot be copper plated include:



• Titanium: Titanium forms a very stable oxide layer that is highly resistant to plating.
• Tungsten: The hard and refractory nature of tungsten makes it challenging to plate.
• Magnesium: Magnesium's reactive nature and the formation of a protective oxide layer complicate copper plating.
• Zirconium: Similar to titanium, zirconium forms a stable oxide layer that inhibits plating.
• Platinum and other noble metals: While technically possible, plating on noble metals is often unnecessary due to their inherent corrosion resistance and high conductivity.



However, with specialized surface preparation and advanced plating techniques, it is sometimes possible to plate copper onto these metals, though it is generally not practical for most standard applications.





Can you electroplate copper on stainless steel?



Yes, you can electroplate copper on stainless steel, but it requires proper surface preparation and handling to ensure good adhesion and a uniform copper layer. The stainless steel surface must be thoroughly cleaned and activated to remove the passive chromium oxide layer, which prevents proper adhesion of the copper. This typically involves a series of cleaning, etching, and activation steps, such as using a chromate conversion coating or applying a nickel strike before copper plating. Once the stainless steel is properly prepared, copper electroplating can be successfully applied, providing enhanced electrical conductivity, corrosion resistance, and aesthetic appeal to the stainless steel parts.





How much voltage is needed for copper plating?



The voltage required for copper plating depends on several factors, including the type of copper plating bath, the current density, and the surface area of the parts being plated. Generally, copper electroplating operates within a voltage range of 1 to 5 volts. In a typical copper sulfate bath, a voltage of around 2 to 3 volts is commonly used to achieve optimal deposition rates and quality. However, the exact voltage can vary based on the specific bath composition and plating requirements. It is essential to monitor and adjust the voltage to maintain a stable and uniform copper deposition process, preventing issues such as burning or poor adhesion.





What is the best electrolyte for copper plating?



The best electrolyte for copper plating depends on the specific application and desired plating characteristics. Common copper plating electrolytes include:



• Copper Sulfate Solution: Widely used for its effectiveness in producing smooth and bright copper deposits, with good conductivity and plating rates.
• Copper Chloride Solution: Offers high conductivity and bright deposits, suitable for applications requiring precise and uniform plating.
• Copper Fluoroborate Solution: Provides enhanced stability and reduced hydrogen evolution, ideal for complex and high-density plating applications.
• Copper Pyrophosphate Solution: Used in alkaline, cyanide-free baths, offering safer and environmentally friendly plating options.



Each electrolyte has its own advantages and suitability based on factors such as pH, temperature, current density, and the specific requirements of the plating process.





How thick can you electroplate copper?



The thickness of electroplated copper can range from a few microns to several millimeters, depending on the application and process parameters. In most standard electroplating applications, copper layers typically range from 5 to 50 microns thick. For specialized applications, such as high-strength electrical connections or decorative finishes, copper plating can be increased to several hundred microns or even millimeters. However, extremely thick copper plating may require multiple plating steps and careful control of plating conditions to prevent defects and ensure uniformity. The desired thickness should be determined based on the functional requirements and performance criteria of the CNC machined parts.
