Published by VMT at Dec 09 2024 | Reading Time：About 4 minutes

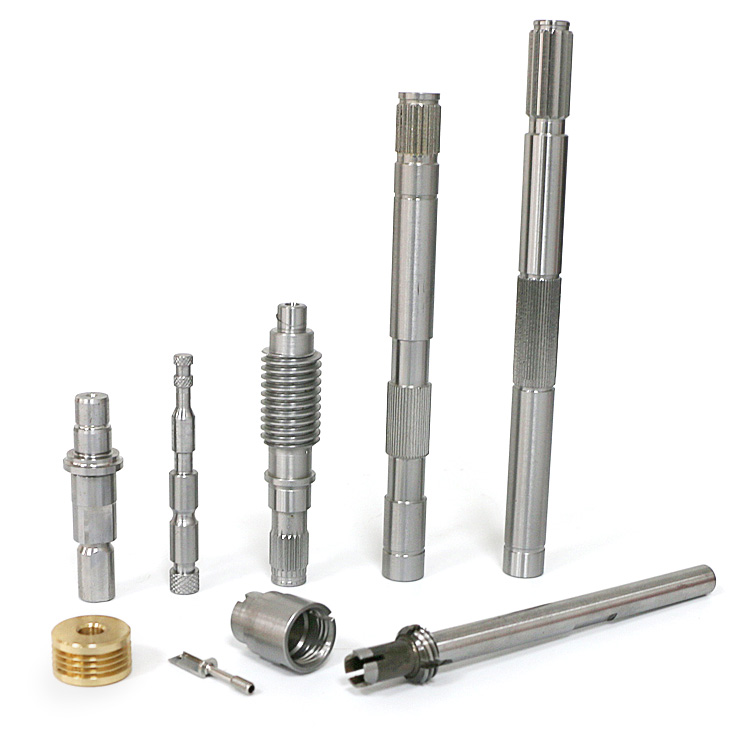

In the world of precision engineering, custom shafts are essential components that drive the functionality of various mechanical systems. Whether in automotive, aerospace, medical devices, or industrial machinery, custom machined shafts are the backbone of many operations. However, manufacturing these shafts requires expertise in a wide array of machining techniques, as well as an understanding of the materials and tolerances needed for each unique application. If you're looking to produce custom shafts, whether for prototyping or full-scale production, the process can be complex and challenging. In this article, we will walk you through the types of custom shafts, the machining technologies used, and the techniques that can ensure your parts meet stringent specifications.
Problem, Agitation, and Solution (PAS)
If you've ever faced the challenge of sourcing high-precision custom shafts, you know how difficult it can be to find a solution that balances quality, efficiency, and cost. Custom shaft manufacturing often involves several key steps: design, material selection, machine setup, and surface treatments—all of which must be executed with precision. The wrong choice of materials, machine settings, or manufacturing techniques can lead to failed parts, delays, and increased costs. Fortunately, by understanding the various types of shafts, machining technologies, and techniques available, you can optimize your custom shaft processing and ensure the success of your project. In this article, we will outline the best practices for designing, machining, and finishing custom shafts to meet the most demanding requirements.
Custom shaft manufacturing involves various processes like CNC turning, milling, and grinding. The choice of material, design specifications, and surface treatments are crucial to producing high-quality shafts for industries such as automotive, aerospace, and medical devices. By selecting the right techniques and technologies, you can ensure that your custom shafts meet both performance and cost-efficiency standards.
Understanding the details of custom shaft machining requires diving deeper into the types of shafts, the processes involved, and how different materials impact the final product. Now, let’s explore the steps and technologies that go into designing and manufacturing custom shafts, ensuring they are of the highest quality and suitable for their intended use.
Custom shaft manufacturing refers to the process of creating shafts to meet specific design, functional, and performance requirements, often tailored to the needs of individual applications. Unlike off-the-shelf shafts, which are produced in standardized sizes, custom shafts are designed with particular specifications in mind—whether that means unique dimensions, specific material properties, or certain surface finishes. Custom shaft processing usually involves CNC (Computer Numerical Control) machining, which provides the accuracy and repeatability needed for parts that must meet tight tolerances and exacting performance standards.
The manufacturing of custom shafts begins with the design phase, where precise measurements and tolerances are established. Engineers and machinists must work together to ensure that the shaft is designed for both performance and manufacturability. The selected material is crucial, as it will impact the shaft's strength, weight, and durability, as well as how well it can be machined. Common materials for custom shafts include metals like stainless steel, aluminum, carbon steel, and titanium. After design and material selection, machining technologies such as CNC turning, CNC milling, CNC grinding, and even EDM (Electrical Discharge Machining) are used to create the precise geometries of the shaft.
Once the shaft is machined to the required specifications, it undergoes surface treatments such as polishing, anodizing, or plating to enhance its wear resistance, corrosion resistance, or aesthetic qualities. Throughout this process, strict quality control measures are implemented to ensure that the final part meets all dimensional, functional, and material standards.
Manufacturing custom shafts requires a methodical and systematic approach to ensure the highest quality parts. The process involves several critical steps, including design, material selection, machine settings, machining processes, surface treatments, and final inspection. Let's explore each of these phases in more detail.
1. Design and Programming
The design of custom shafts is the first step in the process, where engineers determine the shaft’s geometry, dimensions, and functional requirements. Design considerations include shaft length, diameter, keyways, threads, surface finish, and load requirements. Using CAD (Computer-Aided Design) software, designers can create detailed models of the shaft, which are then translated into CNC machine instructions using CAM (Computer-Aided Manufacturing) software.
The design phase must also account for any special features such as grooves, splines, or tapered sections. Shaft designs may need to be optimized for load distribution, stress points, and tolerance limits, depending on the specific application. After the design is finalized, the machine programming phase begins. CNC programmers input the CAD data into the machine’s control system, defining the path that the cutting tool will take during machining.
Choosing the right material for a custom shaft is crucial for the performance and durability of the part. Materials such as stainless steel, carbon steel, aluminum, brass, and titanium are common choices for shaft manufacturing, depending on the requirements of the application. The material must possess the right balance of strength, hardness, corrosion resistance, and machinability. For instance, aerospace shafts may require high-strength alloys like titanium or stainless steel, while automotive shafts could be made from carbon steel or alloy steel.
The machinability of the material is also an important factor in material selection. Some materials are easier to machine than others, and harder materials may require specialized tooling or slower cutting speeds to avoid excessive tool wear or workpiece damage.
3. Machine Settings
Setting up the CNC machine is the next critical phase. The machine must be configured to handle the material, tooling, and specific design requirements of the custom shaft. This includes adjusting the spindle speed, feed rate, cutting depth, and tool selection. For example, CNC turning is commonly used for cylindrical shafts, while milling is required for shafts with complex features like slots or keyways. The machining center must also be aligned to ensure that the part is held securely during the entire process to prevent inaccuracies due to vibrations or tool deflection.
4. Shaft Machining Processes
Several machining processes may be used to produce custom shafts, each selected based on the design and material requirements:
After machining, the shaft may undergo various surface treatments to enhance its performance. These treatments can increase the part's resistance to wear, corrosion, and fatigue. Some common surface treatments include:
6. Inspection and Quality Control
Finally, the custom shaft undergoes rigorous inspection to ensure it meets all design specifications. Dimensional checks are performed to ensure that the shaft is within tolerance limits for parameters such as length, diameter, and concentricity. Advanced measurement tools such as CMMs (Coordinate Measuring Machines) are often used for precise measurements. Functional tests may also be performed to verify that the shaft performs as expected under load and torque conditions.
Custom shafts come in a variety of designs, each serving a specific purpose. Below are some of the most common types of shafts:
1. Solid Shaft
A solid shaft is a straightforward design, typically made from metal, and is used in applications where the shaft must withstand high torque or rotational loads.
2. Hollow Shaft
Hollow shafts are used to reduce weight while maintaining strength. They are often used in high-speed machinery where minimizing mass is crucial.
3. Threaded Shaft
Threaded shafts feature external threads and are commonly used in applications that require fastening or adjustment, such as in motors or actuators.
4. Keyed Shaft
Keyed shafts have slots (keyways) along their length to accommodate keys. These are used to prevent rotational slip and are commonly found in gear systems or couplings.
5. Splined Shaft
Splined shafts feature multiple parallel grooves and are often used in heavy-duty applications, such as automotive driveshafts, where rotational power needs to be transmitted efficiently.
6. Tapered Shaft
Tapered shafts are wider at one end than the other and are commonly used in applications where the shaft needs to fit into a corresponding tapered bore.
7. Stepped Shaft
Stepped shafts have varying diameters along their length and are often used in multi-stage systems where different diameters need to connect or operate together.
8. Precision Shaft
Precision shafts are manufactured with extremely tight tolerances and are used in industries that require high-performance parts, such as aerospace or medical devices.
Custom shafts are critical components in various industries, and their manufacturing requires high precision and advanced techniques. The production of high-quality precision shafts involves the application of different machining technologies. These technologies allow manufacturers to achieve the required dimensional accuracy, surface finish, and mechanical properties for each specific application. Below, we discuss some of the most common precision shaft manufacturing technologies, each offering unique benefits depending on the type of shaft and application.
CNC turning is one of the most widely used processes for manufacturing custom shafts. In CNC turning, the workpiece is mounted on a rotating spindle while a stationary cutting tool removes material to shape the shaft. This method is ideal for creating cylindrical shafts and features that require high precision and smooth finishes. CNC turning is highly automated, which ensures consistency, repeatability, and tight tolerances. This process is most commonly used for producing shafts with round cross-sections, such as solid shafts, hollow shafts, and stepped shafts.
The key advantage of CNC turning is its ability to handle a wide variety of materials with ease, from metals like stainless steel to softer materials like aluminum. The speed and efficiency of the process make it suitable for both small and large production runs.
CNC Milling
CNC milling is another essential machining process for custom shafts, particularly when complex features need to be integrated into the shaft’s design. In CNC milling, the shaft is held stationary while rotating cutting tools remove material to create the desired geometry. Unlike turning, milling can handle shafts with irregular profiles, grooves, slots, and keyways. It’s also ideal for creating tapered shafts, threaded holes, and other detailed features on shafts.
The precision of CNC milling allows for the creation of shafts with complex geometries that cannot be achieved with simpler turning processes. CNC milling machines are capable of multiple-axis movements, which significantly increases their versatility and ability to produce high-precision parts.
CNC grinding is a high-precision process used to achieve smooth surface finishes and tight tolerances on shaft parts. After the initial turning or milling process, grinding may be employed to remove any remaining imperfections, ensuring that the shaft meets the required standards for fit, form, and function. Grinding is especially valuable for creating shafts with tight tolerances, smooth finishes, and high accuracy in diameter.
Surface grinding can also be used to improve surface texture, reduce roundness errors, and create shafts with exceptional precision. CNC grinders can operate on a variety of materials, including hardened steel and other tough alloys, and are used to finish precision shafts such as those used in high-performance or high-load applications.
CNC drilling is used to create precise holes in shafts for various purposes, such as accommodating bearings, mounting components, or allowing for fluid or lubricant passage. CNC drills are highly accurate and are used when shafts require internal or external features like holes, slots, or tapped threads.
CNC drilling allows for precise placement of holes in the shaft to match corresponding components. Whether the design calls for small, deep holes or large, shallow ones, CNC drilling ensures the accuracy required for functional assemblies. This process is essential for custom shafts that need additional features that standard turning or milling processes may not achieve.
EDM (Electrical Discharge Machining)
Electrical Discharge Machining (EDM) is a non-traditional machining process that uses electrical discharges (sparks) to remove material from a workpiece. EDM is particularly useful for creating intricate, complex shapes or features on hard materials that are difficult to machine using traditional methods. This process is frequently employed in the manufacture of custom shafts with detailed features like small internal holes, intricate shapes, or grooves.
EDM offers extreme precision, with the ability to work with materials that are often too hard for conventional machining tools. It’s often used for creating complex geometries in shafts, such as threaded holes or non-cylindrical designs, where other processes might be inadequate.
Thread Rolling
Thread rolling is a cold-forming process used to create threads on a shaft, typically for fasteners or other mechanical components that require precise threading. During this process, the shaft is passed through two rotating dies that form the thread through pressure, rather than cutting material. Thread rolling produces stronger, more durable threads compared to cutting, as it does not remove material, allowing the metal to retain its original grain structure.
Thread rolling is ideal for creating high-strength threads on shafts, particularly when the threads are needed for applications involving heavy loads, vibration, or high temperatures. This process also enhances the surface finish of the threads, making them smoother and more resistant to wear.
The selection of the right material is a crucial factor in custom shaft manufacturing. The material must meet the specific requirements of the application, considering factors like strength, corrosion resistance, weight, and machinability. Below are some of the most commonly used materials for machining shafts, each offering unique properties to suit various applications.
Aluminum
Aluminum is a lightweight material that offers excellent machinability, corrosion resistance, and strength-to-weight ratio. It is widely used in industries like aerospace, automotive, and consumer electronics, where weight reduction is a critical factor. Custom shafts made from aluminum are ideal for applications where lightness and ease of machining are essential, but the material’s lower strength limits its use in high-stress environments.
Stainless Steel
Stainless steel is one of the most popular materials for custom shafts due to its strength, corrosion resistance, and ability to withstand harsh environments. Stainless steel shafts are commonly used in industries like medical devices, food processing, and marine applications, where corrosion resistance is a priority. The material can be difficult to machine compared to other metals, but with the right equipment and processes, it can be produced to very tight tolerances.
Carbon Steel
Carbon steel is a versatile material known for its strength and durability. It is often used for custom shafts in mechanical and industrial applications where high load-bearing capabilities are required. Carbon steel is less corrosion-resistant than stainless steel, but it can be treated with coatings or surface finishes to improve its resistance to wear and corrosion. The material is also easier to machine than stainless steel, making it a cost-effective choice for many applications.
Titanium
Titanium offers excellent strength-to-weight ratio, high resistance to corrosion, and the ability to withstand extreme temperatures, making it ideal for aerospace, medical, and high-performance automotive applications. Titanium shafts are often used in demanding applications that require a combination of strength, durability, and weight reduction. Titanium is more difficult to machine than many other materials, but it offers unparalleled performance for certain applications.
Alloy Steel
Alloy steel is a strong and tough material that is used for custom shafts in applications that demand high strength, wear resistance, and toughness. The addition of other elements such as chromium, molybdenum, and vanadium enhances the material’s performance in high-stress environments. Alloy steel shafts are commonly used in automotive, industrial machinery, and energy applications, where the shafts must withstand significant loads and torque.
Nickel Alloy
Nickel alloys are used in custom shafts that must resist high temperatures, corrosion, or extreme environmental conditions. These alloys are often used in aerospace, oil and gas, and chemical processing industries. Nickel alloys provide excellent mechanical properties at elevated temperatures, making them ideal for shafts that will be exposed to heat or harsh chemicals.
Brass
Brass is a corrosion-resistant material with good machinability and a low coefficient of friction. It is often used for shafts in applications where resistance to corrosion, particularly in marine or plumbing environments, is required. Brass shafts are commonly used in applications like pumps, valves, and machinery components that operate in damp or wet conditions.
The surface finish of a custom shaft is critical not only for aesthetic purposes but also for ensuring the shaft's durability, functionality, and resistance to wear. Depending on the application, different surface treatments may be applied to achieve the desired performance. Below are some of the most common surface finish options for custom shafts:
Passivation
Passivation is a process used to improve the corrosion resistance of stainless steel shafts. It involves the removal of free iron from the surface of the shaft through a chemical treatment, which enhances the formation of a protective oxide layer. Passivation is commonly used in medical, food processing, and marine applications, where corrosion resistance is essential.
Anodizing
Anodizing is an electrochemical process applied to aluminum shafts to increase their thickness and hardness. The process also enhances the corrosion resistance of aluminum, making it more suitable for use in harsh environments. Anodizing is frequently used in aerospace, automotive, and electronics applications.
Plating
Plating is the process of applying a thin layer of metal onto the surface of the shaft, often for the purposes of enhancing corrosion resistance, wear resistance, or appearance. Chrome plating is one of the most common forms of plating for shafts, providing excellent durability and a smooth surface finish.
Sandblasting
Sandblasting is a surface preparation technique used to create a textured finish on a shaft. The process involves shooting abrasive material at high speed to clean and roughen the surface. Sandblasting is commonly used to prepare surfaces for further treatments like anodizing or plating.
Polishing
Polishing is used to create a smooth, shiny finish on the surface of the shaft. It reduces the surface roughness, which can improve the shaft's resistance to friction and wear. Polishing is often performed on shafts that will operate in high-precision applications or where a smooth, aesthetically pleasing finish is required.
Chrome Plating
Chrome plating is a type of plating that uses a layer of chromium to improve the shaft’s hardness, corrosion resistance, and surface finish. It is commonly used for automotive and industrial shafts that need to withstand high levels of wear and corrosion.
Designing and manufacturing custom shafts requires attention to several key factors that ensure the final product meets all required specifications. Below are some important tips and considerations:
Dimensional Accuracy
Precision is crucial when designing custom shafts. Ensure that the shaft is designed with tight tolerances to meet the functional requirements of the application. This is particularly important when the shaft is part of a larger assembly or system where alignment and fit are critical.
Shaft Alignment
When designing shafts, consider the alignment requirements for the system. Misalignment can lead to premature wear, vibration, and failure. Shaft alignment is particularly important in rotating equipment where the shaft connects to other components like bearings or gears.
Determining Expected Loads and Torques
Understanding the loads and torques the shaft will experience is essential in selecting the appropriate material, design, and machining process. The shaft should be designed to handle the stresses it will face during operation, whether it's bending, torsion, or shear forces.
Stress Analysis
Performing a stress analysis on the shaft will help identify any potential weak points and ensure that the design can withstand the operating conditions. Finite element analysis (FEA) tools are often used to model the stress distribution and ensure the shaft will perform optimally.
Manufacturing Process
Choosing the right machining process is critical to producing the shaft with the required precision. CNC turning, milling, grinding, and drilling are just a few of the options available, each suited to different shaft designs and features. The right process depends on the complexity of the shaft’s geometry, material, and required finish.
Shaft Materials
The selection of material is one of the most important factors in the shaft's performance. Consider the environmental conditions, load-bearing capacity, and mechanical properties required for the shaft. The material must be compatible with the operational demands of the application.
Defining Shaft Length and Diameter
Clearly define the shaft’s length, diameter, and other key dimensions in the design phase. Ensure that the shaft will fit properly into its intended application and that all features (e.g., holes, threads, or grooves) are accurately positioned.
Surface Finishes
The surface finish of a custom shaft affects its performance, particularly in terms of friction, wear, and corrosion resistance. Select the appropriate finish based on the shaft’s intended use and operating environment.
Quality Control for Shaft Machining
Once the shaft has been machined, it should undergo rigorous quality control testing. Use tools like CMMs (Coordinate Measuring Machines) to verify dimensional accuracy and inspect the shaft for any defects or imperfections that might affect its functionality.
At VMT, we specialize in precision CNC machining services, including custom shaft manufacturing. Our advanced CNC turning, milling, and grinding capabilities ensure that each shaft we produce meets the highest standards of quality, precision, and performance. Whether you need a simple solid shaft or a more complex component with threads, keyways, or splines, VMT’s team of experts is ready to deliver the right solution for your application.
From selecting the best material to applying the ideal surface finish, VMT offers end-to-end CNC machining services to meet your custom shaft needs. Our commitment to quality, timely delivery, and customer satisfaction sets us apart as a trusted partner for industries ranging from aerospace to automotive.
Custom shaft machining is a specialized process that requires a thorough understanding of materials, design, and machining techniques. By choosing the right materials, processes, and surface treatments, manufacturers can produce high-quality shafts that meet the performance and tolerance requirements of various industries. Whether you're in automotive, aerospace, or medical device manufacturing, understanding the complexities of custom shaft manufacturing ensures that your parts will perform as expected and stand the test of time.
1. What are the standard tolerances for precision machined shafts?
Standard tolerances for precision shafts range from ±0.001” to ±0.005”, depending on the application. Some applications may require even tighter tolerances.
2. What are the uses of machined shafts?
Machined shafts are used in various industries, including automotive, aerospace, industrial machinery, and medical devices, for applications requiring rotation, power transmission, or alignment.
3. What machining techniques are best for manufacturing shafts?
CNC turning, milling, grinding, and EDM are some of the best machining techniques for producing high-quality shafts.
4. What materials should not be used to manufacture shafts?
Materials that are overly brittle, such as cast iron, or excessively soft, such as low-carbon steel, may not be suitable for shafts that are subject to high torque or stress.
5. What are the challenges of machining custom shafts?
Challenges include achieving tight tolerances, ensuring tool access for complex features, and selecting the right material to balance strength and machinability.
6. What industries typically use custom shafts?
Industries such as automotive, aerospace, energy, medical devices, and industrial machinery typically use custom shafts for various applications.
7. What is the best material for shafts?
The best material depends on the application, but stainless steel, carbon steel, and titanium are commonly used for their strength and durability.
8. What is the best steel for manufacturing shafts?
Alloy steels like 4140 or 4340 are often chosen for their excellent strength and fatigue resistance, making them ideal for high-stress applications.
9. What types of processes can be performed with machining?
Machining processes for shafts include turning, milling, grinding, drilling, and EDM to create the desired features and ensure precision.
This concludes our comprehensive guide to custom shaft machining, offering a thorough overview of the types, processes, and techniques involved. With the right knowledge, you can achieve optimal results for your custom shaft manufacturing projects.
