G and M Codes in CNC Machining: Understanding CNC Programming Language



Have you ever felt overwhelmed by the complexity of CNC machines, unsure how they translate your designs into precise parts? It can be frustrating when your projects don’t turn out as expected, leading to wasted time and materials. Imagine trying to produce high-quality CNC machining parts without fully understanding the programming language that controls your machines. This common challenge can hinder your efficiency and the quality of your custom CNC machining projects. But what if you could master the language that drives CNC machines, ensuring every part is machined accurately and efficiently? Dive into this comprehensive guide to uncover the secrets of G and M codes in CNC machining and transform the way you approach CNC programming.



G and M codes are the backbone of CNC machining programming, serving as the instructions that guide your machines to perform precise movements and operations. By understanding these codes, you can enhance the performance of your CNC machining services, whether you're working in a CNC machining factory, handling CNC prototype machining, or managing custom CNC machining projects. Mastering G and M codes ensures that your CNC machines operate smoothly, producing high-quality parts consistently and efficiently.



Ready to demystify the programming language of CNC machines and take control of your machining processes? Let’s explore what G and M codes are, their roles in CNC programming, and how they can optimize your CNC machining operations.





CNC machining has revolutionized the manufacturing industry, allowing for the creation of complex parts with remarkable precision and efficiency. At the heart of CNC machining lies a specialized programming language comprised of G and M codes. These codes are essential for directing the movements and functions of CNC machines, ensuring that each part is produced accurately and consistently. Whether you’re operating a CNC machining factory, engaging in CNC prototype machining, or providing CNC machining services, understanding G and M codes is crucial for optimizing your processes and achieving high-quality results. This guide aims to provide a clear and comprehensive understanding of G and M codes, breaking down their functions and applications in everyday CNC programming.







What Is CNC Machining?



CNC machining, or Computer Numerical Control machining, is a manufacturing process that uses computerized controls to operate and manipulate machine tools. Unlike manual machining, where an operator physically controls the machine, CNC machining relies on pre-programmed instructions to perform precise movements and operations. This automation allows for the production of highly accurate and consistent parts, making CNC machining a cornerstone of modern manufacturing.



In CNC machining, designs created in computer-aided design (CAD) software are translated into machine-readable code, typically using G and M codes. These codes instruct the CNC machine on how to move, what operations to perform, and how to adjust settings during the machining process. The result is the ability to produce complex parts with tight tolerances, minimal human intervention, and increased efficiency. Whether you’re manufacturing parts for the automotive, aerospace, medical, or electronics industries, CNC machining offers the precision and reliability needed to meet demanding specifications.



Understanding the fundamentals of CNC machining is the first step toward mastering CNC programming. By comprehending how CNC machines interpret and execute G and M codes, you can optimize your machining processes, reduce errors, and enhance the overall quality of your CNC machining parts.









Advantages of CNC Machining



Precision



One of the most significant advantages of CNC machining is its unparalleled precision. CNC machines are capable of executing movements with minute accuracy, ensuring that each part meets exact specifications. This level of precision is essential for industries where tight tolerances are crucial, such as aerospace and medical device manufacturing. The ability to produce consistent, high-quality parts reduces the risk of defects and enhances the reliability of your products.





Efficiency



CNC machining significantly increases manufacturing efficiency by automating repetitive tasks and minimizing manual intervention. Once a program is set up, CNC machines can operate continuously, producing parts at a much faster rate than manual machining. This efficiency translates to shorter production cycles, enabling quicker turnaround times for orders and increasing overall productivity. Additionally, CNC machines can operate around the clock with minimal supervision, maximizing the utilization of manufacturing resources.





Versatility



CNC machining is incredibly versatile, capable of producing a wide range of parts from various materials, including metals, plastics, and composites. Whether you need to create simple components or intricate, multi-faceted parts, CNC machines can handle the complexity with ease. This versatility makes CNC machining suitable for diverse applications across different industries, from automotive parts and aerospace components to custom CNC machining projects and CNC prototype machining.





Repeatability



Consistency is a hallmark of CNC machining. Once a program is correctly set up, CNC machines can reproduce the same part repeatedly with minimal variation. This repeatability is crucial for mass production, ensuring that each part is identical to the last. It eliminates the inconsistencies that can arise from manual machining, providing reliable and uniform products that meet stringent quality standards. Whether you’re producing a single prototype or thousands of identical parts, CNC machining delivers dependable repeatability every time.

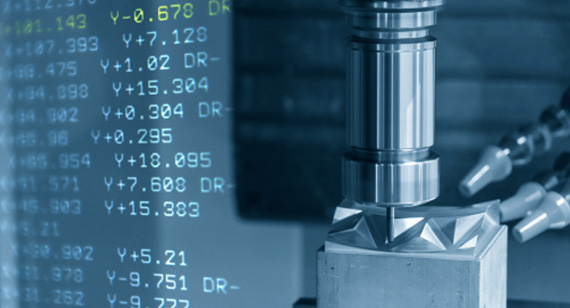

How Does CNC Programming Control CNC Machines?



CNC programming controls CNC machines by translating design specifications into a series of precise instructions that guide the machine’s movements and operations. This programming is typically done using G and M codes, which form the foundation of CNC machining language.



When you create a design in CAD software, the next step is to convert it into a machine-readable format using Computer-Aided Manufacturing (CAM) software. CAM software generates the G and M codes based on the geometry and specifications of the design. These codes are then uploaded to the CNC machine, where they dictate the tool’s path, speed, feed rate, and other operational parameters.



The CNC machine reads these codes sequentially, executing each command to perform the desired operations. For example, G codes might instruct the machine to move the tool to a specific coordinate, perform a linear or circular cut, or adjust the spindle speed. M codes, on the other hand, control auxiliary functions such as turning the spindle on or off, pausing the program, or changing tools.



By following the G and M codes, the CNC machine operates with high precision and consistency, producing parts that closely match the original design. This automated control minimizes human error, enhances efficiency, and ensures that each part is manufactured to exact specifications. Understanding how CNC programming works is essential for optimizing your machining processes and achieving the best possible results in your CNC machining services.









What Are G Codes in CNC Programming?



G codes, also known as preparatory codes, are a fundamental component of CNC programming. They instruct the CNC machine on how to move the tool to create the desired part geometry. G codes are responsible for defining the tool’s path, movement type, and specific machining operations, making them essential for achieving precision and accuracy in CNC machining parts.

Each G code corresponds to a specific command that directs the machine’s movements. For example, G00 is used for rapid positioning, allowing the tool to move quickly to a designated location without performing any cutting operations. G01, on the other hand, is used for linear interpolation, guiding the tool along a straight path at a specified feed rate to perform precise cuts.



Circular interpolation is another critical function of G codes, with G02 and G03 instructing the machine to move the tool in clockwise and counterclockwise arcs, respectively. These codes are essential for creating curved or circular features in your parts. Additionally, G04 is used for pausing the program, allowing the machine to hold its position for a specified duration before continuing with the next operation.



G codes also include commands for tool changes, coordinate system adjustments, and other preparatory functions that set up the machine for various machining tasks. By mastering G codes, machinists can effectively control the tool’s movements and ensure that each part is machined accurately according to the design specifications.



Understanding and utilizing G codes is crucial for anyone involved in CNC machining programming. These codes provide the instructions needed to transform digital designs into tangible parts, ensuring precision, efficiency, and consistency in the manufacturing process. Whether you’re working in a CNC machining factory, handling CNC prototype machining, or providing custom CNC machining services, a solid grasp of G codes is essential for optimizing your machining operations and producing high-quality parts.









Besides G Codes, What Are the Other Widespread Instructions?



While G codes play a pivotal role in CNC programming by controlling the movement and geometry of the machining process, they are not the only set of instructions used. Other widespread instructions, primarily M codes, complement G codes by managing various machine functions that do not directly involve tool movement. Understanding these additional instructions is essential for comprehensive CNC programming and efficient machine operation.



CNC machines operate through a combination of G and M codes, each serving distinct functions to ensure smooth and accurate machining processes. While G codes handle the geometric and movement aspects, M codes manage auxiliary machine functions, enabling precise control over the machining environment. This section explores the other widespread instructions used in CNC programming, highlighting their roles and applications in the CNC machining workflow.



R



The letter "R" is used in CNC programming to denote certain parameters or settings that vary depending on the context. For instance, in circular interpolation commands (G02 and G03), "R" typically represents the radius of the arc. Specifying the radius allows the CNC machine to understand the exact curvature needed for the machining operation. Proper use of the "R" parameter ensures that the tool follows the intended path, creating accurate and consistent curved features in the machined parts.



X, Y, Z



In CNC programming, X, Y, and Z represent the three primary axes of movement for the CNC machine. These axes correspond to the horizontal (X), vertical (Y), and depth (Z) directions, respectively. When programming CNC machining parts, specifying coordinates along these axes allows for precise control over the tool’s position and movement. For example, a G01 command might include X and Y coordinates to define a straight line path, while maintaining a constant Z depth for a consistent cut.



I and J



I and J are used in conjunction with circular interpolation commands (G02 and G03) to specify the center of an arc. "I" represents the distance from the current tool position to the center of the arc along the X-axis, while "J" represents the same distance along the Y-axis. These parameters are crucial for defining the exact path of the tool during circular cuts, ensuring that the machined arc matches the desired curvature and dimensions.



N



The letter "N" is often used to denote line numbers in CNC programs. Line numbers help organize the program and allow machinists to reference specific parts of the code easily. By assigning unique numbers to each line of instructions, CNC machines can execute the program sequentially, following the exact order of operations required to produce the desired part.







The Code Also Uses Other Letters Depending on the Function of the Machine





In addition to G and M codes, CNC programming may utilize other letters to control specific functions and settings of the machine. These letters can represent various parameters, such as coolant control (C), tool selection (T), spindle speed (S), and feed rate (F). Each letter serves a particular purpose, providing additional instructions that enhance the functionality and flexibility of CNC machining processes.



For example:



• C: Controls coolant systems, allowing for the activation or deactivation of coolant during machining to improve tool life and part quality.
• T: Selects the tool to be used for a particular operation, enabling automatic tool changes during the machining process.
• S: Sets the spindle speed, dictating how fast the tool rotates during cutting operations.
• F: Defines the feed rate, determining the speed at which the tool moves through the material.



Understanding the full range of instructions beyond G and M codes is essential for developing comprehensive CNC programs that effectively control all aspects of the machining process. By mastering these additional instructions, machinists can optimize their CNC programming, ensuring precise control over both tool movement and machine functions to produce high-quality CNC machining parts consistently.







Table 1: Other codes











What Are M Codes in CNC Programming?



M codes, or miscellaneous codes, are a critical component of CNC programming that manage various machine functions not directly related to tool movement or geometry. While G codes handle the geometric aspects of machining, M codes control auxiliary functions such as spindle operation, coolant activation, tool changes, and program flow. Understanding M codes is essential for comprehensive CNC programming, ensuring that the machine operates smoothly and efficiently during the machining process.



M codes complement G codes by handling the operational aspects of CNC machines. These codes enable machinists to control machine functions that are vital for maintaining efficiency, safety, and precision in CNC machining. By integrating M codes into CNC programs, users can automate essential tasks, reducing the need for manual intervention and enhancing the overall performance of CNC machining services.





List of G and M Codes for CNC Machining



To effectively utilize G and M codes in CNC machining, it’s important to familiarize yourself with the most common codes and their functions. Below is a list of essential G and M codes that are widely used in CNC programming. Understanding these codes will empower you to create accurate and efficient CNC programs, ensuring that your machining operations run smoothly and produce high-quality parts.





Common G Codes



G codes are the backbone of CNC machining, directing the tool’s movement and defining the geometry of the part being machined. Here are some of the most common G codes you’ll encounter in CNC programming:



G00 – Rapid Positioning



G00 is used for rapid positioning, allowing the CNC machine to move the tool to a specified location as quickly as possible without performing any cutting operations. This command is typically used to move the tool between different sections of the part or to a safe position before starting a new machining operation. Rapid positioning helps save time by minimizing the idle movement of the machine.



G01 – Linear Interpolation



G01 directs the CNC machine to perform linear interpolation, moving the tool along a straight path at a specified feed rate. This command is essential for making precise cuts and shaping the part according to the design specifications. By controlling the feed rate, G01 ensures that the machining process is both accurate and efficient, producing smooth and consistent cuts.



G02 – Circular Interpolation (Clockwise)



G02 is used for circular interpolation in a clockwise direction. This command directs the CNC machine to move the tool in a circular path, following a defined radius and center point. Circular interpolation is crucial for creating curved or rounded features in the machined part, allowing for smooth transitions and precise geometries.



G03 – Circular Interpolation (Counterclockwise)



Similar to G02, G03 directs the CNC machine to perform circular interpolation but in a counterclockwise direction. This command is used to create arcs and circular features in the opposite direction, providing flexibility in designing and machining complex shapes. Together, G02 and G03 enable the creation of intricate curves and rounded edges in CNC machining parts.



G04 – Pause



G04 is used to introduce a pause or dwell in the CNC program, allowing the machine to hold its position for a specified duration before continuing with the next operation. This pause can be essential for processes that require settling time, such as cooling the tool or waiting for coolant flow to stabilize. G04 helps ensure that the machining process proceeds smoothly and without interruptions.





List of G Codes for Other Functions



Beyond the common G codes mentioned above, there are numerous other G codes that handle specific functions and advanced machining operations. These include:



• G05: High-precision contouring
• G06: Parabolic interpolation
• G07: Cylindrical interpolation
• G08: Acceleration control
• G09: Exact stop check
• G10: Programmable data input
• G11: Cancel programmable data input
• G12/G13: Circular pocket milling (G12 for clockwise, G13 for counterclockwise)



Each of these G codes serves a unique purpose, allowing machinists to execute a wide range of machining operations with precision and control. Familiarity with these additional G codes can enhance the versatility and capability of your CNC machining programming, enabling the production of more complex and high-quality parts.















Common M Codes



M codes are essential for managing the operational aspects of CNC machines, such as spindle control, coolant activation, and program flow. Below are some of the most commonly used M codes in CNC programming:



M00 – Program Stop



M00 commands the CNC machine to perform a complete program stop. When this code is executed, the machine halts all operations and remains idle until manually restarted by the operator. M00 is useful for pausing the program for inspections, tool changes, or any other manual interventions that may be necessary during the machining process.



M02 – Program End



M02 signifies the end of the CNC program. When the machine encounters M02, it stops all operations and signals the end of the current program run. This code ensures that the CNC machine does not continue executing any further instructions beyond the intended scope of the program.



M03 – Spindle On, Clockwise



M03 turns the spindle on in a clockwise direction. This command is essential for activating the spindle to begin cutting operations. The clockwise rotation is standard for most machining processes, ensuring proper cutting direction and tool engagement.



M04 – Spindle On, Counterclockwise



M04 turns the spindle on in a counterclockwise direction. While less common than clockwise rotation, counterclockwise spindle operation is sometimes required for specific machining tasks or when using certain types of cutting tools. M04 provides the flexibility to control spindle rotation direction based on the needs of the operation.



M05 – Spindle Stop



M05 commands the CNC machine to stop the spindle rotation. This code is used to halt cutting operations, allowing the machine to transition between different machining steps or to safely pause the program. M05 ensures that the spindle stops promptly, preventing unintended tool movement or damage during program execution.





List of M Codes for Other Functions



In addition to the common M codes, there are numerous other M codes that manage a variety of machine functions and auxiliary operations. These include:



• M06: Tool change
• M08: Coolant on
• M09: Coolant off
• M10/M11: Chuck control (M10 for chuck on, M11 for chuck off)
• M12/M13: Tool holder control (M12 for holder on, M13 for holder off)
• M30: End of program and rewind
• M98: Subprogram call
• M99: Subprogram return



Each of these M codes allows machinists to control different aspects of the CNC machine, enhancing the efficiency and functionality of the machining process. Mastery of these M codes, in conjunction with G codes, enables comprehensive CNC programming, ensuring that all aspects of the machining operation are precisely controlled and optimized for high-quality CNC machining parts.













Let’s Summarize the Difference Between G and M Codes



Understanding the distinction between G and M codes is fundamental to mastering CNC programming. While both types of codes are essential for directing CNC machines, they serve different purposes and control different aspects of the machining process.



G Codes:



• Direct the Movement and Function of CNC Machines: G codes are primarily responsible for controlling the geometric aspects of machining, such as the tool’s path, movement type, and cutting operations.
• Describe Position and Movement: These codes define where the tool should move and how it should move, ensuring precise shaping and cutting of the material.
• Related to Geometry Codes and Serve Product Design: G codes translate the design specifications into machine instructions, enabling the creation of complex and accurate part geometries.
• Start CNC Machines: Some G codes are used to initiate specific machining operations, setting the stage for the CNC machine to begin cutting and shaping the part according to the programmed instructions.



M Codes:



• Control Operations That Do Not Involve Movement: M codes manage auxiliary functions of the CNC machine that are not directly related to the tool’s movement or geometry.
• Related to Machine Functions and Used for Various Miscellaneous Operations: These codes handle tasks such as spindle control, coolant activation, tool changes, and program flow, ensuring the CNC machine operates smoothly and efficiently.
• Activate the Programmable Logic Controller (PLC) of the Machine: M codes interface with the machine’s control systems, enabling the execution of various operational commands that support the machining process.



In essence, G codes handle the “how” of machining, dictating the precise movements and cuts needed to shape the material, while M codes manage the “what else” of machining, controlling the various machine functions that support the cutting operations. Together, G and M codes provide a comprehensive set of instructions that allow CNC machines to produce high-quality, accurate parts efficiently and reliably.







VMT's Expertise in CNC Machining



At VMT CNC Machining Services, we specialize in leveraging the power of G and M codes to deliver precise and high-quality CNC machining parts. Our team of experienced machinists is adept at creating and interpreting CNC programming language, ensuring that every project meets the highest standards of accuracy and efficiency. Whether you require custom CNC machining, CNC prototype machining, or large-scale production runs, VMT has the expertise and technology to handle your needs with precision and reliability.



We understand that each project is unique, and our CNC machining factory is equipped with state-of-the-art machines capable of executing complex G and M codes to produce intricate and detailed parts. Our commitment to excellence ensures that your CNC machining parts are fabricated with the utmost precision, durability, and consistency. Partner with VMT CNC Machining Services to experience the benefits of expertly programmed CNC machines, delivering superior results for your manufacturing projects.









Conclusion



G and M codes are the essential building blocks of CNC programming, enabling precise control over the movement and functions of CNC machines. By understanding and effectively utilizing these codes, machinists can optimize their CNC machining processes, ensuring the production of high-quality, accurate, and reliable parts. G codes handle the geometric and movement aspects of machining, dictating the tool’s path and cutting operations, while M codes manage auxiliary machine functions, controlling aspects like spindle operation, coolant activation, and tool changes.



Mastering G and M codes is crucial for anyone involved in CNC machining programming, whether you’re working in a CNC machining factory, handling CNC prototype machining, or providing custom CNC machining services. This comprehensive understanding allows for the creation of efficient and effective CNC programs, reducing errors, increasing productivity, and enhancing the overall quality of CNC machining parts.



At VMT CNC Machining Services, we pride ourselves on our expertise in CNC programming and machining. Our skilled team utilizes advanced G and M codes to operate our state-of-the-art CNC machines, ensuring that every part we produce meets the highest standards of precision and quality. Whether you need a single prototype or a large batch of custom CNC machining parts, VMT is equipped to deliver exceptional results that meet your specific needs and exceed your expectations.



Embrace the power of G and M codes to transform your CNC machining operations. By harnessing the full potential of CNC programming language, you can achieve unparalleled precision, efficiency, and consistency in your manufacturing processes, driving success and innovation in your projects.











FAQs



What Are the Most Common G Codes?

The most common G codes include G00 (rapid positioning), G01 (linear interpolation), G02 (circular interpolation clockwise), G03 (circular interpolation counterclockwise), and G04 (pause). These codes are essential for controlling the movement and cutting operations of CNC machines, ensuring precise and accurate machining of parts.





What Are M Codes and G Codes?

G codes and M codes are both essential components of CNC programming. G codes, or preparatory codes, control the geometric aspects of machining, such as tool movement and path. M codes, or miscellaneous codes, manage auxiliary machine functions, such as spindle control, coolant activation, and program flow, ensuring the smooth operation of the CNC machine during the machining process.





What Is the M Code on the 1099-R?

The M code on the 1099-R form refers to the distribution code used by the IRS to categorize the type of retirement distribution reported. This is unrelated to CNC programming and pertains to tax reporting for retirement account withdrawals.





What Is the G Code on the 1099-R?

Similar to the M code, the G code on the 1099-R form is used for specific distribution purposes related to retirement accounts and tax reporting. It is not related to CNC programming or machining.





What Does the G Code Do?

G codes control the geometric aspects of CNC machining, directing the tool’s movement, defining the tool path, and specifying cutting operations. They are crucial for shaping the material according to the design specifications, ensuring precision and accuracy in the final machined part.





What Is the Purpose of the M Code?

M codes manage the operational aspects of CNC machines that are not directly related to tool movement or geometry. They control functions such as spindle operation, coolant activation, tool changes, and program flow, ensuring that the CNC machine operates smoothly and efficiently during the machining process.
