Types of Springs and Applications: Understanding Materials and Manufacturing Processes



Have you ever encountered a situation where a simple spring failed, causing a significant malfunction in your project? It can be incredibly frustrating and costly, especially when precision and reliability are crucial. Imagine spending time and resources developing a product, only to have it fall short because the wrong type of spring was used. This common problem in manufacturing can lead to inefficiencies, increased costs, and compromised product quality. But what if you could gain a clear understanding of the different spring types, their materials, and how they are manufactured? This knowledge can help you select the right springs for your projects, ensuring durability and optimal performance. Dive into this comprehensive guide to explore the various spring types, their applications, and the materials and processes that make them reliable components in countless products.



Selecting the appropriate spring type and material is essential for achieving the desired functionality and longevity of your products. By understanding the different types of springs, their specific applications, and the materials used in their manufacturing, you can make informed decisions that enhance the performance and reliability of your CNC machining parts. Whether you’re involved in custom CNC machining, working in a CNC machining factory, or handling CNC prototype machining, this guide will equip you with the knowledge needed to optimize your spring selection and manufacturing processes.



Ready to explore the fascinating world of springs and discover how the right spring can make all the difference in your projects? Let’s delve into the basics of spring types, their applications, the materials used, and the manufacturing processes that bring these essential components to life.





Springs are fundamental components in a wide range of mechanical systems, providing essential functions such as shock absorption, energy storage, and maintaining tension or compression. Despite their ubiquitous presence in everyday items—from automotive suspensions and household appliances to intricate machinery and medical devices—the variety of spring types and their specific applications can be overwhelming. Understanding the different types of springs, the materials they are made from, and the manufacturing processes involved is crucial for anyone involved in design, engineering, or manufacturing. This comprehensive guide aims to demystify the world of springs, highlighting their diverse types, applications, and the materials and processes that make them reliable and efficient.

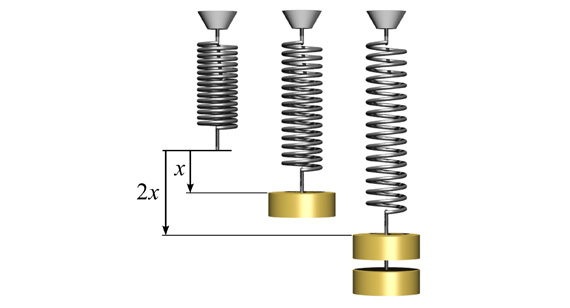

Hooke's Law: Understanding the Principle of Springs









At the heart of spring functionality lies Hooke's Law, a fundamental principle in physics that describes the behavior of springs under load. Hooke's Law states that the force exerted by a spring is directly proportional to the amount it is stretched or compressed, up to the elastic limit of the spring. Mathematically, this relationship is expressed as:



F = -kX



Where:



• F = Force applied to the spring
• X = Displacement of the spring (the distance it is stretched or compressed)
• k = Spring constant (a measure of the stiffness of the spring)



In this equation, the negative sign indicates that the force exerted by the spring opposes the direction of displacement, meaning the spring always works to return to its original shape. The spring constant kk is a crucial factor, as it determines how much force is needed to achieve a certain displacement. A higher kk value means the spring is stiffer and requires more force to compress or extend, while a lower kk value indicates a more flexible spring that requires less force.



Understanding Hooke's Law is essential for selecting the right spring for your application. For instance, in automotive suspension systems, springs with higher stiffness (higher kk values) are used to absorb large shocks and maintain vehicle stability. In contrast, softer springs with lower kk values might be used in applications where gentle cushioning is needed, such as in mattress springs or certain types of hinges.



Moreover, Hooke's Law helps in calculating the necessary dimensions and materials for a spring to ensure it can handle the expected loads without permanent deformation. By knowing the force and displacement requirements, engineers can determine the appropriate spring constant and, consequently, select a spring type and material that meets these specifications.



In CNC machining, precise adherence to Hooke's Law ensures that springs manufactured for specific applications perform reliably and consistently. Whether you’re producing custom CNC machining parts or working within a CNC machining factory, understanding this principle allows for the design and production of springs that deliver optimal performance and durability.

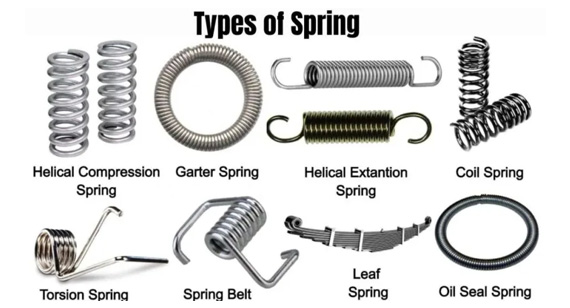

Different Types of Mechanical Springs and Their Applications



Springs come in various forms, each designed to perform specific functions based on their unique properties and shapes. Understanding the different types of springs and their applications is crucial for selecting the right spring for your project. Springs can be broadly categorized into helical springs, leaf springs, and disc springs, each with its distinct characteristics and uses.









First Category: Helical Springs



Helical springs are the most common type of mechanical springs, characterized by their coiled shape. They are widely used in numerous applications due to their versatility and ability to store and release energy efficiently.

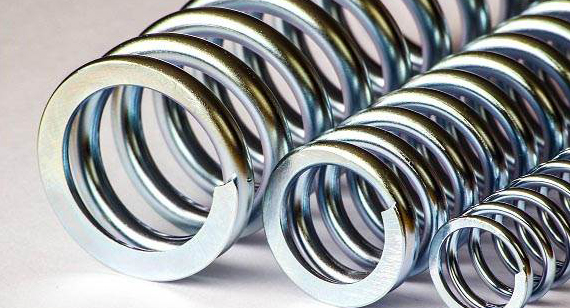

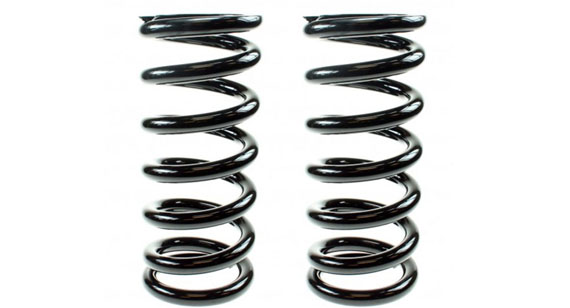

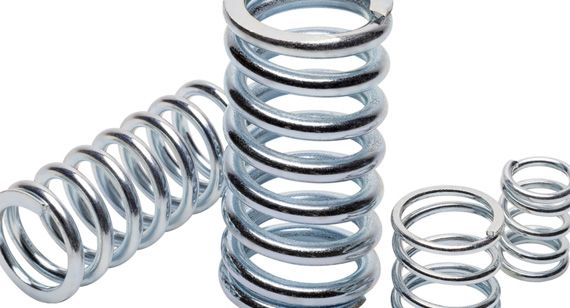

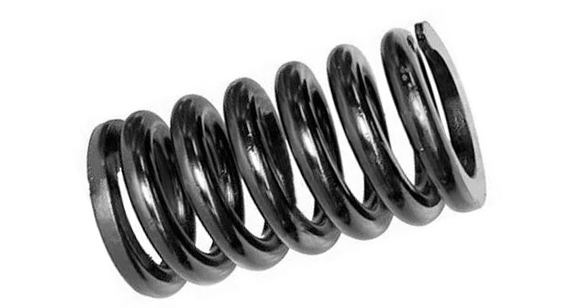

1. Compression Springs



Compression springs are designed to resist compressive forces, meaning they are used to absorb shock and maintain a force between two surfaces. When a compressive force is applied, the spring shortens, and when the force is removed, the spring returns to its original length. These springs are commonly found in automotive suspensions, where they absorb bumps and maintain vehicle stability, as well as in machinery to provide consistent force in pressing applications.

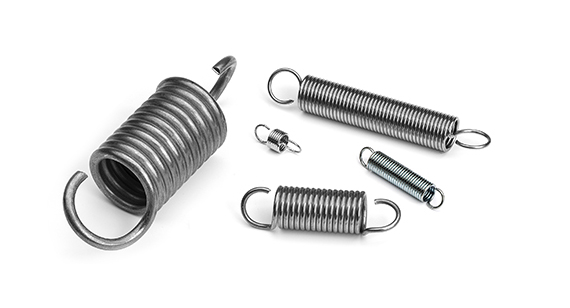

2. Extension Springs



Extension springs work by resisting stretching forces. They are used to exert force when extended, pulling back to their original shape when the applied force is removed. Extension springs are often used in applications such as garage doors, where they help lift and support the door, as well as in toys and electronic devices to provide tension in moving parts.

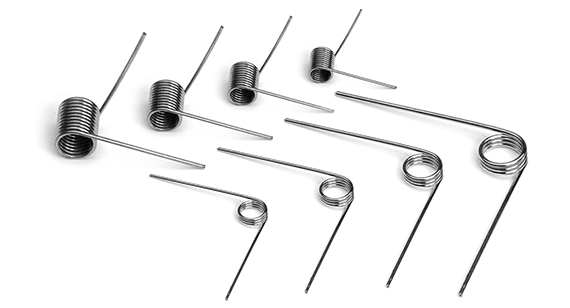

3. Torsion Springs



Torsion springs operate by twisting along their axis, providing a rotational force. These springs are used to apply torque or maintain angular positions in applications like clothespins, mousetraps, and automotive suspension systems. Torsion springs are essential in mechanisms that require controlled rotational movement and the ability to return to a default position.





4. Helical Springs



Helical springs encompass both compression and extension springs, defined by their helical coil shape. Their primary advantage is their ability to provide a linear force over a significant range of motion, making them suitable for a variety of applications that require consistent force application and energy storage.





5. Linear Springs



Linear springs are designed to provide a straight-line motion, maintaining consistent force regardless of the direction of displacement. These springs are used in applications where precise linear movement is required, such as in linear actuators and precision machinery.





6. Variable Stiffness Springs



Variable stiffness springs have a changing spring constant along their length or coil. This variation allows them to provide different levels of force depending on the displacement, making them ideal for applications that require adaptable force profiles, such as adjustable seat cushions and specialized machinery components.



7. Constant Force Springs



Constant force springs are designed to exert a consistent force over their entire range of motion. They are typically made from a flat strip of metal that is rolled into a coil, providing a uniform tension as they unwind. These springs are commonly used in retractable pens, window shades, and certain types of cable assemblies.





Second Category: Leaf Springs



Leaf springs consist of multiple layers of metal, typically steel, arranged in parallel. They are primarily used in automotive applications but also find uses in various machinery and equipment due to their ability to absorb heavy loads and provide stable support.

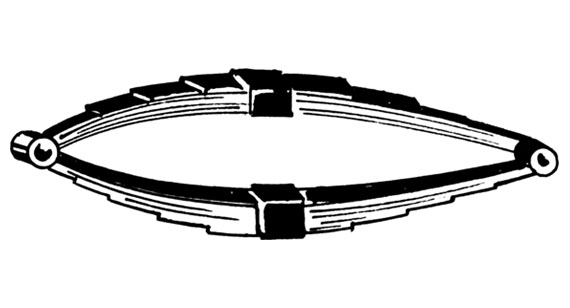

1. Elliptical Leaf Springs



Elliptical leaf springs feature a curved shape that allows for efficient load distribution and improved flexibility. They are used in vehicle suspensions to absorb shocks and maintain ride comfort, as well as in machinery to support heavy loads and minimize vibration.

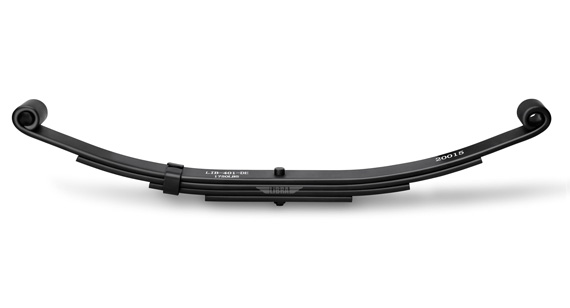

2. Semi-Elliptical Leaf Springs



Semi-elliptical leaf springs are a variation of elliptical springs, characterized by a semi-circular shape. They offer a balance between strength and flexibility, making them suitable for a wide range of automotive and industrial applications where reliable load support is essential.



3. Quarter Elliptical Leaf Springs



Quarter elliptical leaf springs have a more compact, quarter-circle shape, providing focused support and flexibility. These springs are used in applications where space is limited but strong load-bearing capacity is required, such as in compact vehicles and certain types of machinery.



4. Three-Quarter Elliptical Leaf Springs



Three-quarter elliptical leaf springs combine the features of elliptical and semi-elliptical springs, offering enhanced load distribution and flexibility. They are used in applications that require robust support and the ability to handle varying loads, such as in heavy-duty vehicle suspensions and industrial equipment.



5. Transverse Leaf Springs



Transverse leaf springs are arranged perpendicular to the direction of travel, providing lateral support and stability. They are commonly used in railway applications, where they help maintain track alignment and absorb vibrations from passing trains, as well as in certain automotive and machinery applications.

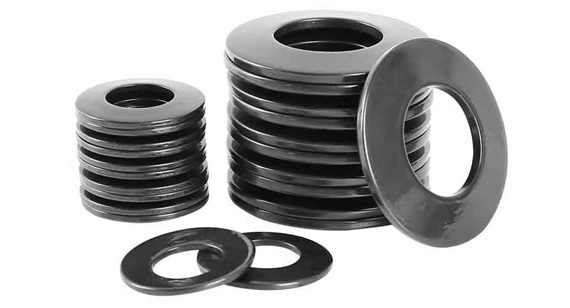

Class III: Disc Springs



Disc springs, also known as Belleville springs, are composed of stacked washers shaped like cones or discs. They are used in applications that require high load capacity in a compact form, providing excellent energy storage and resilience.





1. Disc Springs



Disc springs are single washers with a conical shape that compress under load, offering high force in a small space. They are used in applications such as valve assemblies, clamping systems, and high-pressure equipment where compact, high-strength springs are necessary.



2. Bent Disc Springs



Bent disc springs incorporate a slight bend or curvature in the spring shape, enhancing their ability to absorb shocks and vibrations. These springs are used in applications that require additional flexibility and resilience, such as in machinery mounts and vibration dampers.



3. Slotted Disc Springs



Slotted disc springs feature notches or slots in their design, allowing for increased flexibility and reduced stress concentrations. They are used in applications that demand precise force distribution and enhanced durability, such as in optical instruments and sensitive equipment.

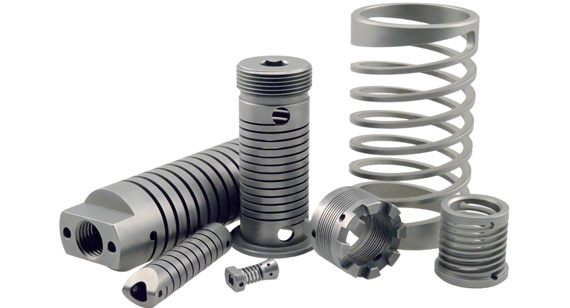

Machining Springs



Machine-made springs are produced using precise machining techniques, ensuring high accuracy and consistency in their dimensions and properties. These springs are manufactured using specialized CNC machines that can create complex shapes and maintain tight tolerances, making them suitable for high-performance applications.



Manufacturing Process: Machine-made springs typically undergo processes such as coiling, heat treatment, and finishing to achieve the desired characteristics. CNC machines can automate these processes, allowing for rapid production and customization based on specific design requirements.



Applications: Machine-made springs are used in applications where precision and reliability are paramount, such as in aerospace components, medical devices, and high-end automotive systems. Their ability to be customized for specific needs makes them ideal for producing parts that require exacting standards.









Molded Springs



Molded springs are created using molding techniques, which involve shaping the spring material within a mold to achieve specific geometries. This method is particularly useful for producing complex or integrated spring shapes that would be difficult to achieve through traditional machining.



Manufacturing Process: The process involves injecting spring material, such as certain plastics or composites, into a mold where it solidifies into the desired shape. Molded springs can incorporate unique designs and features, enhancing their functionality and aesthetics.



Applications: Molded springs are commonly used in consumer electronics, automotive interiors, and various industrial applications where intricate spring designs are required. Their ability to integrate seamlessly into larger assemblies makes them valuable for producing compact and efficient components.

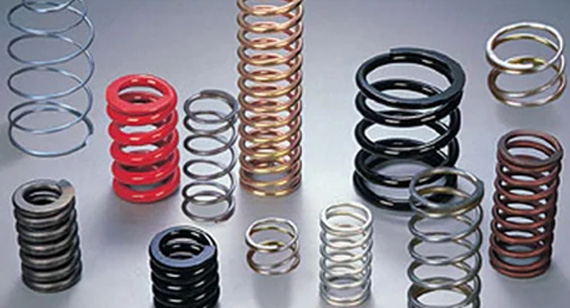

Materials for Making Springs



The choice of material for springs significantly impacts their performance, durability, and suitability for specific applications. Various materials are used in spring manufacturing, each offering unique properties that cater to different requirements.



Beryllium Copper Alloys



Beryllium copper alloys are prized for their exceptional strength, hardness, and electrical conductivity. These alloys are used in applications that require high performance and reliability, such as aerospace components, medical instruments, and electrical connectors.



Properties:

• High strength and durability
• Excellent electrical conductivity
• Superior fatigue resistance



Applications:

• Aerospace fasteners
• Medical devices
• Electrical contacts and connectors



Ceramic Products



Ceramic springs are used in applications where high-temperature resistance and corrosion resistance are essential. These springs are made from advanced ceramic materials that can withstand extreme environments without degrading.



Properties:

• High temperature resistance
• Excellent corrosion resistance
• High hardness and wear resistance



Applications:

• High-temperature industrial equipment
• Chemical processing
• Automotive exhaust systems



Unidirectional Fiberglass Composites



Unidirectional fiberglass composites offer high strength-to-weight ratios and excellent fatigue resistance. These materials are used in applications that require lightweight yet strong springs, such as in sports equipment and aerospace components.



Properties:

• Lightweight
• High strength and durability
• Excellent fatigue resistance



Applications:

• Sports equipment
• Aerospace parts
• Automotive components



Rubber/Polyurethane



Rubber and polyurethane springs are known for their flexibility and ability to absorb vibrations and shocks. These materials are used in applications that require elastic deformation and energy absorption, such as in automotive suspensions and electronic devices.



Properties:

• High elasticity
• Excellent vibration and shock absorption
• Resistant to abrasion and chemicals



Applications:

• Automotive suspension systems
• Electronic device mounts
• Industrial machinery



Steel Alloys



Steel alloys are the most commonly used materials for springs due to their excellent balance of strength, durability, and versatility. Various steel alloys, such as carbon steel, alloy steel, and stainless steel, are used based on the specific requirements of the application.



Properties:

• High strength and durability
• Excellent fatigue resistance
• Versatile and adaptable to various applications



Applications:

• Automotive suspensions
• Industrial machinery
• Consumer products



Cold Drawn Wire



Cold drawn wire springs are produced by drawing wire through dies to achieve precise diameters and surface finishes. This method enhances the strength and surface quality of the wire, making it ideal for high-performance springs.



Properties:

• High tensile strength
• Smooth surface finish
• Precise dimensions



Applications:

• Precision machinery
• Medical devices
• High-performance automotive parts



Oil Tempered Spring Wire



Oil tempered spring wire undergoes a heat treatment process that increases its hardness and strength. This type of wire is used in applications that require springs with high load-bearing capacity and resistance to wear.



Properties:

• High hardness and strength
• Excellent wear resistance
• Reliable load-bearing capacity



Applications:

• Heavy-duty industrial equipment
• Automotive suspensions
• Construction machinery



Bainite Hardened Strips



Bainite hardened strips are used to produce springs with enhanced toughness and fatigue resistance. The bainitic microstructure provides a good balance between strength and ductility, making these springs suitable for demanding applications.



Properties:

• High toughness
• Excellent fatigue resistance
• Balanced strength and ductility



Applications:

• Automotive parts
• Industrial machinery
• Aerospace components



Stainless Spring Steel



Stainless spring steel is used in applications that require corrosion resistance and aesthetic appeal. These springs are made from stainless steel alloys that provide excellent resistance to rust and staining, making them ideal for both functional and decorative applications.



Properties:

• Excellent corrosion resistance
• High strength and durability
• Attractive appearance



Applications:

• Medical devices
• Automotive parts
• Consumer products



Copper and Titanium



Copper and titanium springs combine the excellent conductivity of copper with the high strength and lightweight properties of titanium. These springs are used in specialized applications that require both electrical performance and mechanical reliability.



Properties:

• High electrical conductivity (copper)
• Exceptional strength-to-weight ratio (titanium)
• Corrosion-resistant



Applications:

• Electrical connectors
• Aerospace components
• High-performance machinery





Benefits of Using Springs in Your Projects



Springs offer numerous benefits that enhance the functionality and performance of your products. Understanding these advantages can help you leverage springs effectively in your CNC machining projects.







Better Shock Absorption



Springs are excellent at absorbing shocks and vibrations, which helps in protecting sensitive components and ensuring smooth operation. In automotive applications, springs in suspension systems absorb road shocks, providing a comfortable ride and maintaining vehicle stability. In electronic devices, springs can absorb impacts, protecting delicate circuits and components from damage.



Energy Storage



Springs can store and release energy efficiently, making them ideal for applications that require temporary energy storage. In mechanical clocks and watches, springs store energy that drives the movement of the gears. In spring-loaded mechanisms, such as retractable pens and door closers, springs provide the necessary force to return the mechanism to its original position after being activated.



Incorporated Mechanisms



Springs are integral to many mechanisms, providing the necessary force and movement to operate various components. In automotive engines, springs in the valve train ensure proper valve timing and operation. In machinery, springs can control the movement of moving parts, maintaining precise alignment and reducing wear and tear.



Product Stability



Springs contribute to the overall stability of products by maintaining consistent force and position under varying loads. In construction equipment, springs in hydraulic systems help stabilize loads and ensure smooth operation. In consumer products, springs provide the necessary tension to keep parts in place, enhancing durability and reliability.







Disadvantages of Springs in Engineering



While springs offer numerous benefits, they also come with certain limitations that must be considered in engineering applications.



Size and Weight Restrictions



Springs can add to the size and weight of a product, which may be a concern in applications where compactness and lightweight are critical. In portable devices and aerospace components, minimizing size and weight is essential for performance and efficiency, making heavy or bulky springs unsuitable for such applications.



Complex Design Requirements



Designing springs that meet specific performance criteria can be complex and time-consuming. Factors such as spring type, material selection, and manufacturing processes must be carefully considered to achieve the desired characteristics. This complexity can increase design and development time, as well as manufacturing costs.



They Lose Their Effectiveness Over Time



Springs can lose their effectiveness over time due to factors such as material fatigue, corrosion, and wear. Repeated loading and unloading can cause springs to deform permanently, reducing their ability to provide consistent force. In environments where springs are exposed to harsh conditions, such as extreme temperatures or corrosive substances, their longevity and reliability can be significantly impacted.







Common Manufacturing Processes for Various Types of Springs



Manufacturing springs involves several processes that ensure they meet the required specifications and performance standards. Understanding these processes is crucial for selecting the right manufacturing method for your spring type and application.



1. Coil Winding



Coil winding is the primary process for manufacturing helical springs, including compression, extension, and torsion springs. This process involves winding a wire around a form to create the desired spring shape. Automated coil winding machines can produce springs with high precision and consistency, allowing for efficient mass production.



Process:

• Selecting the appropriate wire material and diameter
• Setting up the winding machine with the desired spring dimensions
• Winding the wire around the form to create coils
• Cutting and finishing the spring ends as needed

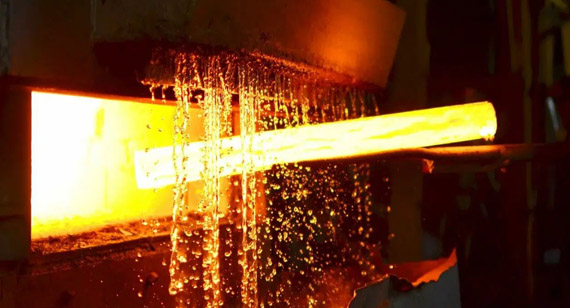

2. Heat Treatment



Heat treatment is a crucial step in spring manufacturing, enhancing the mechanical properties of the spring material. This process involves heating the spring to a specific temperature and then cooling it rapidly or slowly to achieve the desired hardness and strength.





Process:

• Heating the spring uniformly to the required temperature
• Holding the spring at this temperature for a set duration
• Cooling the spring through quenching or annealing to achieve the desired properties



Benefits:

• Increases hardness and strength
• Enhances fatigue resistance
• Improves overall durability

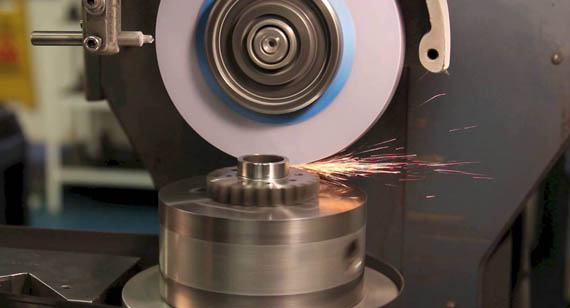

3. Grinding



Grinding is used to finish the ends of springs, ensuring they meet precise dimensional requirements and achieve smooth surfaces. This process is essential for springs that require tight tolerances and specific end configurations.





Process:

• Mounting the spring in the grinding machine
• Using abrasive wheels to achieve the desired surface finish and dimensions
• Inspecting the finished spring for accuracy and quality



Benefits:

• Achieves high precision and surface finish
• Removes burrs and sharp edges
• Prepares springs for final assembly and use



4. Coating and Finishing



Coating and finishing processes enhance the appearance and performance of springs by providing additional protection against corrosion, wear, and fatigue. These processes can also improve the aesthetic appeal of springs for decorative applications.



Process:

• Selecting the appropriate coating material (e.g., zinc plating, powder coating)
• Applying the coating using methods such as electroplating, dipping, or spraying
• Curing or drying the coating to ensure proper adhesion and durability

Benefits:

• Enhances corrosion resistance
• Reduces friction and wear
• Improves aesthetic appearance





Causes and Solutions for Failure of Various Types of Springs



Understanding the common causes of spring failure is essential for preventing defects and ensuring the longevity of your springs. Addressing these issues during the design and manufacturing processes can significantly enhance the performance and reliability of springs in your applications.



1. Spring Stress



Excessive stress can cause springs to deform permanently or break under load. This stress can result from overloading, improper design, or using materials with insufficient strength.



Solution:

• Properly calculate the required spring constant and load capacity based on application needs
• Select materials with adequate strength and fatigue resistance
• Ensure the spring design accommodates expected loads without excessive stress



2. Wrong Material Selection



Choosing the wrong material for a spring can lead to poor performance, increased wear, and premature failure. Different applications require different material properties, such as strength, corrosion resistance, and flexibility.



Solution:

• Carefully assess the application requirements and environmental conditions
• Select materials that provide the necessary mechanical properties and durability
• Consult material specifications and industry standards to ensure suitability



3. Poor or Incorrect Finish



A poor finish can lead to increased friction, wear, and corrosion, compromising the performance and lifespan of springs. Inadequate finishing processes can leave springs with rough surfaces and sharp edges.



Solution:

• Implement proper finishing processes, such as grinding and coating, to achieve smooth surfaces
• Inspect finished springs for defects and surface imperfections
• Apply protective coatings to enhance corrosion resistance and reduce friction



4. Undefined Operating Temperature



Springs exposed to temperatures outside their operating range can experience changes in material properties, leading to reduced performance and potential failure. High temperatures can cause materials to soften, while low temperatures can make springs brittle.



Solution:

• Define the operating temperature range for each spring application
• Select materials that maintain their properties within the expected temperature range
• Incorporate thermal protection measures, such as insulation or cooling systems, when necessary



5. Poor Manufacturing Process



Inconsistent manufacturing processes can result in springs with varying properties and dimensions, leading to performance issues and potential failures. Inadequate quality control can allow defects to pass through, compromising the overall quality of the springs.



Solution:

• Implement stringent quality control measures throughout the manufacturing process
• Use precision CNC machines and automated systems to ensure consistency and accuracy
• Regularly inspect and test springs for compliance with specifications and standards





Conclusion



Springs are indispensable components in a multitude of applications, offering essential functions such as shock absorption, energy storage, and maintaining tension or compression. Understanding the different types of springs, their materials, and the manufacturing processes involved is crucial for selecting the right spring for your CNC machining projects. Whether you're engaged in custom CNC machining, operating within a CNC machining factory, or handling CNC prototype machining, this comprehensive knowledge ensures that your springs perform reliably and efficiently, enhancing the overall quality and functionality of your products.



By recognizing the benefits and addressing the disadvantages of springs, you can optimize their use in your designs and manufacturing processes. Implementing proper manufacturing techniques and material selection further ensures that your springs meet the required specifications and withstand the demands of their applications. As technology and manufacturing methods continue to advance, the role of springs in engineering and product design remains vital, driving innovation and enhancing performance across various industries.



For those seeking to leverage the benefits of springs in their manufacturing operations, partnering with a reputable CNC machining service provider can offer the expertise and capabilities needed to produce high-quality, custom CNC machining parts. Embrace the power of well-designed springs to elevate your projects, ensuring durability, reliability, and superior performance in every application.











FAQs



What Are the 4 Types of Springs?

The four main types of springs are compression springs, extension springs, torsion springs, and constant force springs. Each type serves different functions, such as absorbing shock, providing tension, generating rotational force, or maintaining a consistent force over a range of motion.





What Are the Types of Coil Springs?

Coil springs include compression springs, extension springs, torsion springs, and constant force springs. These springs are characterized by their helical coil shape and are used in various applications for energy storage, shock absorption, and force generation.





What Are the Most Common Types of Springs?

The most common types of springs are compression springs, extension springs, torsion springs, and leaf springs. These springs are widely used in automotive, industrial, and consumer applications due to their versatility and reliability.





What Are the Applications of Springs?

Springs are used in a wide range of applications, including automotive suspensions, machinery, electronic devices, medical equipment, consumer products, and aerospace components. They provide essential functions such as shock absorption, energy storage, and maintaining tension or compression.





What Are the 4 Types of Suspension Springs?

The four types of suspension springs are coil springs, leaf springs, torsion bars, and air springs. Each type offers different characteristics for absorbing shocks, maintaining vehicle stability, and enhancing ride comfort.





What Are the Strongest Springs?

The strongest springs are typically made from high-strength steel alloys, such as oil-tempered spring steel and stainless spring steel. These materials provide exceptional strength, durability, and resistance to fatigue and wear.





What Is the Difference Between Coil Springs and Scroll Springs?

Coil springs are helical springs used for compression, extension, and torsion applications, while scroll springs are disc-shaped springs used for torque and rotational force applications. Coil springs provide linear force, whereas scroll springs provide rotational force.





What Are the Three Most Popular Types of Springs?

The three most popular types of springs are compression springs, extension springs, and torsion springs. These springs are widely used in various industries for their versatility and ability to perform essential functions.





Are Leaf Springs Better Than Springs?

Leaf springs are a specific type of spring used primarily in automotive and industrial applications for load support and shock absorption. Whether they are better than other spring types depends on the specific application requirements, such as load capacity, space constraints, and desired performance characteristics.





What Is the Difference Between Coil Springs and Springs?

Coil springs are a specific type of spring characterized by their helical coil shape, used for compression, extension, and torsion applications. "Springs" is a broader term that encompasses various types of springs, including coil springs, leaf springs, disc springs, and more.
