Snap Fit Joints: Types, Advantages, Design, and Best Practices

0   |   Published by VMT at Jan 15 2025   |   Reading Time:About 6 minutes



Have you ever struggled to assemble a product only to find the parts won’t stay together securely? It can be incredibly frustrating and time-consuming, especially when precision and reliability are essential. Imagine trying to build a device or product where the components constantly come apart, leading to inefficiencies and increased costs. This common issue can significantly impact the quality and functionality of your projects. But what if there was a simple and effective way to ensure your parts fit together seamlessly and securely every time? Enter snap-fit joints—a versatile and efficient solution that can revolutionize your assembly processes. Dive into this comprehensive guide to understand the different types of snap-fit joints, their advantages, design considerations, and best practices to enhance your manufacturing projects.



Snap-fit joints are integral to modern manufacturing, offering a reliable and efficient method for assembling parts without the need for additional hardware. By leveraging the right snap-fit design and materials, you can improve the durability and functionality of your CNC machining parts, whether you’re engaged in custom CNC machining, working in a CNC machining factory, or handling CNC prototype machining. This guide will provide you with a clear understanding of snap-fit joints, helping you make informed decisions that enhance your CNC machining services and overall product quality.



Ready to master snap-fit joints and elevate your manufacturing processes? Let’s explore what snap-fit joints are, the various types available, their benefits, and the best practices for designing and implementing them effectively.





Preface



Snap-fit joints have become a cornerstone in the manufacturing industry, particularly in the realm of CNC machining parts. These joints offer a straightforward yet effective way to assemble components without the need for screws, adhesives, or other fastening hardware. Whether you’re producing consumer electronics, automotive parts, or medical devices, snap-fit joints provide a reliable method for creating strong, durable connections that enhance both functionality and aesthetics.



In the context of CNC machining services, understanding snap-fit joints is crucial for designing and manufacturing parts that meet precise specifications and performance standards. By utilizing snap-fit designs, manufacturers can streamline assembly processes, reduce production costs, and improve product reliability. This guide aims to demystify snap-fit joints, detailing their types, advantages, design principles, and best practices to help you optimize your CNC machining projects and deliver high-quality, efficient products to your clients.







What Is a Snap-Fit Joint?



A snap-fit joint is a type of fastening method commonly used to connect two or more parts without the need for additional hardware like screws or adhesives. Instead, snap-fit joints rely on the elasticity and geometry of the materials to create a secure connection. When designed correctly, these joints can provide a strong, reliable bond that holds parts together under various conditions, making them ideal for a wide range of applications.



Snap-fit joints are typically found in plastic assemblies, where the material’s flexibility allows one part to snap into another, creating a tight and durable fit. However, they can also be used with metal components, especially when combined with precise CNC machining processes that ensure the parts fit together perfectly. The key to an effective snap-fit joint lies in its design, which must account for factors such as material properties, load requirements, and the specific application to ensure a secure and lasting connection.



In CNC machining, snap-fit joints are particularly advantageous because they allow for the rapid assembly and disassembly of parts, facilitating easier maintenance and repair. This is especially beneficial in industries where products are frequently updated or customized, as it enables quick modifications without extensive reworking. Understanding the fundamentals of snap-fit joints is essential for designing components that not only fit together seamlessly but also perform reliably throughout their intended lifecycle.

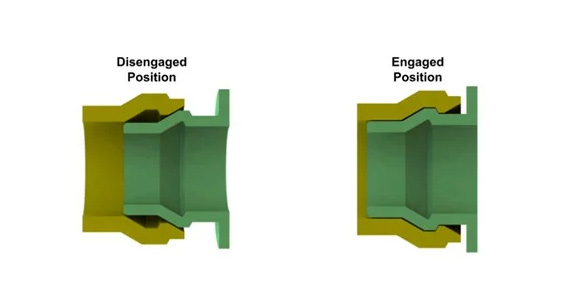

what is snap fit joints





Snap-On Joints



Snap-on fittings are specialized types of snap-fit joints designed for specific applications where a secure and reliable connection is paramount. These fittings are engineered to provide a quick and easy method for attaching components, often without the need for tools or additional fasteners. Snap-on fittings are widely used in various industries, including automotive, aerospace, electronics, and consumer goods, where efficiency and precision are crucial.



The primary advantage of snap-on fittings is their ability to simplify the assembly process, reducing both time and labor costs. By eliminating the need for screws, nuts, or adhesives, snap-on fittings streamline production lines and make it easier to assemble complex products. Additionally, these fittings often allow for easy disassembly and reassembly, which is beneficial for products that require frequent maintenance or upgrades.



In the realm of CNC machining services, snap-on fittings play a vital role in creating custom CNC machining parts that are both functional and easy to assemble. Whether you’re manufacturing intricate electronic housings, automotive components, or medical devices, incorporating snap-on fittings into your designs can enhance the overall efficiency and reliability of your products. By leveraging the benefits of snap-on fittings, manufacturers can produce high-quality parts that meet the demanding standards of modern industries, ensuring customer satisfaction and long-term product success.

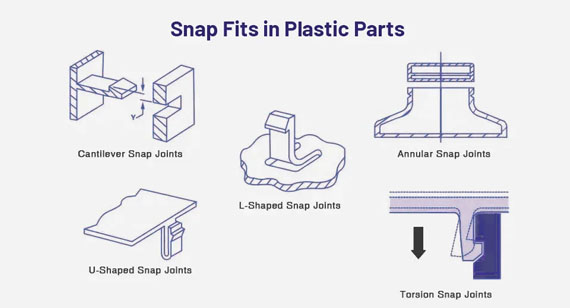

Snap-On Fitting Types





Snap-on fittings come in various types, each designed to meet specific application needs and performance requirements. Understanding the different types of snap-on fittings and their unique characteristics is essential for selecting the right fit for your CNC machining projects. This section explores the most common types of snap-on fittings, including cantilever, ring, twist-on, U-clip, and L-Shaped Snap Fit, detailing their applications, advantages, challenges, load capacity, reusability, and appropriate manufacturing processes.





1. Cantilever Snap-On Joints



Cantilever snap-on fittings are a popular type of snap-fit joint characterized by a cantilevered beam that bends to engage or disengage with another part. This design allows the fitting to provide a secure connection while maintaining flexibility and ease of use. The cantilever beam acts as a locking mechanism, snapping into place to hold the components together firmly.

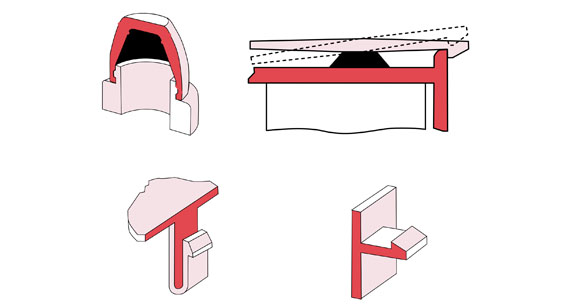

Cantilever Snap-On Fittings Joints optimized



Applications



Cantilever snap-on fittings are widely used in consumer electronics, automotive interiors, and household appliances. They are ideal for applications where parts need to be assembled and disassembled frequently without compromising the integrity of the connection. For example, in electronics, cantilever fittings are used to attach covers and panels, allowing for easy access to internal components for repairs or upgrades.



Advantages

  • Ease of Assembly: Cantilever fittings allow for quick and straightforward assembly without the need for additional hardware.
  • Secure Connection: The cantilever design provides a strong and reliable hold, ensuring parts remain connected during use.
  • Flexibility: These fittings can accommodate slight misalignments, making them suitable for applications with varying tolerances.



Challenges

  • Material Fatigue: Repeated bending of the cantilever beam can lead to material fatigue over time, potentially weakening the joint.
  • Design Complexity: Designing cantilever snap-on fittings requires careful consideration of factors like beam thickness, length, and material properties to ensure optimal performance.



Load Capacity



Cantilever snap-on fittings offer moderate load capacity, making them suitable for applications where the connection needs to withstand regular use and minor stresses. They are not ideal for high-load applications but perform well in situations where the forces acting on the joint are within the fitting’s capacity.



Reusability



These fittings can be reused multiple times without significant loss of performance, provided they are not subjected to excessive stress or damage. Proper design and material selection enhance the reusability and longevity of cantilever snap-on fittings.



Appropriate Manufacturing Processes



Cantilever snap-on fittings are typically manufactured using injection molding for plastic components, allowing for precise and consistent production. CNC machining can also be employed for metal cantilever fittings, ensuring high accuracy and quality.





2. Annular Snap Fit Joints





Annular snap fit joints feature a circular or ring-shaped design that engages with a corresponding groove or recess in the mating part. This design provides a stable and secure connection, distributing the load evenly around the circumference of the joint. Annular snap fit joints are known for their robust performance and are often used in applications requiring a strong and durable bond.



annular snap fit joint optimized





Applications



Annular snap fit joints are commonly found in automotive assemblies, such as connecting body panels and trim pieces, as well as in industrial machinery and consumer products. They are ideal for applications where a high-strength connection is necessary to withstand significant forces and stresses.



Advantages

  • High Strength: The ring design provides a strong and reliable connection, capable of handling substantial loads.
  • Even Load Distribution: The circular shape ensures that the load is evenly distributed, reducing the risk of localized stress and failure.
  • Durability: Annular snap fit joints offer excellent durability, making them suitable for long-term use in demanding environments.



Challenges

  • Alignment Requirements: Proper alignment is crucial to ensure that the ring snaps into place correctly, which can complicate the assembly process.
  • Manufacturing Precision: High precision is required in the manufacturing process to ensure that the ring and groove dimensions match perfectly.



Load Capacity



Annular snap fit joints offer high load capacity, making them suitable for applications that experience significant mechanical stress and require a secure connection. They are ideal for heavy-duty uses where the joint must remain intact under substantial forces.



Reusability



These fittings can be reused several times without compromising their performance, provided they are not damaged or worn out. However, excessive disassembly and reassembly can lead to wear, reducing the fitting’s effectiveness over time.



Appropriate Manufacturing Processes



Annular snap fit joints are typically produced using injection molding for plastics and CNC machining for metal components. Precision manufacturing ensures that the ring and groove fit together seamlessly, providing a reliable and strong connection.





3. Torsional Snap Fit Joint

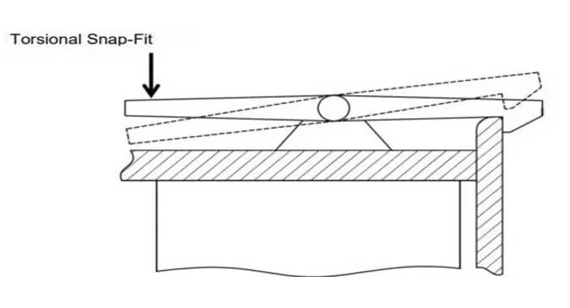

Torsional snap fits operate by rotating one part to engage or disengage the joint. This twisting action creates a secure connection that holds the parts together firmly. Torsional snap fits are known for their ease of use and are commonly used in applications where quick assembly and disassembly are required.



Torsional snap fits joints



Applications



Torsional snap fits are widely used in packaging, consumer goods, and electronic housings. They are ideal for applications where parts need to be assembled and disassembled quickly, such as in removable covers, lids, and panels.



Advantages

  • Quick Assembly: The twisting action allows for rapid connection and disconnection, enhancing assembly efficiency.
  • Secure Lock: Torsional snap fits provide a strong lock, ensuring that parts remain connected during use.
  • User-Friendly: These fittings are easy to operate, requiring minimal effort to twist and engage the joint.



Challenges

  • Limited Load Capacity: Torsional snap fits are best suited for lightweight applications and may not perform well under heavy loads.
  • Wear and Tear: Repeated twisting can cause wear on the fitting components, potentially weakening the joint over time.



Load Capacity



Twist-on snap-fit fittings offer low to moderate load capacity, making them suitable for applications where the joint is subjected to minimal mechanical stress. They are ideal for lightweight assemblies that require quick and easy connections.



Reusability



Torsional snap fits can be reused multiple times, although frequent use may lead to wear and reduced performance. Proper design and material selection can enhance the reusability and lifespan of these fittings.



Appropriate Manufacturing Processes



Torsional snap fits are typically manufactured using injection molding for plastic components, allowing for precise and consistent production. CNC machining is also used for metal twist-on fittings, ensuring accurate dimensions and a reliable fit.





4. U-Shaped Snap Fit





U-Shaped Snap Fit are designed with a U-shaped clip that engages with a corresponding groove or channel in the mating part. This design provides a secure and stable connection, preventing the parts from separating easily. U-Shaped Snap Fit are favored for their simplicity and effectiveness in maintaining a strong joint.

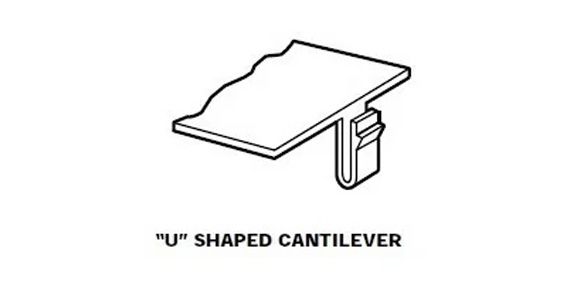

U-Shaped Snap Fit joint optimized



Applications



U-Shaped Snap Fit are commonly used in automotive trim, electronic housings, and consumer products. They are ideal for applications that require a secure and stable connection without the need for additional hardware.



Advantages

  • Strong Hold: The U-shape provides a firm grip, ensuring that parts remain connected even under stress.
  • Simple Design: U-Shaped Snap Fit are straightforward to design and manufacture, making them cost-effective.
  • Easy to Use: These fittings are easy to install and remove, facilitating quick assembly and disassembly.



Challenges

  • Limited Flexibility: U-Shaped Snap Fit offer limited flexibility, which can make them less suitable for applications requiring movement or adjustment.
  • Potential for Wear: Over time, the U-shape can wear out, reducing the fitting’s effectiveness and requiring replacement.



Load Capacity



U-clip snap-fit fittings provide moderate load capacity, making them suitable for applications that require a strong and stable connection without being subjected to excessive mechanical stress.



Reusability



U-Shaped Snap Fit can be reused several times, although repeated assembly and disassembly may cause wear and reduce their holding strength. Proper design and material selection can help maintain the reusability and durability of these fittings.



Appropriate Manufacturing Processes



U-Shaped Snap Fit are typically produced using injection molding for plastic components and CNC machining for metal fittings. Precision manufacturing ensures that the U-clip and groove dimensions align perfectly, providing a reliable and strong connection.





5. L-Shaped Snap Fit



L-Shaped Snap Fit feature an L-shaped design that engages with a corresponding slot or groove in the mating part. This design provides a secure and stable connection, ensuring that the parts remain firmly connected during use. L-Shaped Snap Fit are known for their reliability and ease of use, making them a popular choice in various applications.

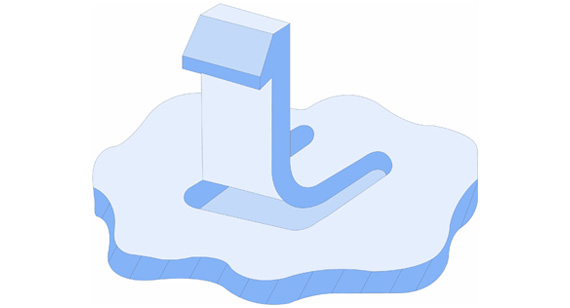

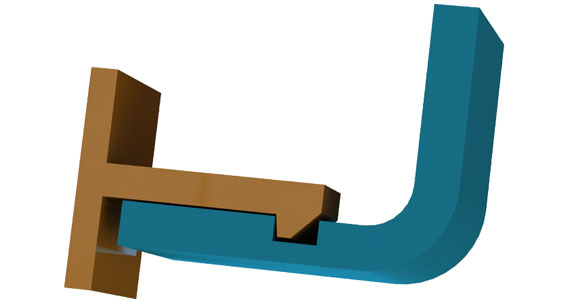

L-shaped snap-fit





Applications



L-Shaped Snap Fit are widely used in automotive components, electronic housings, and consumer products. They are ideal for applications that require a strong and stable connection without the need for additional fasteners or adhesives.



Advantages

  • Reliable Connection: The L-shape provides a firm and secure connection, ensuring that parts stay together under normal use conditions.
  • Ease of Assembly: L-Shaped Snap Fit are easy to install and remove, facilitating quick and efficient assembly processes.
  • Cost-Effective: These fittings are simple to manufacture and design, making them an economical choice for many applications.



Challenges

  • Limited Load Capacity: L-Shaped Snap Fit are best suited for lightweight applications and may not perform well under heavy loads.
  • Potential for Misalignment: Proper alignment is crucial to ensure that the L-clip engages correctly, which can complicate the assembly process.



Load Capacity



L-clip snap-fit fittings offer low to moderate load capacity, making them suitable for applications where the joint is subjected to minimal mechanical stress and does not require handling heavy loads.



Reusability



L-Shaped Snap Fit can be reused multiple times, provided they are not subjected to excessive stress or damage. Proper design and material selection enhance their reusability and longevity.



Appropriate Manufacturing Processes



L-Shaped Snap Fit are typically manufactured using injection molding for plastic components and CNC machining for metal fittings. Precision in manufacturing ensures that the L-clip and groove fit together seamlessly, providing a reliable and strong connection.







Advantages of Snap-Fit Joints





Snap-fit joints offer a multitude of benefits that make them a preferred choice in various manufacturing and assembly applications. These advantages enhance the efficiency, cost-effectiveness, and overall quality of products, making snap-fit joints an essential component in modern engineering and design.



Easy to Assemble/Disassemble



One of the primary advantages of snap-fit joints is their ease of assembly and disassembly. Unlike traditional fastening methods that require tools and additional hardware, snap-fit joints can be quickly and effortlessly connected or disconnected by hand. This simplicity streamlines the assembly process, reducing labor costs and time, and allowing for faster production cycles. Additionally, the ability to easily disassemble snap-fit joints facilitates maintenance, repairs, and upgrades, enhancing the overall usability and longevity of the product.





No Additional Hardware Required



Snap-fit joints eliminate the need for screws, nuts, bolts, or adhesives, simplifying the manufacturing process and reducing material costs. By integrating the fastening mechanism directly into the design of the parts, snap-fit joints minimize the number of components required, leading to cleaner and more streamlined assemblies. This reduction in hardware not only lowers production costs but also reduces the potential for assembly errors and inconsistencies, ensuring a more reliable and consistent product.





Reliable and Long Service Life



When designed and manufactured correctly, snap-fit joints provide a reliable and durable connection that can withstand repeated use and mechanical stress. The inherent flexibility of the materials used in snap-fit joints allows them to absorb and distribute loads effectively, preventing premature failure and maintaining the integrity of the connection over time. This reliability is crucial for products that experience frequent assembly and disassembly or are subjected to varying loads and stresses during use.





Aesthetics



Snap-fit joints contribute to the overall aesthetics of a product by providing a clean and seamless appearance. Since no additional hardware is required, the joints do not disrupt the design or visual appeal of the product, allowing for more streamlined and attractive assemblies. This aesthetic advantage is particularly important in consumer electronics, automotive interiors, and household appliances, where the visual appeal of the product plays a significant role in consumer satisfaction and market success.







Limitations of Using Snap-Fit Joints



While snap-fit joints offer numerous advantages, they also come with certain limitations that must be considered during the design and manufacturing process. Understanding these limitations is essential for making informed decisions about when and how to use snap-fit joints effectively in your projects.





Complex Production Process



Designing effective snap-fit joints can be challenging, as it requires precise engineering and a thorough understanding of material properties. The production process involves careful consideration of factors such as spring force, material elasticity, and the geometry of the joint to ensure a secure and reliable connection. This complexity can increase design time and require more advanced manufacturing techniques, which may not be feasible for all projects or manufacturers, particularly those with limited resources or expertise in snap-fit design.





Prone to Breakage



Snap-fit joints can be susceptible to breakage if subjected to excessive stress or improper handling. The repeated flexing and bending of the material can lead to fatigue and eventual failure, especially in high-load applications or when the joints are made from brittle materials. Additionally, improper assembly or misalignment can place undue stress on the joints, increasing the risk of breakage and compromising the integrity of the connection.





Weaker Than Permanent Joints



Compared to permanent joints like welding or adhesive bonding, snap-fit joints generally offer lower load capacity and strength. They are best suited for applications where moderate forces are expected and where the convenience of assembly and disassembly outweighs the need for maximum strength. In high-load or high-stress applications, traditional fastening methods may provide a more reliable and durable connection, making snap-fit joints less suitable for these scenarios.







How to Design Snap-Fit Joints – Design Calculations





Designing snap-fit joints requires a combination of geometric precision and material understanding to ensure that the joints function as intended. Proper design calculations are essential to achieve the desired performance, reliability, and longevity of the snap-fit connections. This section outlines the key design calculations and considerations necessary for creating effective snap-fit joints.

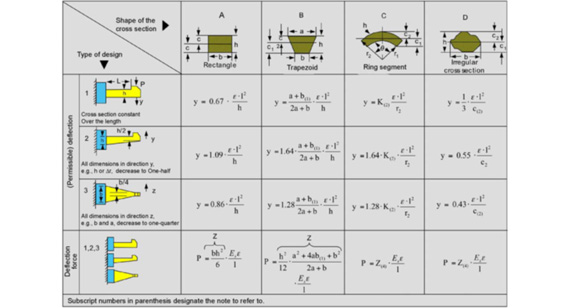

snap fit design calculations





Symbols



When designing snap-fit joints, several symbols and parameters are commonly used to represent various aspects of the design:



  • y: Allowable deflection
  • b: Root width
  • c: Center of gravity (distance between outer fiber and neutral fiber)
  • E: Spring constant (percentage/100)
  • l: Arm length
  • K: Geometry factor
  • h: Root thickness
  • Es: Secant modulus
  • P: Allowable deflection force
  • Z: Section modulus (Z = I c; where I = Axial moment of inertia)



These symbols represent the critical factors that influence the performance and reliability of snap-fit joints, allowing designers to calculate and optimize the joint’s dimensions and material properties.





Cantilever Snap-Fit Design Calculations



Allowable Undercut



The allowable undercut is the maximum depth that the snap-fit can engage with the mating part without causing interference or excessive stress. Proper calculation ensures that the joint can snap into place smoothly while maintaining sufficient strength.



Maximum Stress and Maximum Strain



Calculating the maximum stress and strain involves determining the forces that the snap-fit joint will experience during operation. This ensures that the material selected can withstand these forces without permanent deformation or failure.



Deflection Force, Mating Force



The deflection force is the force required to engage or disengage the snap-fit joint, while the mating force is the force that keeps the joint securely connected. Balancing these forces is crucial for achieving a reliable and functional snap-fit connection.





Twist-On Snap-Fit Design Calculations



Deflection



Deflection refers to the amount the material bends or flexes during the snapping process. Proper deflection calculation ensures that the joint can engage smoothly without excessive bending that could lead to material fatigue or breakage.



Deflection Force



The deflection force is the force required to twist the joint into the locked position. Calculating this force helps in selecting the appropriate material and geometry to achieve a balance between ease of assembly and joint security.





Annular Snap-Fit Design Calculations



Allowable Undercut



Similar to cantilever designs, annular snap-fit joints require precise calculation of the allowable undercut to ensure proper engagement without causing stress concentrations or material failure.



Mating Force



The mating force is critical in annular snap-fit designs to ensure that the joint remains securely connected under operational stresses. Proper calculation of mating force helps in designing joints that are both secure and easy to assemble.







Common Problems with Snap-Fit Designs





Despite their advantages, snap-fit joints can encounter several common problems that affect their performance and reliability. Identifying and addressing these issues during the design and manufacturing process is essential for creating effective and durable snap-fit connections.



Cantiliver Snap Fit Joint Representation



Stress Concentrations



Stress concentrations occur when forces are unevenly distributed within the snap-fit joint, leading to localized areas of high stress. These concentrations can weaken the joint and increase the risk of failure.



Creep



Creep refers to the gradual deformation of the snap-fit joint under sustained load over time. This can lead to a loss of tension and a decrease in the joint’s holding strength, compromising its reliability.



Fatigue



Repeated loading and unloading cycles can cause material fatigue, leading to cracks and eventual breakage of the snap-fit joint. Fatigue is a significant concern in applications where the joint is frequently engaged and disengaged.



Tolerance Issues



Precision in manufacturing is crucial for snap-fit joints. Tolerance issues, where parts do not fit together perfectly, can lead to improper engagement, increased stress, and reduced performance of the joint.



Environmental Conditions



Exposure to harsh environmental conditions, such as extreme temperatures, moisture, and chemicals, can degrade the materials used in snap-fit joints, reducing their effectiveness and longevity.







Best Tips for Designing Durable Snap-Fit Joints





Designing durable snap-fit fittings requires a combination of precise engineering and thoughtful material selection. By following best practices, designers can create joints that are reliable, long-lasting, and capable of withstanding the demands of their applications.





Proper Tolerances



Ensuring that all parts fit together within specified tolerances is essential for the proper functioning of snap-fit joints. Tight tolerances prevent misalignment and reduce stress concentrations, enhancing the joint’s reliability and performance.





Cantilever Bottom Radius



A well-designed cantilever bottom radius helps distribute stress more evenly, reducing the likelihood of material fatigue and breakage. This feature enhances the overall durability of the snap-fit joint.





Wide Clamp



Incorporating a wide clamp area in the snap-fit design helps distribute the load more evenly across the joint, preventing localized stress and improving the joint’s strength and stability.





Stops and Lugs



Including stops and lugs in the snap-fit design helps control the movement of the joint, ensuring that it engages and disengages smoothly. These features prevent over-flexing and reduce the risk of stress concentrations.





Tapered Design



A tapered design in snap-fit joints allows for smoother engagement and disengagement, reducing the force required to assemble the joint and minimizing wear on the components.





Tapered Snap-Fit



Implementing a tapered snap-fit enhances the flexibility and durability of the joint, allowing it to accommodate slight misalignments and reducing the risk of material fatigue.







Applications of Snap-Fit Joints

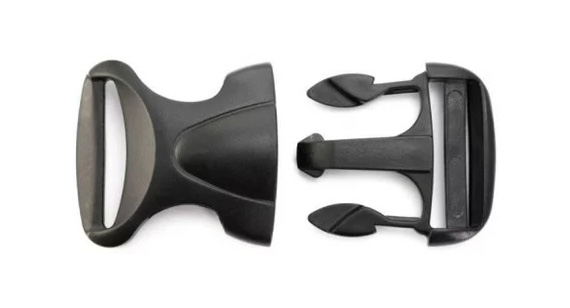

Snap-fit fittings are versatile components used across various industries to facilitate the assembly of products. Their ability to provide secure and reliable connections without additional hardware makes them ideal for a wide range of applications.

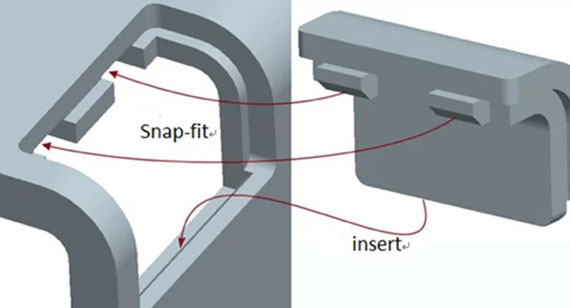

snap fit joints design



Snap-Fits



Snap-fits are commonly used in plastic assemblies, allowing for the quick and easy assembly of components in consumer electronics, automotive parts, and household appliances. They provide a secure connection that can be easily disassembled for repairs or upgrades.





Pen Caps



In the stationery industry, snap-fit joints are used to attach pen caps securely to the pen body. This ensures that the cap stays in place during use while allowing for easy removal when needed.





Cover Snaps

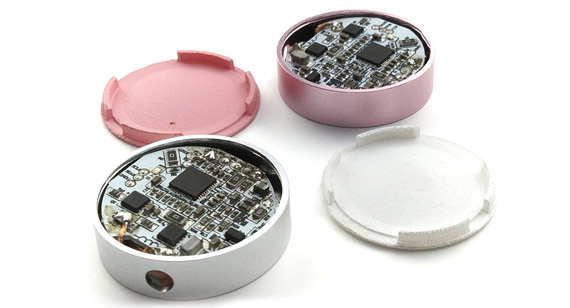

Cover snaps are used in various products, such as electronic housings and appliances, to secure protective covers. These snaps provide a reliable connection that protects internal components from dust, moisture, and damage.





Tupperware Caps



Snap-fit joints are integral to the design of Tupperware and other food storage containers, ensuring that lids fit securely on containers to prevent spills and maintain freshness.







How Are Snap-Fits Made?





The manufacturing of snap-fits involves several key steps that ensure the joints are precise, durable, and fit seamlessly with their mating parts. Understanding these processes is essential for producing high-quality snap-fit fittings that meet the demands of various applications.

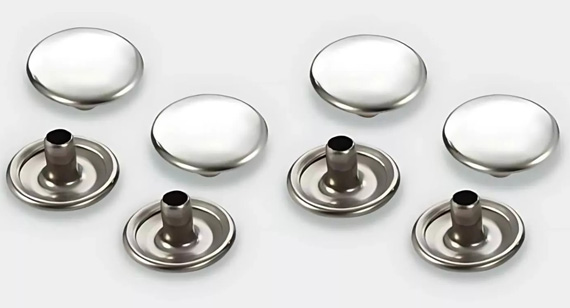

metal snap fasteners



Choosing a Design



Selecting the appropriate snap-fit design based on the application requirements is the first step in the manufacturing process. Factors such as load capacity, ease of assembly, and environmental conditions must be considered to determine the most suitable snap-fit type.





Choosing a Material



Material selection is critical for the performance and durability of snap-fit joints. Common materials include various plastics, metals, and composites, each offering different properties that cater to specific application needs.





Stamping/Forming



For metal snap-fits, stamping and forming processes are used to shape the components accurately. These processes involve cutting and bending metal sheets or wires to create the desired snap-fit geometry.





Plating



Plating is often applied to metal snap-fits to enhance their corrosion resistance and improve their appearance. Common plating methods include electroplating and anodizing, which provide a protective and decorative surface layer.





Quality Testing



Quality testing ensures that snap-fit joints meet the required specifications and performance standards. Tests may include load testing, fatigue testing, and dimensional inspections to verify the integrity and reliability of the fittings.







How Do I Install and Maintain a Snap-Fit Fitting?





Proper installation and maintenance of snap-fit fittings are essential for ensuring their longevity and performance. Following best practices during installation and routine maintenance can prevent common issues and extend the life of your snap-fit joints.



How to Install



Consider Snap-Fit Fitting Sizes



Selecting the correct size for snap-fit fittings is crucial to ensure a proper fit and secure connection. Measure the dimensions of the mating parts accurately and choose snap-fits that match these specifications to avoid misalignment and stress concentrations.



Alignment



Proper alignment during assembly is essential for the effective engagement of snap-fit joints. Misaligned parts can cause undue stress on the fitting, leading to premature failure. Ensure that all components are correctly positioned before snapping them together.



Match



Matching the snap-fit design with the mating part is vital for a secure connection. Ensure that the snap-fit features complement the grooves or recesses in the mating part, providing a seamless and strong bond.





How to Maintain



Regular Inspections



Conduct regular inspections of snap-fit joints to identify any signs of wear, damage, or stress. Early detection of issues allows for timely maintenance or replacement, preventing further damage and ensuring the continued reliability of the joint.



Remove Contaminants



Keep snap-fit joints clean by removing any contaminants such as dust, dirt, or debris that can interfere with the engagement and disengagement of the joint. Use appropriate cleaning methods to maintain the smooth operation of the fittings.



Structural Integrity



Monitor the structural integrity of snap-fit joints by checking for any deformation, cracks, or other signs of fatigue. Maintaining the integrity of the fittings ensures that they continue to provide a secure and reliable connection.



Avoid Excessive Force



Handle snap-fit joints with care to avoid applying excessive force during assembly or disassembly. Overloading the joint can lead to material fatigue, deformation, or breakage, compromising the performance and longevity of the fitting.







Advantages and Disadvantages of Using Snap-Fit Joints in Plastics







Snap-fit fittings are widely used in plastic assemblies due to their versatility and efficiency. However, like any fastening method, they come with their own set of advantages and disadvantages that must be considered during the design and manufacturing process.



snap fit in plastic parts



Advantages



  • Cost-Effective: Snap-fit fittings reduce the need for additional hardware, lowering material and assembly costs.
  • Fast Assembly: The ease of snapping parts together speeds up the production process, increasing manufacturing efficiency.
  • No Tools Required: Assembly and disassembly can be done by hand without the need for specialized tools, simplifying the process.
  • Aesthetic Appeal: Snap-fit joints provide a clean and seamless appearance, enhancing the overall look of the product.
  • Reusability: Many snap-fit joints can be reused multiple times, making them suitable for products that require frequent assembly and disassembly.



Disadvantages



  • Limited Load Capacity: Snap-fit fittings may not be suitable for high-load applications, as they can be prone to breakage under excessive stress.
  • Material Fatigue: Repeated flexing and bending can lead to material fatigue, reducing the lifespan of the joint.
  • Complex Design Requirements: Designing effective snap-fit joints requires careful consideration of material properties and joint geometry, which can complicate the design process.
  • Tolerance Sensitivity: Precise manufacturing is essential to ensure that snap-fit joints engage correctly, making them sensitive to manufacturing tolerances and potentially increasing production complexity.





Major Applications of Snap-Fit Joints





Snap-fit fittings are utilized across a broad spectrum of industries due to their versatility and efficiency in assembly processes. Their ability to provide secure and reliable connections without additional hardware makes them ideal for various applications.



snap fit joints parts design





Consumer Electronics



In consumer electronics, snap-fit fittings are used to assemble components such as smartphone housings, laptop casings, and electronic enclosures. These fittings allow for easy assembly and disassembly, facilitating repairs and upgrades while maintaining a sleek and compact design.





Automotive Industry



The automotive industry relies on snap-fit fittings for assembling interior components, dashboard panels, and trim pieces. Snap-fit joints provide secure connections that can withstand vibrations and movements, ensuring the durability and reliability of automotive interiors.





Medical Devices



In the medical field, snap-fit fittings are used in the assembly of medical devices and equipment. These fittings provide secure and sterilizable connections that meet stringent hygiene and safety standards, ensuring the reliability and functionality of medical instruments.





Toys and Consumer Goods



Snap-fit fittings are commonly found in toys and various consumer goods, where ease of assembly and durability are essential. They allow for the quick and safe assembly of complex parts, enhancing the user experience and ensuring the longevity of the product.





Packaging



In the packaging industry, snap-fit fittings are used to create secure closures for containers and boxes. These fittings provide a reliable seal that protects the contents from spills and contamination while allowing for easy opening and resealing.







Conclusion



Snap-fit joints are a versatile and efficient fastening method that offers numerous advantages in modern manufacturing and assembly processes. Their ability to provide secure connections without the need for additional hardware simplifies assembly, reduces costs, and enhances the overall quality and aesthetics of products. Understanding the different types of snap-fit fittings, their applications, and the best practices for design and manufacturing is essential for optimizing your CNC machining projects and delivering high-quality, reliable products.



Despite their benefits, snap-fit joints come with certain limitations, such as limited load capacity and sensitivity to manufacturing tolerances. By carefully considering these factors during the design and manufacturing process, you can create durable and effective snap-fit connections that meet the specific needs of your applications. Whether you’re engaged in custom CNC machining, operating within a CNC machining factory, or handling CNC prototype machining, snap-fit joints offer a practical and reliable solution for a wide range of assembly challenges.



At VMT CNC Machining Services, we specialize in creating high-quality snap-fit fittings tailored to your specific requirements. Our expertise in CNC machining ensures that each snap-fit joint is precisely manufactured to meet the highest standards of performance and durability. Partner with us to leverage the benefits of snap-fit joints in your manufacturing projects, enhancing efficiency, reliability, and overall product quality.





Get an instant quote





VMT CNC Machining Services Manufacturers



VMT CNC Machining Services stands at the forefront of the manufacturing industry, offering top-notch CNC machining parts and custom CNC machining solutions. Our state-of-the-art CNC machining factory is equipped with advanced machinery and skilled technicians who are adept at producing high-precision snap-fit fittings and other critical components. We understand the intricacies of snap-fit joint design and manufacturing, ensuring that each part we produce meets the stringent requirements of various industries, including automotive, electronics, medical devices, and consumer goods.



Our commitment to quality and excellence drives us to deliver CNC machining services that exceed expectations. Whether you need CNC prototype machining for testing and development or large-scale production runs for commercial manufacturing, VMT has the expertise and resources to handle your projects efficiently and reliably. By partnering with VMT CNC Machining Services, you gain access to a team dedicated to delivering superior CNC machining parts that enhance the performance and reliability of your products.





CNC Machining Services Manufacturers





FAQs



What Are Snap-Fit Joints?


Snap-fit fittings are a type of fastening method used to connect two or more parts without the need for additional hardware. They rely on the elasticity and geometry of the materials to create a secure and reliable connection, allowing for easy assembly and disassembly.





What Are the Common Processes for Producing Snap-Fit Joints?


Common processes for producing snap-fit fittings include injection molding for plastic components, CNC machining for metal fittings, stamping and forming for metal parts, plating for corrosion resistance, and quality testing to ensure performance and reliability.





What Materials Can Be Used for Snap-Fit Joints?


Snap-fit fittings can be made from various materials, including plastics (such as polypropylene and ABS), metals (such as stainless steel and aluminum), composites, and rubber. The choice of material depends on the application requirements, including load capacity, flexibility, and environmental conditions.





What Are the Best Materials for Snap-Fit Joints?


The best materials for snap-fit fittings are those that offer the necessary balance of strength, flexibility, and durability. Common choices include polypropylene for its excellent flexibility and impact resistance, ABS for its strength and rigidity, and stainless steel for its high load capacity and corrosion resistance.





What Are the Correct Tolerances for Snap-Fit Designs?


Correct tolerances for snap-fit designs depend on the specific application and material used. Generally, tight tolerances are required to ensure a precise fit and reliable connection. It’s essential to follow design guidelines and industry standards to determine the appropriate tolerances for your snap-fit joints.





What Are the Main Components of Snap-Fit Joints?


The main components of snap-fit fittings include the flexible arms or beams that engage with the mating part, the locking features that hold the parts together, and the base or housing that provides structural support. Additional features may include stops, lugs, and undercuts to enhance the performance and reliability of the joint.





What Are the Best Materials for Making Annular Snap-Fit Joints?


Annular snap-fit fittings are best made from materials that offer high strength and flexibility, such as polypropylene, ABS, and nylon. These materials provide the necessary balance of rigidity and elasticity to ensure a secure and reliable connection.





What Materials Are Best for Cantilever Snap-Fit Joints?


Cantilever snap-fit fittings are best made from materials that can withstand repeated flexing without fatigue, such as polypropylene, nylon, and certain types of stainless steel. These materials provide the flexibility and durability needed for effective cantilever snap-fit connections.





Are Metals Compatible with Snap-Fit Joints?


Yes, metals are compatible with snap-fit fittings, particularly when precise CNC machining processes are used to create the necessary geometries. Metal snap-fit fittings, such as those made from stainless steel or aluminum, offer high load capacity and durability, making them suitable for demanding applications.





What Are the Ideal Tolerances for Snap-Fit Fitting Designs?


Ideal tolerances for snap-fit fitting designs vary based on the application and materials. Generally, tight tolerances (within ±0.1 mm) are preferred to ensure a precise fit and reliable connection. It’s important to follow design guidelines and conduct thorough testing to determine the optimal tolerances for your specific snap-fit joint.





What Are the Alternatives to Snap-Fit Joints?


Alternatives to snap-fit fittings include traditional fastening methods such as screws, bolts, nuts, rivets, and adhesives. Each method has its own set of advantages and disadvantages, making them suitable for different applications based on factors like load capacity, assembly speed, and ease of disassembly.





How Does a Snap-Fit Fit Work?


A snap-fit fit works by using the flexibility of the material to bend and engage with a corresponding feature in the mating part. When the parts are pressed together, the flexible arms or beams bend to allow the joint to lock into place, providing a secure and reliable connection. The design ensures that the joint can be easily assembled and disassembled without compromising the integrity of the connection.









<

Latest posts

Upload 2D/3D drawings

Upload Your Files or Contact inquiry@vimetal.com.cn to Get Instant Quote (Please attach 2D CAD drawings and 3D CAD models in any format including STEP, IGES, DWG, PDF, STL, ZIP, etc.).

Upload files ( Max file size: 20MB )
+86 15099911516
loading
