Published by VMT at Jan 01 2025 | Reading Time：About 5 minutes
Are you constantly facing alignment problems, inconsistent part quality, or time-consuming setups when machining components in your workshop? Many manufacturers struggle with stabilizing workpieces effectively, leading to inaccuracies, high scrap rates, and inefficient production. These issues often stem from not using the right clamps and fixtures or failing to optimize their design for the machining task at hand. Thankfully, understanding clamps and fixtures, their differences, and how to design them properly can revolutionize your machining operations. In this comprehensive guide, we’ll dive into the essentials of clamps and fixtures in CNC machining manufacturing, revealing how they can vastly improve part stability, precision, and cost-effectiveness for your CNC machining factory, custom CNC machining projects, and CNC prototype machining endeavors.
Clamps and fixtures are specialized workholding devices used in CNC machining to securely hold, support, and position parts. Clamps apply pressure to prevent movement, while fixtures provide a stable framework to guide tools and ensure precise alignment. Mastering fixture and clamp design boosts production efficiency, reduces setup times, and guarantees consistent quality across CNC machining parts.
To fully grasp why clamps and fixtures are integral to CNC machining services, let’s begin by defining what each device does and exploring the nuances in their usage. From understanding their fundamental differences to exploring various types, we’ll uncover how strategic clamp and fixture design can elevate your machining capabilities and transform your operations.
Foreword

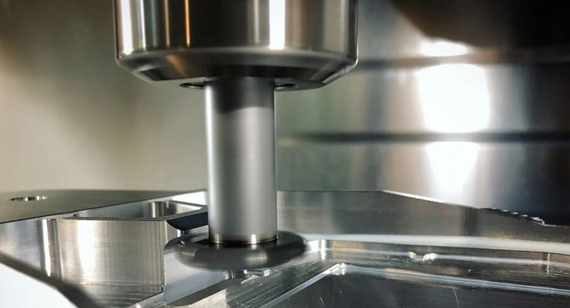

In the realm of CNC machining manufacturing, workholding devices like clamps and fixtures are indispensable. They ensure components remain stable under the intense forces of cutting tools, delivering repeatable precision even in high-volume or complex machining tasks. Whether it’s a straightforward milling operation or a multi-axis turning job in a CNC prototype machining environment, the correct choice and design of clamps and fixtures can make the difference between seamless production and hours of rework. This article outlines the significance of these devices, their core differences, best practices in design, and how to apply them effectively to maintain quality, reduce costs, and meet the rigorous demands of modern manufacturing.
A clamp is a mechanical device used to hold or apply pressure on a workpiece during CNC machining. By exerting force—usually through mechanisms like screws, levers, or hydraulics—a clamp ensures the workpiece remains motionless under the stress of cutting forces. In simpler terms, the clamp’s job is to “grab” the part and keep it steady.
Clamps come in myriad forms and vary widely in complexity and purpose. From a basic hand screw clamp to advanced hydraulic or pneumatic clamps controlled via a CNC machine, each type is geared toward holding a particular shape or size of workpiece. However, all clamps share a few essential features: they must grip reliably without damaging the part, and they must be easy to operate and adjust.
Because clamps make direct contact with the workpiece, designers must consider the material of both the clamp and the component being machined. For example, using high-pressure steel clamps on soft aluminum without protective inserts might leave unwanted marks. Similarly, a clamp made of a softer metal could wear quickly if used on hardened steel parts over repeated cycles. In CNC machining part design, factoring clamp interface surfaces is vital to ensure the correct finishing and durability of both the clamp and the part.
While clamps excel at securing parts firmly, they lack the guiding or locational features typically provided by fixtures. Nonetheless, they form the backbone of many holding solutions, particularly for non-standard or irregularly shaped components in custom CNC machining. Consequently, properly designed clamps are essential for short-run prototyping, variable production volumes, or specialized projects in a CNC machining factory setting, reinforcing the synergy between clamps and advanced tooling processes.

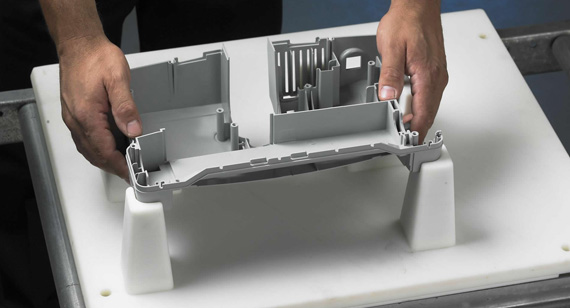

A fixture is a robust workholding device that not only secures the workpiece but also provides a reference or guide for the machining tool. Unlike clamps, which focus solely on gripping, fixtures often include locators, indexes, or alignment features, ensuring each part is consistently positioned for accurate machining. This consistency is especially critical in high-volume production runs or precision operations where repeated reference points are mandatory.
Where clamps can be as simple as a vise or bracket that grips a part, fixtures are more specialized, often custom-designed for a specific part geometry or machining sequence. They usually mount directly onto the machine bed or a T-slot table, offering unwavering stability. For instance, in CNC machining services involving the automotive sector, large, heavy fixtures might hold cylinder heads or engine blocks in exact positions for multi-axis milling or drilling.
The intricacy of fixtures can vary drastically. Simple fixtures might just use a few pins or blocks for referencing, while complex ones might incorporate sensors, hydraulics, or vacuum systems to keep parts in place. Additionally, fixtures commonly possess design features that facilitate efficient cutting tool access, minimizing interference. For example, a fixture might feature an open-sided layout so tools can pass unobstructed, reducing the risk of collisions and ensuring a thorough machining process.
By controlling the position, orientation, and stability of the workpiece, fixtures elevate the precision and efficiency of CNC machining manufacturing. They effectively reduce manual measurements, lower the margin of error, and boost throughput. In contexts like CNC prototype machining, fixtures speed up design iterations by streamlining setups. Overall, a well-engineered fixture is instrumental in sustaining part uniformity and quality, fulfilling the high-precision demands of modern CNC machining factory operations.
While “jigs” and “fixtures” are often mentioned interchangeably, they serve distinct roles in manufacturing. Understanding these subtleties can significantly improve how you plan custom CNC machining operations, ensuring each tool or device is leveraged to its fullest potential. Below, we explore the primary differences between jigs and fixtures, shedding light on how each contributes to streamlining production and enhancing part accuracy.
Understand the Subtle Differences Between These Manufacturing Tools:
Jigs Improve Manual Work

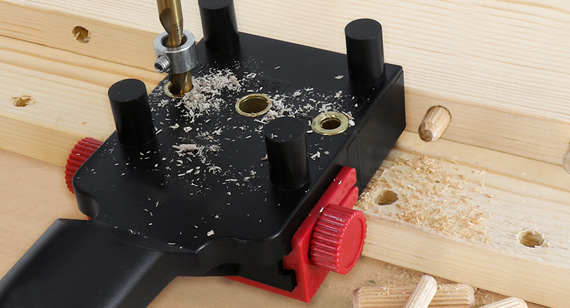

Jigs are typically used to guide a cutting tool or drilling bit toward the exact location on the workpiece. Their prime function is to simplify manual labor by providing precise holes or cuts without needing extensive measurement each time. For instance, a drill jig might have bushings so the operator can quickly align holes.
Automate Manufacturing Process Jigs
Some advanced jigs include pneumatic or mechanical actuators, effectively automating portion of the process. By clamping and guiding simultaneously, jigs reduce human error, expedite repetitive tasks, and raise overall consistency—particularly beneficial for smaller shops that rely on manual or semi-automatic operations.
Combining Jigs and Fixtures to Improve Precision
Jigs and fixtures can be used together. A fixture might hold the part in a stable orientation, while the jig ensures tool guidance. This synergy proves beneficial in high-precision work where both part stability and guided cutting paths are indispensable.
Other Differences Between Jigs and Fixtures Include:
Lightweight vs. Heavy:
Jigs are usually fairly lightweight, as an operator often holds them in place. Fixtures, by contrast, must be heavy enough to provide stability and are often permanently attached to a machine table.
Manual vs. Mechanical:
Jigs can be manually held in place, whereas fixtures are mechanically secured to the workbench or machine. This distinction underscores the greater sophistication fixtures generally possess for stable, repeated operations.
Complexity:
Jigs may require more complex designs if they must guide multiple tools or handle various angles. Fixtures are often simpler in concept but can be large and robust, especially for supporting heavy or large components in a CNC machining factory.
Overall, choosing between jigs and fixtures depends on the nature of the operation, volume of production, and the desired tolerance levels. While jigs excel in manual or semi-automated tasks requiring guided tool alignment, fixtures serve as stable, repeatable platforms for advanced CNC machining parts production.
Jigs and fixtures come in various forms, each tailored to a specific type of machining operation or part geometry. From simple enclosed clamps to complex indexing clamps, these workholding devices address an array of manufacturing challenges. Below, we categorize common jig and fixture types, highlighting their utility in CNC machining design. Although the terms “clamps and fixtures” appear frequently, keep in mind that each device suits different scales and complexities of operation.
Types of Clamps
Types of Fixtures
By understanding this range of jig and fixture types, CNC machining factory managers and engineers can select or design the exact device needed for each step in their custom CNC machining or CNC prototype machining projects, effectively balancing speed, accuracy, and cost.
Though clamps and fixtures are sometimes overlooked as auxiliary components, their role in CNC machining is fundamental to achieving consistency, efficiency, and quality. By providing secure, repeatable means of holding a workpiece, these devices eliminate many variables that could otherwise disrupt machining operations. Below are the top reasons fixtures and clamps are central to CNC machining manufacturing.
Part Holding
Proper workholding ensures the part remains stable during high-speed or high-torque operations. Without adequate clamping, the workpiece may shift, causing dimensional inaccuracies or collisions.
Part Protection
Well-designed clamps and fixtures protect the workpiece from damage or marring, preserving the finish and structural integrity. Protective inserts or specialized clamp materials minimize scratches on soft metals or polished surfaces.
Position Control/Fool-Proofing
Fixtures often include locators or stops that guide the part into the exact orientation needed for machining. This fool-proofing approach streamlines setup time and reduces operator error.
Part Consistency
In high-volume CNC machining services, consistency is critical. Repeatable workholding devices guarantee each part is machined identically, meeting tolerance requirements with minimal scrap.
Set-Up Reduction
With quick-release or modular fixtures, machinists can drastically cut changeover times between jobs, boosting productivity. Standardized fixture plates further ease the transition between different part designs.
Hence, strategic fixture and clamp design forms the backbone of any efficient CNC machining factory. Combined with robust CNC machining part design principles, these elements ensure smoother production, elevated quality, and cost savings that ripple through your entire manufacturing process.
Effective jig and fixture design is a meticulous process that considers an array of factors such as part geometry, machine capabilities, and operational constraints. Tailoring each device to the specific custom CNC machining project or CNC prototype machining task is vital for success. Below are key considerations to bear in mind when designing or selecting jigs and fixtures, ensuring they enhance rather than hinder your machining strategy.
Orientation
Determine the orientation that provides the best tool access with minimal re-clamping. For multi-axis machining, the fixture should support seamless transitions between different tool paths.
Multi-Purpose
Versatile fixtures can handle different but similarly shaped parts or incorporate adjustable elements to accommodate design variations. Such adaptability saves both time and capital.
The device material—often steel, aluminum, or composites—should balance durability with weight. Heavy fixtures are stable but harder to handle; lighter materials risk deflection unless designed with structural reinforcements.
Operation
The nature of the machining process (milling, turning, drilling, etc.) heavily dictates fixture design. For example, turning fixtures must securely center the workpiece along the lathe axis, while milling fixtures need to hold and reference a flat datum.
Constraints
Machine envelope size, travel limits, and collision potential should factor into fixture design. Overly large fixtures may hamper axis movements or clash with tool heads.
Force Analysis
Evaluate the cutting forces or torque your tools will exert. The fixture must withstand these without bending, ensuring the workpiece remains stable.
Tolerance
For precision parts requiring tight tolerances, the fixture must localize the part with minimal play. Hardened contact points or zero-point clamping systems can help maintain alignment.
By carefully weighing these considerations, you can develop jigs and fixtures that amplify productivity, enhance repeatability, and bolster the consistency of CNC machining parts—all while minimizing labor and setup times.
T Slot Plates
T-slot plates are foundational workholding platforms used extensively in CNC machining manufacturing. As their name implies, these plates feature T-shaped grooves along their surface, into which fixtures, clamps, or modular elements can be inserted and tightened. This universal slot pattern allows for flexible arrangement and repositioning of workholding devices, facilitating quick setups for diverse parts and repeated jobs.
The advantage of T-slot plates is their adaptability. Operators can mount multiple fixtures or clamps in different positions, accommodating complex part geometries or multi-part staging for batch processing. Moreover, T-slot plates typically come in standard sizes, enabling easy integration within various machine types—be it a milling center or a hybrid machine. CNC shops with a strong focus on CNC prototype machining often rely on T-slot systems to quickly reconfigure setups between different designs.
When selecting a T-slot plate, considerations include the overall size, slot spacing, and the plate’s material—usually cast iron or steel for rigidity. Quality T-slot plates maintain precise flatness to ensure consistent part positioning. Coupled with robust clamps and fixtures, T-slot plates help reduce cycletime and labor, optimizing throughput in a CNC machining factory environment.

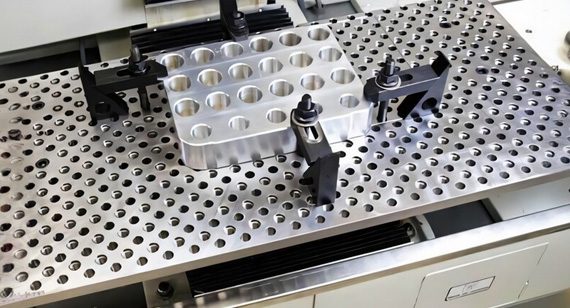

Fixture plates, similar to T-slot plates, serve as standardized bases for mounting workholding elements in custom CNC machining. However, fixture plates often incorporate precision holes or modular holes arranged in a grid pattern rather than T-slots. This hole grid allows the user to attach locating pins, clamps, and other fixtures with high positional accuracy.

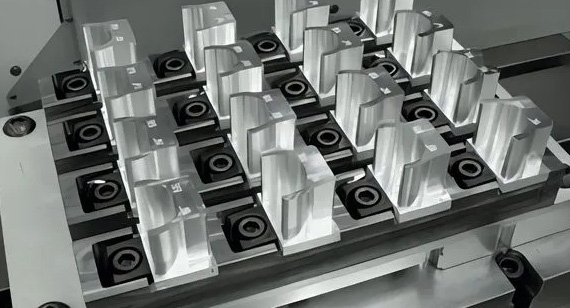

The modular design is particularly advantageous for repetitive or high-precision tasks requiring minimal setup variation. By aligning fixture components with the hole grid, machinists can achieve quick, accurate re-locations of the same or similar parts. Fixture plates also come in various sizes, typically made of hardened steel or aluminum, ensuring both durability and manageable weight.
Adopting fixture plates fosters standardization across multiple machining cells within a CNC machining factory, as operators can swiftly move a fixture-laden plate from one machine to another. This approach reduces machine downtime and promotes consistent part orientation, driving overall production efficiency. Moreover, as CNC machining design evolves, fixture plates can adapt by repositioning or adding new elements without extensive rework.
Effective component placement is fundamental to achieving stable, repeatable results in CNC machining parts production. Machinists typically refer to dedicated reference points—be they pins, stops, or edges—when positioning the workpiece. The aim is to ensure each part sits in precisely the same orientation, cycle after cycle, to maintain uniform dimensioning.
Additionally, the clamp design must account for safe cutting tool clearance. Ensuring no clamp or fixture element intrudes into the intended cutting path is crucial to preventing collisions. Meanwhile, some designs use “window” or “bridge” clamps that leave critical machining zones open for the spindle and tools. This strategy is common in CNC prototype machining, where multiple sides of a part might require operations without frequent re-clamping.
For high-complexity parts with angled features or multi-axis milling requirements, fixtures may incorporate pivot points or adjustable angles to position the component for each cut. Indexing fixtures, for instance, allow 90-degree or 180-degree rotations without removing the part, streamlining multi-face machining. By carefully orchestrating positioning and clamp placement, machinists guarantee that every pass is both safe and dimensionally accurate, a hallmark of premium CNC machining services.
In the realm of CNC machining manufacturing, the synergy between jigs and fixtures drastically elevates quality, speed, and cost-efficiency. These workholding elements ensure accurate, repeatable results, reducing the human error that often plagues manual operations. Below, we explore the core benefits that make jigs and fixtures indispensable in modern shops, from CNC prototype machining to mass production scenarios.
Productivity
By holding workpieces securely and guiding tools effectively, jigs and fixtures slash setup times and expedite cycle times. Operators can simply place a part into a fixture and start machining immediately, eliminating repetitive measurements.
Interchangeability and Quality
Uniform placement leads to consistent dimensional accuracy, so parts from different runs or even different CNC machining factories remain fully interchangeable. Such standardization underpins large-scale assembly processes, especially in automotive or aerospace.
Reduce Skills
Complex layouts or multi-axis alignments that would normally require an expert machinist become more approachable with well-designed jigs and fixtures. Even less experienced operators can produce top-tier results, bridging the skills gap.
Reduce Costs
Minimizing scrap rates and rework profoundly impacts the bottom line. With fewer errors, less wasted material, and minimized downtime, the cost savings accumulate quickly, making jigs and fixtures a sound investment.
Consistency and Accuracy
In a single production run or across multiple batches, jigs and fixtures uphold precise geometric consistency. This uniformity is paramount in industries like medical devices, electronics housings, and performance automotive parts.
Simplicity
Well-engineered fixtures and jigs streamline the entire machining process, converting potentially complex setups into quick, repeatable steps that reduce confusion and rework.
Ease of Use
Practical clamp systems or user-friendly indexing features prevent awkward part orientations or clamp misalignments, enabling fluid transitions between operations.
Repeatability
The same fixture or jig can be utilized across numerous production cycles, guaranteeing parts meet identical specifications each time. This reliability cements client trust and fosters higher throughput.
Safety
Securing workpieces reduces the chance of part ejection or tool snagging. By limiting manual contact, jigs and fixtures lessen operator injury risk and help maintain compliance with safety regulations.
No Manual Measurement and Alignment
Calibration, stops, and locators within fixtures remove the guesswork from part placement. No repeated measuring is required, cutting down on human errors and setup durations.
These advantages highlight why fixture and jig design plays a pivotal role in CNC machining part design. Mastering these devices enables CNC machining services to flourish, achieving stellar consistency, lower costs, and enhanced throughput across all stages of production.
Despite their varying shapes and complexity, most jigs and fixtures share several fundamental components that collectively streamline CNC machining. Recognizing each component and its function helps in both designing new workholding devices and optimizing existing setups. Below, we break down the major elements—body, clamping device, location device, and bushing—and how they synergize for robust CNC machining manufacturing.
Body
The body serves as the structural core or “framework” for the jig or fixture. Typically crafted from robust materials like cast iron, steel, or aluminum, it’s designed to endure cutting forces, mechanical stresses, and repeated tool contact. For heavier or high-torque operations, extra rigidity is paramount. The body often features attachment points for clamps, locators, or additional modular elements. In some designs, it may include cast ribs or gussets for reinforcement, enhancing stability and mitigating vibration.
Clamping Device
Clamping devices are responsible for holding the workpiece securely against the fixture’s locators or references. They come in many forms—toggle clamps, screws, hydraulic or pneumatic cylinders—each suited to particular load conditions and part geometries. Effective clamp design ensures enough friction and compressive force to prevent micromovements during cutting, while also not deforming or marking the part. For instance, a plastic or brass tip might be integrated at the clamp’s contact point to protect soft metal surfaces.
Location Device
Location devices serve the essential function of guiding the workpiece into a precise orientation. Common examples include pins, dowels, bushings, or v-blocks. They help standardize part alignment so that the user simply sets the part onto the fixture, and it nestles into the correct position with minimal guesswork. The arrangement of these locators is crucial; they typically define the datum points from which tool paths reference, ensuring the final part meets tolerance requirements. By meticulously placing locating devices, engineers can remove or reduce the need for repeated measurements in custom CNC machining projects.
Bushing
Bushings are often integrated into jigs (especially drilling jigs) to guide cutting tools. They maintain tool alignment and help avoid tool wander, guaranteeing precise hole diameters and locations. Usually made of hardened steel, bushings can withstand repetitive tool contact without deforming. They’re replaceable when worn, extending the fixture’s lifespan without major overhauls. In advanced setups, bushings may have lubrication channels or coolant holes to minimize heat and friction, particularly in CNC prototype machining tasks or high-volume runs.
Collectively, these components form the backbone of CNC machining fixture design—a synergy that fosters accuracy, repeatability, and operational efficiency. By mastering the interplay between body, clamp, locator, and bushing, you can elevate the reliability and performance of your CNC machining factory operations.
Building a robust jig or fixture isn’t just about clamping a workpiece in place; it’s about optimizing the entire machining process for efficiency, safety, and repeatability. The fundamentals revolve around location points, error prevention, reduced idle time, weight considerations, and material selection. Below we delve into these foundational aspects, outlining how thoughtful jig and fixture design fosters productivity and superior CNC machining parts output.
Location Points
Effective fixture design starts with defining location points that contact the workpiece at known datums or reference faces. These points minimize the risk of part movement under cutting forces and ensure each component is machined identically. Typically, three points define a plane, while secondary points control angular alignment. Achieving stable, repeatable location is the bedrock for part consistency across CNC machining services.
Error Prevention
Designers must foresee potential misalignments or operator mistakes, implementing features like pins, stops, or dowels that guide the part into the only feasible orientation. Also called “fool-proofing,” this strategy drastically cuts errors from manual setups, accelerates throughput, and maintains dimensional accuracy. In some advanced jigs, built-in sensors confirm correct part placement before machining begins.
Reduced Idle Time
Idle time robs you of productivity. Well-crafted jigs and fixtures mitigate downtime by streamlining part loading and unloading. Quick-release clamps or modular fixture plates enable swift part changes, letting machines run continuously. For high-volume or CNC prototype machining environments, these small time-savings accumulate significantly, enhancing overall factory efficiency.
Weight of Jigs and Fixtures
Excessive fixture weight can strain the machine and complicate handling. Conversely, overly lightweight solutions might lack the rigidity to withstand cutting forces. Designers often choose cast iron or high-strength aluminum alloys for a balance of stability and manageable mass. Additional design elements like ribs or gussets help reduce weight while maintaining structural integrity.
With Feet
Many jigs and fixtures include feet or spacer blocks to elevate the device off the machine table. This elevation can facilitate chip clearance, coolant flow, and inspection access. Additionally, feet ease forklift or crane handling for heavier fixtures, enhancing shop floor safety and reconfiguration speed.
Jig and Fixture Materials
Common jig and fixture materials include steel, cast iron, aluminum, composites, and high-performance plastics. Each material offers distinct trade-offs in cost, weight, rigidity, and wear resistance. Steel and cast iron excel in heavy-duty or high-temperature contexts, while aluminum suits lightweight or quick-change applications. Advanced polymer composites are sometimes used for non-critical or non-sparking tasks.
Clamping Device
Clamping devices must integrate seamlessly with the overall fixture design. Whether toggles, screws, or hydraulic systems, they should apply consistent pressure without deforming the part or obstructing essential cutting zones. A clamp’s handle or mechanism should also be accessible and safe for the operator, speeding up part swaps and preventing accidents.
By uniting these fundamental design pillars—location, error-proofing, minimal idle time, balanced weight, suitable materials, and strategic clamping—engineers can craft jigs and fixtures that optimize CNC machining design performance. Mastery of these basics paves the way for advanced features, including coolant lines, automated indexing, or integrated sensor systems for real-time quality control in custom CNC machining or CNC prototype machining projects.
Jigs and fixtures, beyond their primary role of holding and locating workpieces, often include additional features to refine efficiency, safety, and adaptability in CNC machining manufacturing. From coolant management to modular inserts, these supplementary functions cater to specialized machining challenges and help maintain consistent, high-quality outputs. This section outlines extra functionalities that elevate standard workholding solutions into comprehensive, productivity-boosting assets.
Process Cleanliness
Machining inevitably generates chips, dust, and coolant overspray, which can accumulate around the part and hamper precision or finishing. Many fixtures integrate channels or openings that guide debris away from the machining zone, simplifying chip evacuation. Some advanced designs feature vacuum ports or coolant drains to maintain a clear workspace, further minimizing cleaning downtime.
Replaceable Parts and Standardization
Interchangeable or standardized fixture components allow quick swaps when wear or damage occurs. For instance, replaceable hardened bushings or locator pins can be easily switched out, extending the fixture’s service life without a full redesign. The concept of standardization also streamlines fixture inventory management, letting CNC machining services quickly adapt the same fixture for multiple parts with minor modifications.
Coolant Provisions
Fixtures that accommodate coolant lines or nozzles help direct fluid to critical cutting zones, improving heat dissipation and lubrication. This integrated approach is particularly beneficial for deep-hole drilling or multi-axis milling, where standard coolant systems may not adequately reach concealed pockets. Dedicated coolant ports also prevent chip buildup, essential for consistent finishes and tool longevity.
Hardened Surfaces
Key contact or high-wear areas of the fixture are frequently hardened (heat-treated) or coated to resist abrasion and damage from repeated part loading. Such reinforcement ensures that precise alignment features (locators, pins) remain accurate over thousands of cycles, preserving consistent part quality.
Inserts and Shims
Using inserts or shims allows minute adjustments to accommodate minor variances in part dimensions or CNC machine calibrations. Rather than re-manufacturing the entire fixture, operators can tweak alignment by adding or removing these small adaptors. This flexibility benefits CNC prototype machining, where part designs may evolve through iteration, or in scenario of small batch runs.
Home Position
Fixtures often include a designated “home position,” serving as the reference for zeroing the part’s coordinates in CNC machining design. This consistent starting point eliminates guesswork, ensuring each job or part version references the same coordinate system for repeatable outcomes.
Jig Positioning
Jigs rely on clear, often labeled, reference points or stops for fast part insertion and tool guidance. Positioning features can include alignment pins or drilled holes, ensuring the jig itself is placed identically on the machine table each time. This uniformity across shifts or days reduces dependence on operator skill and memory.
Workpiece Handling and Clearance
Designers must allow enough clearance for the tool path, preventing collisions with clamps or fixture walls. Simultaneously, they should optimize the fixture so the operator can load and unload the workpiece without contorting or risking injury. Thoughtful fixture arrangement bolsters speed and comfort, contributing to a safer, more productive CNC machining factory floor.
Ejectors
Ejectors or pushers help release the workpiece once machining is complete. They can be mechanical, pneumatic, or hydraulic, ensuring swift removal of the finished part without prying or tapping. This mechanism benefits high-volume or automated setups, diminishing the cycle time between operations.
Clamping and Tying Devices
Many advanced jigs integrate specialty clamping or tying devices—elastic, pneumatic, or mechanical—to secure delicate or irregular parts. Examples include vacuum-based clamps for brittle composites or quick-locking toggles for intricate plastic parts. These solutions maintain part stability and expedite transitions between different operations or part shapes.
Safety
Safety features like guards, handles, or lockout systems are integral. Exposed bolts or sharp edges are minimized to prevent operator harm, and fail-safes can be incorporated to ensure the machine stops if a clamp or fixture malfunctions. This approach not only adheres to regulatory standards but also fosters a secure environment for efficient CNC machining operations.
With rising automation and multi-axis machining, CNC-specific jigs and fixtures require adaptability to changing tool paths. They often include servo-driven indexers or probes that interface with the machine controller, providing real-time feedback. By integrating sensor systems, these advanced workholding solutions facilitate dynamic adjustments mid-process, guaranteeing precision across complex CNC machining design tasks.
3D printing offers cost-effective, rapid prototyping for jigs and fixtures, especially for low-volume or short-run production. Polymers and polymer composites can be quickly formed into specialized shapes, cutting lead times and expenses. Although not as durable as metal fixtures for heavy-duty tasks, 3D-printed alternatives shine in CNC prototype machining, R&D, or light assembly operations. They can also serve as experimental placeholders before investing in metal tooling, bridging the gap between initial design and final large-scale manufacturing readiness.
Clamps and fixtures, though sometimes overlooked, form the backbone of any stable, efficient, and high-precision CNC machining operation. Whether the goal is simply holding a workpiece firmly or providing complex, multi-axis indexing for advanced parts, these devices are indispensable to CNC machining manufacturing. By distinguishing between clamps (devices that exert pressure) and fixtures (systems that guide, orient, and stabilize parts), machinists and design engineers can tailor solutions that meet specific process demands.
The design considerations—from orientation and rigidity to error-proofing—are paramount for achieving consistent outcomes in CNC machining parts production. Add to that the role of integrated features like T-slot plates, fixture plates, and specialized components (e.g., bushings, shims, or ejection mechanisms), and it’s clear that thorough planning can significantly bolster throughput, product quality, and operator safety. In short, a well-conceived jig or fixture transforms a challenging CNC prototype machining job or high-volume production run into a streamlined, error-resistant operation.
Finally, as technological capabilities expand (like multi-axis machining and 3D printing), so too do the possibilities for clamps and fixtures. Embracing these developments ensures that both custom CNC machining shops and large-scale CNC machining factory environments remain agile, competitive, and ready to tackle the complexities of modern manufacturing. At the heart of every success story in CNC machining services lies a robust, thoughtfully designed system of clamps and fixtures—an essential ingredient for producing reliable, high-quality parts in any sector.
1. What are jigs used for?
Jigs guide cutting tools—like drills—to specific locations on a workpiece, helping operators perform accurate holes or cuts without repeated measurements. They improve manual work by acting as both a clamp and a directional guide for the cutting tool.
2. What is the difference between templates and jigs?
A “template” is a reference pattern for marking or laying out features on a workpiece, while a jig guides the tool during the actual machining operation. Templates lack the mechanical or locator elements that actively direct a cutting tool.
3. What are the disadvantages of jigs?
Jigs can be complex and sometimes costly to design, especially if they must accommodate multiple operations. They are also typically hand-held, which can make them less stable for heavy or high-precision CNC tasks compared to fixtures.
4. How to identify a fixture?
A fixture generally fastens to a machine table or bench and provides stable, repeatable positioning for the workpiece. It is usually heavier than a jig and lacks built-in guiding mechanisms for the cutting tool.
5. What are the most common fixtures?
Plate fixtures, vise jaw fixtures, chucks, collets, and indexing clamps rank among the most frequently encountered. They handle a range of operations, from milling and turning to drilling and grinding, each offering specific benefits for CNC machining parts production.
