Published by VMT at Dec 11 2024 | Reading Time：About 8 minutes
Are you struggling to find a reliable material that can withstand harsh chemical environments, extreme temperatures, and still maintain precise dimensions for your custom CNC machining projects? Finding a suitable material for complex, high-performance components can feel like a never-ending quest. Many engineers, product designers, and procurement specialists face this frustration when searching for materials that can deliver on chemical stability, low friction, thermal resilience, and reliability. Metals might corrode, other plastics may warp or lose integrity under stress, and certain alloys are too heavy or too costly. The problem becomes more pronounced when the product’s success hinges on using a material that consistently meets demanding application requirements—especially in industries like automotive, medical, food processing, aerospace, and electronics.
Perhaps you’ve tried engineering plastics before, only to be disappointed by cracking under mechanical loads, creeping at elevated temperatures, or failing in corrosive chemical conditions. Maybe you’ve encountered serious production hiccups due to dimensional instability, excessive burr formation, or rough surface finishes that reduce part longevity and performance. These setbacks waste time, money, and resources, all while straining your relationship with customers who expect top-notch quality and prompt delivery. The frustration mounts when the chosen material doesn’t just perform poorly—it complicates the entire machining process, making it harder for your CNC machining factory or CNC machining services provider to deliver consistent and reliable results. There’s nothing worse than discovering that your carefully selected plastic simply can’t handle the demands of your application, leading to remachining costs, missed deadlines, and damaged reputations.
Enter Teflon, also known as PTFE, a remarkable fluoropolymer that solves many of these headaches. Machining Teflon/PTFE provides a gateway to creating plastic CNC machining parts that excel in high-temperature environments, resist aggressive chemicals, and minimize frictional losses. With Teflon CNC machining parts, you can achieve tight tolerances more consistently than with other fluoropolymers, handle extreme operating conditions from -260°C to 260°C, and maintain dimensional stability over a long service life. By mastering the art of machining Teflon/PTFE, your CNC machining factory can produce reliable, custom CNC machining components that stand up to challenging applications in automotive, medical, aerospace, and beyond. Combined with modern CNC prototype machining techniques and a controlled production environment, PTFE machining grants you the flexibility to meet complex design requirements, reduce waste, and deliver results that impress even the most demanding clients.
For machining Teflon/PTFE plastic parts, choose high-quality virgin or filled PTFE grades, use sharp cutting tools, moderate cutting speeds, and ample coolant. Control tolerances loosely to avoid warping, and plan deburring in advance. PTFE’s chemical resistance, low friction, and thermal stability make it ideal for custom CNC machining projects in automotive, medical, and aerospace industries.
With a basic grasp of what makes Teflon (PTFE) so valuable and how to approach machining it, let’s delve deeper into the specifics. Understanding Teflon’s unique characteristics, grades, and processing advantages will help you optimize plastic CNC machining parts production. From chemical resistance to machinability tips, the following sections will walk you through every key detail. We’ll also explore the constraints and possible drawbacks, so you can make informed decisions about when and how to leverage PTFE. By thoroughly examining Teflon’s properties, process considerations, and the CNC machining environment, you’ll be ready to select the right PTFE grade, set realistic tolerances, and adopt best practices that deliver excellent results. As we move forward, we’ll also highlight the benefits of choosing CNC machining services that specialize in custom CNC machining of Teflon parts, ensuring you can confidently partner with a trusted CNC machining factory for your next project. Let’s start by looking at Teflon’s fundamental attributes and why it stands out among plastic materials.
Introduction
Teflon, the brand name associated with polytetrafluoroethylene (PTFE), represents one of the most revolutionary plastic materials introduced to modern manufacturing. Discovered mid-20th century, PTFE quickly gained a reputation for its outstanding chemical inertness, wide thermal operating range, and remarkably low coefficient of friction. Today, PTFE remains an essential material in countless industries, from automotive and aerospace to food processing, medical device manufacturing, and beyond. Its distinctive combination of properties—such as resistance to acids, bases, solvents, and UV exposure—sets it apart from many other plastics and metals.
When it comes to machining Teflon/PTFE, there are several factors that manufacturers must consider. Unlike metals, PTFE doesn’t behave uniformly under stress, and its softness can pose challenges for achieving tight tolerances or maintaining consistent dimensional stability. However, with the right approach, tooling, and process parameters, PTFE can be machined into intricate geometries and complex shapes that rival parts made from more conventional materials.
This guide delves into the specifics of PTFE machining, examining its material advantages, process considerations, and limitations. Whether you’re an engineer designing custom CNC machining parts or a manufacturer refining production processes, understanding the nuances of machining Teflon can help you deliver superior results consistently.
Beyond material fundamentals, we’ll also discuss why CNC machining is often a better choice than other manufacturing methods when it comes to PTFE. CNC prototype machining allows rapid testing of part designs, ensuring that you get accurate, reliable plastic CNC machining parts before scaling up to full production runs. This flexibility, combined with PTFE’s inherent stability and inertness, makes for a winning combination in industries that demand precision, longevity, and safety. Whether you’re manufacturing sealing solutions like O-rings, high-performance bearings, valves, or custom fittings, PTFE can deliver on both performance and cost-effectiveness.
Moreover, this guide covers the various applications of PTFE and how it fits into broader industry sectors. From automotive components exposed to extreme environments to medical devices requiring biocompatibility and ease of sterilization, Teflon’s versatility opens up nearly endless possibilities. We’ll also examine alternative fluoropolymers and plastics that share some similarities with PTFE, helping you determine if PTFE is the best fit or if another material might better suit your project’s needs.
Finally, we’ll address frequently asked questions to clear up common misconceptions about PTFE machining. Topics like safety considerations, toxicity concerns, tolerance ranges, and thermoplastic vs. thermoset classifications will be discussed openly. By doing so, we hope to remove any lingering doubts and provide a well-rounded perspective on this remarkable plastic.
In short, this introduction sets the stage: PTFE is a unique and powerful material that, when machined properly, can yield extraordinary results. By understanding its properties, selecting the right grades, and following best practices in CNC machining, you can harness its full potential for your next project. Let’s begin by exploring what PTFE material truly is.
Polytetrafluoroethylene (PTFE), commonly known by the DuPont brand name Teflon, is a synthetic fluoropolymer composed of carbon and fluorine atoms. Its molecular structure—a long chain of carbon atoms fully surrounded by fluorine atoms—confers an array of exceptional properties. PTFE is best known for its chemical inertness; it resists virtually all solvents, acids, and bases, making it incredibly stable in harsh chemical environments. This attribute alone has led to PTFE’s widespread use in applications that involve aggressive media, high-purity processes, or contamination-sensitive systems.
However, chemical resistance is just one part of PTFE’s appeal. PTFE possesses one of the lowest coefficients of friction among solid materials, allowing parts to glide smoothly against one another. This property is essential in applications like bearings, bushings, and gears, where reducing friction can prolong component life, reduce wear, and improve energy efficiency. Additionally, PTFE remains flexible and functional at temperature extremes, operating effectively from as low as -260°C to as high as 260°C without significant loss of integrity. Its thermal stability makes PTFE valuable in applications that encounter rapid temperature changes or sustained high-temperature conditions.
Another noteworthy property of PTFE is its nonstick surface. This characteristic prevents substances from adhering, making it incredibly easy to clean and maintain. PTFE’s hydrophobic nature allows it to repel water and other liquids, which is why it’s so commonly used in food processing equipment, cookware coatings, and medical devices that require sanitary conditions. In terms of electrical insulation, PTFE is an excellent dielectric material, suitable for use in high-frequency electronics, cable insulation, and other electrical components requiring stable, interference-free performance.
From a CNC machining perspective, PTFE’s low density and softness offer both advantages and challenges. While the material can be cut and shaped relatively easily, its softness also means it can deform under pressure, resulting in dimensional changes and difficulty in maintaining very tight tolerances. Additionally, PTFE’s thermal expansion coefficient is relatively high, which can cause slight dimensional shifts with temperature fluctuations. Therefore, machinists must pay close attention to cutting speeds, feeds, and tool selection to ensure minimal deformation and accurate final dimensions.
In many ways, PTFE stands apart from other engineering plastics, such as PEEK or Nylon. While it may not have the mechanical strength or rigidity of some high-performance polymers, it excels in chemical resistance and temperature stability. This makes PTFE the go-to choice for critical sealing solutions, chemical transport manifolds, and valves that must endure corrosive or high-temperature environments.
It’s also worth noting that PTFE is classified as a thermoplastic. This means it can soften when heated beyond a certain point (though that point is quite high for PTFE) and harden upon cooling, theoretically allowing for processes like injection molding. However, PTFE’s extremely high melting temperature and its tendency to degrade before fully melting make conventional thermoplastic processing methods challenging. Instead, PTFE is often processed via compression molding and then machined into final shapes, making CNC machining an indispensable technique for achieving precise PTFE parts.
In summary, PTFE is a remarkable material that combines chemical inertia, a broad operating temperature range, low friction, and excellent insulation. These properties yield countless opportunities in diverse industries. Understanding these foundational attributes is crucial before we explore the benefits, process advantages, and limitations of machining Teflon/PTFE.
Introduction: Machining Teflon/PTFE unlocks a range of material advantages that make it a prime candidate for plastic CNC machining parts. Whether you’re producing custom components that must resist corrosive chemicals, withstand extreme temperatures, or operate under high load with minimal friction, PTFE can rise to the challenge. This section explores the remarkable benefits of PTFE, from its chemical resistance and hydrophobicity to its thermal stability and food-grade safety. We’ll also discuss how these attributes translate into tangible process advantages during machining, such as easier chip evacuation and reduced risk of part deformation.
Material Advantages of Machining PTFE (Teflon)
Chemical Resistance
One of PTFE's most renowned properties is its outstanding chemical resistance. Unlike many plastics that degrade when exposed to certain solvents or acids, PTFE remains inert in nearly all chemical environments. This makes PTFE components ideal for chemical processing equipment, laboratory devices, and fluid handling systems where purity and stability are critical.
UV and Weather Resistance
PTFE exhibits excellent resistance to UV radiation and harsh weather conditions, offering long-term stability in outdoor or high-UV environments. Its hydrophobic nature causes water, oil, and other liquids to bead on the surface, preventing contamination and enabling easy cleaning.
High Impact Strength
The combination of high impact strength and low-temperature flexibility ensures that PTFE parts remain reliable in dynamic, high-load scenarios and cold environments where many other plastics become brittle.
Excellent Electrical Insulation
From an electrical perspective, PTFE is an exceptional insulator, making it perfect for cables, connectors, and insulators in high-frequency electronic applications.
Thermal Stability (-260°C to 260°C)
Thermal stability is another key advantage: PTFE can withstand temperatures ranging from -260°C to 260°C, ensuring machined components remain dimensionally stable and reliable across a wide range of applications, from deep-freeze conditions to high-temperature furnaces.
Low Friction Coefficient
PTFE has an extremely low friction coefficient, making it the material of choice for reducing wear and friction loss in mechanical systems. Bearings, bushings, and gears made from PTFE require less lubrication, operate more quietly, and have longer lifespans.
Low Flammability
PTFE’s low flammability and non-toxic, FDA-compliant composition make it a top choice for food and pharmaceutical applications. Its easy-to-clean surface further enhances its suitability for sterile processing environments.
Food-Safe and Easy to Clean
PTFE’s non-toxic and non-stick properties make it an ideal material for food processing and medical equipment where stringent hygiene is required.
Process Advantages of Processing Teflon:
From a manufacturing perspective, PTFE’s softness and relatively low density can simplify the machining process. Unlike harder plastics or metals that cause rapid tool wear or generate excessive heat, PTFE chips easily and can be machined with standard tooling, as long as the cutting tools are sharp and well-maintained. Its excellent thermal stability also prevents part deformation due to localized heating during cutting, reducing the risk of warping or surface irregularities. The result is a more predictable, stable machining environment that allows for consistent part quality.
Because PTFE is chemically inert and doesn’t adhere to cutting tools, chip buildup on tooling is minimal, reducing the risk of tool clogging and improving surface finishes. With proper coolant selection, PTFE machining can be done smoothly, and chips are easy to remove from the work area. This ease of processing, combined with the material’s inherent versatility, often leads to reduced downtime, lower rework rates, and improved cost-efficiency in production.
In essence, PTFE’s benefits extend beyond its final part properties. The material’s unique combination of chemical stability, thermal resilience, lubricity, and ease of processing makes it a top choice for demanding applications. Whether you’re manufacturing components for automotive cooling systems, aerospace valve assemblies, or medical-grade dispensers, PTFE’s advantages can translate directly into longer part life, improved reliability, and better overall product performance. The next step is to examine the limitations and challenges that accompany these advantages, ensuring you have a complete understanding before committing fully to machining Teflon/PTFE.
Limitations of Processing Teflon
While PTFE offers a multitude of benefits, it’s important to acknowledge the material’s limitations. Understanding these drawbacks is crucial for making informed decisions about part design, machining strategies, and feasibility. PTFE’s inherent characteristics, such as a high coefficient of thermal expansion and relatively poor mechanical strength, can lead to design and manufacturing constraints. By examining these limitations closely, you can anticipate potential issues and develop strategies to mitigate them.
High Coefficient of Thermal Expansion
One of the primary challenges with PTFE is its high thermal expansion coefficient. PTFE components may experience slight dimensional changes with temperature fluctuations. In applications requiring extremely tight tolerances or in environments with rapid temperature changes, this thermal responsiveness can lead to assembly issues, seal failures, or misalignment. While some variations can be managed, designers and machinists must account for temperature-related dimensional changes in their calculations.
Creep Under Stress
PTFE is also prone to stress creep. Over time, under sustained loads, PTFE components may gradually deform, especially at elevated temperatures. This creep behavior limits PTFE's use in high-load structural applications. While the material performs well in bearings and bushings due to its low friction, it may not be the best choice for components that need to maintain rigid structural integrity under high pressure for long periods.
Difficulty in Achieving Tight Tolerances
Maintaining tight tolerances can be challenging with PTFE. Compared to harder engineering plastics or metals, PTFE's softness, thermal expansion, and tendency to creep make it difficult to achieve ultra-precise dimensions. Achieving consistent results with very tight tolerances may require specialized fixtures, carefully controlled environmental conditions, and a high level of machining expertise. Even then, some variation is inevitable, making PTFE less suitable for parts requiring micron-level accuracy.
Poor Mechanical Properties
PTFE lags behind some high-performance polymers in terms of mechanical properties. Its elastic modulus and tensile strength are relatively low, meaning it cannot withstand the same mechanical stress or loads as materials like PEEK. This limits PTFE's use in applications where mechanical strength is critical, even though its chemical resistance or friction performance might be advantageous.
Dimensional Instability
Dimensional stability is another concern. Due to PTFE's relative softness, excessive cutting forces or improper machining strategies can cause the material to deform during processing. Compared to harder plastics, PTFE is more prone to burring, requiring advanced deburring plans to ensure clean surfaces. Without proper deburring, parts may have sharp edges or unwanted particles, which can affect functionality or hygiene standards.
Soft Material and Burr Risk
Despite these challenges, PTFE's limitations are not insurmountable. By understanding the material's weaknesses, manufacturers can implement compensatory techniques. Adjusting cutting parameters and tool geometry can reduce burr formation and improve dimensional control. Managing environmental conditions, using water-soluble coolants, and employing support materials or fixtures can also help maintain part accuracy. When strict tolerances are not critical, or when applications prioritize chemical resistance and lubricity over mechanical strength, PTFE's limitations become more manageable.
In summary, while PTFE’s chemical inertness, low friction, and broad temperature capabilities are highly appealing, its high thermal expansion, stress creep, difficulty in achieving tight tolerances, and lower mechanical properties must be carefully considered. These limitations inform material choice, design strategies, and machining processes. In the upcoming sections, we’ll explore different PTFE grades, which may address some of these drawbacks by incorporating fillers or chemical modifications. This knowledge will help you select the most suitable PTFE variant and approach, ensuring you get the best possible performance from your Teflon CNC machining parts.
Introduction: PTFE is available in various grades, each engineered to enhance certain properties or meet specific application requirements. By blending PTFE with fillers like glass fibers, carbon, or adding chemical modifiers, manufacturers can tailor the material’s strength, wear resistance, dimensional stability, or color. Selecting the right PTFE grade is crucial because it can overcome some of the limitations associated with virgin PTFE and better align material properties with your project’s demands.
Common Teflon Grades Used in Plastic Manufacturing:
Polyetheretherketone (PEEK) Filled PTFE:
Incorporating PEEK fillers into PTFE can significantly boost mechanical strength and dimensional stability. This hybrid material marries PTFE’s chemical resistance and low friction with PEEK’s toughness and better load-bearing capabilities. PEEK-filled PTFE is often chosen for more demanding mechanical applications where virgin PTFE would fail due to creep or deformation.
Colored PTFE:
While PTFE is naturally white or off-white, adding pigments or dyes can produce colored PTFE. This alteration doesn’t significantly change the material’s mechanical or chemical properties, but it can help with part identification, branding, or aesthetic requirements. Colored PTFE is useful in systems where visual differentiation is essential, such as identifying components in complex assemblies or ensuring the correct parts are installed in certain areas.
Virgin PTFE:
Virgin PTFE contains no fillers or additives and represents the purest form of the material. It offers the highest chemical resistance, thermal stability, and electrical insulating properties. Virgin PTFE is chosen for applications where purity and inertness are paramount, such as in semiconductor processing, pharmaceutical manufacturing, and laboratories that handle aggressive chemicals. However, virgin PTFE maintains the limitations of lower mechanical strength and dimensional stability.
Chemically Modified PTFE:
Some PTFE variants undergo chemical modification to improve certain properties. These modifications can reduce porosity, enhance adhesion to other materials, or improve wear characteristics. Chemically modified PTFE may offer better performance in precision applications, making it somewhat easier to hold tighter tolerances. This can be beneficial for parts like valves, fittings, and precision seals where minimal dimensional drift is required.
Glass-Filled PTFE:
By adding glass fibers or beads, the mechanical strength and rigidity of PTFE improve markedly. Glass-filled PTFE exhibits better dimensional stability, reduced creep, and enhanced wear resistance compared to virgin PTFE. This makes it suitable for components like bearings, bushings, and gears that need to handle greater loads while still benefiting from PTFE’s low friction and chemical resistance.
By carefully assessing the environment in which your parts will operate—considering temperature ranges, chemical exposures, mechanical loads, and precision requirements—you can narrow down which PTFE grade fits best. For instance, if your application involves high mechanical stresses and requires better dimensional control, glass-filled PTFE or PEEK-filled PTFE might be ideal. If chemical purity is critical, virgin or chemically modified PTFE may provide the best results.
In practice, discussing your specific requirements with a knowledgeable CNC machining factory or CNC machining services provider is highly recommended. They can guide you through the selection process, ensuring that your chosen PTFE grade aligns with the design constraints, service conditions, and performance targets. By leveraging specialized PTFE grades, you can strike a balance between PTFE’s inherent advantages and its potential drawbacks, ultimately achieving custom CNC machining parts that excel in even the most challenging applications.

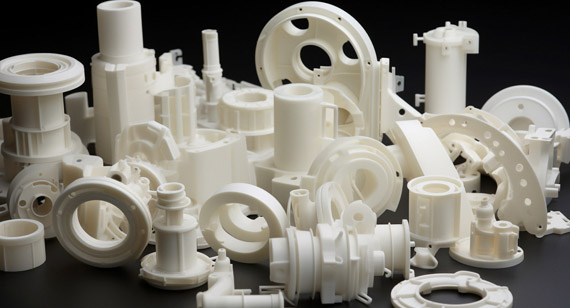

Valves:
PTFE valves are prevalent in fluid handling systems, chemical processing plants, and distribution networks. Because PTFE doesn’t react with aggressive media, it ensures a consistent seal and prevents contamination. Machined PTFE valves remain stable under varying pressures and temperatures, providing reliable long-term operation with minimal leakage.
Fittings:
Fittings, connectors, and adapters made from PTFE facilitate the transfer of fluids, gases, and semi-solids in industrial equipment. Their inertness prevents any chemical interactions that could degrade the fluid purity or damage the fitting itself. PTFE fittings are common in pharmaceutical manufacturing, biotechnology labs, and high-purity water systems.

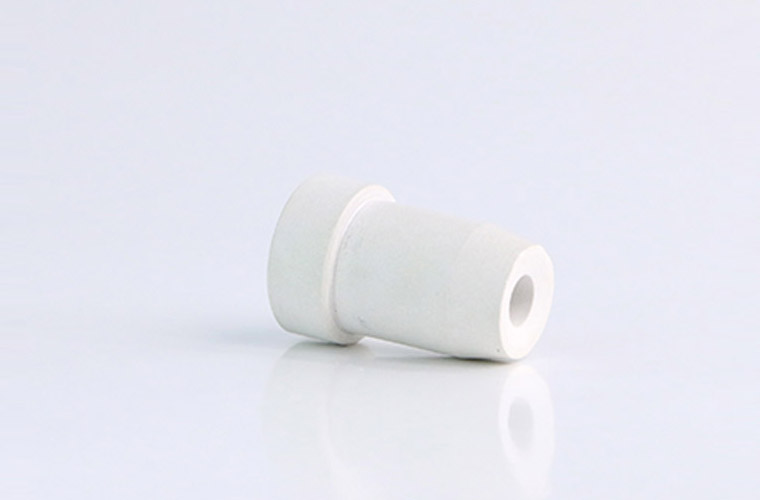

Bearings and Bushings:
PTFE’s low coefficient of friction makes it ideal for bearings and bushings that must operate under minimal lubrication or dry-running conditions. These components help reduce mechanical wear, extend the service life of moving parts, and decrease maintenance frequency. Consequently, PTFE bearings and bushings see use in automotive components, aerospace assemblies, and industrial equipment where reliability is paramount.
Manifolds:
Chemical and fluid distribution manifolds made from PTFE ensure that reactive substances remain uncontaminated. Machining manifolds from PTFE allows for complex internal pathways and channels that don’t corrode or degrade, making them essential in chemical processing and semiconductor manufacturing, where purity and precise fluid management are crucial.
Insulators:
PTFE’s outstanding electrical insulation properties make it an excellent choice for electronic insulators, spacers, and connectors. Its stable dielectric properties ensure signals remain clear and interference-free, while the material’s thermal stability helps maintain consistent insulation even in high-temperature environments. Electronics manufacturing, telecommunications, and power distribution equipment benefit from PTFE insulators.
Gears:
PTFE gears can function quietly and smoothly, reducing frictional losses and improving energy efficiency. Although PTFE gears may not handle heavy loads as well as metal gears, they excel in applications where lubricants are undesirable or where chemical exposure might degrade conventional materials. In certain specialized machinery and fluid pumping equipment, PTFE gears help maintain cleanliness and reduce maintenance.
O-rings and Seals:
PTFE O-rings and seals are essential for maintaining leak-free connections in systems exposed to extreme temperatures or corrosive chemicals. Their non-reactive surface ensures a long-lasting, secure seal, even under fluctuating conditions. This makes PTFE seals a mainstay in aerospace fuel systems, medical devices, and food processing equipment that require stringent hygiene and safety standards.
Cross-Industry Appeal:
The applications listed above represent only a fraction of PTFE’s potential uses. Because of its versatility, PTFE CNC machining parts appear in automotive cooling systems, high-performance brake components, and engine assemblies. In the medical sector, PTFE’s biocompatibility and sterilization ease suit it for surgical instruments and implants. The aerospace industry values PTFE’s thermal tolerance and chemical inertness for components that must endure the rigors of flight and space exploration.
From industrial valves and bearings to delicate insulators and seals, PTFE parts contribute to system reliability, longevity, and efficiency. By leveraging CNC machining and various PTFE grades, manufacturers can produce custom CNC machining parts that meet exact specifications, reduce downtime, and enhance overall performance. The next step is understanding which machining processes are best suited to shape PTFE into the precise forms demanded by these applications.
Machining Teflon/PTFE requires careful consideration of the appropriate processes to achieve the desired geometries, surface finishes, and tolerances. While PTFE’s softness and low friction can make cutting easier, it also presents challenges like burr formation and dimensional instability if the wrong techniques are employed. Choosing the right machining processes and technologies is critical for manufacturing high-quality plastic CNC machining parts from PTFE.
Mechanical/Manual Machining:
Before the advent of advanced CNC systems, PTFE parts were often produced using manual machining techniques, such as turning, milling, drilling, and sawing. While manual machining can still produce satisfactory results for simple shapes or low-volume runs, it has limitations. The lack of automation makes it harder to maintain consistent tool paths and tolerances, especially with PTFE’s propensity for slight deformation. Manual methods also demand skilled operators with extensive experience in handling PTFE’s quirks. As complexity and precision requirements increase, manual machining becomes time-consuming and prone to human error.
Modern CNC machining methods elevate PTFE part manufacturing to a new level of precision, repeatability, and efficiency. By programming tool paths, cutting conditions, and coolant application, CNC machines can produce complex PTFE parts with minimal operator intervention and improved consistency. Different CNC machining technologies are available, each tailored to specific part geometries and design complexities:

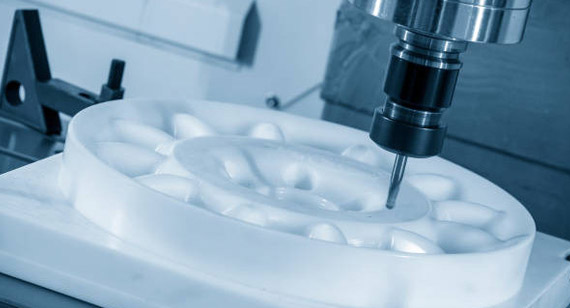

CNC Milling:
CNC milling uses a rotating cutting tool to remove material from a PTFE workpiece. Milling is versatile, allowing for the creation of complex shapes, pockets, slots, and features on multiple axes. Its flexibility makes it suitable for producing housings, manifolds, and components with intricate geometrical details.

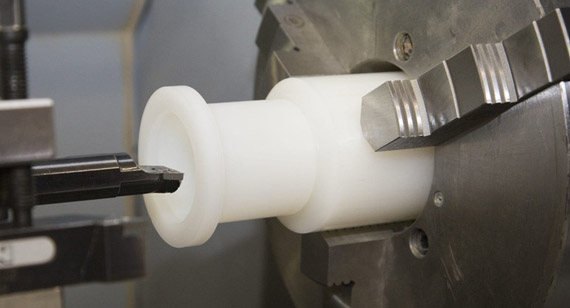

In CNC turning, the workpiece rotates while stationary cutting tools remove material. This process is ideal for producing cylindrical parts such as bushings, bearings, fittings, and O-rings. PTFE’s low friction helps achieve smooth finishes on turned surfaces, though careful tool selection and feed rates are essential to prevent deformation.
CNC Drilling:
CNC drilling is used to create precise holes in PTFE parts. While drilling may seem straightforward, PTFE’s softness requires sharp, high-quality drills and careful chip evacuation. Proper coolant use ensures the drill bit doesn’t overheat or deform the hole geometry. CNC drilling is integral for parts like manifolds, fittings, and insulators where accurate hole placement is critical.
CNC Mill-Turning:
Mill-turn machines combine milling and turning capabilities in a single setup. This technology is especially beneficial for PTFE parts that feature both rotationally symmetrical elements and prismatic features. By eliminating multiple setups and workpiece transfers, mill-turn operations enhance accuracy and reduce lead times for complex PTFE components.
Multi-Axis/5-Axis CNC Machining:
For the most intricate geometries and complex shapes, multi-axis CNC machining is invaluable. With more axes of motion, the cutting tool can approach the workpiece from virtually any angle, enabling the production of complex PTFE components that would be impossible or highly inefficient to produce with simpler setups. This is crucial in industries like aerospace or medical device manufacturing where intricate surfaces and hidden features are common.
Process Selection Considerations: When deciding which machining processes to use, consider factors like part complexity, required tolerances, and production volume. For instance, if you need prototypes or small batches of custom PTFE components with simple geometry, CNC turning or milling might suffice. For highly complex shapes or larger volumes, multi-axis machining or mill-turn capabilities might be essential.
Additionally, consider machine stability, spindle power, and tool rigidity. PTFE’s softness means that excessive machine vibrations, tool runout, or poor workholding can all negatively affect dimensional accuracy and surface finish. Workpiece fixturing and support materials can help maintain part stability during cutting, and using water-soluble coolants or proper lubricants aids in chip removal and surface quality.
In sum, the machining processes chosen for PTFE depend on the interplay between part requirements, machine capabilities, and the machinist’s expertise. CNC machining technology provides the means to precisely shape PTFE into virtually any form, unlocking its full potential in automotive, medical, aerospace, and many other industries.
Introduction: Given PTFE’s unique properties and inherent challenges, achieving consistent, high-quality results requires careful planning and attention to detail. From controlling tolerances to handling burr formation, machining Teflon is as much an art as a science. This section focuses on practical notes and advice, helping you navigate PTFE’s quirks effectively.
Notes for Machining Teflon:
Tight Tolerances:
While PTFE can be machined accurately, holding extremely tight tolerances remains a challenge. Thermal expansion, softness, and stress relaxation can cause dimensions to shift slightly. When possible, aim for medium or loose tolerances. If tighter tolerances are necessary, consider using specific PTFE grades with fillers that enhance dimensional stability and engage in post-machining checks to ensure compliance.
Softness and Deformation:
PTFE’s softness means it can deform under tool pressure. To counter this, use very sharp cutting tools that slice rather than push material. Reducing cutting forces by lowering feeds and adjusting spindle speeds can help prevent part distortion. Another strategy is to employ support materials or special fixtures that hold the PTFE workpiece firmly without damaging it.
Deformation Under Extreme Pressure:
Applying too much tool pressure or using dull tools can cause PTFE to extrude or smear rather than cutting cleanly. Keep a close eye on tool condition and replace tools at the first sign of wear. Properly chosen tooling materials, such as carbide inserts with specific edge geometries, can help minimize these issues.
Customizing Shapes of Teflon Parts:
PTFE’s machinability allows for creativity in part design. Whether you need complex internal passages, intricate surface features, or non-standard geometries, careful CNC programming and toolpath selection can help you achieve them. However, remember that sharp internal corners and very thin walls may be more prone to deformation or dimensional inaccuracy.
Surface Preparation and Inspection:
PTFE’s nonstick surface means that debris and contaminants generally don’t adhere strongly, making cleaning simpler. However, surface inspection is critical, especially for components used in sensitive applications like medical devices or semiconductor manufacturing. Inspect parts for burrs, foreign particles, and dimensional consistency. Establishing thorough quality control measures, such as coordinate measuring machine (CMM) inspections, ensures that parts meet specifications before shipment.
Tips for Machining Teflon:
Use Very Sharp Cutting Tools:
Sharp tools reduce the risk of tearing or smearing the PTFE material. Keep a tool maintenance schedule and change inserts or endmills regularly.
Support Materials:
If the PTFE part has thin walls or delicate features, consider using a sacrificial support material or custom fixture that stabilizes the part during machining. This prevents deformation and improves accuracy.

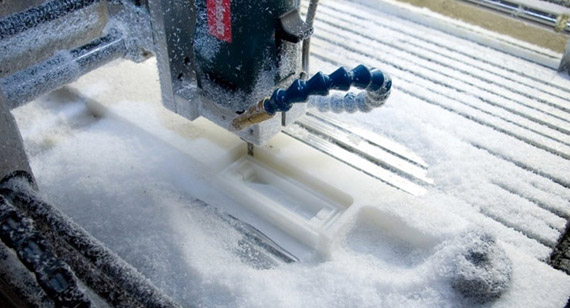

Apply Generous Amounts of Water-Soluble Coolant:
Adequate coolant helps in chip evacuation, reduces heat buildup, and promotes smoother finishes. Water-soluble coolants are often recommended because they aid chip flow and protect cutting edges from accelerated wear.
Aim for Medium to Loose Tolerances:
Unless absolutely necessary, avoid extremely tight tolerances. Designing parts with a bit more leeway can save time, reduce scrap rates, and simplify the manufacturing process.
Develop a Deburring Strategy in Advance:
Burrs can form due to PTFE’s softness. Plan how you’ll remove them, whether through mechanical means like a brush or via mild thermal or chemical processes. This ensures parts arrive at the customer free of sharp edges or residual material.
Use Shot Peening to Make Surfaces Smoother:
In some instances, shot peening can help achieve a smoother, more uniform surface finish on PTFE parts, particularly for components used in friction-sensitive assemblies.
Environmental Considerations:
Keep the machining environment stable in terms of temperature and humidity. PTFE’s thermal expansion may be influenced by significant changes in ambient conditions. If your facility’s climate swings widely, consider scheduling PTFE machining during times when conditions are more stable or employing localized environmental controls.
By following these notes and tips, you can successfully navigate PTFE’s challenges and produce high-quality, reliable Teflon CNC machining parts. Experience, experimentation, and continuous process refinement are key. As you grow more familiar with PTFE’s behavior under the cutting tool, you’ll identify even more nuanced strategies to improve results and meet evolving customer demands.
While various methods exist to form and shape PTFE, from molding to manual cutting, CNC machining stands out as the superior approach for creating complex, high-precision Teflon CNC machining parts. CNC machining services offer flexibility, repeatability, and a level of control that other processes struggle to match. By leveraging the capabilities of CNC machines, you can fully capitalize on PTFE’s advantages while mitigating its drawbacks.
High Temperature Before Melting:
One reason CNC machining excels is that PTFE’s melting point is exceptionally high, and the material tends to degrade before fully melting. This makes conventional thermoplastic processing methods like injection molding challenging. CNC machining sidesteps the need to heat PTFE into a flowable state, eliminating concerns about thermal degradation and preserving the material’s inherent properties.
Precision and Complexity:
CNC machining is renowned for its ability to produce parts with intricate geometries and tight dimensional requirements (within reason). Although PTFE’s material limitations sometimes restrict ultra-fine tolerances, CNC machines equipped with advanced toolpath strategies and monitoring systems can still achieve impressive accuracy. Multi-axis CNC setups enable complex features, angled surfaces, and undercuts that would be impractical or impossible with simpler methods.
Consistency and Repeatability:
Manual processes rely heavily on operator skill and are prone to variability. CNC machining, on the other hand, executes preprogrammed instructions with remarkable consistency. Once you refine your process parameters—such as feed rates, spindle speeds, and coolant application—CNC machines can replicate the same results part after part, ensuring batch-to-batch uniformity. This consistency is crucial for industries like aerospace, medical, and automotive, where even minor dimensional deviations can have serious consequences.
Heat Generation:
When shaping PTFE, controlling heat is essential. CNC machining techniques allow for fine-tuned cutting parameters and continuous coolant application to manage any friction-generated heat. Unlike high-temperature molding or welding processes, CNC machining generates manageable levels of heat that can be quickly dissipated, reducing the risk of material distortion or property changes.
Suitable for Complex-Shaped Parts:
Some PTFE components demand complex internal channels, intricate mating surfaces, or interlocking geometries. CNC machining, especially when combined with multi-axis systems, can produce these shapes without the need for multiple setups or specially designed molds. This flexibility reduces lead times and development costs, making CNC prototype machining ideal for testing new designs quickly before committing to larger production runs.
Reduced Material Waste:
CNC machining is a subtractive process, and while it does create chips and offcuts, modern optimization techniques and clever nesting strategies can minimize waste. Compared to processes like injection molding (where expensive molds might be necessary) or manual machining (with higher scrap rates due to human error), CNC machining can achieve cost-effective material usage. When dealing with a premium material like PTFE, reducing waste translates directly into cost savings.
Flexibility in Machining Operations:
With CNC machining, you can easily switch between different tool types, cutting strategies, or part programs. This adaptability is invaluable for workshops and CNC machining factories that handle diverse projects. If a part design changes mid-development, the CNC program can be updated without extensive retooling or long lead times. This flexibility shortens the product development cycle and improves responsiveness to customer requirements.
Controlled Machining Environment:
CNC machines typically operate in controlled environments, where temperature, humidity, and cleanliness can be regulated. These conditions help maintain consistency when machining PTFE. Controlling the environment means you can mitigate some of PTFE’s thermal expansion and dimensional stability issues, leading to better quality control and more predictable results.
In conclusion, CNC machining stands as the preferred method for manufacturing PTFE parts due to its precision, consistency, flexibility, and ability to handle PTFE’s unique material challenges. By choosing CNC machining services, you can produce custom CNC machining parts that leverage the full potential of Teflon while minimizing the risks associated with its limitations.
The extraordinary chemical resistance, thermal tolerance, and low friction of PTFE have led to its adoption in a wide range of industries. As CNC machining of Teflon parts becomes more accessible, designers and engineers across various sectors exploit PTFE’s strengths to create innovative solutions. This section highlights a few key industries that consistently turn to PTFE machined parts for essential components, ensuring long-lasting performance under demanding conditions.
In the automotive sector, PTFE parts appear in fuel systems, coolant lines, and emission control components. The material’s ability to withstand aggressive chemicals like hydrocarbons, combined with its stability under temperature extremes, makes it an excellent choice. PTFE bushings and bearings reduce friction and extend the life of moving parts, while seals made from PTFE maintain airtight and liquid-tight connections despite temperature fluctuations. This contributes to improved engine efficiency, longer service intervals, and reduced maintenance costs.
Medical devices require materials that are chemically inert, easily sterilizable, and biocompatible. PTFE’s inertness ensures no unwanted reactions with bodily fluids or active pharmaceuticals. From surgical instruments and implantable devices to fluid delivery systems and lab equipment, PTFE parts help maintain sterile conditions and integrity over time. Because PTFE does not support microbial growth and can be sterilized using various methods, it’s ideal for devices where patient safety and product reliability are paramount.
Food Industry:
Food and beverage processing environments demand materials that are food-grade safe, easy to clean, and capable of withstanding sanitation chemicals and high-temperature washdowns. PTFE’s nonstick surface helps prevent buildup of food residues, while its chemical resistance ensures that cleaning agents do not degrade the material over time. Components like valves, gaskets, and mixers benefit from PTFE’s properties, ensuring product purity, reducing contamination risks, and simplifying maintenance.
Aerospace Industry:
Aerospace applications frequently subject components to drastic temperature swings, radiation exposure, vacuum conditions, and corrosive fuels. PTFE’s stability in harsh chemical and thermal environments makes it indispensable for seals, insulators, and bearings in aircraft and spacecraft systems. Because aerospace parts must be both reliable and lightweight, PTFE’s low density further enhances its appeal. Whether it’s ensuring smooth motion in control surfaces or maintaining integrity in fuel lines, PTFE parts contribute to safer, more efficient flight operations.
Wider Industrial Applications:
Beyond these highlighted sectors, PTFE finds use in semiconductor manufacturing equipment, where purity and chemical inertness are essential. It’s also widely used in petrochemical plants, chemical refineries, and other industrial settings where corrosive substances could degrade conventional materials. PTFE manifolds, O-rings, and valve seats ensure that critical fluids flow smoothly without contamination, thereby improving yield and equipment reliability.
In all these industries, the synergy between PTFE’s attributes and CNC machining capabilities is evident. Precision machining allows for the creation of parts tailored to specific requirements—be it a complex fluid channel or a component with special geometries to minimize turbulence or friction. By leveraging custom CNC machining or partnering with a CNC machining factory experienced in PTFE, companies gain a competitive edge. They can deliver products that last longer, require less maintenance, and operate more efficiently under conditions that would challenge lesser materials.
In summary, PTFE machined parts have a broad and enduring impact. As advanced CNC machining services become more widespread, we can expect PTFE to continue enabling breakthroughs in performance, reliability, and compliance across automotive, medical, food, aerospace, and many other industries.
Introduction: While PTFE’s unique properties make it an excellent choice for many applications, it’s not always the perfect fit. In scenarios where PTFE’s limitations—such as lower mechanical strength or difficulty in holding tight tolerances—prove problematic, alternative materials may better suit the project’s needs. By comparing PTFE to other high-performance plastics, you can identify more suitable alternatives for specific conditions or design criteria.
Common Alternatives to PTFE:
Ethylene Chlorotrifluoroethylene (ECTFE):
ECTFE is another fluoropolymer known for its excellent chemical resistance and superior barrier properties. Compared to PTFE, ECTFE often offers better mechanical strength and impact resistance. It also has a lower permeability, making it suitable for applications involving aggressive chemicals, high-pressure situations, or moisture-sensitive environments. However, ECTFE may not match PTFE’s extremely low coefficient of friction.
Perfluoroalkoxy (PFA):
PFA is closely related to PTFE and shares many of its desirable attributes, such as chemical inertness and a wide temperature range. Unlike PTFE, PFA can be melt-processed, potentially simplifying certain fabrication methods. PFA often offers improved mechanical properties at higher temperatures and can hold tighter tolerances. Still, it might not achieve the same ultra-low friction as PTFE.
Polychlorotrifluoroethylene (PCTFE):
PCTFE provides excellent moisture barrier properties and good dimensional stability. While it retains good chemical resistance and thermal stability, PCTFE generally has higher mechanical strength and lower creep than PTFE. This makes it better suited for parts requiring more robust structural integrity while maintaining resistance to chemicals. However, PCTFE may not offer the same broad temperature capabilities as PTFE.
PEEK is a high-performance engineering plastic with remarkable mechanical strength, stiffness, and thermal stability. While it can’t match PTFE’s low friction or chemical inertness across the full spectrum of solvents, PEEK performs exceptionally well in load-bearing applications, high-temperature contexts, and scenarios demanding dimensional stability. PEEK is often chosen when mechanical integrity and precision are paramount, and chemical exposure is moderate.
Nylon’s mechanical properties, including toughness and abrasion resistance, are superior to PTFE’s in many respects. It’s also more dimensionally stable and easier to machine into tight tolerances. However, Nylon lacks PTFE’s extraordinary chemical resistance and low friction. Nylon may be suitable for general mechanical components where conditions are not as chemically demanding.
Polypropylene (PP):
Polypropylene is a lightweight, cost-effective plastic known for good chemical resistance and low moisture absorption. However, PP cannot withstand the high temperature extremes that PTFE can handle, and it’s not as dimensionally stable under load. PP may be a good choice for cost-sensitive applications where moderate chemical resistance and machinability are sufficient.
PVDF (Polyvinylidene Fluoride):
PVDF offers excellent chemical resistance and good mechanical strength, falling between PTFE and materials like PEEK in terms of performance. It’s often used in chemical processing, semiconductor manufacturing, and food industries. While PVDF might not have the same low friction as PTFE, it provides a better balance of stiffness and strength.
UHMW (Ultra-High Molecular Weight Polyethylene):
UHMW-PE is known for its incredible impact strength, low friction, and wear resistance. While it competes with PTFE in terms of lubricity, UHMW lacks PTFE’s temperature range and chemical inertness. It’s best suited for applications where abrasion resistance and toughness are priorities, such as conveyor systems, rollers, and wear strips.
Selecting the Right Material:
Choosing a PTFE alternative hinges on the application’s priorities. If achieving ultra-low friction and broad chemical resistance is crucial, PTFE might remain the top choice. If mechanical strength, better dimensional stability, or melt processability is required, PEEK or PFA may be more suitable. For cost-driven projects with less stringent requirements, Nylon or UHMW-PE might suffice.
Consulting with a knowledgeable CNC machining factory or CNC machining services provider can streamline material selection. By discussing your application’s load conditions, environmental factors, chemical exposures, and desired surface finishes, they can recommend the optimal material and machining approach. This ensures that you attain the performance targets, cost constraints, and durability your project demands.
In essence, while PTFE’s properties are impressive, the world of engineering plastics offers a rich array of alternatives. Assessing trade-offs and working closely with material experts and machining specialists ensures that you find the right balance between performance, cost, and manufacturability.
When it comes to translating PTFE’s material advantages into tangible, high-quality parts, partnering with a reputable CNC machining factory is invaluable. VMT (a representative machining services provider) exemplifies what experienced, dedicated service in custom CNC machining can offer. With an extensive background in working with engineering plastics, including Teflon/PTFE, VMT stands ready to deliver components that meet stringent industry standards.
At VMT, skilled machinists and engineers collaborate to understand your project requirements fully. Whether you need simple PTFE bushings or complex multi-axis machined manifolds, their team applies years of experience and cutting-edge CNC technology to ensure precision and repeatability. They recognize that PTFE’s unique properties—such as its low friction and chemical inertness—require tailored machining strategies and tool selections. VMT invests in advanced CNC machines and employs best practices in tool maintenance, coolant application, and fixture design to achieve consistent results.
One of the key advantages of working with a specialized CNC machining services provider like VMT is their ability to guide material selection. If your project demands enhanced mechanical properties, they can recommend glass-filled PTFE or PEEK-filled PTFE. If purity and chemical inertness are paramount, virgin PTFE may be the best solution. These recommendations ensure that your final parts meet performance targets at the lowest possible cost and with minimal development time.
VMT also understands the importance of quality control. Machining Teflon/PTFE to meet engineering specifications can be challenging, especially given the material’s sensitivity to pressure and temperature. Through rigorous inspection protocols, including CNC coordinate measuring machines (CMMs) and optical inspection tools, VMT verifies dimensions, surface finishes, and tolerances. This comprehensive quality assurance process ensures that your PTFE parts arrive exactly as specified, reducing the need for rework or adjustments.
Another hallmark of VMT’s services is their flexibility. Whether you require CNC prototype machining for low-volume runs or fully scaled production for thousands of parts, VMT adapts to your needs. Prototyping allows for iterative improvements, ensuring that the final design is optimized for manufacturability and performance before committing to large-scale production. The ability to pivot quickly and incorporate design changes without compromising turnaround times is crucial in today’s fast-paced markets, and VMT has the infrastructure and expertise to make that happen.
Environmental stewardship and safety are also top priorities. PTFE and other engineering plastics must be handled with care to avoid contamination and ensure proper disposal of waste materials. VMT follows industry best practices and environmental regulations, employing responsible waste management and recycling programs wherever possible. By doing so, they not only protect the environment but also safeguard the health and well-being of their employees and clients.
In summary, VMT’s approach to Teflon CNC machining parts combines technical expertise, advanced equipment, and a commitment to delivering exceptional results. By choosing a partner like VMT, you gain access to a wealth of knowledge and resources that streamline product development, improve quality, and reduce costs. Whether you’re in the automotive, medical, aerospace, or food industry, working with professionals who understand the intricacies of PTFE machining ensures that your components meet the highest standards of reliability, functionality, and longevity.
Machining Teflon/PTFE stands at the intersection of modern CNC technology and the demands of advanced industrial applications. As a high-performance plastic offering chemical inertness, broad temperature range capabilities, low friction, and food-safe properties, PTFE is invaluable for producing plastic CNC machining parts that must endure challenging conditions. From automotive fittings and aerospace bearings to medical-grade components and food processing equipment, the versatility of PTFE sets it apart from many other materials.
Yet, achieving success with PTFE requires more than just selecting the material. Understanding PTFE’s limitations, such as its high thermal expansion coefficient and difficulty in holding very tight tolerances, ensures that you approach your project with realistic expectations. Choosing the right PTFE grade—whether virgin, glass-filled, or chemically modified—can significantly improve dimensional stability, mechanical strength, or coloration, tailoring the material to your unique application.
The machining strategies employed are equally critical. CNC machining services excel at producing complex PTFE parts with consistent quality, provided that cutting conditions, tool selection, and coolant application are carefully managed. Employing sharp tools, controlling feed rates, supporting delicate features, and allowing for medium or loose tolerances help mitigate PTFE’s softer nature and maintain part accuracy. Deburring strategies and shot peening can further refine surface finishes, ensuring that final components meet rigorous performance and aesthetic standards.
For those who might find PTFE’s limitations restrictive, a wide array of alternative materials—such as PFA, PCTFE, ECTFE, PEEK, Nylon, PP, PVDF, and UHMW—offer varying balances of mechanical strength, chemical resistance, thermal tolerance, and cost. Evaluating these alternatives in the context of your application’s priorities ensures that you select the best possible material, even if it’s not PTFE.
Collaboration with a skilled CNC machining factory or CNC prototype machining service provider greatly simplifies the journey. Experts in this field can guide material selection, advise on feasible tolerances, recommend best practices for tooling and coolant, and implement robust quality control measures. Leveraging their experience translates into improved efficiency, lower costs, and shorter lead times, allowing you to focus on product development, market strategies, and customer satisfaction.
PTFE’s role in industries such as automotive, medical, food, and aerospace highlights its importance in modern manufacturing. By delivering reliable, long-lasting, and contamination-free parts, PTFE enables innovation and excellence. As the manufacturing landscape continues to evolve, the demand for custom CNC machining and CNC machining services that can handle advanced plastics like PTFE will only grow.
In essence, PTFE represents both an opportunity and a challenge. Its remarkable properties open doors to applications that other materials cannot handle, while its machining nuances prompt manufacturers to refine their processes and invest in technology and training. With the insights gained from this guide, you can approach machining Teflon/PTFE with confidence, informed about its strengths, aware of its weaknesses, and equipped with the strategies necessary to produce outstanding plastic CNC machining parts.
Is it safe to machine PTFE?
Yes, machining PTFE is generally safe when proper precautions are taken. PTFE is non-toxic and stable under normal machining conditions. However, ensure adequate ventilation and avoid overheating the material, as very high temperatures can cause PTFE to release fumes. Implementing standard workplace safety measures, such as wearing protective gear and following your CNC machining factory’s guidelines, further enhances safety.
Is PTFE easy to machine?
PTFE is relatively easy to machine due to its softness and low friction. Cutting tools generally experience less wear compared to machining metals. However, its softness can lead to deformation under tool pressure, and achieving ultra-tight tolerances can be challenging. With the right tooling, coolant, and feed rates, PTFE can be machined smoothly and consistently.
What are the machining tolerances for PTFE?
Achieving very tight tolerances on PTFE parts is difficult due to thermal expansion and mechanical softness. Typical tolerances range from ±0.1 mm to ±0.05 mm, though tighter tolerances may be possible with careful process control and specialized PTFE grades. Consult your CNC machining services provider to determine realistic tolerances for your specific design.
Is PTFE toxic?
Virgin PTFE is non-toxic and considered safe for use in food and medical applications. It is chemically inert and does not react with most substances. However, heating PTFE above its decomposition temperature can produce fumes that may be harmful if inhaled. Under normal machining and operating conditions, PTFE is safe.
Is PTFE a thermoplastic or thermoset?
PTFE is a thermoplastic, but it differs from conventional thermoplastics because it does not melt at standard processing temperatures. Instead, PTFE’s high melting point and thermal stability make it behave differently during processing. It’s often formed by compression molding and sintering rather than traditional injection molding.
What is the difference between PTFE and Teflon?
Teflon is a brand name first trademarked by DuPont, while PTFE (polytetrafluoroethylene) is the generic chemical name. Chemically, Teflon is PTFE, but over time, “Teflon” has become a colloquial term for PTFE and similar fluoropolymers.
What are the limitations of Teflon machining?
Limitations include difficulty achieving tight tolerances due to thermal expansion and softness, relatively poor mechanical strength, and a tendency for dimensional changes under load or temperature fluctuations. Burr formation and the need for deburring strategies also complicate machining.
What are some common uses of Teflon in mechanical engineering?
Common uses include bearings, seals, valves, fittings, gaskets, O-rings, and insulators. Teflon parts appear in systems that demand chemical inertness, friction reduction, thermal stability, and cleanliness, such as in automotive engines, chemical processing lines, and medical devices.
What are the raw materials used to make Teflon?
PTFE is synthesized from tetrafluoroethylene (TFE) monomers. During polymerization, TFE molecules bond to form long chains of carbon atoms fully surrounded by fluorine atoms, creating PTFE’s signature chemical structure.
What chemicals react negatively with PTFE?
PTFE is highly inert and resists most chemicals. However, it can be slightly affected by molten alkali metals and certain reactive fluorine compounds at very high temperatures. For most practical applications, PTFE encounters no negative chemical interactions.
Has Teflon been banned in the United States?
Teflon (PTFE) itself has not been banned. Concerns historically related to PFOA, a chemical used in the manufacture of Teflon, led to regulatory changes. PFOA has largely been phased out, and modern PTFE production processes meet safety and environmental standards. PTFE remains widely used and is considered safe for most applications.
+86 15099911516
Read more
