Taper Turning: A Comprehensive Guide



Have you ever struggled with achieving the perfect fit or smooth finish on your machined parts? Frustrating, isn't it? Imagine spending countless hours trying to get that precise angle just right, only to face inconsistent results and wasted materials. This common problem in CNC machining can significantly hinder productivity and increase costs. But what if there was a way to master the art of taper turning to enhance accuracy and efficiency? Dive into this comprehensive guide to discover how taper turning can transform your CNC machining processes and elevate the quality of your parts.



Taper turning in CNC machining involves creating a gradual slope or angle on a workpiece using specialized techniques and tools. This process ensures that parts fit together seamlessly, providing both aesthetic appeal and functional precision. By mastering taper turning, CNC turning factories can produce high-quality, custom CNC turning parts with enhanced stability and performance.



Ready to unlock the secrets of taper turning and take your CNC machining to the next level? Let’s explore what taper turning is, how it works, its importance, and everything you need to know to implement it effectively in your machining operations.





Foreword



Taper turning is a fundamental technique in CNC machining that plays a vital role in producing precise and functional parts. Whether you’re manufacturing tool handles, shafts, or intricate components for the aerospace industry, taper turning ensures that each piece meets the exact specifications required. This guide is designed to provide you with a thorough understanding of taper turning, from its basic principles to advanced methods and applications. Whether you're a seasoned machinist or new to CNC turning, this comprehensive overview will equip you with the knowledge needed to optimize your taper turning processes and achieve outstanding results.







What is Taper Turning?



Taper turning is a machining process used to create a tapered shape on a workpiece. Unlike straight turning, where the diameter remains constant, taper turning involves gradually reducing or increasing the diameter along the length of the workpiece. This technique is essential for producing parts that need to fit together precisely, such as tool handles, shafts, and other components that require a specific angle for proper assembly and function.



In CNC machining, taper turning is achieved by programming the machine to follow a precise path that alters the tool’s position relative to the workpiece. This controlled movement ensures that the taper is consistent and accurate throughout the entire length of the part. By utilizing CNC turning services, manufacturers can produce custom CNC turning parts with exact taper angles, enhancing both the functionality and aesthetics of the final product.

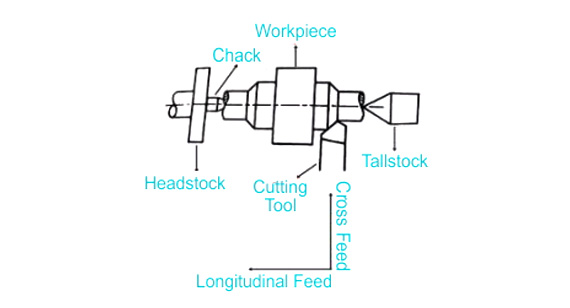

How Does Taper Turning Work?



Taper turning works by adjusting the cutting tool’s position as it moves along the workpiece. In a CNC lathe, this is typically controlled through programmed instructions that dictate the tool’s movement in both the longitudinal and radial directions. As the tool progresses along the length of the workpiece, it gradually moves closer to or further away from the center axis, creating a taper.



The process begins by securely mounting the workpiece in the lathe’s chuck. The CNC program then guides the cutting tool to follow a specific path, ensuring that the taper angle is maintained consistently. Advanced CNC turning factories use precise sensors and feedback systems to monitor the tool’s position, making real-time adjustments to maintain accuracy. This level of control allows for the production of complex tapered shapes with minimal manual intervention, increasing efficiency and reducing the likelihood of errors.







Importance of Taper Turning





Taper turning is crucial in various industries due to its ability to create precise and functional components. Understanding its importance can help manufacturers optimize their CNC turning processes and produce high-quality parts that meet stringent specifications.



Evolution of Lathes



The evolution of lathes has significantly impacted the efficiency and precision of taper turning. Modern CNC lathes are equipped with advanced features that allow for automated taper turning, reducing the need for manual adjustments and increasing production speed. These advancements have made taper turning more accessible and reliable, enabling manufacturers to produce intricate tapered shapes with ease. The integration of computer-controlled systems has also enhanced the repeatability and accuracy of taper turning, ensuring that each part meets the desired specifications consistently.







Critical Variables in CNC Taper Turning





Several critical variables influence the success of CNC taper turning. Understanding and controlling these variables is essential for achieving precise and high-quality tapered parts.





CNC Taper Turning Formulas



CNC taper turning relies on specific mathematical formulas to determine the taper angle and dimensions. These formulas take into account the desired slope, length of the taper, and the material being machined. By accurately calculating these parameters, machinists can program their CNC machines to produce consistent and precise tapers. Factors such as tool speed, feed rate, and depth of cut are also integral to the process, affecting the overall quality and efficiency of the taper turning operation. Mastery of these formulas and variables ensures that the final product meets the exact requirements needed for its intended application.





Core Calculation of Taper Turning



The core calculation revolves around the taper angle (α).



When processing the Taper Per Foot (TPF), the following formula must be used:



α = arctan(TPF/12).



Subsequent steps delve into calculating the radius (r) at each point along the length of the taper. The radius at any point "x" along the taper is determined by the following equation:



r = r₀ – (x * TPF).



Here, r₀ represents the initial radius, and x is the distance traveled along the taper length.

This calculation combines the relationship between CNC machines and incremental values:



x = r₀ / F (Feed rate).



This expression serves as a general guideline to explain machine behavior under different working conditions. Understanding these calculations enables machinists to confidently handle the complexities of CNC taper turning with precision.







Materials Used





The choice of material is a critical factor in taper turning, as different materials respond uniquely to machining processes. Selecting the right material ensures that the tapered parts achieve the necessary strength, durability, and precision.



Aluminum



Aluminum is a popular choice for taper turning due to its lightweight and machinable properties. It allows for smooth cutting and produces minimal tool wear, making it ideal for producing high-quality tapered parts efficiently. Aluminum tapers are commonly used in applications where weight and ease of handling are important, such as in aerospace components and automotive parts.





Alloy Steels



Alloy steels are known for their strength and durability, making them suitable for demanding taper turning applications. They provide excellent wear resistance and can withstand high-stress environments, making them ideal for manufacturing heavy-duty components like shafts and gear assemblies. The versatility of alloy steels allows for the production of tapers with varying degrees of hardness and toughness, depending on the specific requirements of the application.





Carbon Steels



Carbon steels are another common material used in taper turning, valued for their affordability and ease of machining. They offer good strength and are suitable for a wide range of applications, from general-purpose parts to more specialized components. Carbon steels can be heat-treated to enhance their mechanical properties, providing flexibility in manufacturing processes and end-use performance.





Stainless Steels



Stainless steels are prized for their corrosion resistance and aesthetic appeal. In taper turning, stainless steels are used to produce parts that require both durability and a clean appearance, such as medical instruments and precision tools. Their ability to maintain structural integrity in harsh environments makes them ideal for applications where longevity and reliability are paramount.





Titanium



Titanium is chosen for taper turning when exceptional strength-to-weight ratios and corrosion resistance are required. It is commonly used in aerospace and medical industries, where components must perform reliably under extreme conditions. While titanium is more challenging to machine compared to other metals, its superior properties make it a valuable material for high-performance tapered parts.





Brass



Brass is favored for its machinability and attractive finish. In taper turning, brass is used to create parts that not only function well but also require a visually appealing surface, such as decorative fittings and musical instruments. Its non-sparking and antimicrobial properties also make it suitable for specific applications in electronics and healthcare.





Copper



Copper is utilized in taper turning for applications that require excellent thermal and electrical conductivity. It is ideal for producing components like heat exchangers and electrical connectors, where efficient energy transfer is essential. Copper’s softness allows for precise machining, resulting in smooth and accurate tapered surfaces.





Composites



Composite materials are increasingly being used in taper turning due to their lightweight and high-strength characteristics. They are ideal for applications in industries like aerospace and automotive, where reducing weight without compromising strength is crucial. Composite tapers can be tailored to specific performance requirements, offering versatility and enhanced performance in demanding environments.





Plastics, Including Thermoplastics and Thermosets



Plastics are used in taper turning for parts that require flexibility, corrosion resistance, and cost-effectiveness. Thermoplastics offer ease of machining and the ability to be reshaped, while thermosets provide greater structural integrity and heat resistance. These materials are commonly used in consumer products, automotive components, and medical devices, where specific material properties are essential for functionality and performance.







Types of Taper Turning Methods





There are several methods of taper turning, each with its own set of applications, advantages, and limitations. Understanding these methods allows machinists to choose the most appropriate technique for their specific needs, ensuring optimal results and efficiency.

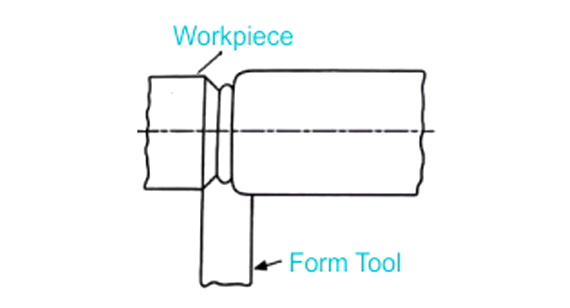

1. Form Tool Method





Applicability



The form tool method is ideal for producing tapers with specific, predefined angles. It is commonly used in applications where consistent taper angles are required across multiple parts.



Limitations



This method is limited by the need for a specific form tool for each taper angle, which can increase setup time and tooling costs for varied taper requirements.





Procedure



1.1 Form Tool Setup

• Setting up the form tool involves aligning it with the CNC machine to match the desired taper angle. Proper alignment is crucial to ensure accuracy throughout the machining process.



1.2 Direct Feed Operations

• The form tool is fed directly into the workpiece, gradually cutting away material to create the taper. This direct approach allows for precise control over the taper angle and depth.



1.3 Length Considerations

• Controlling the length of the taper is essential to meet specific part requirements. The form tool method allows for accurate adjustments to the taper length during the setup process.



1.4 Precision Machining

• Precision is achieved by carefully monitoring the tool’s movement and making fine adjustments as needed. This ensures that the taper is consistent and meets the exact specifications required.



2. Combined Feed Method





Applicability



The combined feed method is suitable for creating complex tapers that require simultaneous adjustments in multiple directions. It is often used in applications where tapered parts must fit together precisely with other components.



Limitations



This method can be more complex to program and execute, requiring advanced CNC machine capabilities and skilled operators to ensure accuracy.



Procedure



2.1 Simultaneous Feed Engagement

• Both the longitudinal and radial feeds are engaged simultaneously, allowing the tool to move in multiple directions to create the taper. This simultaneous movement ensures a smooth and consistent taper.



2.2 Trajectory Adjustment

• Adjusting the tool’s trajectory is necessary to maintain the desired taper angle throughout the machining process. Fine-tuning the tool path helps achieve precise control over the taper’s slope.



2.3 Turning Methods

• Various turning methods, such as constant feed or variable feed, can be employed to create different types of tapers. Selecting the appropriate turning method depends on the specific requirements of the taper being produced.

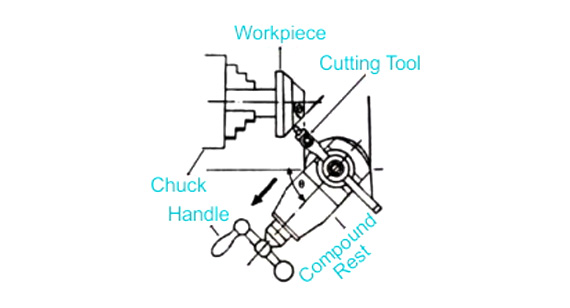

3. Compound Rest Method





Applicability



The compound rest method is ideal for creating tapers on parts that require a combination of taper angles or multi-faceted tapers. It is commonly used in applications where intricate taper shapes are needed.



Limitations



This method requires precise setup and alignment of the compound rest, making it more time-consuming and skill-intensive compared to other methods.



Procedure



3.1 Compound Rest Setup

• Setting up the compound rest involves adjusting it to the desired angle relative to the workpiece. Accurate setup is essential for achieving the correct taper angle and consistency.



3.2 Tool Alignment

• Aligning the cutting tool with the compound rest ensures that the taper is machined accurately. Proper alignment minimizes errors and maintains the desired taper slope.



3.3 Taper Turning



• The actual taper turning process involves guiding the tool along the compound rest’s angle, gradually shaping the workpiece to the desired taper. Continuous monitoring ensures that the taper remains consistent throughout the operation.



3.4 Turning Techniques

• Employing specific turning techniques, such as gradual tool movement and steady feed rates, helps achieve smooth and precise taper transitions. These techniques enhance the overall quality of the tapered part.

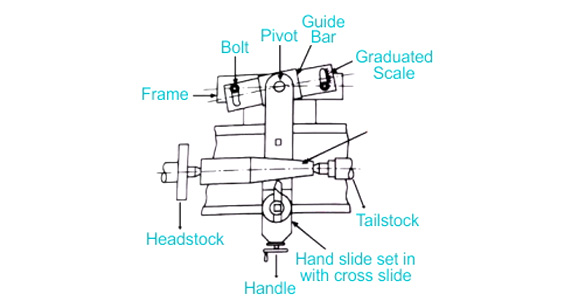

4. Taper Turning Attachment Method





Applicability



The taper turning attachment method is useful for adding taper turning capabilities to existing CNC machines without significant modifications. It is ideal for workshops looking to expand their machining capabilities cost-effectively.



Limitations



This method may have limitations in terms of the range of taper angles and sizes it can produce, depending on the specific attachment used.



Procedure



4.1 Attachment Setup

• Installing the taper turning attachment involves securely mounting it to the CNC machine and calibrating it to the desired taper angle. Proper setup ensures that the attachment functions correctly during machining.



4.2 Workholding

• Securing the workpiece properly is crucial for maintaining accuracy during taper turning. The attachment method allows for various workholding options to accommodate different part sizes and shapes.



4.3 Rotating Guide

• The rotating guide assists in maintaining the correct tool path and taper angle as the workpiece rotates. This guide ensures consistent taper formation throughout the machining process.



4.4 Taper Turning Mastery

• Mastering the use of taper turning attachments involves understanding their capabilities and limitations, as well as practicing precise control over the machining parameters. Experienced machinists can achieve high-quality tapers using this method with the right setup and technique.



5. Tailstock Setup Method



Applicability



The tailstock setup method is particularly useful for creating external tapers on longer workpieces. It is commonly used in applications where stability and precision are paramount, such as in the production of shafts and rods.



Limitations

This method requires careful alignment of the tailstock and may not be suitable for very short or highly intricate tapers.



Procedure



5.1 Alignment Adjustment

• Aligning the tailstock with the headstock ensures that the taper is machined accurately. Precise alignment minimizes errors and maintains the desired taper angle throughout the process.



5.2 Offset Calculation

• Calculating the correct offset distance is essential for achieving the precise taper angle. This calculation involves determining the relationship between the headstock and tailstock positions relative to the workpiece.



5.3 External Taper Turning

• The actual taper turning involves moving the tool gradually away from or towards the tailstock while the workpiece rotates. This controlled movement creates the external taper with the desired slope and dimensions.



5.4 Machinist Tips

• Consistent Speed: Maintain a steady rotational speed to ensure a uniform taper.
• Gradual Feed: Adjust the feed rate gradually to prevent abrupt changes in the taper angle.
• Regular Monitoring: Continuously monitor the taper formation to make real-time adjustments as needed.





Types of Clamped Tapers





Clamped tapers are categorized based on how they retain and release their hold on the workpiece. Understanding the different types of clamped tapers helps in selecting the right one for specific machining applications.



1. Self-Retaining Tapers



Self-retaining tapers are designed to hold themselves in place without the need for additional locking mechanisms. The taper’s angle and fit ensure that once the tool is inserted, it remains securely fixed through friction and the natural gripping force. This type of taper is ideal for applications where quick and reliable tool changes are necessary, providing both stability and ease of use.



2. Self-Releasing Taper



Self-releasing tapers are engineered to release the tool or workpiece easily when the clamping force is removed. This feature is particularly useful in applications where frequent tool changes are required, as it allows for swift and effortless disengagement. The self-releasing mechanism ensures that the taper does not remain locked when not in use, enhancing the flexibility and efficiency of the machining process.







Industries That Use Taper Turning







Taper turning is utilized across a wide range of industries due to its versatility and ability to produce precise, functional components. Each industry leverages taper turning to meet specific operational requirements, enhancing the quality and efficiency of their manufacturing processes.





Aerospace



In the aerospace industry, taper turning is critical for manufacturing high-precision components such as engine parts, landing gear struts, and control surfaces. The stringent quality and safety standards in aerospace require flawless taper turning to ensure that each part performs reliably under extreme conditions. Tapered components contribute to the overall efficiency and performance of aircraft, making taper turning an indispensable process in this field.





Automotive



The automotive industry relies heavily on taper turning for producing essential parts like axles, suspension components, and engine shafts. These parts require exact taper angles to ensure proper fit and function within the vehicle’s mechanical systems. Precise taper turning enhances the durability and performance of automotive components, contributing to the overall reliability and safety of vehicles.





Medical



In the medical field, taper turning is used to create intricate and precise medical devices and instruments. Components such as prosthetic parts, surgical tools, and diagnostic equipment require exact taper angles to ensure proper functionality and compatibility. The high level of precision achieved through taper turning ensures that medical devices meet stringent quality and safety standards, supporting effective and reliable healthcare solutions.





Industrial Equipment



Industrial equipment manufacturing benefits from taper turning by ensuring that heavy machinery components are machined accurately and securely. Tapered parts such as flanges, couplings, and shafts require precise angles to maintain stability and performance under demanding conditions. Accurate taper turning contributes to the overall efficiency and longevity of industrial equipment, making it a crucial process in this industry.





Accuracy and Timeliness



Achieving high accuracy and maintaining timeliness are essential aspects of successful taper turning. Precision in taper turning ensures that each part meets the exact specifications required for its intended application, while timeliness ensures that production schedules are met without delays. CNC turning services prioritize both accuracy and efficiency by utilizing advanced machining technologies and rigorous quality control measures. This combination allows manufacturers to produce high-quality tapered parts consistently and deliver them within the required timeframes, meeting the demands of various industries effectively.







Advantages and Disadvantages of Taper Turning





Like any machining process, taper turning comes with its own set of advantages and disadvantages. Understanding these can help manufacturers make informed decisions about when and how to use taper turning in their operations.



Advantages





Material Selection

Taper turning offers flexibility in material selection, allowing manufacturers to work with a wide range of materials, including metals, plastics, and composites. This versatility enables the production of parts tailored to specific application requirements.





It Is a Precise Process

Taper turning provides high precision, ensuring that tapered parts meet exact specifications. This accuracy is crucial for applications where tight tolerances are required, enhancing the functionality and reliability of the final product.





Interesting Shape Options

The process allows for the creation of various tapered shapes and angles, offering designers and engineers creative freedom in part design. This capability supports the development of innovative and complex components.





Advanced Features

Taper turning can incorporate advanced features such as variable taper angles and multi-faceted tapers, catering to specialized machining needs. These features enhance the adaptability and performance of tapered parts in diverse applications.





Lighter but Stronger

Taper turning can produce parts that are both lightweight and strong, optimizing the balance between durability and weight. This is particularly beneficial in industries like aerospace and automotive, where weight reduction is critical for performance.





Replaces Other Methods

Taper turning can replace multiple other machining methods by providing a single, efficient process to achieve desired taper angles and shapes. This consolidation simplifies manufacturing workflows and reduces the need for additional tooling and processes.





Disadvantages



High Cost

Taper turning can be more expensive than other machining methods due to the specialized equipment and tooling required. The initial investment in CNC machines and taper turning tools can be significant, impacting overall production costs.





Machining Puts a Lot of Wear on the Tool

The process can cause considerable wear on cutting tools, especially when working with hard materials or producing intricate tapers. Frequent tool replacement and maintenance are necessary to maintain precision and efficiency, increasing operational costs.





More Wasteful

Taper turning can generate more material waste compared to other methods, particularly when removing large amounts of material to achieve the desired taper. This waste not only affects material costs but also has environmental implications.





Slower Than Other Machining Methods

Creating precise tapers can be time-consuming, making taper turning slower than some other machining processes. The need for careful tool adjustments and monitoring can extend production times, impacting overall efficiency.





Vibration Can Cause Defects

Vibrations during the taper turning process can lead to defects in the machined parts, such as surface roughness or dimensional inaccuracies. Minimizing vibrations through proper machine setup and maintenance is essential to ensure high-quality results.





Suitable for High Volume Production

Taper turning is best suited for high-volume production runs where the cost and time can be justified by the quantity of parts produced. For low-volume or custom production, the setup and tooling costs may outweigh the benefits.





Limited Taper Angles

The range of taper angles that can be achieved is limited by the machine’s capabilities and the tooling used. Extremely steep or shallow tapers may require specialized equipment or alternative machining methods, limiting the versatility of taper turning.







Applications of Taper Turning





Taper turning is employed in a wide array of applications across various industries, each benefiting from the precision and functionality that tapered components provide. From everyday tools to critical aerospace parts, taper turning plays a pivotal role in manufacturing high-quality products.



Tool Handles



Tool handles often require tapered shapes for comfortable grip and secure attachment to the tool. Taper turning ensures that handles fit perfectly onto tool shanks, providing both ergonomic benefits and mechanical stability during use.





Shafts



Shafts used in machinery and vehicles frequently incorporate tapers to ensure proper fit and alignment with other components. Tapered shafts facilitate smooth power transmission and reduce the risk of misalignment, enhancing the overall performance and reliability of mechanical systems.



Drills and Reamers



Drills and reamers require precise taper angles to maintain accuracy and efficiency during drilling operations. Taper turning ensures that these tools have consistent and accurate tapers, contributing to their effectiveness and longevity in various applications.





Pin and Dowels



Pins and dowels used in assembly and construction often feature tapered ends for easy insertion and secure fitment. Taper turning provides the necessary precision to produce these components, ensuring they perform reliably in their intended applications.





Rudders



In maritime and aerospace applications, rudders require tapered connections to ensure precise control and maneuverability. Taper turning ensures that these critical components fit securely and perform effectively under demanding conditions.





Aircraft Landing Gear Struts, Engine Components, and Control Surfaces



Aerospace components such as landing gear struts, engine parts, and control surfaces demand high precision and reliability. Taper turning ensures that these components are machined accurately, contributing to the safety and performance of aircraft.





Automotive Parts Such as Axles and Suspension Components



Automotive axles and suspension components rely on tapered shapes for optimal performance and durability. Taper turning ensures that these parts fit together seamlessly, providing the necessary strength and flexibility for vehicle operations.





Flanges and Couplings



Flanges and couplings in industrial machinery require precise taper angles to ensure secure connections and efficient power transmission. Taper turning ensures that these components meet the required specifications, enhancing the reliability and performance of the machinery.





Prosthetic Parts



In the medical field, prosthetic parts must fit perfectly to provide comfort and functionality to users. Taper turning ensures that these components are machined with the exact taper angles needed for secure and comfortable fittings, supporting the well-being of individuals relying on prosthetic devices.





Conclusion



Taper turning is a vital machining process that offers precision, versatility, and efficiency in producing high-quality tapered parts across various industries. By understanding the principles, methods, and applications of taper turning, manufacturers can optimize their CNC turning processes to achieve superior results. Whether you’re involved in aerospace, automotive, medical, or industrial equipment manufacturing, mastering taper turning can enhance the quality and performance of your products, ensuring they meet the exacting standards required in today’s competitive market.



For those seeking to leverage the benefits of taper turning in their manufacturing operations, partnering with a reputable CNC turning service can provide the expertise and capabilities needed to produce custom CNC turning parts with exceptional precision and reliability. Embrace the power of taper turning to elevate your machining processes and deliver outstanding results consistently.









FAQs



What Are the Taper Turning Methods on a Lathe?

The main taper turning methods on a lathe include the form tool method, combined feed method, compound rest method, taper turning attachment method, and tailstock setup method. Each method has its own applications, advantages, and limitations, allowing machinists to choose the most suitable technique for their specific taper turning needs.





What Are the Main Advantages of the Taper Turning Process?

The main advantages of taper turning include the ability to create precise and functional tapered parts, versatility in material selection, improved fit and alignment of components, and enhanced performance and reliability of the machined parts. Taper turning also allows for the production of complex shapes and angles, catering to a wide range of applications.





What Is the Principle of Taper Turning?

The principle of taper turning involves creating a gradual slope or angle on a workpiece by adjusting the cutting tool’s position as it moves along the length of the part. This controlled movement ensures that the taper is consistent and accurate, resulting in precise and high-quality tapered components.





What Is the Difference Between Chamfering and Taper Turning?

Chamfering involves creating a beveled edge or a small angled surface on the edge of a workpiece, typically for aesthetic or safety purposes. Taper turning, on the other hand, involves creating a gradual slope or angle along the length of a workpiece, primarily for functional and fitment reasons. While both processes involve angled cuts, taper turning is used for creating precise tapered shapes, whereas chamfering is used for finishing edges.





What Is the Angle Formula for Taper Turning?

The angle formula for taper turning is based on the desired taper slope and the length of the taper. It typically involves calculating the angle using trigonometric functions based on the rise over run (height over length) of the taper. Accurate calculation ensures that the taper angle meets the specific requirements of the application.





What Are Step Turning and Taper Turning?

Step turning involves creating distinct steps or changes in diameter on a workpiece, resulting in multiple parallel sections. Taper turning, in contrast, creates a gradual slope or continuous change in diameter along the length of the workpiece. While step turning produces abrupt transitions, taper turning provides smooth and continuous taper angles.





What Is Taper Cutting?

Taper cutting refers to the process of machining a workpiece to create a tapered shape. It involves removing material gradually to achieve the desired taper angle, ensuring that the tapered part fits accurately and functions as intended within its application.





What Is Taper Turning?

Taper turning is a machining process used to create a gradual slope or angle on a workpiece. This technique ensures that parts fit together seamlessly, providing both aesthetic appeal and functional precision in various applications across multiple industries.





What Tools Are Used for Taper Turning?

Tools used for taper turning include form tools, taper turning attachments, compound rests, and specialized cutting tools designed to create precise taper angles. The choice of tool depends on the specific taper turning method and the requirements of the part being machined.





What Is the Difference Between Cutting and Turning?

Cutting is a general term that refers to the removal of material from a workpiece using a tool. Turning is a specific type of cutting process performed on a lathe, where the workpiece rotates while a stationary cutting tool removes material to create cylindrical or tapered shapes. Turning is a subset of cutting operations focused on shaping rotational parts.





What Is the Difference Between Shifted Tapers and Merged Tapers?

Shifted tapers involve creating a taper that is offset from the center axis of the workpiece, resulting in an asymmetric taper. Merged tapers, on the other hand, combine multiple taper angles or sections into a single, continuous taper. The primary difference lies in the alignment and continuity of the taper angles, with shifted tapers being offset and merged tapers being seamlessly integrated.





What Is the Speed of Chamfer Cutting?

The speed of chamfer cutting varies depending on the material being machined, the tool being used, and the specific requirements of the chamfer. Generally, chamfer cutting speeds are lower than standard cutting speeds to ensure a smooth and precise beveled edge without causing excessive tool wear or material deformation.
