Top 5 Benefits of Using Custom CNC Heat Sinks in Modern Electronics





AI accelerators are pushing past 700W per chip. EV power inverters switch hundreds of amps within a footprint smaller than a shoebox. 5G baseband units pack unprecedented processing power into sealed, fanless enclosures mounted on sun-drenched telecom towers. As modern electronics shrink while thermal loads skyrocket, a massive performance gap has emerged—one that falls squarely on the shoulders of the thermal management system. Standard heat sinks—such as extruded profiles or generic die-cast pieces—were engineered for places that they inevitably hit a performance ceiling. Extrusion restricts design to a constant cross-section while die-casting confines to lower-conductivity alloys.

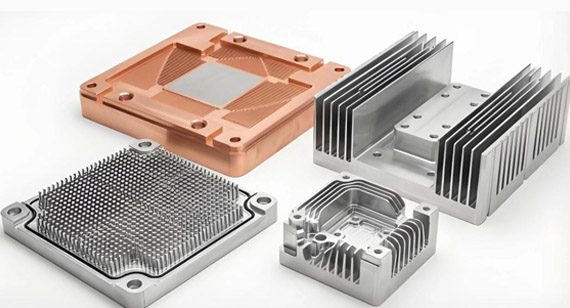

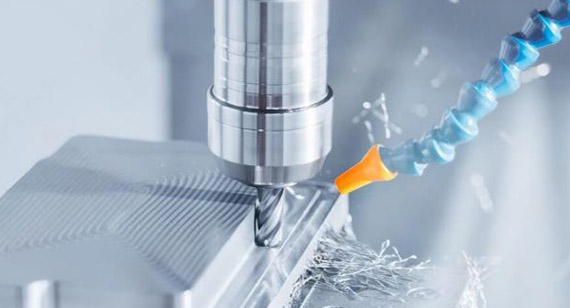

This is where Custom CNC Heat Sinks bridge the gap. By milling,turning, or cutting from solid blocks of wrought aluminum or copper, precision CNC machining delivers intricate fin geometries, integrated mounting features, and optimized surface characteristics that standard casting or extrusion simply cannot replicate. Below are the top five benefits that make CNC the right choice when thermal performance, design integration, or development speed cannot be compromised. And the final part will share a case study of how our factory deal with the machining difficulties of CNC heat sinks.







Benefit 1: Unmatched Design Flexibility and Precision





Unlike traditional extrusion or die-casting—which impose rigid geometric boundaries, precision CNC machining removes these manufacturing constraints, allowing prioritized designs with thermal physics consideration.











Variable Geometry Without High-Cost Tool Change



Traditional extruded heat sinks are locked into a constant cross-section where every fin must share the same height and spacing. This prevents you from concentrating surface area where it matters most.



With custom heat sink design via CNC, you can place fins exactly where thermal loads dictate:



• Localized Density: Position tall, tightly spaced fins directly above the hottest processor die, and wider-spaced fins at the periphery.

• Adaptive Profiling: Vary fin heights dynamically across the part to maximize surface area within tight enclosure clearances.

• Optimized Convection: Taper fin thickness seamlessly from root to tip to balance conduction and convection.




The best part? None of these optimizations require a new mold or a costly tool change; it is simply a matter of updating a CAM parameter.





Thin Fins and Microchannels



While extrusion hits a practical limit at a fin thickness of ~0.5 mm, CNC machining aluminum can comfortably achieve fins as thin as 0.3 mm. Thinner fins allow you to pack more surface area into the exact same footprint.



For liquid-cooled applications, CNC machines can mill precise microchannel arrays down to 0.3 mm wide. This maximizes the surface-area-to-volume ratio to accelerate heat transfer into the coolant—a feat that standard casting or extrusion cannot replicate without fragile, complex setups.







Flatness Where It Counts



To minimize thermal resistance, a heat sink's mounting face must make intimate, uniform contact with the component. CNC machining achieves an exceptional mounting face flatness of 0.01–0.02 mm within the exact same setup used to cut the fins. By skipping the need for secondary post-machining operations common in cast or extruded parts, CNC prevents tolerance stack-ups and slashes production steps.







Benefit 2: Maximum Thermal Efficiency Through One-Piece Construction





Mechanical joints always reduce heat transfer efficiency. Every bolted, bonded, or press-fit interface between two parts introduces contact resistance—microscopic air gaps that restrict heat flow.





One-Piece Design Avoids Interface Thermal Resistance



A CNC heat sink is machined from a single piece of metal. The fins, base plate, and mounting bosses are all the same continuous material.



• No Joint Barriers: Unlike bonded or soldered-fin assemblies, a solid CNC heat sink has no mechanical joint between the fin array and the base. For a 100 W heat load, avoiding this joint interface can prevent a 5–20 °C spike in component temperature caused by contact resistance.

• No Tolerance Accumulation: All features are machined in just one or two setups from the same reference point. This avoids the cumulative alignment errors common in parts that require separate drilling, tapping, or secondary assembly steps.





Integrated Enclosures Optimize the Space and Structural Design





For sealed electronics with no internal airflow—such as outdoor wireless nodes, EV battery management units, or industrial IoT gateways—the enclosure itself must dissipate the heat.

A CNC-machined aluminum housing with integrated external fins conducts heat directly from internal components to the outside air. The thermal path is completely direct:



Component → TIM → Housing Wall → Fins → Ambient Air



By combining the housing and heat sink into a single part, CNC machining reduces the total number of structural components and saves valuable space inside tight enclosures.

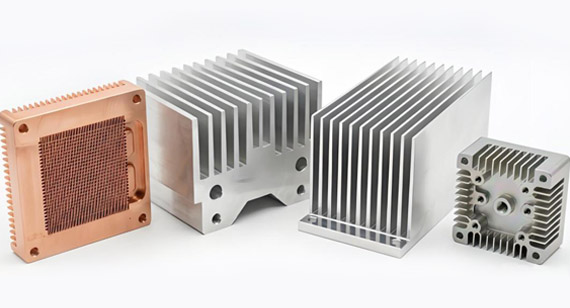

Benefit 3: Superior Material Selection and Surface Finishes







CNC machining is suitable for all kinds of materials.It lets you select the exact alloy required for your thermal and environmental conditions, without forcing compromises due to manufacturing limitations. Additionally, a wide range of surface treatment options allows you to optimize specific functions, such as radiation efficiency or harsh environmental resistance.





Choosing the Appropriate Alloy











Choose the Appropriate Surface Finishes















Benefit 4: Rapid Prototyping and Low-Volume Flexibility





Traditional heat sink manufacturing requires a significant upfront investment in time and money. A custom extrusion die for a specific fin profile costs $2,000 to $5,000 and takes 2 to 4 weeks. Die-casting molds for complex housings escalate to $10,000 to $50,000. In both cases, your heat sink design is locked before you can physically test its cooling performance.



CNC machining requires no molds or dies. The same program used to cut a single prototype heat sink can immediately produce your first 100 production units. If you need to optimize the design, you simply update the 3D model and regenerate the toolpath—a matter of days, not weeks.





Adjust Fin Geometries in Rapid Prototyping



In thermal management, a minor design tweak can make or break performance. If real-world testing shows you need to increase fin height by 3 mm for better natural convection, or tighten the fin pitch by 0.5 mm to increase the surface area:



• With extruded heat sinks: You are forced to pay for an entirely new die and wait weeks for replacement parts.
• With CNC heat sinks: The machinist simply updates a software parameter, and a modified heat sink with the new fin configuration is ready in days.



This flexibility allows to test aggressive thermal designs—like ultra-thin fins or tightly packed arrays—measure the actual temperature drops, and fine-tune the geometry. The only risk is a few days of machine time, not thousands of dollars in wasted tooling.







Risk-Free Transition to Production Batches



When you look at the total real cost—including the price of molds, the secondary machining needed to flatten extruded mounting bases, and the risk of defective parts—CNC heat sinks are highly cost-competitive for volumes up to several thousand units.



While extrusion or die-casting eventually becomes cheaper per piece for tens of thousands of units, using CNC machining for your initial prototypes and early production batches ensures your thermal design is 100% validated. You can confidently invest in expensive production tooling knowing that the heat sink’s fin density, thickness, and base flateness have already been proven to work.







Benefit 5: Tailored for Next-Generation Thermal Demands









As power densities across frontier industries outpace the limits of standard cooling, off-the-shelf components have become the primary thermal bottleneck. CNC-machined heat sinks solve these extreme thermal challenges by delivering tailored geometries and material properties that traditional extrusion or casting cannot achieve.





1. AI Hardware and Data Centers



• The Thermal Challenge: Modern GPU and AI accelerator chips now exceed 700W to 1,000W, pushing air cooling to its physical limits and forcing a transition to direct-to-chip liquid cooling.

• The CNC Solution: CNC-machined copper cold plates feature milled microchannel arrays (0.3–0.5 mm wide) that maximize fluid contact area. The single-piece copper construction avoids the joint resistance that typically limits heat transfer at the chip-to-coolant interface. For edge AI hardware, CNC enclosures integrate the cooling fins directly into the chassis, mapping fin density specifically to internal hotspots.





2. Electric Vehicles and New Energy



• The Thermal Challenge: EV inverters and onboard chargers switch massive currents within sealed, space-constrained modules. High-power SiC MOSFETs generate concentrated heat that must be removed instantly without adding bulk.
• The CNC Solution: CNC-machined copper baseplates incorporate integrated pin-fin arrays that sit directly inside liquid-cooled channels, providing the ultra-low thermal resistance required by SiC devices. At the battery pack level, CNC aluminum cold plates can be sculpted with non-uniform profiles to fit precisely between cells, maintaining uniform temperatures across the entire pack.





3. 5G Telecom Infrastructure



• The Thermal Challenge: Tower-mounted 5G Remote Radio Units (RRUs) must operate completely fanless under direct sunlight. Inside, high-power amplifier transistors require an immediate path to dissipate heat through a fully sealed housing.
• The CNC Solution: CNC machining turns the entire structural housing into the heat sink. By milling high-density external cooling fins directly onto the heavy aluminum enclosure, heat is conducted straight from the internal transistors to the outside ambient air. At a smaller scale, CNC micro-housings provide integrated cooling for optical transceivers where separate heat sinks cannot fit.





4. Aerospace and Medical Equipment



• The Thermal Challenge: Satellite avionics operate in a vacuum where convection is non-existent, relying entirely on conduction. Meanwhile, medical CT scanners generate intense, pulsed heat loads that must be dissipated without interfering with sensitive imaging components.

• The CNC Solution: For aerospace, CNC aluminum chassis are machined with integrated thermal bosses that conduct heat from each PCB directly to the spacecraft’s primary structure. For medical imaging, CNC copper cold plates and thermal straps provide high thermal mass and rapid conduction to stabilize detector temperatures during rapid scan cycles.





5. Defense and Military Electronics



• The Thermal Challenge: Phased-array radars pack hundreds of GaN power amplifiers into a single antenna face. Each channel requires its own precise thermal path, demanding height tolerances that standard manufacturing cannot achieve.

• The CNC Solution: CNC copper heat spreaders are milled with individual pedestals for each amplifier channel. This ensures perfect coplanarity and holds tolerances that extrusion cannot replicate, ensuring every single amplifier maintains a direct, uniform connection to the cooling plane.



6. Industrial Automation and Robotics



• The Thermal Challenge: Robotic joint controllers and servo drives combine high-current IGBTs inside sealed, dust-proof enclosures (IP65/IP67) that completely block internal airflow.

• The CNC Solution: CNC aluminum housings feature internal, component-specific mounting pads and external cooling fins. This allows heat from the semiconductors to pass directly through the housing wall to the ambient environment, eliminating the need for cooling fans, vents, or filter maintenance.







VMT CNC Machining Factory Case Study: Machining a Copper Microchannel Cold Plate





When a server thermal solutions company approached VMT with a copper liquid cooling cold plate design for a next-generation GPU accelerator, the requirements pushed three machining limits simultaneously: 0.3 mm microchannel width in C11000 oxygen-free copper, mounting face flatness of 0.01 mm across a 120 × 80 mm contact area, and a sealed-channel leak rate below 1 × 10⁻⁹ Pa·m³/s under helium testing.



The customer's previous supplier had attempted the part and delivered two results: channels with torn edges from built-up edge on the tool, and a 40% scrap rate that made the program uneconomical beyond prototypes.



The machining difficulty. Copper C11000 is thermally ideal — 400 W/m·K — and mechanically punishing. Its high ductility causes the chip to weld to the cutting edge (built-up edge), degrading surface finish and channel dimensional accuracy within the first few parts. Microchannels amplify the problem: a 0.3 mm end mill has minimal rigidity, and any tool wear or built-up edge immediately deflects the cutter, producing tapered or wandering channels. Copper's high thermal expansion coefficient adds a second challenge — the heat of cutting itself distorts the part, and when the part cools, the channels are no longer where the CNC thought it put them.





VMT's approach. Four decisions resolved the problem:



• Tooling: Standard uncoated carbide was replaced with a diamond-like carbon (DLC) coated micro end mill. The DLC coating's low coefficient of friction against copper prevented chip adhesion, eliminating the built-up edge that caused torn channel walls. Tool diameter was stepped — roughing at 0.5 mm, finishing at 0.3 mm — so the finish pass removed only 0.05 mm per side, minimizing cutting force and deflection.

• Cutting parameters: Spindle speed was pushed to 30,000 RPM while feed per tooth was held at 0.008 mm. The combination of high surface speed and minimal chip load kept shear localized in the chip rather than transferred into the workpiece — reducing cutting-induced stress that would later relax and warp the part.

• Multi-stage stress relief: Between roughing and finishing, the part underwent thermal stress relief at 200 °C for 2 hours, then cooled to ambient before the finish pass. This stabilized the copper's residual stress state, so the finish-machined channels held position within tolerance after unclamping.

• Flatness through sequence control: The mounting face was finish-machined last, after all channel and cavity features were complete. This prevented the sequential material removal from gradually releasing stress into the mounting plane. Final flatness was verified on a CMM with the part in free state (unclamped), confirming 0.008 mm across the 120 × 80 mm surface.



Result: First article passed helium leak testing. Production run of 500 units completed at a 97.4% first-pass yield. The customer eliminated a post-machining lapping step from their process — the as-machined flatness met the sealing specification without secondary finishing.







Final Thought





As power densities continue to skyrocket across AI, electric vehicles, and aerospace, the margin for thermal error has shrunk to zero. Choosing the right heat sink is  about better managing temperatures and securing product reliability. CNC machining the custom heat sinks de-risks the development cycle by offering zero-tooling flexibility during early phases, while providing unmatched thermal efficiency in production. If you are looking for reliable CNC heat sink manufacturers, VMT CNC machining factory provides custom CNC machined heat sinks in aluminum, copper, and specialty alloys for electronics thermal management. And microchannel capability down to 0.3 mm, surface finishing coordination, and DFM support from prototype through production. Welcome to submit your heat sink design for a DFM review.











FAQs





What is the typical lead time for a custom CNC heat sink?



Prototypes can usually be programmed, machined, and finished within 3 to 7 days, depending on the complexity of the fin geometry. Compared to the 2-to-6-week waiting period for custom extrusion dies or casting molds, CNC gets parts onto your test bench significantly faster.





What dimensional tolerances can CNC machining hold on fin arrays?



CNC milling routinely holds tolerances of ±0.05 mm on fin thickness and spacing, and down to ±0.02 mm on the flatness of the component mounting face. This precision is an order of magnitude tighter than standard extrusion, ensuring perfect contact with your thermal interface material (TIM).





Can features be machined on both sides of the heat sink base plate?



Yes. Unlike extrusion, which is strictly limited to a constant cross-section, CNC allows for multi-axis or secondary setups. You can machine thin cooling fins on the top side, and flip the part over to mill intricate pockets, step-downs, or specialized mounting pedestals on the bottom face to match complex PCB layouts.





How can I optimize a CNC heat sink design to reduce machining costs?



• Increase corner radii: Use slightly larger radii at the bottom root of the fins so machinists can use larger, faster-cutting end mills.

• Avoid extreme aspect ratios: Keep the fin height-to-gap ratio below 10:1 where possible to avoid slow, specialized cutting passes.

• Standardize threads: Use standard metric thread sizes (like M3 or M4) for mounting holes to utilize off-the-shelf tapping tools.





How does CNC machining handle weight reduction for aerospace or portable hardware?



CNC milling excels at "pocketing"—removing non-structural metal from the base plate or frame where heat flux is low. By thinning the areas that do not directly participate in heat conduction, it can shave up to 30–40% off the total weight without sacrificing thermal performance.





Is a CNC heat sink suitable for high-vibration or rugged environments?



Absolutely. Because the heat sink is milled out of a single, continuous block of wrought alloy (like 6061-T6), it has no mechanical joints, pins, or glue layers that could loosen, crack, or fail under severe mechanical shock or continuous vibration. This makes it the default choice for military, automotive, and industrial hardware.
